APC Easy UPS On-Line SRV - 1000VA Rackmount 4U, Extended Runtime

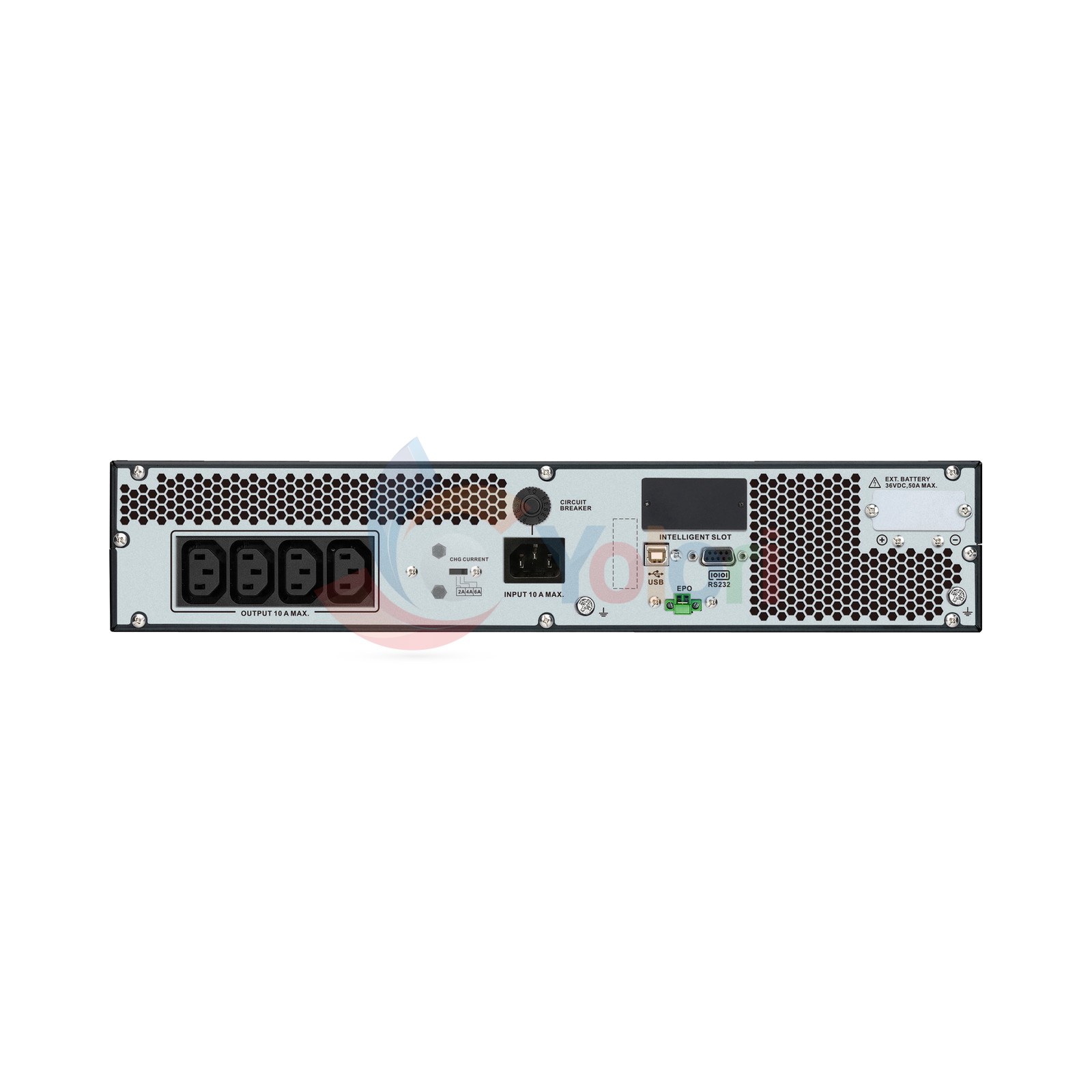

APC Easy UPS On-Line SRV adalah UPS on-line berkapasitas 1000 VA (900 W) dengan bentuk Rackmount 4U, gelombang keluaran Sine wave serta stopkontak keluaran 4 IEC 60320 C13.
Dijual oleh
Yolori Mall
APC Easy UPS On-Line SRV adalah UPS on-line berkapasitas 1000 VA dengan daya keluaran 900 W. Bentuk gelombang keluarannya Sine wave. Tegangan keluarannya 230 V AC 1 phase dengan frekuensi 50/60 Hz +/- 3 Hz sync to mains. Rentang tegangan masuknya 105…300 V 40% load dan 180...285 V full load. Daya masuk lewat IEC 60320 C14, sedangkan beban disambungkan ke 4 IEC 60320 C13. Baterainya Lead-acid external included dengan tegangan 36 V. Pengisian ulang baterainya memakan waktu sekitar 4.5 h. Panel kendalinya berupa Multifunction LCD status and control console. Port komunikasinya meliputi Serial port, USB port dan Available expansion slot. Bentuknya Rackmount 4U dengan dimensi 412 × 438 × 172 mm dan berat 27.1 kg. APC Indonesia memberikan garansi resmi selama 24 bulan untuk produk ini.
Garansi
- Warranty Months
- 24
- Warranty Type
- APC Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Form Factor
- Rackmount 4U
- I/O Port
- • Serial port • USB port • Available expansion slot
- Output Power
- 900 W
- Connector Type
- IEC 60320 C14
- UPS Topology
- On-Line
- VA Capacity
- 1000
- Outlet Count
- 4 IEC 60320 C13
- Charging Time
- 4.5 h
- Indicator Display
- Multifunction LCD status and control console
- Output Voltage
- Output voltage:230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains
- Waveform
- Sine wave
- Input Voltage Range
- • 105…300 V 40% load • 180...285 V full load
- Battery

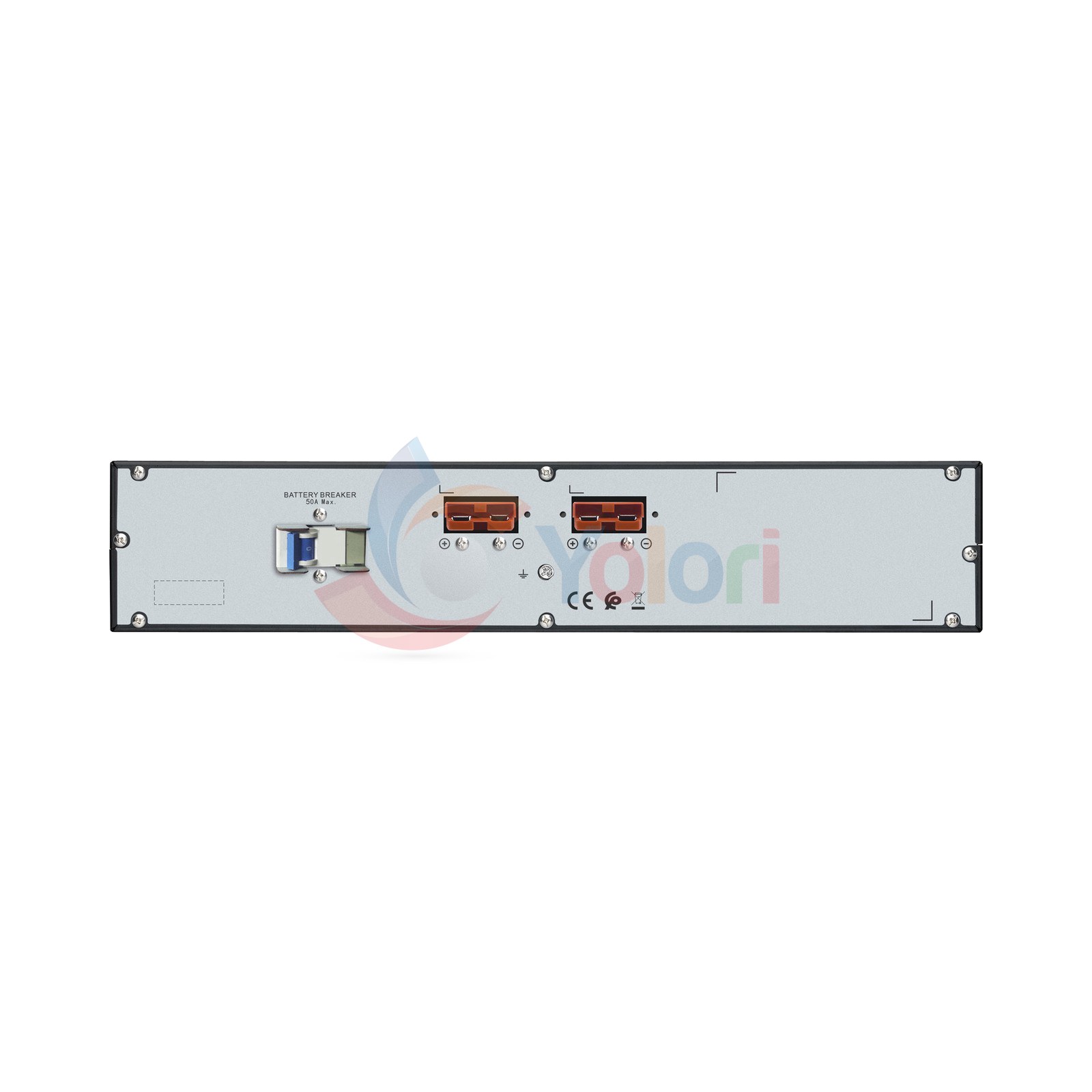

- Battery type:Lead-acid external included Battery voltage:36 V
- Dimensions
- 412 × 438 × 172 mm
- Weight
- 27.1 kg
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatAPCAPC Easy UPS On-Line SRV - 1000VA Rackmount 4U, Extended Runtime |  APCAPC Easy UPS Line Interactive SMV - 3kVA Tower |  APCAPC Smart-UPS Line Interactive SMX - 1000VA Rack/tower convertible 2U |  OnesiaOnesia Online UPS Exousia XR-120T (2 kVA, 1P/1P) | |
|---|---|---|---|---|
| Harga | Rp 12.549.000 | Rp 12.239.000 | Rp 13.019.000 | Rp 13.120.000 |
| Garansi | ||||
| Warranty Months | 24 | 24 | 24 | 12 |
| Warranty Type | APC Indonesia Official Warranty | APC Indonesia Official Warranty | APC Indonesia Official Warranty | • Garansi Resmi Onesia • 1 Tahun |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Form Factor | Rackmount 4U | Tower | Rack/tower convertible 2U | — |
| I/O Port | • Serial port • USB port • Available expansion slot | • Serial port • USB port | • Serial port • USB port • Available expansion slot | — |
| Output Power | 900 W | 2100 W | 800 W | — |
| Connector Type | IEC 60320 C14 | IEC 60320 C20 | IEC 60320 C14 | — |
| UPS Topology | On-Line | Line interactive | Line interactive | Online double conversion |
| VA Capacity | 1000 | 3000 | 1000 | 2 kVA |
| Outlet Count | 4 IEC 60320 C13 | 6 universal | • 8 IEC 60320 C13 • 2 IEC Jumpers | — |
| Charging Time | 4.5 h | 4 h | 3 h | — |
| Indicator Display | Multifunction LCD status and control console | — | Multifunction LCD status and control console | — |
| Output Voltage | Output voltage:230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains | Output voltage:230 V AC 1 phase Output frequency:50/60 Hz +/- 1 Hz unsynchronised | Output voltage:230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains | — |
| Waveform | Sine wave | Sine wave | Sine wave | — |
| Input Voltage Range | • 105…300 V 40% load • 180...285 V full load | 165...295 V | • 151...302 V adjustable • 160...286 V | — |
| Battery | Battery type:Lead-acid external included Battery voltage:36 V | Battery type:Lead-acid internal included Battery voltage:48 V Replacement battery:APCRBCV209 | Battery type:Lead-acid internal included Replacement battery:APCRBC116 | — |
| Features | — | — | — | • Konfigurasi masukan dan keluaran 1P/1P • Bentuk rackmount, dapat dipasang pada rak server standar |
| Dimensions | 412 × 438 × 172 mm | 455 × 180 × 240 mm | 490 × 432 × 89 mm | — |
| Weight | 27.1 kg | 25.2 kg | 22.86 kg | — |
| In The Box | — | • Documentation CD • User manual • USB cable | • CD with software • Documentation CD • Installation guide • Rack mounting brackets • Removable support feet • Smart UPS signalling RS-232 cable • USB cable | — |
