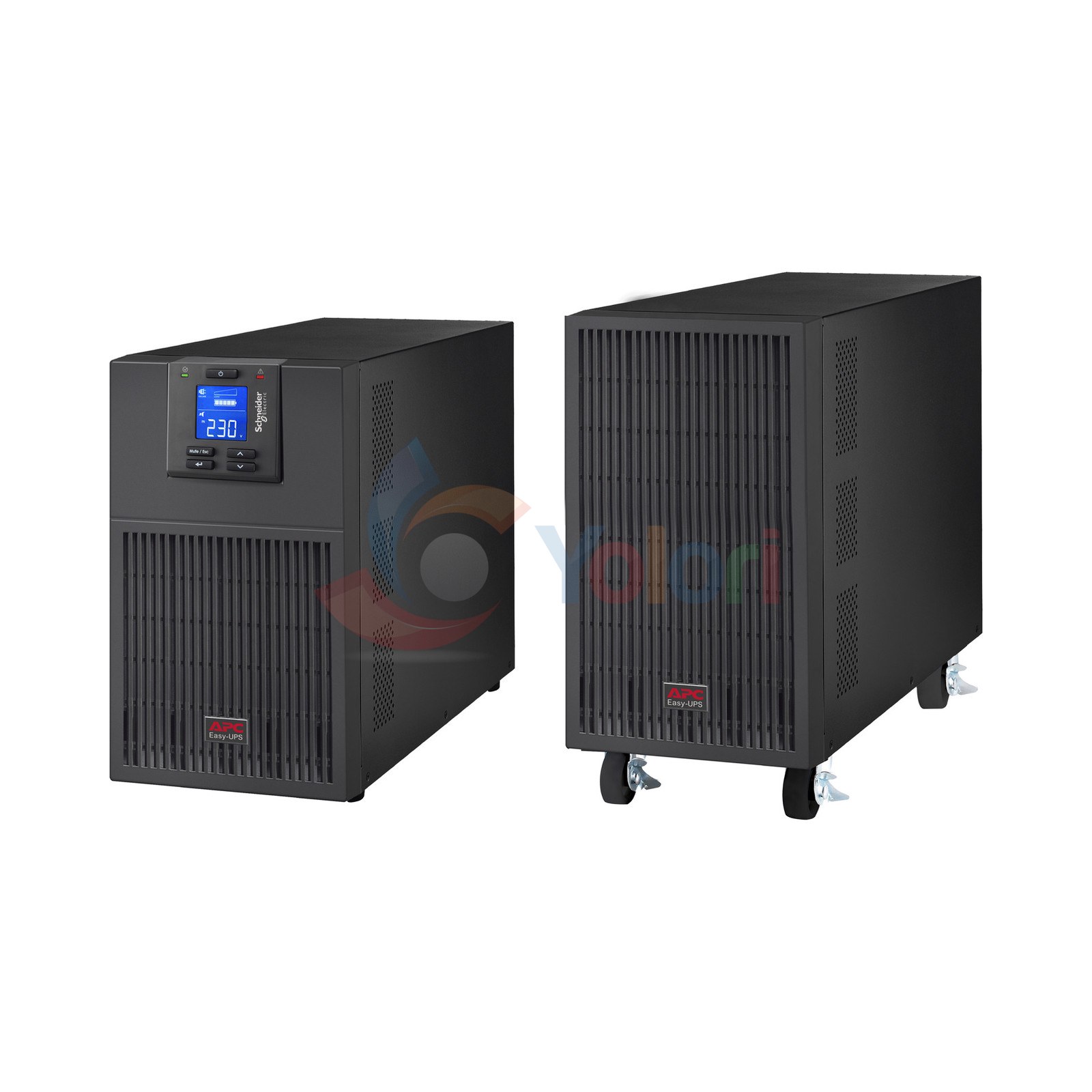

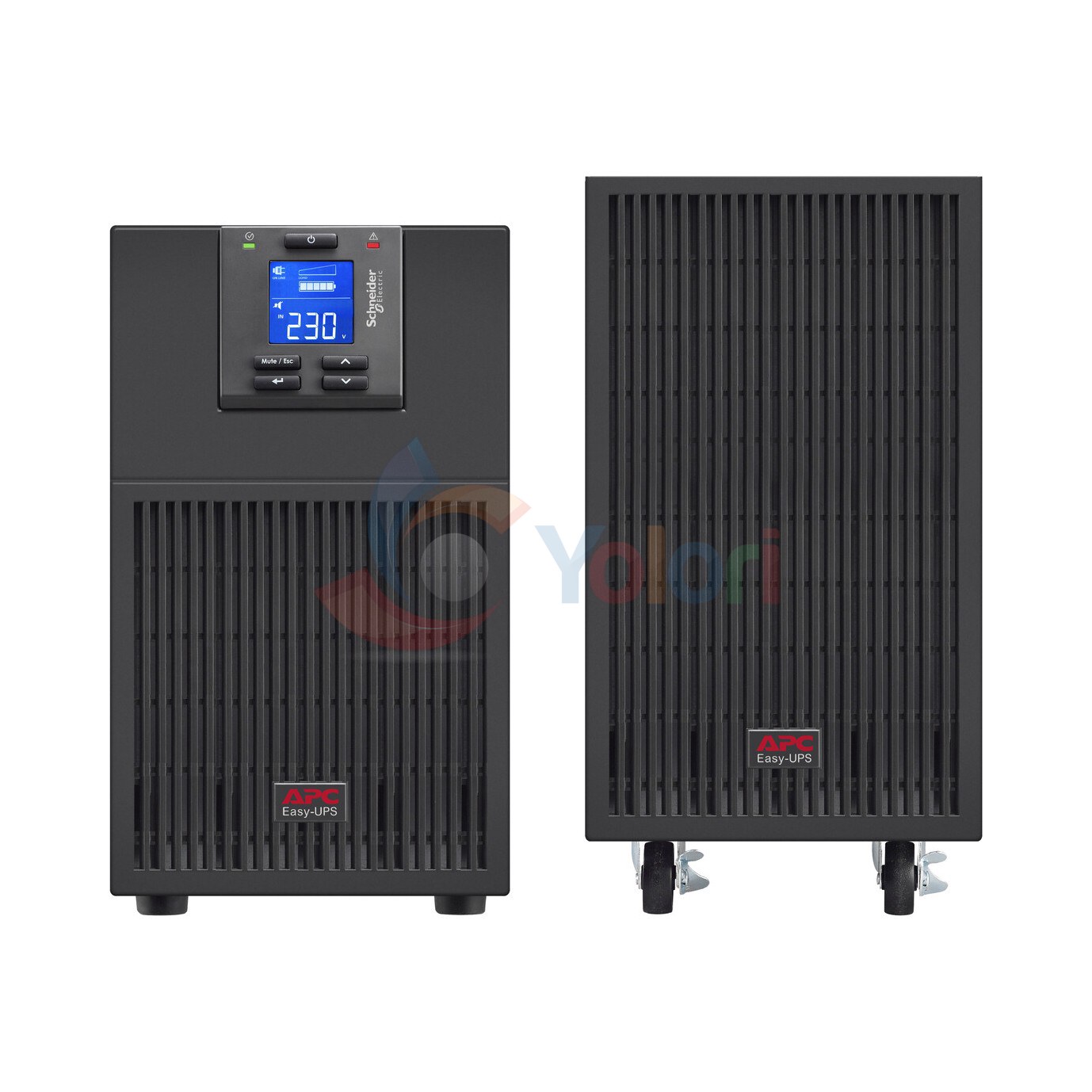

APC Easy UPS On-Line SRV - 6kVA Tower, Extended Runtime
APC Easy UPS On-Line SRV adalah UPS on-line berkapasitas 6000 VA (6000 W) dengan bentuk Tower, gelombang keluaran Sine wave serta stopkontak keluaran Hard wire 3-wire (1P + N + E) for 1 zone(s).
Dijual oleh
Yolori Mall
APC Easy UPS On-Line SRV adalah UPS on-line berkapasitas 6000 VA dengan daya keluaran 6000 W. Bentuk gelombang keluarannya Sine wave. Tegangan keluarannya 230 V AC 1 phase dengan frekuensi 50/60 Hz +/- 3 Hz sync to mains. Rentang tegangan masuknya 110...300 V 60 % load dan 176...300 V full load. Daya masuk lewat 1 hard wire 3-wire (1P + N + E), sedangkan beban disambungkan ke Hard wire 3-wire (1P + N + E) for 1 zone(s). Baterainya Lead-acid external included dengan tegangan 240 V. Pengisian ulang baterainya memakan waktu sekitar 5 h. Panel kendalinya berupa Multifunction LCD status and control console. Port komunikasinya meliputi Serial port, USB port dan Available expansion slot. Bentuknya Tower dengan dimensi 485 × 380 × 368 mm dan berat 73 kg. APC Indonesia memberikan garansi resmi selama 24 bulan untuk produk ini.
Garansi
- Warranty Months
- 24
- Warranty Type
- APC Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Form Factor
- Tower
- I/O Port
- • Serial port • USB port • Available expansion slot
- Output Power
- 6000 W
- Connector Type
- 1 hard wire 3-wire (1P + N + E)
- UPS Topology
- On-Line
- VA Capacity
- 6000
- Outlet Count
- Hard wire 3-wire (1P + N + E) for 1 zone(s)
- Charging Time
- 5 h
- Indicator Display
- Multifunction LCD status and control console
- Output Voltage
- Output voltage:230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains
- Waveform
- Sine wave
- Input Voltage Range
- • 110...300 V 60 % load • 176...300 V full load
- Battery
- Battery type:Lead-acid external included Battery voltage:240 V
- Dimensions
- 485 × 380 × 368 mm
- Weight
- 73 kg
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.

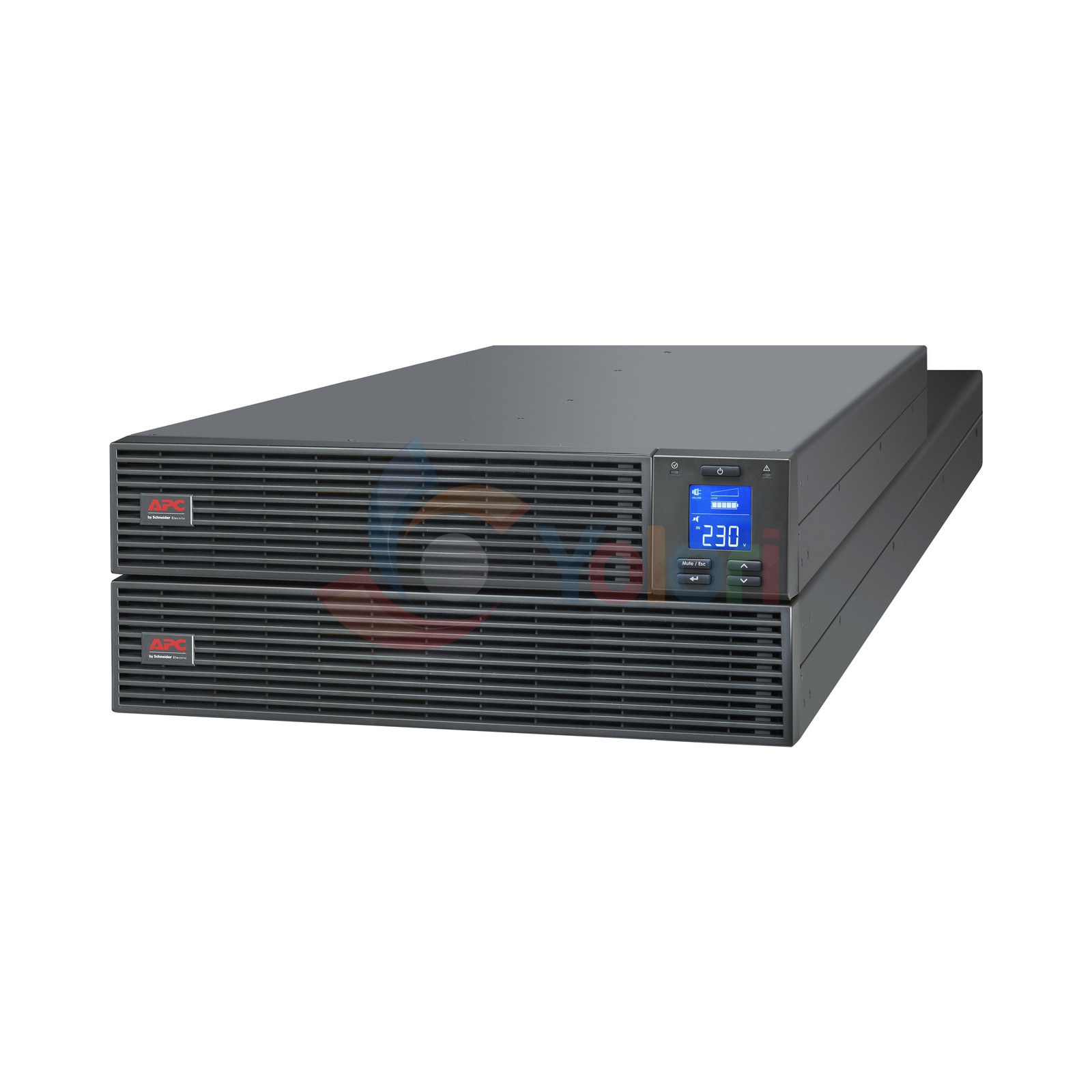

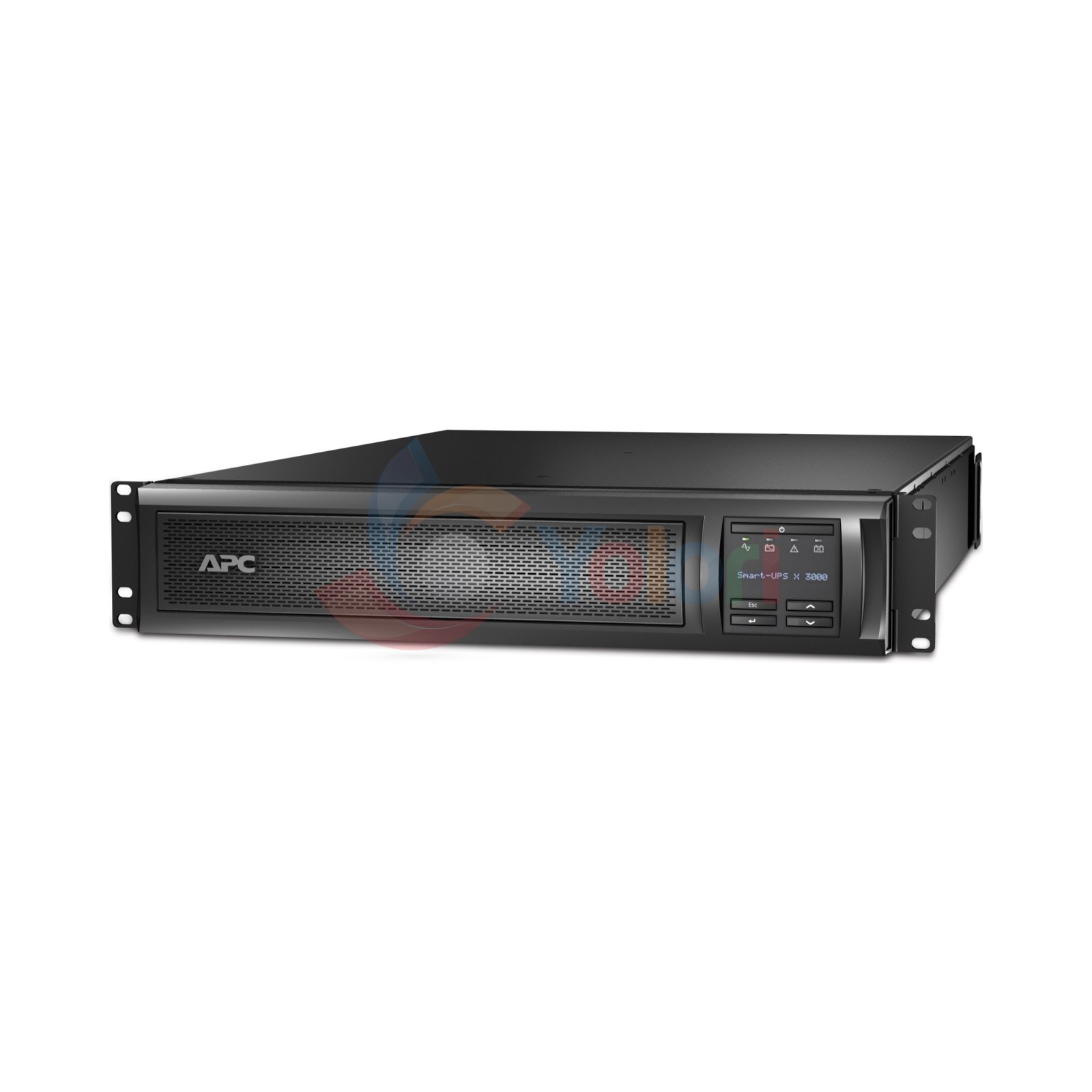

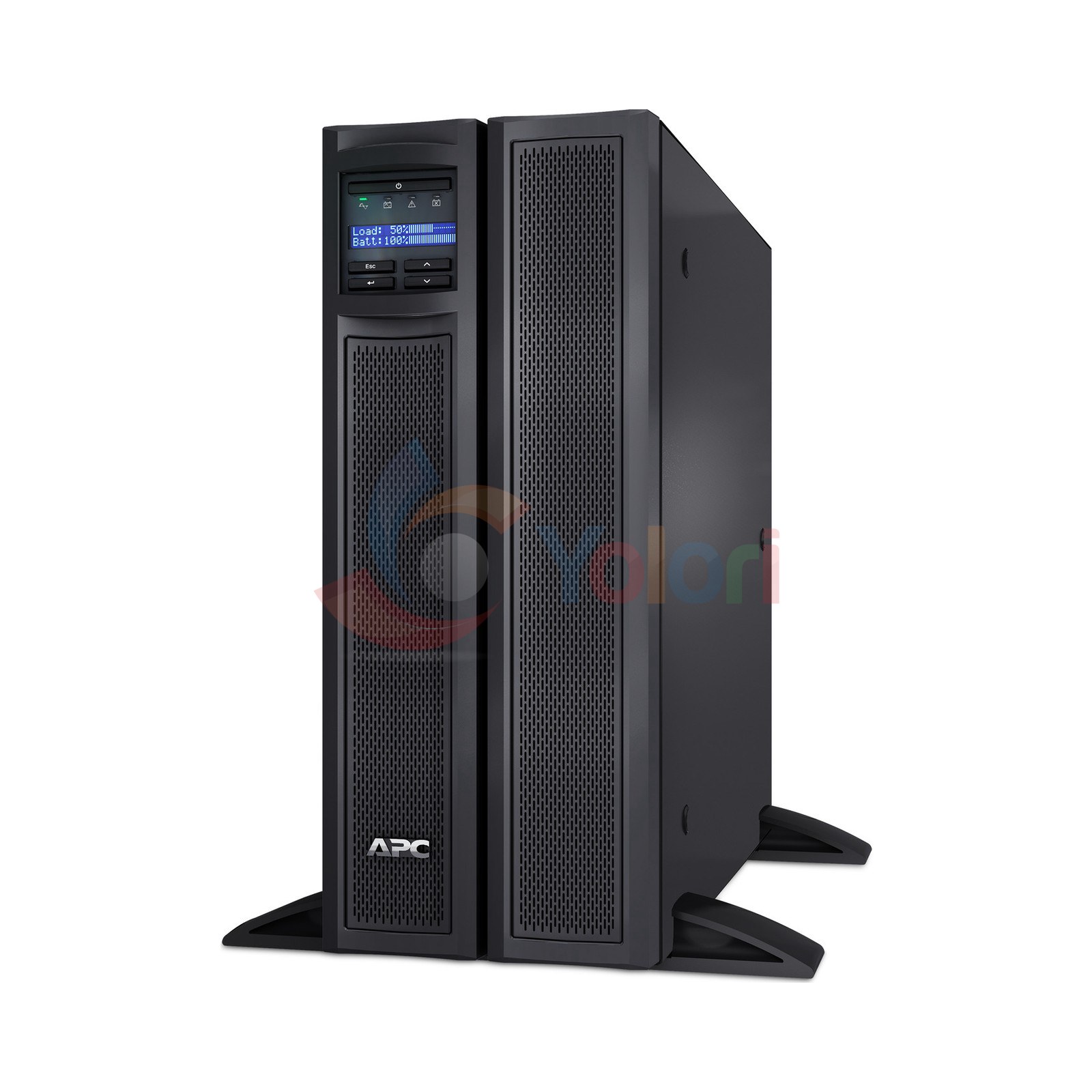

| Sedang dilihatAPCAPC Easy UPS On-Line SRV - 6kVA Tower, Extended Runtime |  APCAPC Smart-UPS Line Interactive SMX - 3kVA Rack/tower convertible 2U, Network Card |  APCAPC Easy UPS On-Line SRV - 6kVA Rackmount 4U |  APCAPC Smart-UPS Line Interactive SMX - 2200VA Rack/tower convertible 4U, Network Card, Short Depth | |
|---|---|---|---|---|
| Harga | Rp 38.649.000 | Rp 37.329.000 | Rp 37.139.000 | Rp 40.549.000 |
| Garansi | ||||
| Warranty Months | 24 | 24 | 24 | 24 |
| Warranty Type | APC Indonesia Official Warranty | APC Indonesia Official Warranty | APC Indonesia Official Warranty | APC Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Form Factor | Tower | Rack/tower convertible 2U | Rackmount 4U | Rack/tower convertible 4U |
| I/O Port | • Serial port • USB port • Available expansion slot | • Serial port • USB port • Pre-installed network management card 3 | • Serial port • USB port • Available expansion slot | • Serial port • USB port • Pre-installed network management card 3 |
| Output Power | 6000 W | 2700 W | 6000 W | 1980 W |
| Connector Type | 1 hard wire 3-wire (1P + N + E) | • BS 1363 British • IEC 60320 C20 • CEE 7/7 | 1 hard wire 3-wire (1P + N + E) | • BS 1363 British • IEC 60320 C20 • CEE 7/7 |
| UPS Topology | On-Line | Line interactive | On-Line | Line interactive |
| VA Capacity | 6000 | 3000 | 6000 | 2200 |
| Outlet Count | Hard wire 3-wire (1P + N + E) for 1 zone(s) | • 8 IEC 60320 C13 • 2 IEC Jumpers • 1 IEC 60320 C19 | Hard wire 3-wire (1P + N + E) for 1 zone(s) | • 8 IEC 60320 C13 • 2 IEC Jumpers • 2 IEC 60320 C19 |
| Charging Time | 5 h | 3 h | 4 h | 3 h |
| Indicator Display | Multifunction LCD status and control console | Multifunction LCD status and control console | Multifunction LCD status and control console | Multifunction LCD status and control console |
| Output Voltage | Output voltage:230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains | Output voltage: • 208 V AC 1 phase • 230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains | Output voltage:230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains | Output voltage: • 208 V AC 1 phase • 230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains |
| Waveform | Sine wave | Sine wave | Sine wave | Sine wave |
| Input Voltage Range | • 110...300 V 60 % load • 176...300 V full load | 140...280 V | • 110...300 V 60 % load • 176...300 V full load | 140...280 V |
| Battery | Battery type:Lead-acid external included Battery voltage:240 V | Battery type:Lead-acid internal included Replacement battery:APCRBC117 | Battery type:Lead-acid external included Battery voltage:192 V | Battery type:Lead-acid internal included Replacement battery:APCRBC143 |
| Dimensions | 485 × 380 × 368 mm | 667 × 432 × 85 mm | 710 × 438 × 173 mm | 483 × 178 × 432 mm |
| Weight | 73 kg | 37.32 kg | 61 kg | 38.56 kg |
| In The Box | — | • CD with software • Rack mounting support rails • Smart UPS signalling RS-232 cable • Temperature probe • User manual • Web/SNMP management card | — | • CD with software • Documentation CD • Installation guide • Rack mounting support rails • Smart UPS signalling RS-232 cable • Temperature probe • USB cable • Web/SNMP management card |
