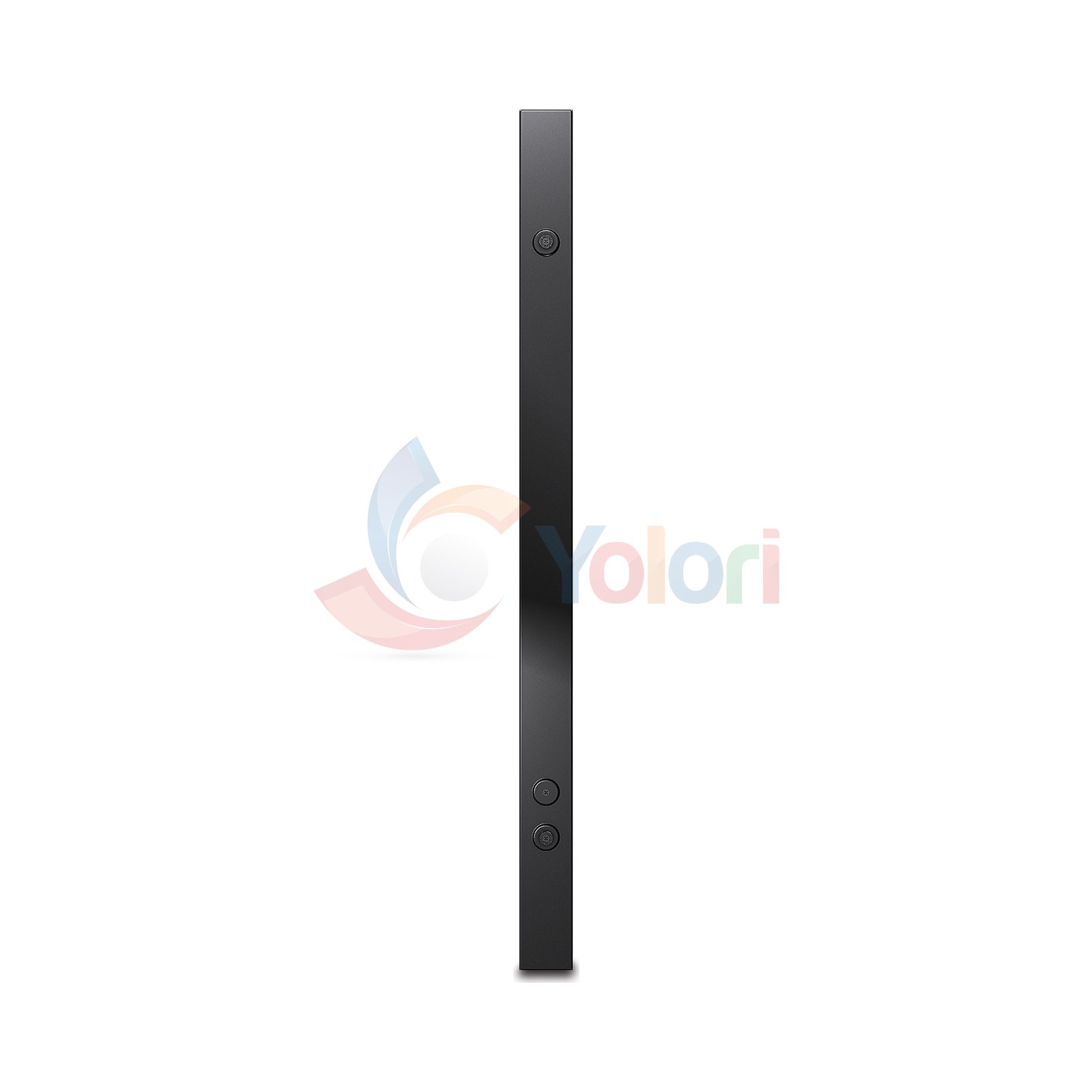

APC NetShelter Metered Rack PDU AP8858 - 0U, 16A, 18 C13, 2 C19
APC NetShelter Metered Rack PDU AP8858 adalah PDU metered dengan kapasitas beban 3300 VA, stopkontak 18 IEC 60320 C13 dan 2 IEC 60320 C19 serta bentuk 0U Vertical.
Dijual oleh
Yolori Mall
APC NetShelter Metered Rack PDU AP8858 adalah PDU metered berkapasitas beban 3300 VA. Daya masuk lewat IEC 60320 C20. Sisi masuknya: Main Input Voltage 200 V, 208 V dan 230 V; Input current limits 20 A; Network frequency 50/60 Hz. Tegangan keluarannya 100 V, 200 V, 208 V dan 230 V. Arus nominalnya 16 A. Jumlah fasenya 1 phase. Stopkontak yang tersedia: 18 IEC 60320 C13 dan 2 IEC 60320 C19. Jenis proteksinya Without circuit breaker. Pemasangannya: Mounting mode Rack-mounted; Mounting location Side. Bentuknya 0U Vertical dengan dimensi 44 × 56 × 902 mm dan berat 2.93 kg. Suhu operasinya -5…60 °C. Sertifikasinya: Product certifications METI Denan dan VDE; Standards CSA C22.2 No 60950, IEC 60950 dan UL 60950-1. Dalam kemasan disertakan Installation guide, Rack mounting brackets, Serial configuration cable dan Safety guide. APC Indonesia memberikan garansi resmi selama 24 bulan untuk produk ini.
Garansi
- Warranty Months
- 24
- Warranty Type
- APC Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Form Factor
- 0U Vertical
- Mounting Type
- Mounting mode:Rack-mounted Mounting location:Side
- Management
- Metered
- Input Power
- Main Input Voltage: • 200 V • 208 V • 230 V Input current limits:20 A Network frequency:50/60 Hz
- Voltage
- • 100 V • 200 V • 208 V • 230 V
- Current
- 16 A
- Connector Type
- IEC 60320 C20
- VA Capacity
- 3300
- Outlet Count
- • 18 IEC 60320 C13 • 2 IEC 60320 C19
- Operating Temperature
- -5…60 °C
- Protection and Safety
- Without circuit breaker
- Certification
- Product certifications: • METI Denan • VDE Standards: • CSA C22.2 No 60950 • IEC 60950 • UL 60950-1
- Phase Count
- 1 phase
- Dimensions
- 44 × 56 × 902 mm
- Weight
- 2.93 kg
- In The Box
- • Installation guide • Rack mounting brackets • Serial configuration cable • Safety guide
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatAPCAPC NetShelter Metered Rack PDU AP8858 - 0U, 16A, 18 C13, 2 C19 |  APCAPC NetShelter Basic Rack PDU AP7553 - 0U, 32A, 20 C13, 4 C19 | APCAPC NetShelter Metered Rack PDU AP8853 - 0U, 32A, 36 C13, 6 C19 |  APCAPC NetShelter Basic Rack PDU AP7552 - 0U, 16A, 20 C13, 4 C19 | |
|---|---|---|---|---|
| Harga | Rp 8.169.000 | Rp 6.339.000 | Rp 10.219.000 | Rp 5.099.000 |
| Garansi | ||||
| Warranty Months | 24 | 24 | 24 | 24 |
| Warranty Type | APC Indonesia Official Warranty | APC Indonesia Official Warranty | APC Indonesia Official Warranty | APC Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Form Factor | 0U Vertical | 0U Vertical | 0U Vertical | 0U Vertical |
| Mounting Type | Mounting mode:Rack-mounted Mounting location:Side | Mounting mode:Rack-mounted Mounting location:Side | Mounting mode:Rack-mounted Mounting location:Side | Mounting mode:Rack-mounted Mounting location:Side |
| Management | Metered | Basic | Metered | Basic |
| Cable Length | — | 3 m | 2.9 m | 3 m |
| Input Power | Main Input Voltage: • 200 V • 208 V • 230 V Input current limits:20 A Network frequency:50/60 Hz | Main Input Voltage: • 200 V • 208 V • 230 V Input current limits:32 A Network frequency:47...63 Hz | Main Input Voltage: • 200 V • 208 V • 230 V Input current limits:32 A Network frequency:50/60 Hz | Main Input Voltage: • 200 V • 208 V • 230 V Input current limits:16 A Network frequency:50/60 Hz |
| Voltage | • 100 V • 200 V • 208 V • 230 V | 230 V | 230 V | 230 V |
| Current | 16 A | 32 A | 32 A | 16 A |
| Connector Type | IEC 60320 C20 | IEC 60309 32 A 2P + E | IEC 60309 32 A 2P + E | IEC 60320 C20 |
| VA Capacity | 3300 | 7400 | 7400 | 3680 |
| Outlet Count | • 18 IEC 60320 C13 • 2 IEC 60320 C19 | • 20 IEC 60320 C13 • 4 IEC 60320 C19 | • 36 IEC 60320 C13 • 6 IEC 60320 C19 | • 20 IEC 60320 C13 • 4 IEC 60320 C19 |
| Operating Temperature | -5…60 °C | 0…45 °C | -5…60 °C | 0…45 °C |
| Protection and Safety | Without circuit breaker | — | Circuit breaker | — |
| Certification | Product certifications: • METI Denan • VDE Standards: • CSA C22.2 No 60950 • IEC 60950 • UL 60950-1 | Product certifications: • CE • VDE | Product certifications:VDE Standards:IEC 60950 | Product certifications: • CE • GOST • IRAM • VDE |
| Phase Count | 1 phase | — | 1 phase | — |
| Dimensions | 44 × 56 × 902 mm | 44 × 56 × 1619 mm | 44 × 56 × 1791 mm | 44 × 56 × 1619 mm |
| Weight | 2.93 kg | 5.57 kg | 6.93 kg | 4.86 kg |
| In The Box | • Installation guide • Rack mounting brackets • Serial configuration cable • Safety guide | • Installation guide • Rack mounting brackets • Toolless mounting kit | • Installation guide • Rack mounting brackets • Serial configuration cable • Safety guide | • Installation guide • Rack mounting brackets • Toolless mounting kit |
