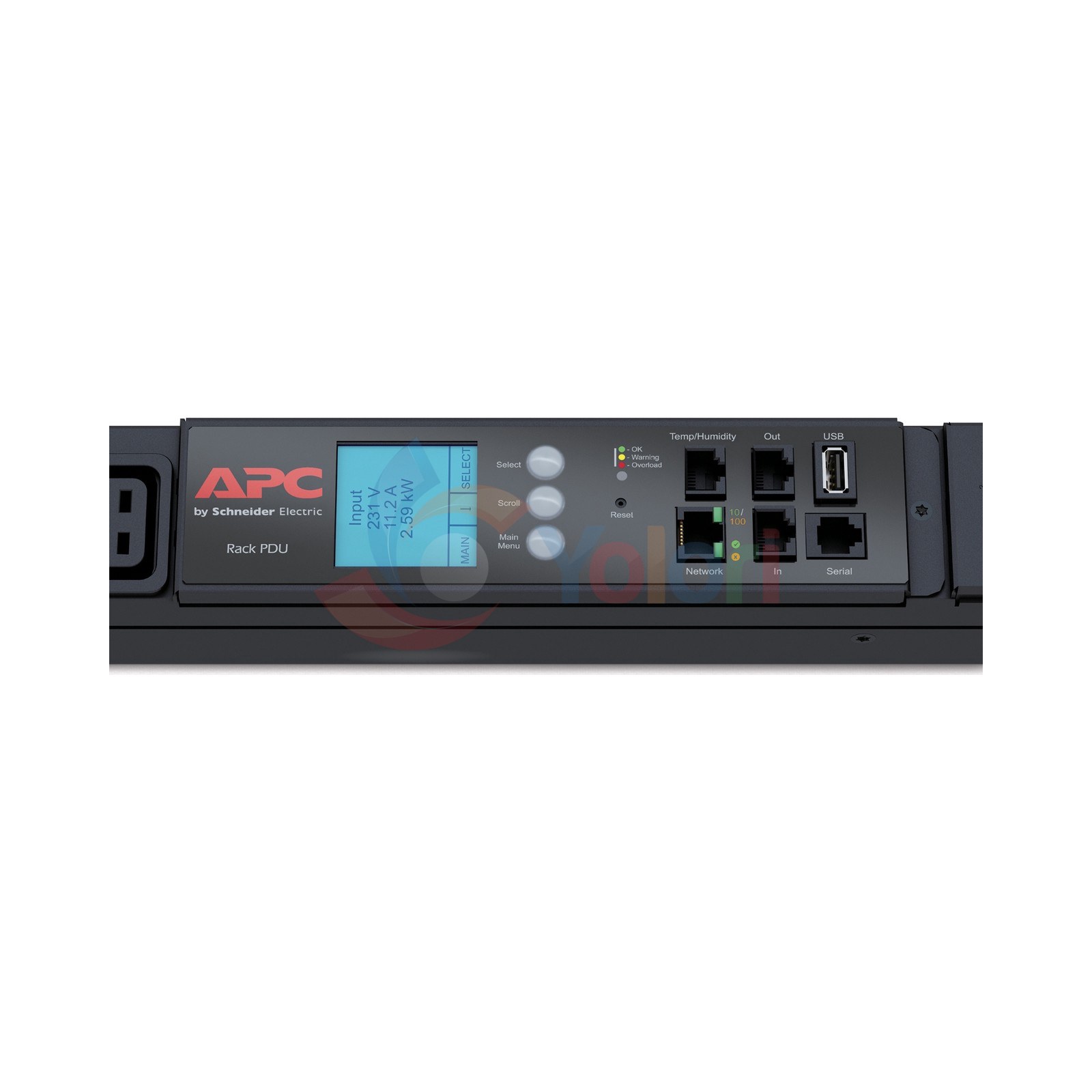

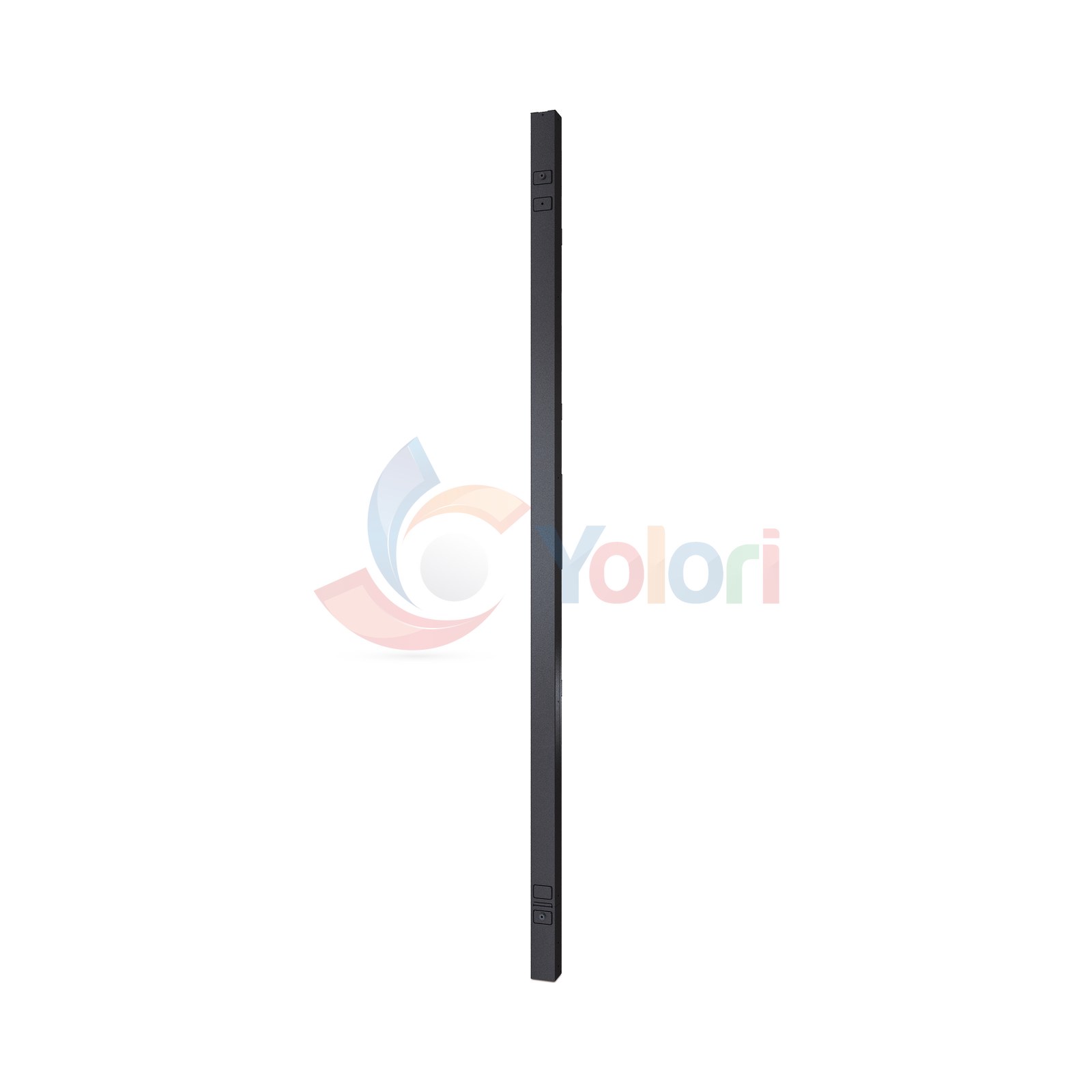

APC NetShelter Metered Rack PDU AP8886 - 0U, 3 phase, 32A, 30 C13, 12 C19
APC NetShelter Metered Rack PDU AP8886 adalah PDU metered dengan kapasitas beban 22000 VA, stopkontak 30 IEC 60320 C13 dan 12 IEC 60320 C19 serta bentuk 0U Vertical.
Dijual oleh
Yolori Mall
APC NetShelter Metered Rack PDU AP8886 adalah PDU metered berkapasitas beban 22000 VA. Daya masuk lewat IEC 60309 32 A 3P + N + E. Sisi masuknya: Main Input Voltage 400 V 3 phases; Input current limits 32 A; Network frequency 50/60 Hz. Tegangan keluarannya 230 V. Arus nominalnya 32 A. Jumlah fasenya 3 phase. Stopkontak yang tersedia: 30 IEC 60320 C13 dan 12 IEC 60320 C19. Jenis proteksinya Circuit breaker. Pemasangannya: Mounting mode Rack-mounted; Mounting location Side. Bentuknya 0U Vertical dengan dimensi 51 × 56 × 1829 mm dan berat 8.72 kg. Panjang kabelnya 1.82 m. Suhu operasinya -5…60 °C. Sertifikasinya: Product certifications VCCI class A dan VDE; Standards EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC part 15 class A dan ICES-003. Dalam kemasan disertakan Installation guide, Rack mounting brackets, Serial configuration cable dan Safety guide. APC Indonesia memberikan garansi resmi selama 24 bulan untuk produk ini.
Garansi
- Warranty Months
- 24
- Warranty Type
- APC Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Form Factor
- 0U Vertical
- Mounting Type
- Mounting mode:Rack-mounted Mounting location:Side
- Management
- Metered
- Cable Length
- 1.82 m
- Input Power
- Main Input Voltage:400 V 3 phases Input current limits:32 A Network frequency:50/60 Hz
- Voltage
- 230 V
- Current
- 32 A
- Connector Type

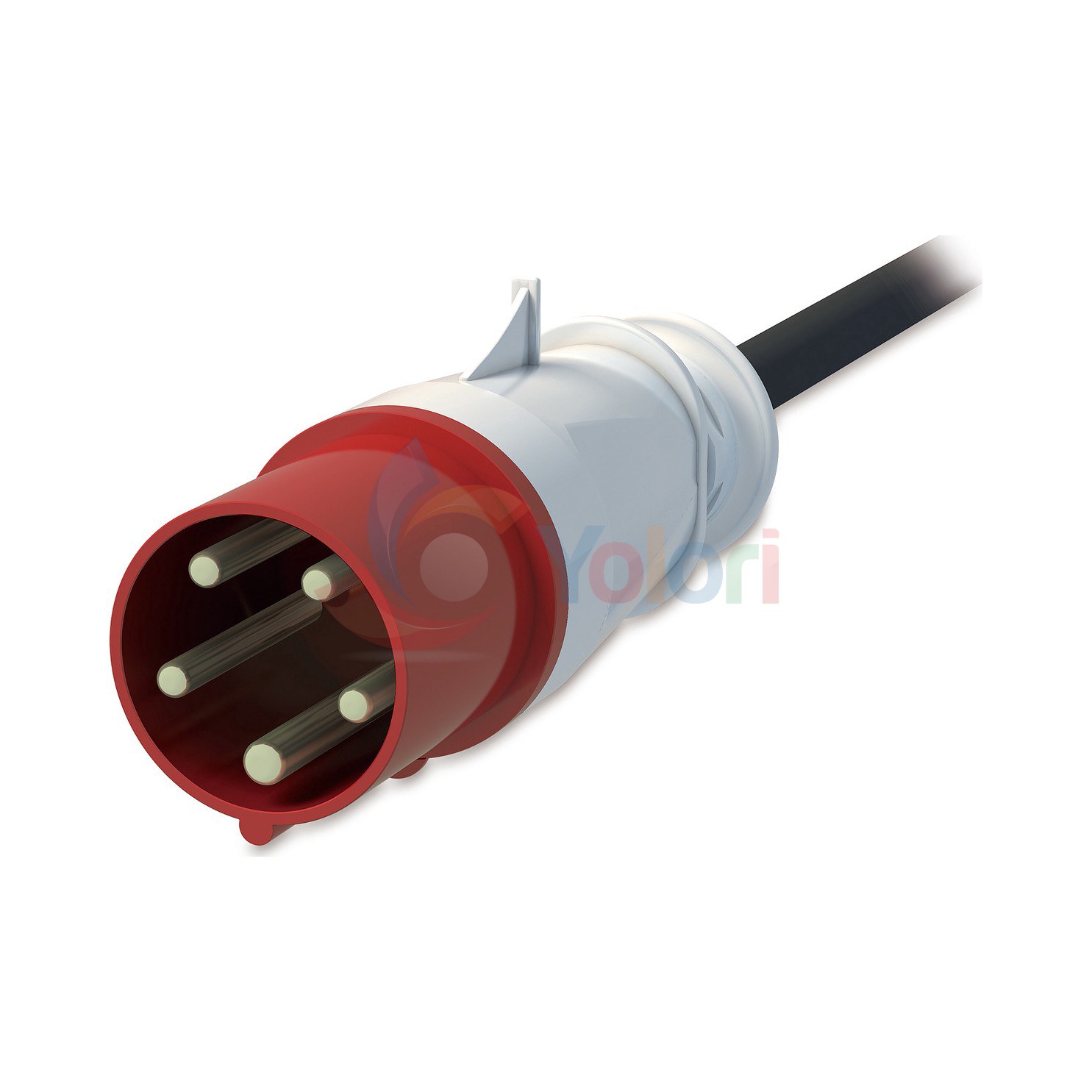

- IEC 60309 32 A 3P + N + E
- VA Capacity
- 22000
- Outlet Count
- • 30 IEC 60320 C13 • 12 IEC 60320 C19
- Operating Temperature
- -5…60 °C
- Protection and Safety
- Circuit breaker
- Certification
- Product certifications: • VCCI class A • VDE Standards: • EN 55022 class A • EN 55024 • EN 61000-3-2 • EN 61000-3-3 • FCC part 15 class A • ICES-003
- Phase Count
- 3 phase
- Dimensions
- 51 × 56 × 1829 mm
- Weight
- 8.72 kg
- In The Box
- • Installation guide • Rack mounting brackets • Serial configuration cable • Safety guide
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatAPCAPC NetShelter Metered Rack PDU AP8886 - 0U, 3 phase, 32A, 30 C13, 12 C19 |  APCAPC NetShelter Rack Automatic Transfer Switch AP4423A - 1U, 16A, 8 C13, 1 C19 | APCAPC NetShelter Metered Rack PDU AP8853 - 0U, 32A, 36 C13, 6 C19 |  APCAPC NetShelter Metered Rack PDU AP8858 - 0U, 16A, 18 C13, 2 C19 | |
|---|---|---|---|---|
| Harga | Rp 39.239.000 | Rp 20.689.000 | Rp 10.219.000 | Rp 8.169.000 |
| Garansi | ||||
| Warranty Months | 24 | 24 | 24 | 24 |
| Warranty Type | APC Indonesia Official Warranty | APC Indonesia Official Warranty | APC Indonesia Official Warranty | APC Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Form Factor | 0U Vertical | 1U Horizontal | 0U Vertical | 0U Vertical |
| Color | — | Black | — | — |
| Mounting Type | Mounting mode:Rack-mounted Mounting location:Side | Mounting mode:Rack-mounted Mounting location:Front | Mounting mode:Rack-mounted Mounting location:Side | Mounting mode:Rack-mounted Mounting location:Side |
| Management | Metered | Automatic transfer switch | Metered | Metered |
| Cable Length | 1.82 m | 2.44 m | 2.9 m | — |
| Input Power | Main Input Voltage:400 V 3 phases Input current limits:32 A Network frequency:50/60 Hz | Main Input Voltage:230 V AC 1 phase Input current limits:20 A Network frequency:50/60 Hz permissible voltage:207…253 V | Main Input Voltage: • 200 V • 208 V • 230 V Input current limits:32 A Network frequency:50/60 Hz | Main Input Voltage: • 200 V • 208 V • 230 V Input current limits:20 A Network frequency:50/60 Hz |
| Voltage | 230 V | 230 V AC 1 phase | 230 V | • 100 V • 200 V • 208 V • 230 V |
| Current | 32 A | 16 A | 32 A | 16 A |
| Connector Type | IEC 60309 32 A 3P + N + E | IEC 60320 C20 16 A 2P + E | IEC 60309 32 A 2P + E | IEC 60320 C20 |
| VA Capacity | 22000 | 3700 | 7400 | 3300 |
| Outlet Count | • 30 IEC 60320 C13 • 12 IEC 60320 C19 | 8 C13, 1 C19 | • 36 IEC 60320 C13 • 6 IEC 60320 C19 | • 18 IEC 60320 C13 • 2 IEC 60320 C19 |
| Operating Temperature | -5…60 °C | -5…45 °C | -5…60 °C | -5…60 °C |
| Protection and Safety | Circuit breaker | Without circuit breaker | Circuit breaker | Without circuit breaker |
| Certification | Product certifications: • VCCI class A • VDE Standards: • EN 55022 class A • EN 55024 • EN 61000-3-2 • EN 61000-3-3 • FCC part 15 class A • ICES-003 | Product certifications: • cUL listed • CE • UL listed Standards: • EN 55022 class A • FCC part 15 class A | Product certifications:VDE Standards:IEC 60950 | Product certifications: • METI Denan • VDE Standards: • CSA C22.2 No 60950 • IEC 60950 • UL 60950-1 |
| Phase Count | 3 phase | 1 phase | 1 phase | 1 phase |
| Dimensions | 51 × 56 × 1829 mm | 236 × 432 × 44 mm | 44 × 56 × 1791 mm | 44 × 56 × 902 mm |
| Weight | 8.72 kg | 3.74 kg | 6.93 kg | 2.93 kg |
| In The Box | • Installation guide • Rack mounting brackets • Serial configuration cable • Safety guide | • Mounting hardware • Rack mounting brackets | • Installation guide • Rack mounting brackets • Serial configuration cable • Safety guide | • Installation guide • Rack mounting brackets • Serial configuration cable • Safety guide |
