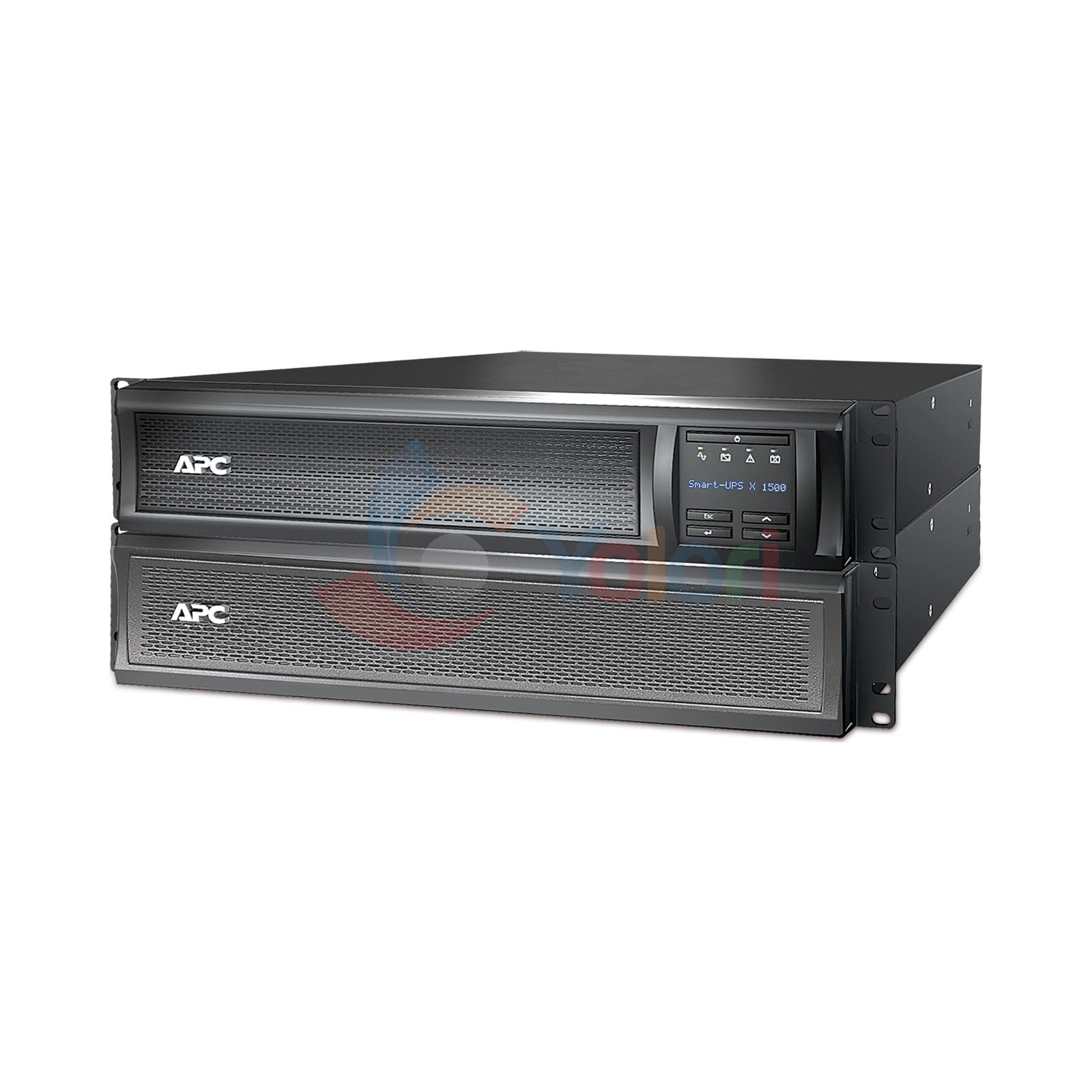

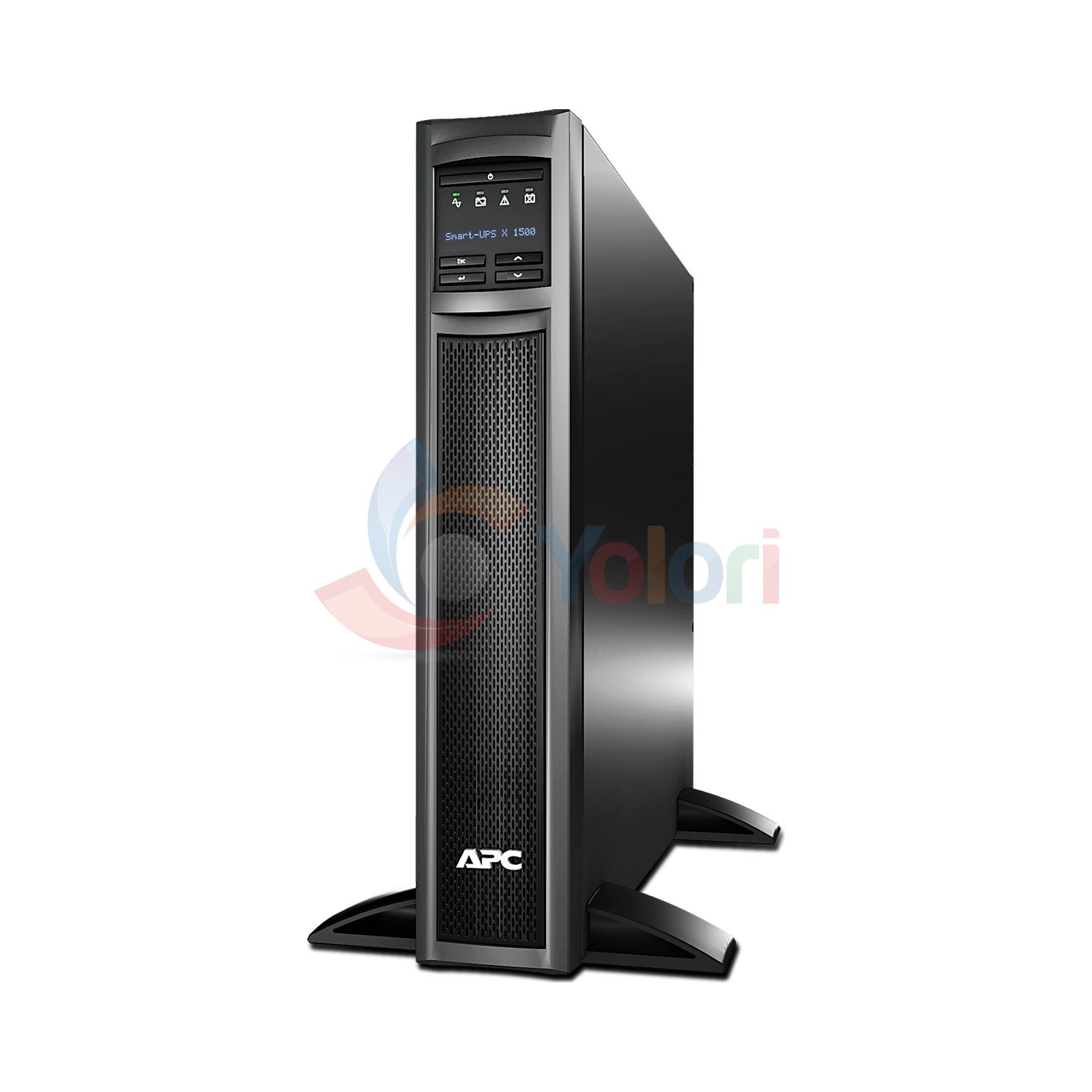

APC Smart-UPS Line Interactive SMX - 1500VA Rack/tower convertible 2U
APC Smart-UPS Line Interactive SMX adalah UPS line interactive berkapasitas 1500 VA (1200 W) dengan bentuk Rack/tower convertible 2U, gelombang keluaran Sine wave serta stopkontak keluaran 8 IEC 60320 C13 dan 2 IEC Jumpers.
Dijual oleh
Yolori Mall

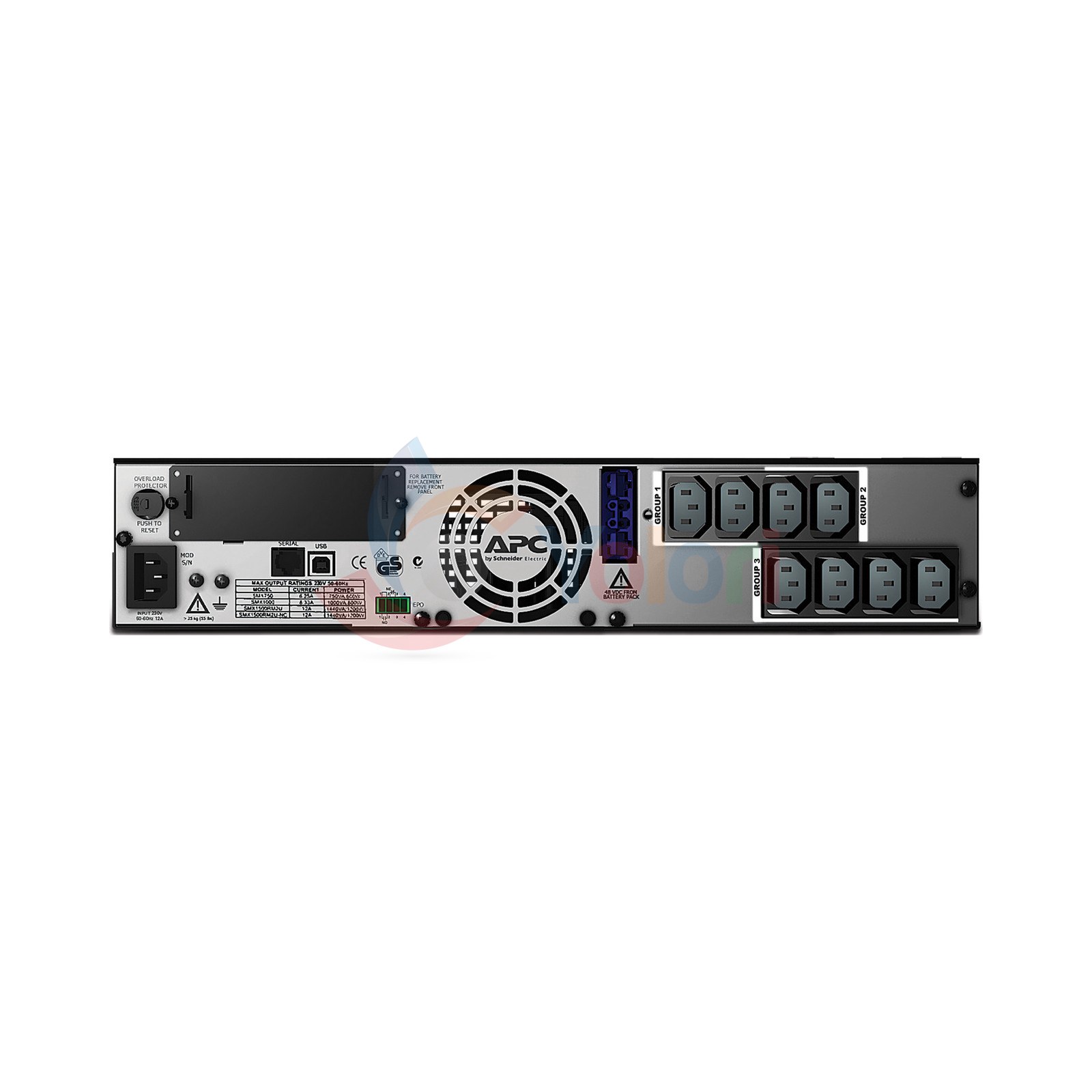

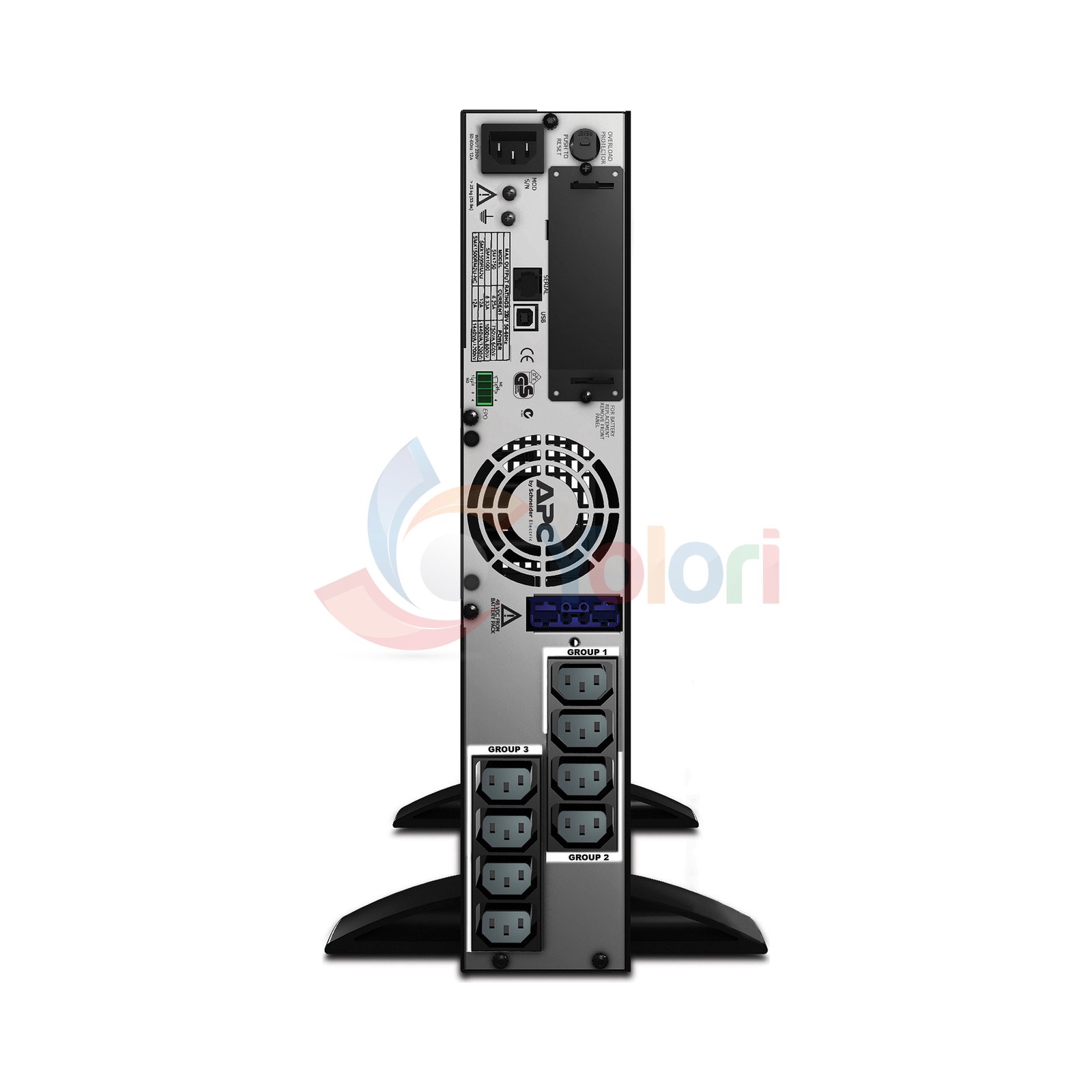

APC Smart-UPS Line Interactive SMX adalah UPS line interactive berkapasitas 1500 VA dengan daya keluaran 1200 W. Bentuk gelombang keluarannya Sine wave. Tegangan keluarannya 230 V AC 1 phase dengan frekuensi 50/60 Hz +/- 3 Hz sync to mains. Rentang tegangan masuknya 151...302 V adjustable dan 160...286 V. Daya masuk lewat IEC 60320 C14, sedangkan beban disambungkan ke 8 IEC 60320 C13 dan 2 IEC Jumpers. Baterainya Lead-acid internal included, dengan baterai pengganti APCRBC115. Pengisian ulang baterainya memakan waktu sekitar 3 h. Panel kendalinya berupa Multifunction LCD status and control console. Port komunikasinya meliputi Serial port, USB port dan Available expansion slot. Bentuknya Rack/tower convertible 2U dengan dimensi 490 × 432 × 89 mm dan berat 24.82 kg. Dalam kemasan disertakan CD with software, Documentation CD, Installation guide, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable dan USB cable. APC Indonesia memberikan garansi resmi selama 24 bulan untuk produk ini.
Garansi
- Warranty Months
- 24
- Warranty Type
- APC Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Form Factor
- Rack/tower convertible 2U
- I/O Port
- • Serial port • USB port • Available expansion slot
- Output Power
- 1200 W
- Connector Type
- IEC 60320 C14
- UPS Topology
- Line interactive
- VA Capacity
- 1500
- Outlet Count
- • 8 IEC 60320 C13 • 2 IEC Jumpers
- Charging Time
- 3 h
- Indicator Display
- Multifunction LCD status and control console
- Output Voltage
- Output voltage:230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains
- Waveform
- Sine wave
- Input Voltage Range
- • 151...302 V adjustable • 160...286 V
- Battery
- Battery type:Lead-acid internal included Replacement battery:APCRBC115
- Dimensions
- 490 × 432 × 89 mm
- Weight
- 24.82 kg
- In The Box
- • CD with software • Documentation CD • Installation guide • Rack mounting support rails • Removable support feet • Smart UPS signalling RS-232 cable • USB cable
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatAPCAPC Smart-UPS Line Interactive SMX - 1500VA Rack/tower convertible 2U |  OnesiaOnesia Online UPS Exousia XA-160N (6 kVA, 1P/1P) |  APCAPC Easy UPS On-Line SRV - 3kVA Tower, Extended Runtime |  APCAPC Easy UPS On-Line SRV - 2000VA Rackmount 4U, Extended Runtime | |
|---|---|---|---|---|
| Harga | Rp 19.049.000 | Rp 19.195.000 | Rp 19.919.000 | Rp 19.979.000 |
| Garansi | ||||
| Warranty Months | 24 | 12 | 24 | 24 |
| Warranty Type | APC Indonesia Official Warranty | • Garansi Resmi Onesia • 1 Tahun | APC Indonesia Official Warranty | APC Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Form Factor | Rack/tower convertible 2U | — | Tower | Rackmount 4U |
| I/O Port | • Serial port • USB port • Available expansion slot | — | • Serial port • USB port • Available expansion slot | • Serial port • USB port • Available expansion slot |
| Output Power | 1200 W | — | 2700 W | 1800 W |
| Connector Type | IEC 60320 C14 | — | IEC 60320 C20 | IEC 60320 C20 |
| UPS Topology | Line interactive | Online double conversion | On-Line | On-Line |
| VA Capacity | 1500 | 6 kVA | 3000 | 2000 |
| Outlet Count | • 8 IEC 60320 C13 • 2 IEC Jumpers | — | • 6 IEC 60320 C13 • 1 IEC 60320 C19 | 4 IEC 60320 C13 |
| Charging Time | 3 h | — | 5.5 h | 5.5 h |
| Indicator Display | Multifunction LCD status and control console | — | Multifunction LCD status and control console | Multifunction LCD status and control console |
| Output Voltage | Output voltage:230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains | — | Output voltage:230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains | Output voltage:230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains |
| Waveform | Sine wave | — | Sine wave | Sine wave |
| Input Voltage Range | • 151...302 V adjustable • 160...286 V | — | • 105…300 V 40% load • 180...285 V full load | • 105…300 V 40% load • 180...285 V full load |
| Battery | Battery type:Lead-acid internal included Replacement battery:APCRBC115 | — | Battery type:Lead-acid external included Battery voltage:72 V | Battery type:Lead-acid external included Battery voltage:72 V |
| Features | — | Konfigurasi masukan dan keluaran 1P/1P | — | — |
| Dimensions | 490 × 432 × 89 mm | — | 425 × 425 × 336 mm | 632 × 437 × 172 mm |
| Weight | 24.82 kg | — | 46.2 kg | 51.4 kg |
| In The Box | • CD with software • Documentation CD • Installation guide • Rack mounting support rails • Removable support feet • Smart UPS signalling RS-232 cable • USB cable | — | — | — |
