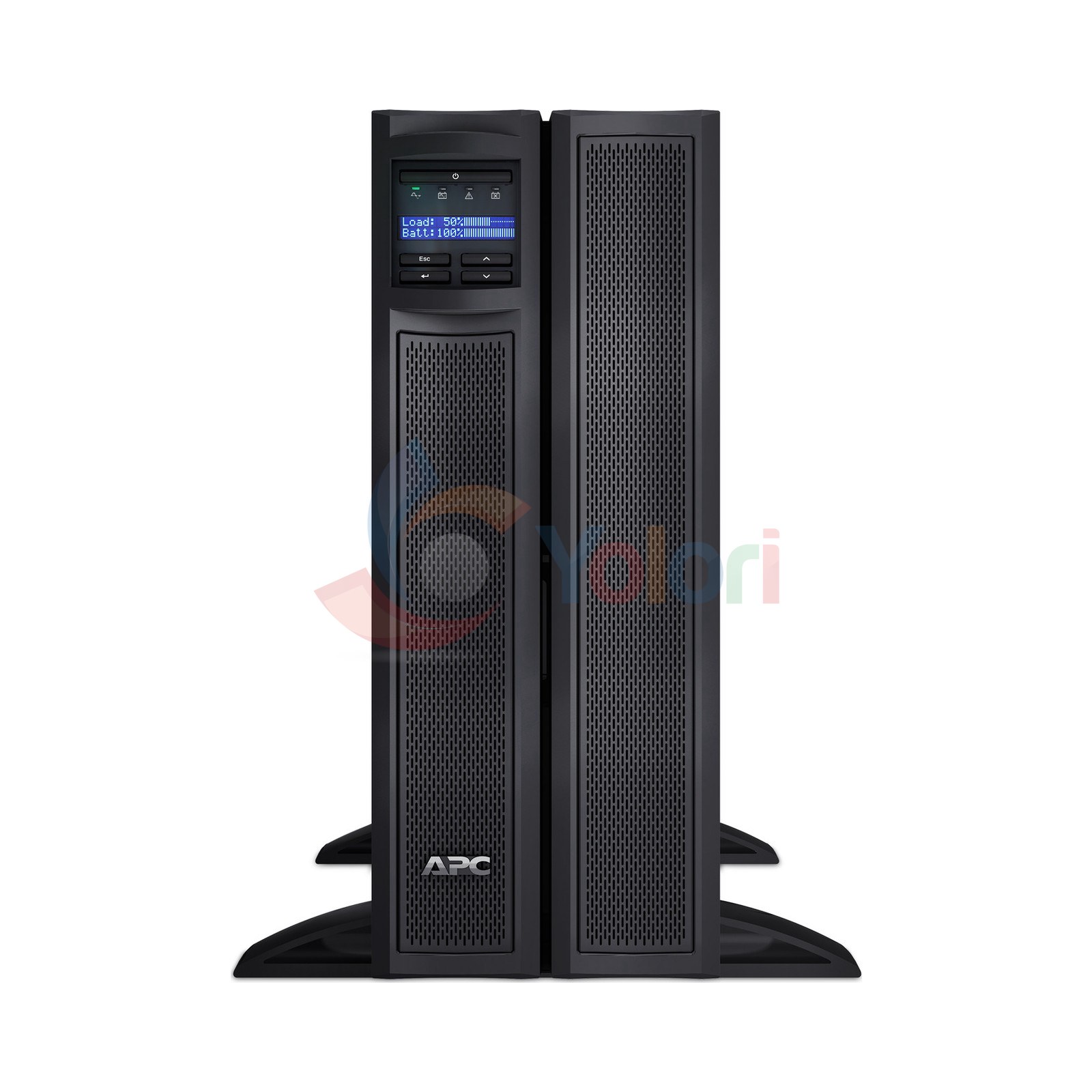

Tentang merek· Smart-UPS Line InteractiveAPC Smart-UPS Line Interactive SMX - 2200VA Rack/tower convertible 4U, Network Card, Short Depth
APC Smart-UPS Line Interactive SMX adalah UPS line interactive berkapasitas 2200 VA (1980 W) dengan bentuk Rack/tower convertible 4U, gelombang keluaran Sine wave serta stopkontak keluaran 8 IEC 60320 C13, 2 IEC Jumpers dan 2 IEC 60320 C19.
Dijual oleh
Yolori Mall
APC Smart-UPS Line Interactive SMX adalah UPS line interactive berkapasitas 2200 VA dengan daya keluaran 1980 W. Bentuk gelombang keluarannya Sine wave. Tegangan keluarannya 208 V AC 1 phase dan 230 V AC 1 phase dengan frekuensi 50/60 Hz +/- 3 Hz sync to mains. Rentang tegangan masuknya 140...280 V. Daya masuk lewat BS 1363 British, IEC 60320 C20 dan CEE 7/7, sedangkan beban disambungkan ke 8 IEC 60320 C13, 2 IEC Jumpers dan 2 IEC 60320 C19. Baterainya Lead-acid internal included, dengan baterai pengganti APCRBC143. Pengisian ulang baterainya memakan waktu sekitar 3 h. Panel kendalinya berupa Multifunction LCD status and control console. Port komunikasinya meliputi Serial port, USB port dan Pre-installed network management card 3. Bentuknya Rack/tower convertible 4U dengan dimensi 483 × 178 × 432 mm dan berat 38.56 kg. Dalam kemasan disertakan CD with software, Documentation CD, Installation guide, Rack mounting support rails, Smart UPS signalling RS-232 cable, Temperature probe, USB cable dan Web/SNMP management card. APC Indonesia memberikan garansi resmi selama 24 bulan untuk produk ini.
Garansi
- Warranty Months
- 24
- Warranty Type
- APC Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Form Factor
- Rack/tower convertible 4U
- I/O Port
- • Serial port • USB port • Pre-installed network management card 3
- Output Power
- 1980 W
- Connector Type
- • BS 1363 British • IEC 60320 C20 • CEE 7/7
- UPS Topology
- Line interactive
- VA Capacity
- 2200
- Outlet Count

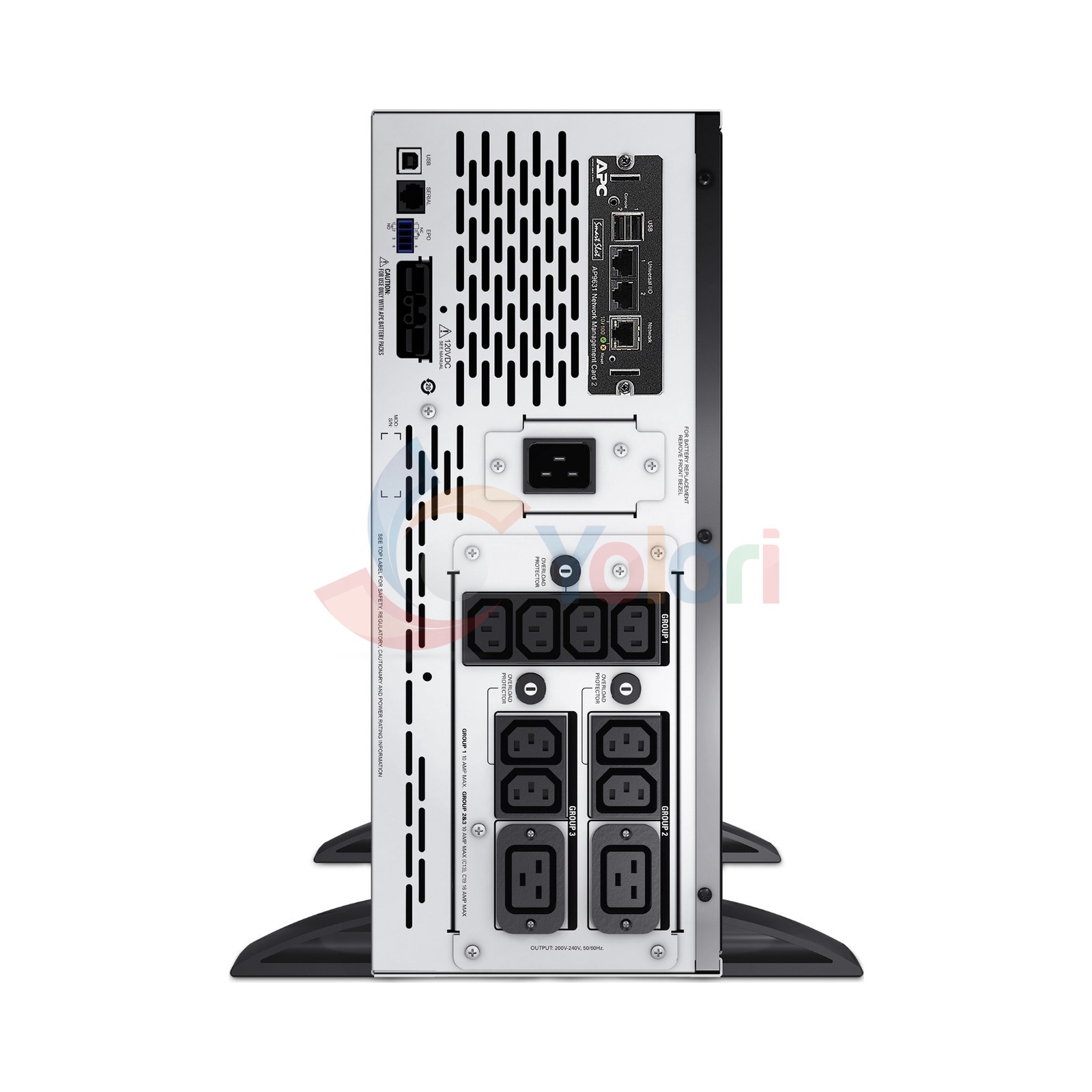

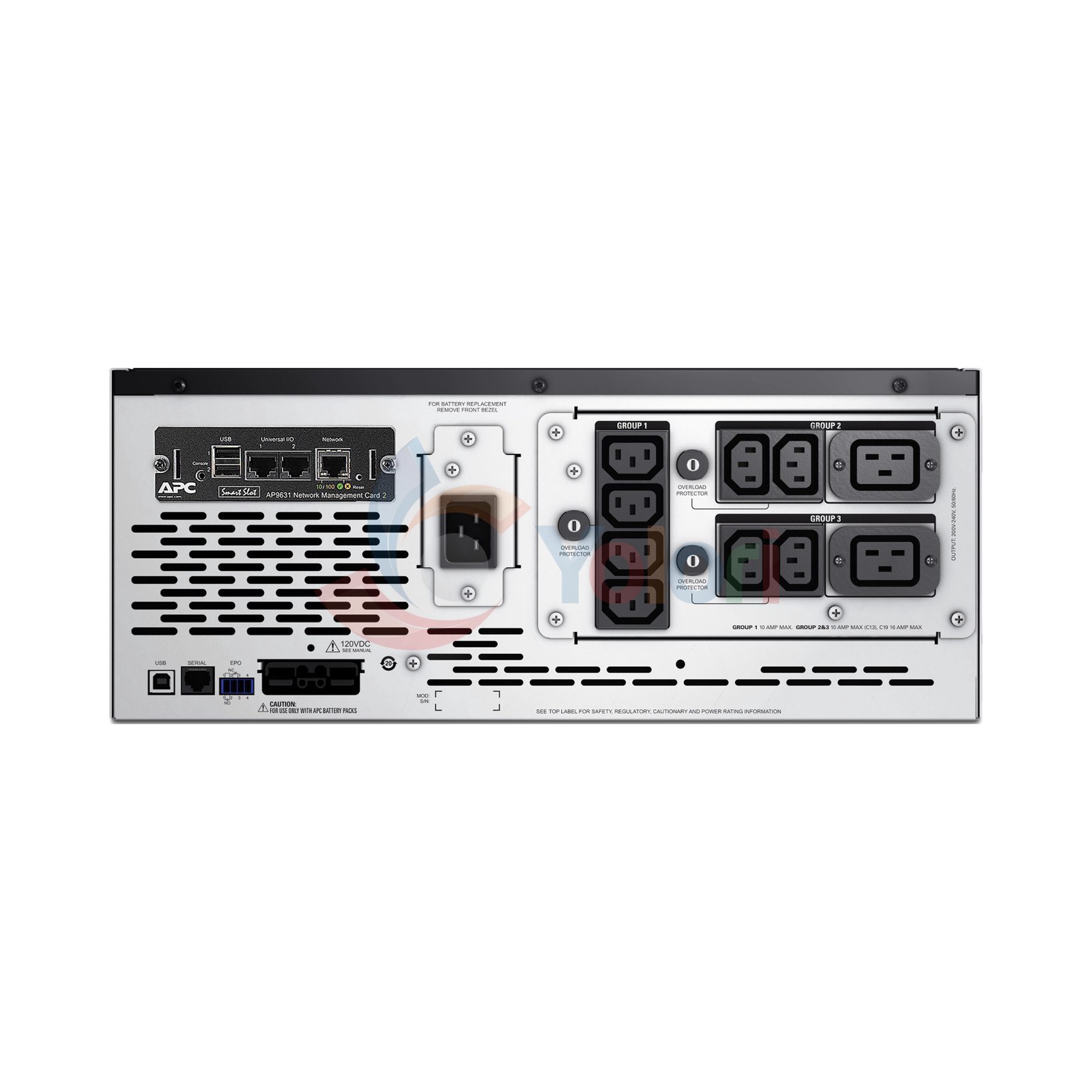

- • 8 IEC 60320 C13 • 2 IEC Jumpers • 2 IEC 60320 C19
- Charging Time
- 3 h
- Indicator Display
- Multifunction LCD status and control console
- Output Voltage
- Output voltage: • 208 V AC 1 phase • 230 V AC 1 phase Output frequency:50/60 Hz +/- 3 Hz sync to mains
- Waveform
- Sine wave
- Input Voltage Range
- 140...280 V
- Battery
- Battery type:Lead-acid internal included Replacement battery:APCRBC143
- Dimensions
- 483 × 178 × 432 mm
- Weight
- 38.56 kg
- In The Box
- • CD with software • Documentation CD • Installation guide • Rack mounting support rails • Smart UPS signalling RS-232 cable • Temperature probe • USB cable • Web/SNMP management card
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatAPCAPC Smart-UPS Line Interactive SMX - 2200VA Rack/tower convertible 4U, Network Card, Short Depth |  Sedang dilihatOnesiaOnesia UPS Tower 1P (Single Phase) Rama RA-10B-SP (10 kVA, 1P/1P) | Sedang dilihatAPCAPC Smart-UPS Line Interactive SMX - 3kVA Rack/tower convertible 4U, Short Depth |  Sedang dilihatAPCAPC Easy UPS On-Line SRV - 6kVA Tower, Extended Runtime | |
|---|---|---|---|---|
| Harga | Rp 40.549.000 | Rp 40.560.000 | Rp 41.839.000 | Rp 38.649.000 |
| Garansi | ||||
| Warranty Months | 24 | 12 | 24 | 24 |
| Warranty Type | APC Indonesia Official Warranty |
| APC Indonesia Official Warranty | APC Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Form Factor | Rack/tower convertible 4U | — | Rack/tower convertible 4U | Tower |
| I/O Port |
| — |
|
|
| Output Power | 1980 W | — | 2700 W | 6000 W |
| Connector Type |
| — |
| 1 hard wire 3-wire (1P + N + E) |
| UPS Topology | Line interactive | Online double conversion | Line interactive | On-Line |
| VA Capacity | 2200 | 10 kVA | 3000 | 6000 |
| Outlet Count |
| — |
| Hard wire 3-wire (1P + N + E) for 1 zone(s) |
| Charging Time | 3 h | — | 3 h | 5 h |
| Indicator Display | Multifunction LCD status and control console | — | Multifunction LCD status and control console | Multifunction LCD status and control console |
| Output Voltage |
| — |
|
|
| Waveform | Sine wave | — | Sine wave | Sine wave |
| Input Voltage Range | 140...280 V | — | 140...280 V |
|
| Battery |
| — |
|
|
| Features | — |
| — | — |
| Dimensions | 483 × 178 × 432 mm | 200 × 400 × 700 mm | 483 × 178 × 432 mm | 485 × 380 × 368 mm |
| Weight | 38.56 kg | 48.5 kg | 38.64 kg | 73 kg |
| In The Box |
| — |
| — |
