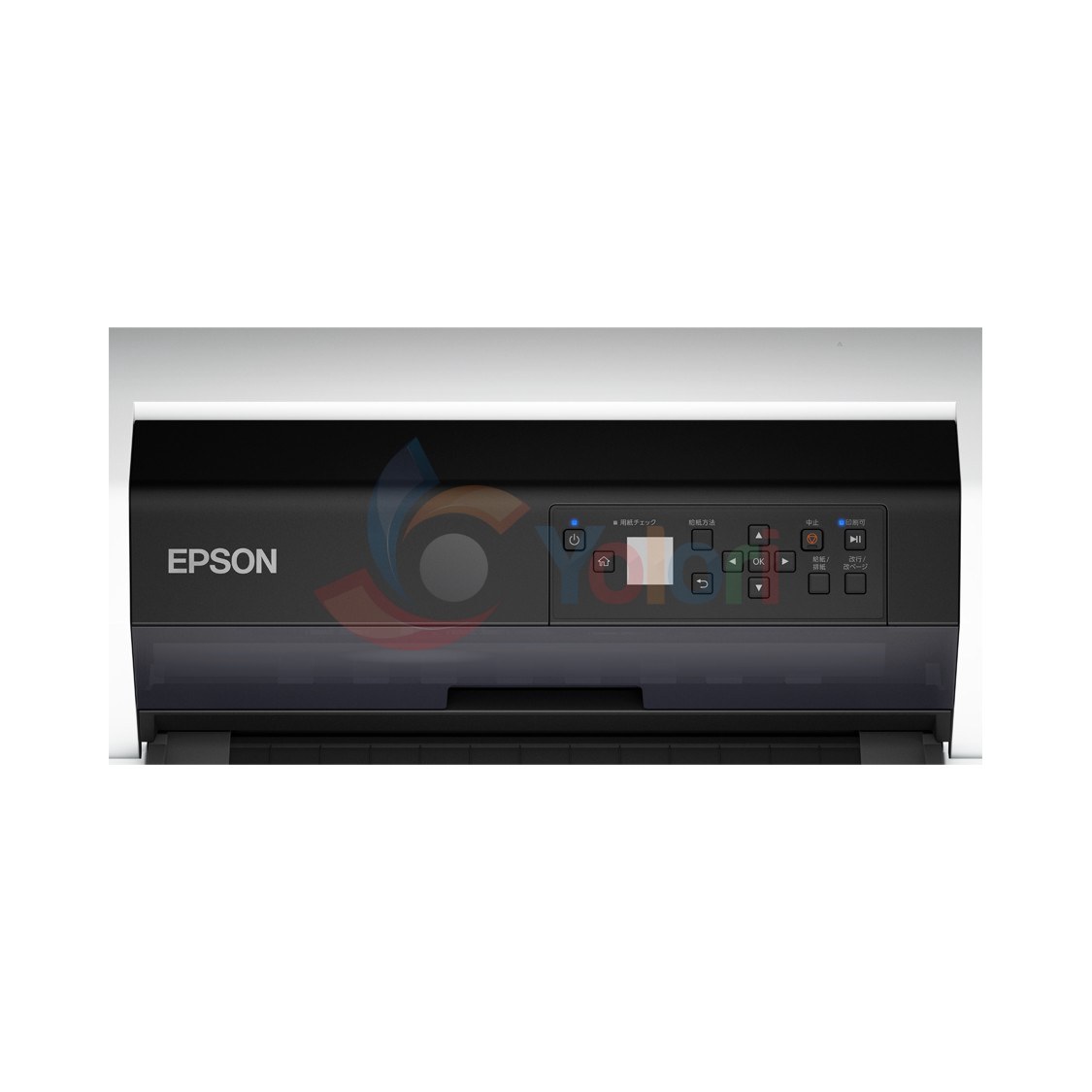

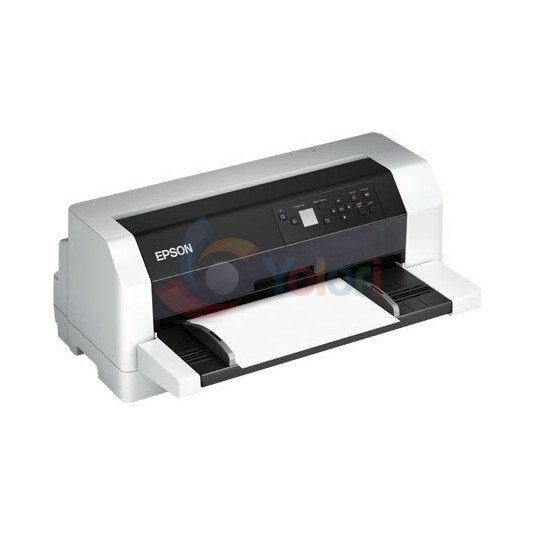

Epson DLQ-3500II Dot Matrix Printer
Epson Dot Matrix Printer DLQ-3500II adalah Dot Matrix Printer dengan Bi-directional parallel interface (IEEE-1284 nibble mode supported), USB 2.0 (Full Speed), Optional Serial Interface Board (No Buffer Type-B).
Dijual oleh
Yolori Mall
Epson Dot Matrix Printer DLQ-3500II adalah Dot Matrix Printer dengan Print Direction: Bi-direction with logic seeking; Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET; Manual Insertion: Front in, front out; Push Tractor: Rear in, front out; Pull Tractor: Rear in, front out; Copy: 1 original + 7 copies; Line Spacing: 4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”); Input Data Buffer: 128 KB; Pitch: 10 cpi: 136 columns. Dot Matrix Printer dari Epson ini juga dibekali Bi-directional parallel interface (IEEE-1284 nibble mode supported); USB 2.0 (Full Speed); Optional Serial Interface Board (No Buffer Type-B). Dimensinya 661 x 433 x 276 mm. Beratnya 18.9kg. Dot Matrix Printer dari Epson ini juga dibekali Consumables: Ribbon Cartridge (Black): C13S015587; Standard: Fabric Ribbon Cartridge (Black); Ribbon Life: Approx. 6 million characters^1. Untuk Compatibility, tercatat Supported OS: Windows Server® 2008 Standard / Enterprise (32bit / 64bit), R2 Standard / Enterprise (64bit); Printer Driver: Microsoft Windows ® XP / Vista / 7 / 8 / 10. Untuk Noise Level, tercatat Approx. 59 dB(A) (ISO 7779 pattern). Untuk Paper Size, tercatat Cut Sheet (Single Sheet) mencakup Length: 80.0 - 420.0mm (3.15 - 16.5"), Width: 90.0 - 420.0mm (3.15 - 16.5") dan Thickness: 0.065 - 0.19mm (0.0025 - 0.0074"); Cut Sheet (Multi-part Forms) mencakup Length: 80.0 - 420.0mm (3.15 - 16.5"), Width: 90.0 - 420.0mm (3.15 - 16.5") dan Thickness: 0.12 - 0.62mm (0.0047 - 0.0244"); Continuous Paper (Single Sheet / Multi-part) mencakup Length: 76.2 - 558.8mm (3.0 - 22.0"), Width: 101.6 - 406.4mm (4.0 - 16.0") dan Thickness: 0.065 - 0.19mm (0.0025 - 0.0074"); Envelope (No.6) mencakup Length: 92.0mm (3.6”), Width: 165.0mm (6.5”) dan Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”); Envelope (No.10) mencakup Length: 105.0mm (4.1”), Width: 241.0mm (9.5”) dan Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”); Labels: Base Sheet Length (one page): 76.2 ~ 558.8mm (3.0 ~ 22.0"); Card mencakup Length: 100.0 - 200.0mm (3.9 - 7.8"), Width: 100.0 - 200.0mm (3.9 - 7.8") dan Thickness: 0.22mm (0.0087"). Untuk Voltage, tercatat Rated Voltage: AC 100 - 240V; Rated Frequency: 50 - 60 Hz; Power Consumption (Operating): Approx. 78W; Power Consumption (Sleep Mode): Approx. 0.8W. Epson Indonesia memberikan garansi resmi selama 12 bulan untuk produk ini.
Garansi
- Warranty Months
- 12
- Warranty Type
- Epson Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- I/O Port
- • Bi-directional parallel interface (IEEE-1284 nibble mode supported) • USB 2.0 (Full Speed) • Optional Serial Interface Board (No Buffer Type-B)
- Paper Size
- Cut Sheet (Single Sheet): • Length: 80.0 - 420.0mm (3.15 - 16.5") • Width: 90.0 - 420.0mm (3.15 - 16.5") • Thickness: 0.065 - 0.19mm (0.0025 - 0.0074") Cut Sheet (Multi-part Forms): • Length: 80.0 - 420.0mm (3.15 - 16.5") • Width: 90.0 - 420.0mm (3.15 - 16.5") • Thickness: 0.12 - 0.62mm (0.0047 - 0.0244") Continuous Paper (Single Sheet / Multi-part): • Length: 76.2 - 558.8mm (3.0 - 22.0") • Width: 101.6 - 406.4mm (4.0 - 16.0") • Thickness: 0.065 - 0.19mm (0.0025 - 0.0074") Envelope (No.6): • Length: 92.0mm (3.6”) • Width: 165.0mm (6.5”) • Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”) Envelope (No.10): • Length: 105.0mm (4.1”) • Width: 241.0mm (9.5”) • Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”) Labels:Base Sheet Length (one page): 76.2 ~ 558.8mm (3.0 ~ 22.0") Card: • Length: 100.0 - 200.0mm (3.9 - 7.8") • Width: 100.0 - 200.0mm (3.9 - 7.8") • Thickness: 0.22mm (0.0087")
- Cartridge Type
- Consumables:Ribbon Cartridge (Black): C13S015587 Standard:Fabric Ribbon Cartridge (Black) Ribbon Life:Approx. 6 million characters^1
- Compatibility
- Supported OS:Windows Server® 2008 Standard / Enterprise (32bit / 64bit), R2 Standard / Enterprise (64bit) Printer Driver:Microsoft Windows ® XP / Vista / 7 / 8 / 10
- Voltage
- • Rated Voltage: AC 100 - 240V • Rated Frequency: 50 - 60 Hz • Power Consumption (Operating): Approx. 78W • Power Consumption (Sleep Mode): Approx. 0.8W
- Noise Level
- Approx. 59 dB(A) (ISO 7779 pattern)
- Features
- Print Direction:Bi-direction with logic seeking Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET Manual Insertion:Front in, front out Push Tractor:Rear in, front out Pull Tractor:Rear in, front out Copy:1 original + 7 copies Line Spacing:4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”) Input Data Buffer:128 KB Pitch:10 cpi: 136 columns
- Dimensions
- 661 x 433 x 276 mm
- Weight
- 18.9kg
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatEpsonEpson DLQ-3500II Dot Matrix Printer | EpsonEpson DLQ-3500IIN Dot Matrix Printer |  EpsonEpson FX-2190IIN Dot Matrix Printer |  EpsonEpson DFX-9000 Dot Matrix Printer | |
|---|---|---|---|---|
| Harga | Rp 29.649.000 | Rp 33.749.000 | Rp 15.589.000 | Rp 45.709.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Epson Indonesia Official Warranty | Epson Indonesia Official Warranty | Epson Indonesia Official Warranty | Epson Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| I/O Port | • Bi-directional parallel interface (IEEE-1284 nibble mode supported) • USB 2.0 (Full Speed) • Optional Serial Interface Board (No Buffer Type-B) | • USB 2.0 • Bi-directional parallel (IEEE-1284 nibble mode supported) • 100base-Tx wired LAN | • USB 2.0 • Bi-directional parallel (IEEE-1284 nibble mode supported) Serial • 100base-Tx wired LAN | • Bi-directional parallel interface (IEEE-1284 nibble mode supported) • Serial I/F • USB 2.0 (Full Speed) I/F • Optional Serial Interface Board (No Buffer Type-B) |
| Paper Size | Cut Sheet (Single Sheet): • Length: 80.0 - 420.0mm (3.15 - 16.5") • Width: 90.0 - 420.0mm (3.15 - 16.5") • Thickness: 0.065 - 0.19mm (0.0025 - 0.0074") Cut Sheet (Multi-part Forms): • Length: 80.0 - 420.0mm (3.15 - 16.5") • Width: 90.0 - 420.0mm (3.15 - 16.5") • Thickness: 0.12 - 0.62mm (0.0047 - 0.0244") Continuous Paper (Single Sheet / Multi-part): • Length: 76.2 - 558.8mm (3.0 - 22.0") • Width: 101.6 - 406.4mm (4.0 - 16.0") • Thickness: 0.065 - 0.19mm (0.0025 - 0.0074") Envelope (No.6): • Length: 92.0mm (3.6”) • Width: 165.0mm (6.5”) • Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”) Envelope (No.10): • Length: 105.0mm (4.1”) • Width: 241.0mm (9.5”) • Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”) Labels:Base Sheet Length (one page): 76.2 ~ 558.8mm (3.0 ~ 22.0") Card: • Length: 100.0 - 200.0mm (3.9 - 7.8") • Width: 100.0 - 200.0mm (3.9 - 7.8") • Thickness: 0.22mm (0.0087") | Cut Sheet (Single Sheet): • Length: 80.0 - 420.0mm (3.15 - 16.5") • Width: 90.0 - 420.0mm (3.15 - 16.5") • Thickness: 0.065 - 0.19mm (0.0025 - 0.0074") Cut Sheet (Multi-part Forms): • Length: 80.0 - 420.0mm (3.15 - 16.5") • Width: 90.0 - 420.0mm (3.15 - 16.5") • Thickness: 0.12 - 0.62mm (0.0047 - 0.0244") Continuous Paper (Single Sheet / Multi-part): • Length: 76.2 - 558.8mm (3.0 - 22.0") • Width: 101.6 - 406.4mm (4.0 - 16.0") • Thickness: 0.065 - 0.19mm (0.0025 - 0.0074") Envelope (No.6): • Length: 92.0mm (3.6”) • Width: 165.0mm (6.5”) • Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”) Envelope (No.10): • Length: 105.0mm (4.1”) • Width: 241.0mm (9.5”) • Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”) Labels:Base Sheet Length (one page): 76.2 ~ 558.8mm (3.0 ~ 22.0") Card: • Length: 100.0 - 200.0mm (3.9 - 7.8") • Width: 100.0 - 200.0mm (3.9 - 7.8") • Thickness: 0.22mm (0.0087") | Cut Sheet (Single Sheet): • Length: 100 - 420 mm | (3.9 - 16.5”) • Width: 100 - 420 mm | (3.9 - 16.5”) • Thickness: 0.065 - 0.14 mm | (0.0025 - 0.0055”) • Entry: Front • Entry: Rear • Length: 100 - 420 mm | (3.9 - 16.5”) • Width: 100 - 420 mm | (3.9 - 16.5”) • Thickness: 0.065 - 0.14 mm | (0.0025 - 0.0055”) Cut Sheet (Multi-part Sheet): • Entry: Front • Length: 100 - 420 mm | (3.9 - 16.5”) • Width: 100 - 420 mm | (3.9 - 16.5”) • Thickness: 0.12 - 0.46 mm | (0.0047 - 0.018”) • Entry: Rear • Length: 100 - 420 mm | (3.9 - 16.5”) • Width: 100 - 420 mm | (3.9 - 16.5”) • Thickness: 0.12 - 0.46 mm | (0.0047 - 0.018”) Continuous Paper (Single Sheet / Multi-part): • Entry: Front / Rear / Bottom • Copies: • Original + 4 copies • Length: 101.6 - 558.8 mm | (4.0 - 22.0”) • Width: 101.6 - 406.4 mm | (4.0 - 16.0”) • Thickness: 0.065 - 0.46 mm | (0.0025 - 0.018”) Envelope (No.6): • Entry: Rear • Length: 92 mm | (3.6”) • Width: 165 mm | (6.5”) • Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”) Envelope (No.10): • Entry: Rear • Length: 105 mm | (4.1”) • Width: 241 mm | (9.5”) • Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”) Label (Base Sheet): • Entry: Buttom • Length: 101.6 - 558.8 mm | (4.0 - 22.0”) • Width: 101.6 - 406.4 mm | (4.0 - 16.0”) • Thickness: 0.16 - 0.19 mm | (0.0063 - 0.0075”) Card: • Entry: Front / Rear • Length: 100 - 148 mm | (3.9 - 5.8”) • Width: 100 - 148 mm | (3.9 - 5.8”) • Thickness: 0.22 mm | (0.0087”) Roll Paper: • Entry: Rear • Diameter: 127mm | (5”) • Width: 216 mm | (8.5”) • Thickness: 0.07 - 0.09 mm | (0.0028 - 0.035”) | Continuous Paper (Single Sheet): • Length: 76.2 - 558.8 mm (3.0 - 22.0 inch) • Width: 76.2 - 419.1 mm (3.0 - 16.5 inch) • Thickness: 0.065 - 0.10 mm (0.0025 - 0.0039 inch) Continuous Paper (Multi-part Forms): • Length: 76.2 - 558.8 mm (3.0 - 22.0 inch) • Width: 76.2 - 419.1 mm (3.0 - 16.5 inch) • (Rear Entry) Copies: 1 original + 6 copies • (Rear Entry) Thickness: 0.12 - 0.53 mm (0.0047 - 0.021 inch) • (Front Entry) Copies: 1 original + 9 copies • (Front Entry) Thickness: 0.12 - 0.79 mm (0.0047 - 0.031 inch) Labels: • Base Sheet Width: 76.2 - 419.1 mm (3.0 - 16.5 inch) • Base Sheet Thickness: 0.07 - 0.09 mm (0.0028 - 0.0035 inch) • Total Thickness: 0.16 - 0.19 mm (0.0063 - 0.0075 inch) Continuous Forms with Labels: • Base Sheet Width: 76.2 - 419.1 mm (3.0 - 16.5 inch) • Total Thickness (Rear Entry): 0.065 - 0.53 mm (0.0025 - 0.021 inch) • Total Thickness (Front Entry): 0.065 - 0.79 mm (0.0025 - 0.031 inch) Over Lapping Multi-part Forms: • Base Sheet Width: 76.2 - 419.1 mm (3.0 - 16.5 inch) • Total Thickness (Rear Entry): 0.13 - 0.53 mm (0.0051 - 0.021 inch) • Total Thickness (Front Entry): 0.13 - 0.79 mm (0.0051 - 0.031 inch) |
| Cartridge Type | Consumables:Ribbon Cartridge (Black): C13S015587 Standard:Fabric Ribbon Cartridge (Black) Ribbon Life:Approx. 6 million characters^1 | Consumables:Ribbon Cartridge (Black): C13S015587 Standard:Fabric Ribbon Cartridge (Black) Ribbon Life:Approx. 6 million characters^1 | • Standard: Fabric Ribbon Cartridge (Black) • Ribbon Life: Approx. 12 million Characters | — |
| Compatibility | Supported OS:Windows Server® 2008 Standard / Enterprise (32bit / 64bit), R2 Standard / Enterprise (64bit) Printer Driver:Microsoft Windows ® XP / Vista / 7 / 8 / 10 | Microsoft Windows ® XP / Vista / 7 / 8 / 10 | — | • Microsoft® Windows® 95/98/ME/2000/XP/Vista/8.1/10 and Windows® NT® operating system Version 4.0 • Windows® 7 / 8 (32bit / 64bit) Ultimate / Enterprise / Professional |
| Voltage | • Rated Voltage: AC 100 - 240V • Rated Frequency: 50 - 60 Hz • Power Consumption (Operating): Approx. 78W • Power Consumption (Sleep Mode): Approx. 0.8W | • Rated Voltage: AC 100 - 240V • Rated Frequency: 50 - 60 Hz • Power Consumption (Operating): Approx. 78W • Power Consumption (Sleep Mode): Approx. 1W | — | — |
| Noise Level | Approx. 59 dB(A) (ISO 7779 pattern) | Approx. 59 dB(A) (ISO 7779 pattern) | 55 dB | 58 dB(A) (ISO7779 pattern) |
| Features | Print Direction:Bi-direction with logic seeking Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET Manual Insertion:Front in, front out Push Tractor:Rear in, front out Pull Tractor:Rear in, front out Copy:1 original + 7 copies Line Spacing:4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”) Input Data Buffer:128 KB Pitch:10 cpi: 136 columns | Print Direction:Bi-direction with logic seeking Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET Manual Insertion:Front in, front out Push Tractor:Rear in, front out Pull Tractor:Rear in, front out Copy:1 original + 7 copies Line Spacing:4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”) Input Data Buffer:128 KB Pitch:10 cpi: 136 columns | Print Direction:Bi-direction with logic seeking Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET Line Spacing:4.23mm (1/6”) or programmable in increments of 0.059mm (1/432”) Input Data Buffer:128KB Pitch:10cpi: 136 cpl | Print Direction:Bi-direction with logic seeking Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET Pull Tractor:Front or Rear in, Top Out Line Spacing:4.23mm(1/6 inch) or programmable in increments of 0.059mm (1/432 inch) Memory Buffer:128 KB |
| Dimensions | 661 x 433 x 276 mm | 661 x 433 x 276 mm | — | 700 x 378 x 363 mm |
| Weight | 18.9kg | 18.9kg | — | 34kg |
