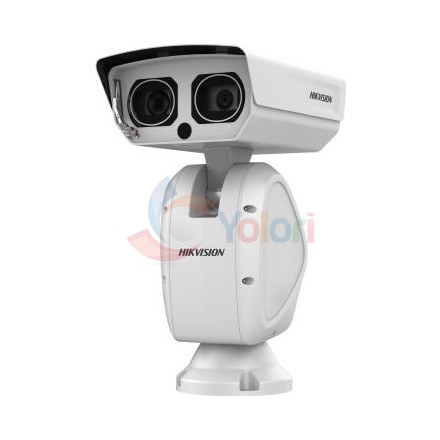

Hikvision PTZ Camera Panoramic DS-2DP2427ZIXS - 24 MP, 270°

Hikvision PTZ Camera Panoramic DS-2DP2427ZIXS adalah CCTV dengan Power: 36 VDC, max. 150 W; Hi-POE, max. 75 W. Dimensinya Ø 391.8mm × 400.5mm (Ø 15.43"×15.77"). Beratnya Approx. 18 kg (39.68 lb). CCTV dari Hikvision ini juga dibekali Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM; Audio Sampling Rate: MP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz, PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz; Audio mencakup 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%; 1 audio output, line level, impedance: 600 Ω. Untuk Connectivity, tercatat Ethernet Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port; Alarm: 7-ch alarm input, 2-ch alarm output; RS-485: Half duplex, HIKVISION, Pelco-P and Pelco-D self-adaptive; Protocols: TCP/IP, IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour; Simultaneous Live View: 20; API: Open-ended API, ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Third-party management platform, ISUP; User/Host: 32; Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter; Client: iVMS-4200; Web Browser: IE 8+. Untuk Image Sensor, tercatat Image Sensor mencakup [Panoramic channel] Six sensors, 1/1.8" progressive scan CMOS; [PTZ channel] 1/1.8" progressive scan CMOS; Min. Illumination mencakup [Panoramic channel] Color: 0.0005 Lux @(F1.6, AGC ON), B/W: 0.0001 Lux @(F1.6, AGC ON); [PTZ channel] Color: 0.0005 Lux @(F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2, AGC ON), 0 Lux with IR; Shutter Speed: 1 s to 1/30,000 s; Wide Dynamic Range (WDR): 120 dB; SNR: ≥52dB; Defog: Optical defog; Image Stabilization: EIS; Image Enhancement: BLC, HLC, 3D DNR. Perangkat ini mendukung Slow Shutter. Untuk Lens, tercatat Zoom: [PTZ channel] 40 × optical, 16 × digital; Focal Length mencakup [Panoramic channel] 2.8 mm dan [PTZ channel] 6.0 to 240 mm; FOV mencakup [Panoramic channel] Horizontal field of view: 270°, Vertical field of view: 85°; [PTZ channel] Horizontal field of view: 56.6° to 1.8° (Wide-Tele); [PTZ channel] Vertical field of view: 33.7° to 1.0° (Wide-Tele); [PTZ channel] Diagonal field of view: 63.4° to 2.0° (Wide-Tele); Aperture: F1.2; Zoom Speed: Approx. 4.4 s. Untuk Night Vision, tercatat Supplement Light Type: IR; Supplement Light Range: 250 m. Perangkat ini mendukung Smart Supplement Light. Untuk Protection, tercatat Protection: IP66 Standard, IK10, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection; Material: ADC12; Operating Condition: -40°C to 70°C (-40°F to 158°F). Humidity 95% or less (non-condensing). Untuk Ptz, tercatat Movement Range (Pan): 360° endless; Movement Range (Tilt): -15° to 90° (Auto Flip); Pan Speed: Pan Manual Speed: 0.1°/s to 210°/s (Configurable), Pan Preset Speed: 240°/s; Tilt Speed: Tilt Manual Speed: 0.1°/s to 150°/s (Configurable), Tilt Preset Speed: 200°/s; Presets: 300; Patrol Scan: 8 patrols; Pattern Scan: 4 patterns; Park Action: Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan; Scheduled Task: Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/ Dome Reboot/ Dome Adjust/ Aux Output. Perangkat ini mendukung Proportional Pan, Preset Freezing, 3D Positioning, PTZ Status Display dan Power-off Memory. Untuk Resolution, tercatat Main Stream mencakup [Panoramic channel] 50Hz: 25fps (8160 × 2400, 6120 × 1800, 5760 × 1696, 3840 × 1080); [Panoramic channel] 60Hz: 30fps (8160 × 2400, 6120 × 1800, 5760 × 1696, 3840 × 1080); [PTZ channel] 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); [PTZ channel] 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream mencakup [Panoramic channel] 50Hz: 25fps (2048 × 600, 1280 × 376); [Panoramic channel] 60Hz: 30fps (2048 × 600, 1280 × 376); [PTZ channel] 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); [PTZ channel] 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240); Third Stream mencakup [Panoramic channel] 50Hz: 25fps (4096 × 1200, 3840 × 1080, 2048 × 600, 1280 × 376); [Panoramic channel] 60Hz: 30fps (4096 × 1200, 3840 × 1080, 2048 × 600, 1280 × 376); [PTZ channel] 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); [PTZ channel] 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240). Untuk Smart Detection, tercatat Smart Event mencakup [Panoramic channel] Intrusion detection, line crossing detection, region entrance detection, region exiting detection; [PTZ channel] Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection; Alarm Linkage: Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP; Smart Tracking: Manual Tracking; Panoramic Tracking; Event Tracking; support patrol tracking in multiple scenes; Face Capture: [PTZ Channel] Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face; People Density: [Panoramic Channel] Support detecting the level of people density in the configured area. Perangkat ini mendukung Region of Interest (ROI). Untuk Storage, tercatat On-board Storage: Built-in microSD slot, support microSD/microSDHC/microSDXC cards, up to 256 GB; Network Storage: NAS (NFS, SMB/CIFS). Untuk Video Compression, tercatat Video Compression mencakup Main stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG dan Third Stream: H.265/H.264; H.264 Type: Baseline Profile/Main Profile/High Profile; Scalable Video Coding (SVC): H.264 and H.265 encoding. Hikvision Indonesia memberikan garansi resmi selama 12 bulan untuk produk ini.
