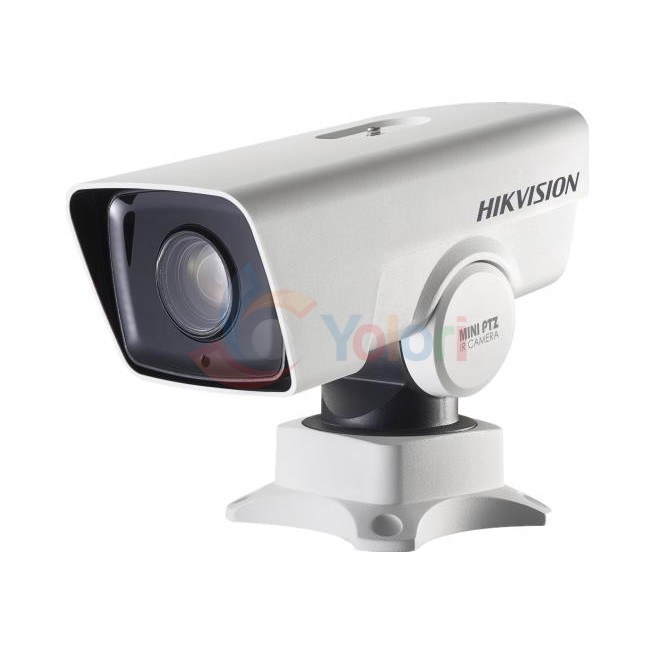

Hikvision PTZ Camera Positioning System DarkFighter DS-2DY3220IW-DE4(B) - 3-inch, 2 MP, 20X, IR, stand-mount — gambar 1
HikvisionTentang merek· PTZ Camera Positioning System DarkFighter
CCTVBaruSKU: DS-2DY3220IW-DE4(B)

Hikvision PTZ Camera Positioning System DarkFighter DS-2DY3220IW-DE4(B) - 3-inch, 2 MP, 20X, IR, stand-mount

Rp 15.579.000

Hikvision PTZ Camera Positioning System DarkFighter DS-2DY3220IW-DE4(B) adalah CCTV dengan Image Sensor: 1/2.8" progressive scan CMOS, Max. Resolution: 1920 × 1080, Zoom: 20x optical, 16x digital, Focal Length: 4.7 mm to 94 mm, Supplement Light Range: Up to 100 m, Movement Range (Pan): 360° endless, Presets: 300.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual
Chat WhatsApp Kunjungi Toko
DokumenFaktur pajak diterbitkan untuk pembelian ini

Hikvision PTZ Camera Positioning System DarkFighter DS-2DY3220IW-DE4(B) adalah CCTV dengan Power mencakup 12 VDC, 1.6 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4; Max. 19 W, including max. 9.2 W for IR. Dimensinya 255 mm × 129 mm × 195 mm (10.03" × 5.08" × 7.68"). Beratnya Approx. 3 kg (6.61 lb). CCTV dari Hikvision ini juga dibekali Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM; Audio: 1 input, 1 output. Untuk Connectivity, tercatat Ethernet Interface: 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4); Alarm: 1 input, 1 output; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour; Simultaneous Live View: Up to 20 channels; API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK; User/Host: Up to 32 users; 3 levels: Administrator, Operator and User; Security: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering; Client: iVMS-4200, iVMS-4500, iVMS-5200; Web Browser: IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+. Untuk Image Sensor, tercatat Image Sensor: 1/2.8" progressive scan CMOS; Min. Illumination: Color: 0.05 Lux @(F1.6, AGC ON), B/W: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR; Shutter Speed: 1/1 s to 1/30,000 s; Wide Dynamic Range (WDR): Digital WDR; Image Enhancement: BLC, HLC, 3D DNR. Untuk Lens, tercatat Zoom: 20x optical, 16x digital; Focal Length: 4.7 mm to 94 mm; FOV: 61.4° to 2.9° (Wide-Tele); Focus: Auto, semi-auto, manual; Aperture: Max. F1.6; Zoom Speed: Approx. 2.7 s (Optical Lens, Wide-Tele). Untuk Night Vision, tercatat Supplement Light Type: IR; Supplement Light Range: Up to 100 m; Day & Night: IR cut filter. Perangkat ini mendukung Smart Supplement Light. Untuk Protection, tercatat Protection: IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection; Operating Condition mencakup Working Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F) dan Working Humidity: ≤ 95%. Untuk Ptz, tercatat Movement Range (Pan): 360° endless; Movement Range (Tilt): From -40° to 30°; Pan Speed: Configurable, from 0.5°/s to 50°/s. Preset speed 50°/s; Tilt Speed: Configurable, from 0.5°/s to 25°/s. Preset speed 25°/s; Presets: 300; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan; Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan; Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust. Perangkat ini mendukung Proportional Pan, Preset Freezing, PTZ Status Display dan Power-off Memory. Untuk Resolution, tercatat Max. Resolution: 1920 × 1080; Main Stream mencakup 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1280 × 960, 1280 × 720); Sub-Stream mencakup 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240); Third Stream mencakup 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240). Untuk Smart Detection, tercatat Smart Event: Intrusion Detection, Line Crossing Detection, Region Exiting Detection, Region Entrance Detection; Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.; Region of Interest (ROI): Main stream, sub-stream and third stream respectively support two fixed areas. Untuk Storage, tercatat Network Storage: NAS (NFS, SMB/CIFS), ANR; On-board Storage: Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 128 GB. Untuk Video Compression, tercatat Video Compression mencakup Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG dan Third Stream: H.265/H.264/MJPEG; H.264 Type: Baseline Profile/Main Profile/High Profile. Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Sedang dilihatHikvisionHikvision PTZ Camera Positioning System DarkFighter DS-2DY3220IW-DE4(B) - 3-inch, 2 MP, 20X, IR, stand-mountHikvisionHikvision PTZ Camera Positioning System DarkFighter DS-2DY3220IW-DE(B) - 3-inch, 2 MP, 20X, IR, wall-mountHikvisionHikvision PTZ Camera Positioning System DarkFighter DS-2DY3320IW-DE4(B) - 3-inch, 3 MP, 20X, IR, stand-mountHikvisionHikvision PTZ Camera Positioning System DarkFighter DS-2DY3320IW-DE(B) - 3-inch, 3 MP, 20X, IR, wall-mount
HargaRp 15.579.000Rp 15.579.000Rp 17.049.000Rp 17.049.000
Garansi
Warranty Months12121212
Warranty TypeHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official Warranty
Jaminan
Stock StatusTersediaTersediaTersediaTersedia
Spesifikasi Teknis
Image Sensor• Image Sensor: 1/2.8" progressive scan CMOS • Min. Illumination: Color: 0.05 Lux @(F1.6, AGC ON), B/W: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR • Shutter Speed: 1/1 s to 1/30,000 s • Wide Dynamic Range (WDR): Digital WDR • Image Enhancement: BLC, HLC, 3D DNR• Image Sensor: 1/2.8" progressive scan CMOS • Min. Illumination: Color: 0.05 Lux @(F1.6, AGC ON), B/W: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR • Shutter Speed: 1/1 s to 1/30,000 s • Wide Dynamic Range (WDR): Digital WDR • Image Enhancement: BLC, HLC, 3D DNR• Image Sensor: 1/2.8" progressive scan CMOS • Min. Illumination: Color: 0.05 Lux @(F1.6, AGC ON), B/W: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR • Shutter Speed: 1/1 s to 1/30,000 s • Wide Dynamic Range (WDR): Digital WDR • Image Enhancement: BLC, HLC, 3D DNR• Image Sensor: 1/2.8" progressive scan CMOS • Min. Illumination: Color: 0.05 Lux @(F1.6, AGC ON), B/W: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR • Shutter Speed: 1/1 s to 1/30,000 s • Wide Dynamic Range (WDR): Digital WDR • Image Enhancement: BLC, HLC, 3D DNR
Resolution• Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1280 × 960, 1280 × 720), • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1280 × 960, 1280 × 720) Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)• Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1280 × 960, 1280 × 720), • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1280 × 960, 1280 × 720) Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)• Max. Resolution: 2048 × 1536 Main Stream: • 50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) • 50fps (1280 × 960, 1280 × 720) • 60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) • 60fps (1280 × 960, 1280 × 720) Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)• Max. Resolution: 2048 × 1536 Main Stream: • 50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) • 50fps (1280 × 960, 1280 × 720) • 60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) • 60fps (1280 × 960, 1280 × 720) Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Lens• Zoom: 20x optical, 16x digital • Focal Length: 4.7 mm to 94 mm • FOV: 61.4° to 2.9° (Wide-Tele) • Focus: Auto, semi-auto, manual • Aperture: Max. F1.6 • Zoom Speed: Approx. 2.7 s (Optical Lens, Wide-Tele)• Zoom: 20x optical, 16x digital • Focal Length: 4.7 mm to 94 mm • FOV: 61.4° to 2.9° (Wide-Tele) • Focus: Auto, semi-auto, manual • Aperture: Max. F1.6 • Zoom Speed: Approx. 2.7 s (Optical Lens, Wide-Tele)• Zoom: 20x optical, 16x digital • Focal Length: 4.7 mm to 94 mm • FOV: 58.3° to 3.2° (Wide-Tele) • Focus: Auto, semi-auto, manual • Aperture: Max. F1.6 • Zoom Speed: Approx. 2.7 s (Optical Lens, Wide-Tele)• Zoom: 20x optical, 16x digital • Focal Length: 4.7 mm to 94 mm • FOV: 58.3° to 3.2° (Wide-Tele) • Focus: Auto, semi-auto, manual • Aperture: Max. F1.6 • Zoom Speed: Approx. 2.7 s (Optical Lens, Wide-Tele)
PTZ• Movement Range (Pan): 360° endless • Movement Range (Tilt): From -40° to 30° • Pan Speed: Configurable, from 0.5°/s to 50°/s. Preset speed 50°/s • Tilt Speed: Configurable, from 0.5°/s to 25°/s. Preset speed 25°/s • Proportional Pan: Yes • Presets: 300 • Preset Freezing: Yes • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • PTZ Status Display: Yes • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust • Power-off Memory: Yes• Movement Range (Pan): 360° endless • Movement Range (Tilt): From -40° to 30° • Pan Speed: Configurable, from 0.5°/s to 50°/s. Preset speed 50°/s • Tilt Speed: Configurable, from 0.5°/s to 25°/s. Preset speed 25°/s • Proportional Pan: Yes • Presets: 300 • Preset Freezing: Yes • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • PTZ Status Display: Yes • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust • Power-off Memory: Yes• Movement Range (Pan): 360° endless • Movement Range (Tilt): From -40° to 30° • Pan Speed: Configurable, from 0.5°/s to 50°/s. Preset speed 50°/s • Tilt Speed: Configurable, from 0.5°/s to 25°/s. Preset speed 25°/s • Proportional Pan: Yes • Presets: 300 • Preset Freezing: Yes • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • PTZ Status Display: Yes • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust • Power-off Memory: Yes• Movement Range (Pan): 360° endless • Movement Range (Tilt): From -40° to 30° • Pan Speed: Configurable, from 0.5°/s to 50°/s. Preset speed 50°/s • Tilt Speed: Configurable, from 0.5°/s to 25°/s. Preset speed 25°/s • Proportional Pan: Yes • Presets: 300 • Preset Freezing: Yes • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • PTZ Status Display: Yes • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust • Power-off Memory: Yes
Night Vision• Supplement Light Type: IR • Supplement Light Range: Up to 100 m • Smart Supplement Light: Yes • Day & Night: IR cut filter• Supplement Light Type: IR • Supplement Light Range: Up to 100 m • Smart Supplement Light: Yes • Day & Night: IR cut filter• Supplement Light Type: IR • Supplement Light Range: Up to 100 m • Smart Supplement Light: Yes • Day & Night: IR cut filter• Supplement Light Type: IR • Supplement Light Range: Up to 100 m • Smart Supplement Light: Yes • Day & Night: IR cut filter
Video CompressionVideo Compression: • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264/MJPEG • Third Stream: H.265/H.264/MJPEG • H.264 Type: Baseline Profile/Main Profile/High ProfileVideo Compression: • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264/MJPEG • Third Stream: H.265/H.264/MJPEG • H.264 Type: Baseline Profile/Main Profile/High ProfileVideo Compression: • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264/MJPEG • Third Stream: H.265/H.264/MJPEG • H.264 Type: Baseline Profile/Main Profile/High ProfileVideo Compression: • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264/MJPEG • Third Stream: H.265/H.264/MJPEG • H.264 Type: Baseline Profile/Main Profile/High Profile
Audio• Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM • Audio: 1 input, 1 output• Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM • Audio: 1 input, 1 output• Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM • Audio: 1 input, 1 output• Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM • Audio: 1 input, 1 output
Smart Detection• Smart Event: Intrusion Detection, Line Crossing Detection, Region Exiting Detection, Region Entrance Detection • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. • Region of Interest (ROI): Main stream, sub-stream and third stream respectively support two fixed areas• Smart Event: Intrusion Detection, Line Crossing Detection, Region Exiting Detection, Region Entrance Detection • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. • Region of Interest (ROI): Main stream, sub-stream and third stream respectively support two fixed areas• Smart Event: Intrusion Detection, Line Crossing Detection, Region Exiting Detection, Region Entrance Detection • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. • Region of Interest (ROI): Main stream, sub-stream and third stream respectively support two fixed areas• Smart Event: Intrusion Detection, Line Crossing Detection, Region Exiting Detection, Region Entrance Detection • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. • Region of Interest (ROI): Main stream, sub-stream and third stream respectively support two fixed areas
Storage• Network Storage: NAS (NFS, SMB/CIFS), ANR • On-board Storage: Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 128 GB• Network Storage: NAS (NFS, SMB/CIFS), ANR • On-board Storage: Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 128 GB• Network Storage: NAS (NFS, SMB/CIFS), ANR • On-board Storage: Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 128 GB• Network Storage: NAS (NFS, SMB/CIFS), ANR • On-board Storage: Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 128 GB
Connectivity• Ethernet Interface: 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4) • Alarm: 1 input, 1 output • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour • Simultaneous Live View: Up to 20 channels • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK • User/Host: Up to 32 users; 3 levels: Administrator, Operator and User • Security: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering • Client: iVMS-4200, iVMS-4500, iVMS-5200 • Web Browser: IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+• Ethernet Interface: 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4) • Alarm: 1 input, 1 output • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour • Simultaneous Live View: Up to 20 channels • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK • User/Host: Up to 32 users; 3 levels: Administrator, Operator and User • Security: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering • Client: iVMS-4200, iVMS-4500, iVMS-5200 • Web Browser: IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+• Ethernet Interface: 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4) • Alarm: 1 input, 1 output • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour • Simultaneous Live View: Up to 20 channels • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK • User/Host: Up to 32 users; 3 levels: Administrator, Operator and User • Security: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering • Client: iVMS-4200, iVMS-4500, iVMS-5200 • Web Browser: IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+• Ethernet Interface: 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4) • Alarm: 1 input, 1 output • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour • Simultaneous Live View: Up to 20 channels • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK • User/Host: Up to 32 users; 3 levels: Administrator, Operator and User • Security: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering • Client: iVMS-4200, iVMS-4500, iVMS-5200 • Web Browser: IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
PowerPower: • 12 VDC, 1.6 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4 • Max. 19 W, including max. 9.2 W for IRPower: • 12 VDC, 1.6 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4 • Max. 19 W, including max. 9.2 W for IRPower: • 12 VDC, 1.6 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4 • Max. 19 W, including max. 9.2 W for IRPower: • 12 VDC, 1.6 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4 • Max. 19 W, including max. 9.2 W for IR
Protection• Protection: IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection Operating Condition: • Working Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F) • Working Humidity: ≤ 95%• Protection: IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection Operating Condition: • Working Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F) • Working Humidity: ≤ 95%• Protection: IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection Operating Condition: • Working Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F) • Working Humidity: ≤ 95%• Protection: IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection Operating Condition: • Working Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F) • Working Humidity: ≤ 95%
Dimensions255 mm × 129 mm × 195 mm (10.03" × 5.08" × 7.68")367 mm × 122 mm × 242 mm (14.45" × 4.80" × 9.53")255 mm × 129 mm × 195 mm (10.03" × 5.08" × 7.68")367 mm × 122 mm × 242 mm (14.45" × 4.80" × 9.53")
WeightApprox. 3 kg (6.61 lb)Approx. 3 kg (6.61 lb)Approx. 3 kg (6.61 lb)Approx. 3 kg (6.61 lb)
