BerandaCCTVHikvision PTZ Camera Speed Dome DarkFighter iDS-2SK8144IXS-D/J - 8-inch, 4 MP, 40X, IR
Hikvision PTZ Camera Speed Dome DarkFighter iDS-2SK8144IXS-D/J - 8-inch, 4 MP, 40X, IR — gambar 1
HikvisionTentang merek· PTZ Camera Speed Dome DarkFighter
CCTVBaruSKU: iDS-2SK8144IXS-D/J

Hikvision PTZ Camera Speed Dome DarkFighter iDS-2SK8144IXS-D/J - 8-inch, 4 MP, 40X, IR

Rp 73.219.000

Hikvision PTZ Camera Speed Dome DarkFighter iDS-2SK8144IXS-D/J adalah CCTV dengan Image Sensor: [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS, Max. Resolution: 2560 × 1440, Zoom: [panoramic channel] no; [PTZ channel] 16x, Focal Length: [Panoramic channel]: 2.8 to 12 mm; [PTZ channel]: 6.0 to 240 mm, Supplement Light Range: [Panoramic channel]: up to 50 m; [PTZ channel]: up to 500 m, Presets: 300.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual
Chat WhatsApp Kunjungi Toko
DokumenFaktur pajak diterbitkan untuk pembelian ini

Hikvision PTZ Camera Speed Dome DarkFighter iDS-2SK8144IXS-D/J adalah CCTV dengan Power: 36 VDC. Dimensinya Φ 485 mm × 487 mm (Φ 19.09" × 19.17"). Beratnya Approx. 17 kg (37.48 lb.). CCTV dari Hikvision ini juga dibekali Audio Compression mencakup PCM, G.726, MP2L2, G.722.1, AAC, G.711alaw dan G.711ulaw; Audio Bit Rate mencakup MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps; AAC: 16 kbps, 32 kbps, 64 kbps; Audio Sampling Rate mencakup MP2L2：16kHz，32kHz，48kHz, AAC：16kHz，32kHz，48kHz dan PCM：8kHz，16kHz，32kHz，48kHz; Audio mencakup 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω. Perangkat ini mendukung Environment Noise Filtering. Untuk Connectivity, tercatat Ethernet Interface: 1 RJ45 1000M self-adaptive Ethernet port; Alarm: 7 input(s), 2 output(s); RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive; Protocols mencakup TCP/IP, SMTP, RTSP, FTP, IGMP, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4/IPv6, DDNS, ICMP dan UPnP; API mencakup Open-ended API; Ehome; 萤石, ISAPI; ISUP; Hikvision SDK; ONVIF; GB/T28181协议; Simultaneous Live View: 20; User/Host: 32; Security mencakup 802.1X authenticated access, MAC address binding, Authenticated username and password, IP address filter dan HTTPS encryption; Client: iVMS-4200; Web Browser mencakup Safari11+, Chrome41+, IE8+ dan Firefox30+. Untuk Image Sensor, tercatat Image Sensor: [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS; Min. Illumination: [Panoramic channel]: Color: 0.0005 Lux @ (F1.4, AGC ON), B/W: 0.0001 Lux @ (F1.4, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR; Shutter Speed: 1/25 s to 1/30000 s; Image Enhancement mencakup BLC, HLC dan 3D DNR; Wide Dynamic Range (WDR): 120 dB WDR; Defog: Optical defog; SNR: ≥52dB. Perangkat ini mendukung Slow Shutter dan Image Stabilization. Untuk Lens, tercatat Zoom: [panoramic channel] no; [PTZ channel] 16x; Focus mencakup auto, manual dan semi-auto; Focal Length: [Panoramic channel]: 2.8 to 12 mm; [PTZ channel]: 6.0 to 240 mm; Zoom Speed: [Panoramic channel] approx. 2.3 s, [PTZ channel] approx. 4.8 s; FOV: [Panoramic channel]: 90° to 34.5°; [PTZ channel]: 56.6° to 1.8°; Aperture: [Panoramic channel] F1.4, [PTZ channel] F1.2; Constant Fx throughout the zoom range: [panoramic channel]: yes; [PTZ channel]: no. Untuk Night Vision, tercatat Supplement Light Range: [Panoramic channel]: up to 50 m; [PTZ channel]: up to 500 m; Day & Night: ICR; Day/Night Switch mencakup auto, day, night dan scheduled-switch. Perangkat ini mendukung Smart Supplement Light. Untuk Protection, tercatat Operating Condition: -40℃ to 70℃; Material: ADC12. Untuk Ptz, tercatat Movement Range (Pan): [panoramic channel] 0-90°, [PTZ channel] 0-360°; Movement Range (Tilt): [panoramic channel] -5° to 30°, [PTZ channel] -20° to 90°; Pan Speed: [panoramic channel] pan speed: configurable from 0.1° to 20°/s; [PTZ channel] pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s; Tilt Speed: [panoramic channel] tilt speed: configurable from 0.1° to 20°/s; [PTZ channel] tilt speed: configurable from 0.1° to 150°/s, preset speed 150°/s; Proportional Pan: [panoramic channel]: no; [PTZ channel]: yes; Presets: 300; Patrol Scan: 8 patrols; Pattern Scan: 4 pattern scans; Park Action mencakup preset, frame scan, tilt scan, patrol scan, random scan, auto scan, pattern scan dan panorama scan; Scheduled Task mencakup dome reboot, preset, random scan, patrol scan, dome adjust, pattern scan, tilt scan, panorama scan, frame scan, aux output dan auto scan. Perangkat ini mendukung Power-off Memory, 3D Positioning, PTZ Status Display dan Preset Freezing. Untuk Resolution, tercatat Max. Resolution: 2560 × 1440; Main Stream mencakup 50 Hz: 25/50 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30/60 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream mencakup 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240); Third Stream mencakup 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240). Untuk Smart Detection, tercatat Basic Event mencakup audio exception, video tampering alarm dan motion detection; Smart Event mencakup region entrance detection, line crossing detection, intrusion detection dan region exiting detection; Smart Tracking mencakup manual tracking, support patrol tracking among multiple detection scenes, event tracking dan panorama tracking; Linkage mencakup white light flashing, upload to FTP; sending email; notify surveillance center; patrol scan; preset; audible warning; pattern scan; smart tracking; alarm output; Multi-Target-Type Detection: both channels support multi-target-type detection and capture of human body, face and vehicles; Region of Interest (ROI): fixed region. Untuk Storage, tercatat Network Storage: NAS (NFS, SMB/ CIFS), ANR; On-board Storage: (Optional) Supports built-in memory card. The memory card needs to be installed before leaving the factory. Untuk Video Compression, tercatat Video Compression mencakup H.265, H.264 dan MJPEG; Video Bit Rate: 32 to 16384 kbps; H.264 Type mencakup main profile, baseline profile dan high profile; H.265 Type: main profile. Perangkat ini mendukung Scalable Video Coding (SVC). Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

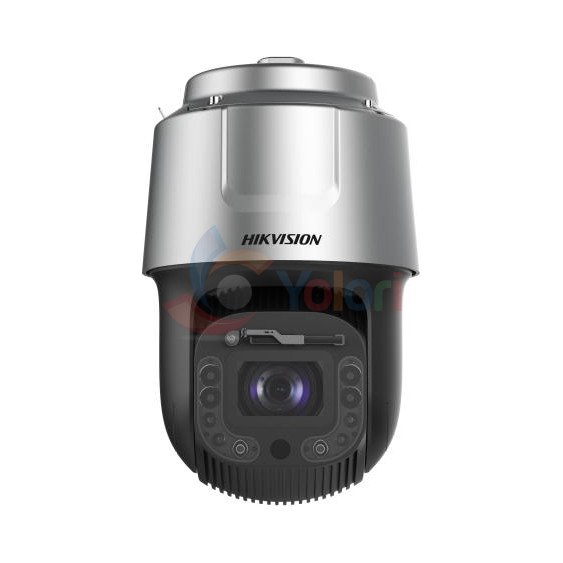

Sedang dilihatHikvisionHikvision PTZ Camera Speed Dome DarkFighter iDS-2SK8144IXS-D/J - 8-inch, 4 MP, 40X, IRHikvisionHikvision PTZ Camera Speed Dome DarkFighter Laser DS-2DF8C260I5XS-AELW(T2) - 8-inch, 2 MP, 60XHikvisionHikvision PTZ Camera Speed Dome DarkFighter Laser DS-2DF8C448I5XS-AELW(T2) - 8-inch, 4 MP, 48XHikvisionHikvision PTZ Camera Positioning System DarkFighter DS-2DY9236X-A(T3) - 9-inch, 2 MP, 36X, non-IR
HargaRp 73.219.000Rp 68.809.000Rp 68.809.000Rp 65.939.000
Garansi
Warranty Months12121212
Warranty TypeHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official Warranty
Jaminan
Stock StatusTersediaTersediaTersediaTersedia
Spesifikasi Teknis
Image Sensor• Image Sensor: [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS • Min. Illumination: [Panoramic channel]: Color: 0.0005 Lux @ (F1.4, AGC ON), B/W: 0.0001 Lux @ (F1.4, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR • Shutter Speed: 1/25 s to 1/30000 s • Slow Shutter: yes Image Enhancement: • BLC • HLC • 3D DNR • Wide Dynamic Range (WDR): 120 dB WDR • Defog: Optical defog • Image Stabilization: yes • SNR: ≥52dB• Image Sensor: 1/1.8＂ progressive scan CMOS • Min. Illumination: Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON) • Shutter Speed: 1/1 s to 1/30,000 s • Slow Shutter: yes • White Balance: auto;MWB;ATW;indoor;outdoor;fluorescent lamp;sodium lamp• Image Sensor: 1/1.8＂ progressive scan CMOS • Min. Illumination: Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON) • Shutter Speed: 1/1 s to 1/30,000 s • Slow Shutter: yes • White Balance: auto;MWB;ATW;indoor;outdoor;fluorescent lamp;sodium lamp• Image Sensor: 1/1.8＂ progressive scan CMOS Min. Illumination: • Color: 0.002 Lux @ (F1.3, AGC ON) • B/W: 0.0002 Lux @ ((F1.3, AGC ON) • Shutter Speed: 1/1s ~ 1/30,000s • White Balance: auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor
Resolution• Max. Resolution: 2560 × 1440 Main Stream: • 50 Hz: 25/50 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); • 60 Hz: 30/60 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)• Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)• Max. Resolution: 2560 × 1440 Main Stream: • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)• Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Lens• Zoom: [panoramic channel] no; [PTZ channel] 16x Focus: • auto • manual • semi-auto • Focal Length: [Panoramic channel]: 2.8 to 12 mm; [PTZ channel]: 6.0 to 240 mm • Zoom Speed: [Panoramic channel] approx. 2.3 s, [PTZ channel] approx. 4.8 s • FOV: [Panoramic channel]: 90° to 34.5°; [PTZ channel]: 56.6° to 1.8° • Aperture: [Panoramic channel] F1.4, [PTZ channel] F1.2 • Constant Fx throughout the zoom range: [panoramic channel]: yes; [PTZ channel]: no• Digital Zoom: 16x • Focal Length: 6.0 to 360 mm, 60 × Optical • Zoom Speed: approx. 5 s FOV: • Horizontal field of view: 60.0° to 2.0° (wide-tele), • Vertical field of view: 35.8° to 1.2° (wide-tele), • Diagonal field of view: 67.0° to 2.4° (wide-tele) • Aperture: F1.5• Digital Zoom: 16x • Focal Length: 6.0 to 288 mm, 48 × Optical • Zoom Speed: approx. 5 s FOV: • Horizontal field of view: 60.0° to 2.0° (wide-tele), • Vertical field of view: 35.8° to 1.2° (wide-tele), • Diagonal field of view: 67.0° to 2.4° (wide-tele) • Aperture: F1.5• Digital Zoom: 16x • Focal Length: 6.0mm to 216mm，36× Optical • Zoom Speed: approx. 4.5 s FOV: • Horizontal field of view: 56.6° to 2.0° (wide-tele), • Vertical field of view: 33.7° to 1.2° (wide-tele), • Diagonal field of view: 63.4° to 2.3° (wide-tele) • Aperture: F1.3
PTZ• Movement Range (Pan): [panoramic channel] 0-90°, [PTZ channel] 0-360° • Movement Range (Tilt): [panoramic channel] -5° to 30°, [PTZ channel] -20° to 90° • Pan Speed: [panoramic channel] pan speed: configurable from 0.1° to 20°/s; [PTZ channel] pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s • Tilt Speed: [panoramic channel] tilt speed: configurable from 0.1° to 20°/s; [PTZ channel] tilt speed: configurable from 0.1° to 150°/s, preset speed 150°/s • Proportional Pan: [panoramic channel]: no; [PTZ channel]: yes • Presets: 300 • Patrol Scan: 8 patrols • Pattern Scan: 4 pattern scans • Power-off Memory: yes Park Action: • preset • frame scan • tilt scan • patrol scan • random scan • auto scan • pattern scan • panorama scan • 3D Positioning: yes • PTZ Status Display: yes • Preset Freezing: yes Scheduled Task: • dome reboot • preset • random scan • patrol scan • dome adjust • pattern scan • tilt scan • panorama scan • frame scan • aux output • auto scan• Movement Range (Pan): 360° • Movement Range (Tilt): -20° to 90° (auto flip) • Pan Speed: configurable from 0.1° to 210°/s; preset speed: 280°/s • Tilt Speed: configurable from 0.1° to 150°/s, preset speed 250°/s • Proportional Zoom: yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Power-off Memory: yes • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • 3D Positioning: yes • PTZ Status Display: yes • Preset Freezing: yes • Scheduled Task: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output• Movement Range (Pan): 360° • Movement Range (Tilt): -20° to 90° (auto flip) • Pan Speed: configurable from 0.1° to 210°/s; preset speed: 280°/s • Tilt Speed: configurable from 0.1° to 150°/s, preset speed 250°/s • Proportional Zoom: yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Power-off Memory: yes • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • 3D Positioning: yes • PTZ Status Display: yes • Preset Freezing: yes • Scheduled Task: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output• Movement Range (Pan): 360° • Movement Range (Tilt): -90° to 40° (auto flip) • Pan Speed: configurable from 0.1° to 100°/s; preset speed: 100°/s • Tilt Speed: configurable from 0.1° to 50°/s, preset speed 100°/s • Proportional Zoom: yes • Presets: 300 • Patrol Scan: 8 patrols • Pattern Scan: 4 pattern scans • Power-off Memory: yes • Park Action: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan • 3D Positioning: yes • PTZ Status Display: yes • Preset Freezing: yes • Scheduled Task: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
Night Vision• Supplement Light Range: [Panoramic channel]: up to 50 m; [PTZ channel]: up to 500 m • Smart Supplement Light: yes • Day & Night: ICR Day/Night Switch: • auto • day • night • scheduled-switch• Laser Distance: 500 m • Smart IR: yes • Day & Night: ICR • Day/Night Switch: day, night, auto, scheduled-switch• Laser Distance: 500 m • Smart IR: yes • Day & Night: ICR • Day/Night Switch: day, night, auto, scheduled-switchDay & Night: ICR
Video CompressionVideo Compression: • H.265 • H.264 • MJPEG • Video Bit Rate: 32 to 16384 kbps H.264 Type: • main profile • baseline profile • high profile • H.265 Type: main profile • Scalable Video Coding (SVC): yes• Video Compression: H.265;H.264;MJPEG • Video Bit Rate: 32 Kbps to 16384 Kbps • H.264 Type: baseline profile;main profile;high profile • H.265 Type: main profile • H.264+: yes • H.265+: yes • SVC: yes• Video Compression: H.265;H.264;MJPEG • Video Bit Rate: 32 Kbps to 16384 Kbps • H.264 Type: baseline profile;main profile;high profile • H.265 Type: main profile • H.264+: yes • H.265+: yes • SVC: yes• Video Compression: H.265;H.264;MJPEG • H.264 Type: baseline profile;main profile;high profile • H.265 Type: main profile • H.264+: yes • H.265+: yes • SVC: yes
AudioAudio Compression: • PCM • G.726 • MP2L2 • G.722.1 • AAC • G.711alaw • G.711ulaw Audio Bit Rate: • MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps • AAC: 16 kbps, 32 kbps, 64 kbps Audio Sampling Rate: • MP2L2：16kHz，32kHz，48kHz • AAC：16kHz，32kHz，48kHz • PCM：8kHz，16kHz，32kHz，48kHz • Environment Noise Filtering: yes Audio: • 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, • 1 output (line out), line level, output impedance: 600 Ω• Audio Compression: G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM • Audio Bit rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 128 Kbps(MP2L2) • Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% • Audio Output: 1 audio output, line level, impedance: 600 Ω• Audio Compression: G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM • Audio Bit rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 128 Kbps(MP2L2) • Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% • Audio Output: 1 audio output, line level, impedance: 600 Ω• Audio Compression: G.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM • Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% • Audio Output: 1 audio output, line level, impedance: 600 Ω
Smart DetectionBasic Event: • audio exception • video tampering alarm • motion detection Smart Event: • region entrance detection • line crossing detection • intrusion detection • region exiting detection Smart Tracking: • manual tracking • support patrol tracking among multiple detection scenes • event tracking • panorama tracking Linkage: • white light flashing, upload to FTP • sending email • notify surveillance center • patrol scan • preset • audible warning • pattern scan • smart tracking • alarm output • Multi-Target-Type Detection: both channels support multi-target-type detection and capture of human body, face and vehicles • Region of Interest (ROI): fixed region• Multi-target-type Detection: support face and human body capture, and output linked information • Face Capture: Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face. • Face Comparison: yes • Basic Event: audio exception;motion detection;video tampering alarm;exception;video tampering alarm;alarm output;alarm input • Smart Event: intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;vandal-proof alarm • Smart Tracking: manual tracking;event tracking;support patrol tracking among multiple detection scenes;auto-tracking • Smart Record: ANR;Dual-VCA • Alarm Linkage: preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording • Smart Encoding: ROI;SVC;H.265+;H.264+;low bit rate • ROI: dynamic face tracking;fixed region;dynamic license plate tracking• Multi-target-type Detection: support face and human body capture, and output linked information • Face Capture: Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face. • Face Comparison: yes • Basic Event: audio exception;motion detection;video tampering alarm;exception;video tampering alarm;alarm output;alarm input • Smart Event: intrusion detection;line crossing detection;region entrance detection;region exiting detection;loitering detection;people gathering detection;fast moving detection;unattended baggage detection;parking detection;object removal detection;vandal-proof alarm • Smart Tracking: manual tracking;event tracking;support patrol tracking among multiple detection scenes;auto-tracking • Smart Record: ANR;Dual-VCA • Alarm Linkage: preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording • Smart Encoding: ROI;SVC;H.265+;H.264+;low bit rate • ROI: dynamic face tracking;fixed region;dynamic license plate tracking• Face Capture: Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face. Road Traffic: • Support vehicle detection (license plate number • vehicle model, and vehicle color recognition) • Basic Event: motion detection;video tampering alarm;alarm input;alarm output;exception • Smart Event: intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;vandal-proof alarm • Smart Tracking: manual tracking;auto-tracking;event tracking • Smart Record: ANR;Dual-VCA • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. • ROI: yes
Storage• Network Storage: NAS (NFS, SMB/ CIFS), ANR • On-board Storage: (Optional) Supports built-in memory card. The memory card needs to be installed before leaving the factory• Network Storage: NAS (NFS, SMB/ CIFS) • On-board Storage: support microSD/microSDHC/microSDXC cards, up to 256 GB• Network Storage: NAS (NFS, SMB/ CIFS) • On-board Storage: support microSD/microSDHC/microSDXC cards, up to 256 GBOn-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Connectivity• Ethernet Interface: 1 RJ45 1000M self-adaptive Ethernet port • Alarm: 7 input(s), 2 output(s) • RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive Protocols: • TCP/IP • SMTP • RTSP • FTP • IGMP • Qos • RTCP • HTTPS • PPPoE • SNMP • NTP • RTP • UDP • DNS • HTTP • DHCP • Bonjour • 802.1x • IPv4/IPv6 • DDNS • ICMP • UPnP API: • Open-ended API • Ehome • 萤石, ISAPI • ISUP • Hikvision SDK • ONVIF • GB/T28181协议 • Simultaneous Live View: 20 • User/Host: 32 Security: • 802.1X authenticated access • MAC address binding • Authenticated username and password • IP address filter • HTTPS encryption • Client: iVMS-4200 Web Browser: • Safari11+ • Chrome41+ • IE8+ • Firefox30+• Alarm Input: 7 alarm inputs • Alarm Output: 2 alarm output • RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • API: Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;ISUP;Hik-Connect • Simultaneous Live View: 20 • User/Host: 32 • Security Measures: Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter • Client: iVMS-4200;Hik-Connect;Hikcentral • Web Browser: IE10-11, Chrome 57+, Firefox 52+, Safari 12+• Alarm Input: 7 alarm inputs • Alarm Output: 2 alarm output • RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • API: Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;ISUP;Hik-Connect • Simultaneous Live View: 20 • User/Host: 32 • Security Measures: Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter • Client: iVMS-4200;Hik-Connect;Hikcentral • Web Browser: IE10-11, Chrome 57+, Firefox 52+, Safari 12+• Alarm Input: 7 alarm inputs • Alarm Output: 2 alarm outputs • Video Output: NTSC;PAL;1.0V[p-p]/75Ω;BNC connector • RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • API: ONVIF (Profile S, Profile G, Profile T); ISAPI;Hikvision SDK • Simultaneous Live View: Up to 20 channels • User/Host: Up to 32 users. 3 levels: Administrator, Operator and User • Security Measures: Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter • Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect • Web Browser: IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+
PowerPower: 36 VDC——Power: 24 VAC. Max. 90 W, including max. 15W for heater
Protection• Operating Condition: -40℃ to 70℃ • Material: ADC12• Protection: IP67 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection • Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%• Protection: IP67 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection • Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%• Protection: IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection • Operating Conditions: Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95% • Material: Aluminum alloy ADC12
DimensionsΦ 485 mm × 487 mm (Φ 19.09" × 19.17")Ø 267 mm × 430 mm (Ø 10.51" × 16.93")Ø 267 mm × 430 mm (Ø 10.51" × 16.93")180×390×491mm(7.09" × 15.35" × 19.33")
WeightApprox. 17 kg (37.48 lb.)Approx. 9.6 kg (21.16 lb.)Approx. 9.6 kg (21.16 lb.)Approx. 13 kg (28.66 lb)
