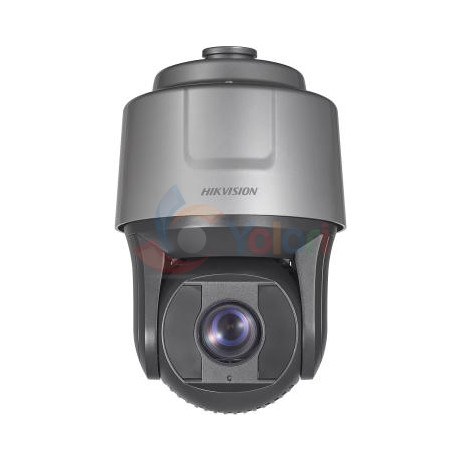

Hikvision PTZ Camera Speed Dome DarkFighterX DS-2DF8225IH-AEL(D) - 8-inch, 2 MP, 25X, IR

Hikvision PTZ Camera Speed Dome DarkFighterX DS-2DF8225IH-AEL(D) adalah CCTV dengan Power mencakup Without wiper: 24 VAC, max. 68 W (max. 12 W for heater, and max. 15 W for IR), Hi-PoE, max. 60 W; With wiper: 24 VAC max. 70 W (max. 12 W for heater, and max. 15 W for IR), Hi-PoE, max. 60 W. Dimensinya Φ 266.6 mm × 437 mm (Φ 10.50" × 17.20"). Beratnya Approx. 8 kg (17.64 lb). CCTV dari Hikvision ini juga dibekali Audio Input: 1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%; Audio Output: 1-ch audio output, line level, impedance: 600 Ω; Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM; Audio Bitrate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2). Untuk Connectivity, tercatat BNC: 1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC; Alarm Output: 2-ch alarm output; Alarm Input: 7-ch alarm input; Network Interface: 1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE; RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour; API: Open-ended, support ONVIF and CGI, support HIKVISION SDK and Third-Party Management Platform; Simultaneous Live View: Up to 20 channels; User/Host mencakup Up to 32 users; 3 levels: Administrator, Operator and User; Client: iVMS-4200; Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51; Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering. Untuk Image Sensor, tercatat AGC: Auto/Manual; Image Sensor: Two 1/2.8" progressive scan CMOS; Min. Illumination mencakup Color: 0.0004 Lux @(F1.5, AGC ON); B/W: 0.0001Lux @(F1.5, AGC ON); 0 Lux with IR; White Balance: Auto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp; Shutter Time: 1/1 s to 1/30,000 s; Image Enhancement: HLC, BLC, 3D DNR, Optical Defog, Regional Exposure, Regional Focus; WDR: 120 dB. Untuk Lens, tercatat Digital Zoom: 16×; Focus Mode: Auto/Semi-automatic/Manual; FOV mencakup Horizontal field of view: 58.2° to 3.2° (wide-tele), Vertical field of view: 32.7° to 1.8° (wide-tele) dan Diagonal field of view: 66.8° to 3.7° (wide-tele); Zoom Speed: Approx. 4.4 s (optical lens, wide-tele); Working Distance: 10 mm to 1500 mm (wide-tele); Aperture Range: F1.5 to F3.5; Focal Length: 4.8 mm to 120 mm, 25× Optical. Untuk Night Vision, tercatat IR Distance: Up to 200 m; Day & Night: Controlled by dual-sensor. Perangkat ini mendukung Smart IR. Untuk Protection, tercatat Material: Aluminum alloy; Protection Level: IP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6; Working Temperature: Temperature: -40°C to 70°C (-40°F to 158°F); Working Humidity: Humidity: ≤ 90%. Untuk Ptz, tercatat Movement Range (Pan): 360° endless; Pan Speed: Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s; Movement Range (Tilt): From -20° to 90°; Tilt Speed: Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s; Presets: 300; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan; Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan; PTZ Status Display: ON/OFF; Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output. Perangkat ini mendukung Proportional Zoom, Power-off Memory dan Preset Freezing. Untuk Resolution, tercatat Max. Resolution: 1920 × 1080; Sub-Stream mencakup 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240); Main Stream mencakup 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720); Third Stream mencakup 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240). Untuk Smart Detection, tercatat Smart Tracking: Event Tracking, supports tracking in multiple detection scenes; Smart Record: ANR (Automatic Network Replenishment), Dual-VCA; ROI: Eight fixed region for each stream; Perimeter Protection mencakup Intrusion, Line Crossing, Region Entrance, Region Exiting; Support alarm triggering by specified target types (human and vehicle); Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc; Event Detection: Face Detection, Audio Exception Detection, Motion Detection, Video Tampering Detection, Exception (Network Disconnected, IP Address Conflict, HDD Full, HDD Error, Illegal Login); Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. Untuk Storage, tercatat Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR. Untuk Video Compression, tercatat H.264 Type: Baseline Profile/Main Profile/High Profile; Video Compression mencakup Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG dan Third Stream: H.265/H.264/MJPEG; H.265 Type: Main Profile; Video Bitrate: 256 kbps to 16384 kbps. Perangkat ini mendukung H.264+, H.265+ dan SVC. Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.
