Beranda CCTVHikvision Smart IP Bullet Camera DS-2CD3026G2-IU/SL - 2 MP, 1/2.8" CMOS, IR 40 m

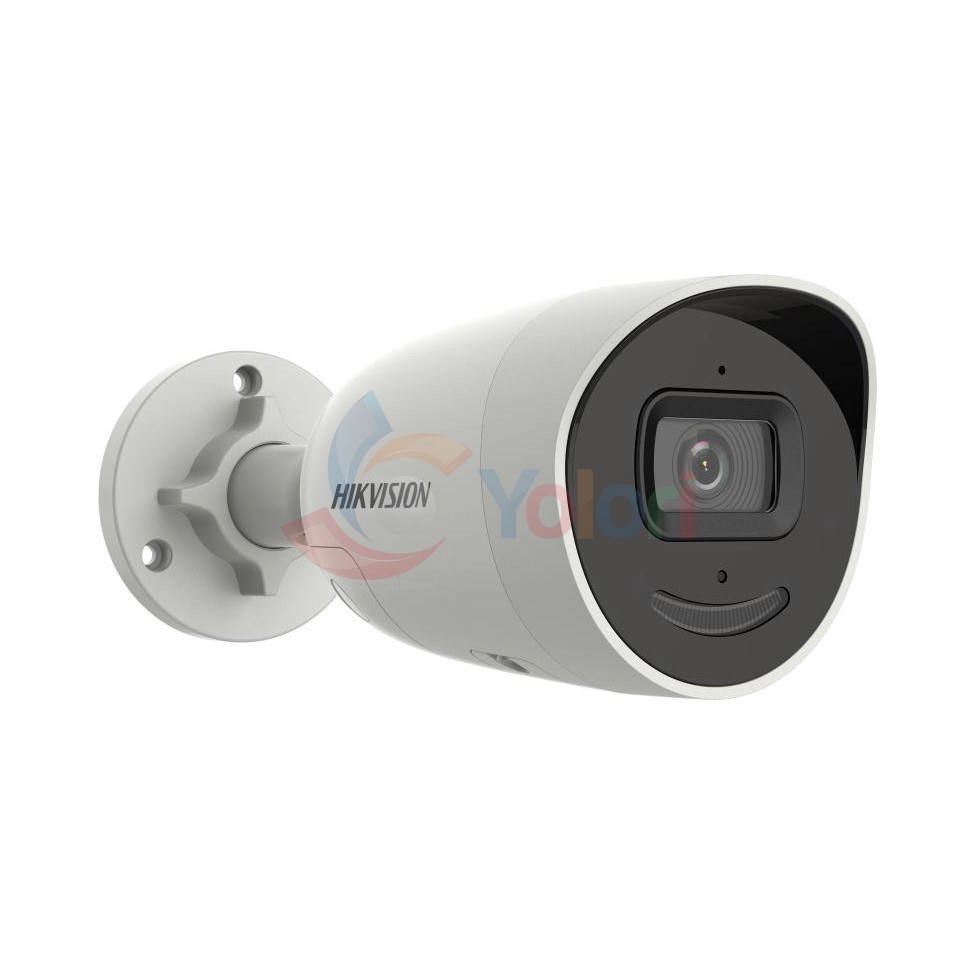

Hikvision Smart IP Bullet Camera DS-2CD3026G2-IU/SL - 2 MP, 1/2.8" CMOS, IR 40 m — gambar 1

1 / 2

Tentang merek· Smart IP Bullet Camera

CCTVBaruSKU: DS-2CD3026G2-IU/SL

Hikvision Smart IP Bullet Camera DS-2CD3026G2-IU/SL - 2 MP, 1/2.8" CMOS, IR 40 m

Name: Hikvision Smart IP Bullet Camera DS-2CD3026G2-IU/SL - 2 MP, 1/2.8" CMOS, IR 40 m
Brand: Hikvision
SKU: DS-2CD3026G2-IU/SL
Price: 3669000 IDR
Availability: InStock

Rp 3.669.000

Hikvision Smart IP Bullet Camera DS-2CD3026G2-IU/SL adalah kamera bullet IP 2 MP dengan lampu strobo dan pengeras suara bawaan 1,2 watt yang menyala dan berbunyi saat orang terdeteksi melintasi garis terlarang. Tekanan suaranya 95 dB pada jarak 10 cm. Sensornya CMOS 1/2.8 inci bukaan F1,4 dengan iluminasi minimum 0,002 lux, inframerah 40 meter, mikrofon bawaan, dan kartu memori sampai 512 GB. Peringkat IK tidak dicantumkan datasheet.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|12 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Akhiran SL pada DS-2CD3026G2-IU/SL berarti strobe light dan audible warning. Ketika analitik perimeter mengenali manusia atau kendaraan di area terlarang, kamera menyalakan alarm visual dan membunyikan pengeras suara 1,2 watt yang tekanan suaranya mencapai 95 dB pada jarak 10 cm. Pada gudang atau halaman belakang, peringatan itu sering cukup untuk membuat orang pergi sebelum ada yang hilang. Sensornya CMOS 1/2.8 inci dengan bukaan F1.4 dan iluminasi minimum 0,002 lux. Rentang dinamisnya 120 dB dan rasio sinyal terhadap derau di atas 52 dB. Laju bingkainya sampai 60 per detik pada 1920 × 1080. Klasifikasi manusia dan kendaraan berbasis deep learning membatasi pemicu alarm pada dua jenis sasaran itu saja. Jangkauan DORI-nya pada lensa 6 mm mencapai 86 meter untuk deteksi. Mikrofon bawaan, kartu sampai 512 GB, empat aliran video, dan bodi IP67 seberat 590 gram melengkapinya. Datasheet-nya tidak mencantumkan peringkat IK, jadi ketahanan terhadap benturan tidak dijamin principal meski bodinya logam. Pengeras suaranya juga untuk peringatan, bukan percakapan dua arah yang jernih.

Garansi

Warranty Months: 12
Warranty Type: Hikvision Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

Camera Type: Type: AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera Signal: IP
Image Sensor: Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB
Resolution: Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: up to 50 fps (1920 × 1080, 1280 × 720) • 60 Hz: up to 60 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Lens: Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 107° Vertical FOV: 57° Diagonal FOV: 129° • 4 mm Horizontal FOV: 86° Vertical FOV: 47° Diagonal FOV: 102° • 6 mm Horizontal FOV: 55° Vertical FOV: 29° Diagonal FOV: 65° Lens Mount: M12 Iris Type: Fixed Aperture: F1.4 DORI: • 2.8 mm D: 44 m O: 17 m R: 8 m I: 4 m • 4 mm D: 53 m O: 21 m R: 10 m I: 5 m • 6 mm D: 86 m O: 34 m R: 17 m I: 8 m
Night Vision: Supplement Light Type: IR Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day/Night Switch: Day, Night, Auto, Schedule
Video Compression: Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
Audio: Audio Type: Mono sound Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes Built-in Speaker: Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB
Smart Detection: Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Face Capture: Yes Alarm: Visual alarm
Storage: On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Connectivity: Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Power: Power: • 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø 5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W
Protection: Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimensions: Dimension: 72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5") Package Dimension: 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Weight: Weight: Approx. 590 g (1.3 lb.) With Package Weight: Approx. 830 g (1.8 lb.)

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Tampilkan hanya yang berbeda

4 produk · geser untuk melihat lainnya

	Sedang dilihatHikvisionHikvision Smart IP Bullet Camera DS-2CD3026G2-IU/SL - 2 MP, 1/2.8" CMOS, IR 40 m	Sedang dilihatHikvisionHikvision Smart IP Bullet Camera DS-2CD3T23G2-4IS - 2 MP, 1/2.7" CMOS, IR 90 m	Sedang dilihatHikvisionHikvision Smart IP Dome Camera DS-2CD3523G2-IS - 2 MP, 1/2.8" CMOS, IR 30 m	Sedang dilihatHikvisionHikvision Smart IP Bullet Camera DS-2CD3056G2-IS - 5 MP, 1/2.7" CMOS, IR 40 m
Harga	Rp 3.669.000	Rp 3.709.000	Rp 3.709.000	Rp 3.559.000
Garansi
Warranty Months	12	12	12	12
Warranty Type	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty
Jaminan
Stock Status	Tersedia	Tersedia	Tersedia	Tersedia
Spesifikasi Teknis
Camera Type	Type: AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera Signal: IP	—	—	Type: AcuSense Fixed Bullet Network Camera Signal: IP
Image Sensor	Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB	Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB	Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB	Image Sensor: 1/2.7" progressive scan CMOS
Resolution	Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: up to 50 fps (1920 × 1080, 1280 × 720) • 60 Hz: up to 60 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)	Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)	Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)	Max. Resolution: 2592 × 1944
Lens	Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 107° Vertical FOV: 57° Diagonal FOV: 129° • 4 mm Horizontal FOV: 86° Vertical FOV: 47° Diagonal FOV: 102° • 6 mm Horizontal FOV: 55° Vertical FOV: 29° Diagonal FOV: 65° Lens Mount: M12 Iris Type: Fixed Aperture: F1.4 DORI: • 2.8 mm D: 44 m O: 17 m R: 8 m I: 4 m • 4 mm D: 53 m O: 21 m R: 10 m I: 5 m • 6 mm D: 86 m O: 34 m R: 17 m I: 8 m	Lens Type: Fixed lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 112° Vertical FOV: 61° Diagonal FOV: 132.4° • 4 mm Horizontal FOV: 91° Vertical FOV: 47.8° Diagonal FOV: 110.2° • 6 mm Horizontal FOV: 56° Vertical FOV: 29.8° Diagonal FOV: 65.3° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 Depth of Field: • 2.8 mm 1 m to ∞ • 4 mm 1.1 m to ∞ • 6 mm 2.8 m to ∞ DORI: • 2.8 mm D: 42 m O: 16 m R: 8 m I: 4 m • 4 mm D: 52 m O: 20 m R: 10 m I: 5 m • 6 mm D: 85 m O: 33 m R: 17 m I: 8 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°	Lens Type: Fixed focal lens, 2.8, 4 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 112° Vertical FOV: 61° Diagonal FOV: 132.4° • 4 mm Horizontal FOV: 91° Vertical FOV: 47.8° Diagonal FOV: 110.2° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 Depth of Field: • 2.8 mm 1 m to ∞ • 4 mm 1.2 m to ∞ DORI: • 2.8 mm D: 43 m O: 17 m R: 8 m I: 4 m • 4 mm D: 54 m O: 21 m R: 10 m I: 5 m Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°	Lens Type: Fixed focal, 2.8 mm / 4 mm / 6 mm Focal Length & FOV: • 2.8 mm Horizontal FOV: 98° Vertical FOV: 71° Diagonal FOV: 131° • 4 mm Horizontal FOV: 79° Vertical FOV: 58° Diagonal FOV: 104° • 6 mm Horizontal FOV: 51° Vertical FOV: 37° Diagonal FOV: 66° Aperture: F1.4 Lens Mount: M12
Night Vision	Supplement Light Type: IR Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day/Night Switch: Day, Night, Auto, Schedule	Supplement Light Type: IR Supplement Light Range: • -2ISU model: up to 60 m • -4ISU model: up to 90 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule	Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule	Supplement Light Type: IR Supplement Light Range: Up to 40 m IR Wavelength: 850 nm
Video Compression	Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Region of Interest (ROI): 5 fixed regions for main stream and sub-stream	Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Scalable Video Coding (SVC): H.264 and H.265 encoding Bit Rate Control: CBR, VBR	Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Scalable Video Coding (SVC): H.264 and H.265 encoding Bit Rate Control: CBR, VBR	Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264
Audio	Audio Type: Mono sound Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes Built-in Speaker: Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB	Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes, 1 built-in microphone Audio: • 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium	Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes, 1 built-in microphone Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium	Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Type: Mono Audio In: 1 line in Audio Out: 1 line out
Smart Detection	Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Face Capture: Yes Alarm: Visual alarm	Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 8 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture	Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 8 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture	Deep Learning: Human and vehicle target classification Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Smart Event: Scene change, audio exception, defocus, unattended baggage, object removal detection Face Capture: Yes
Storage	On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)	On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.	On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.	On-Board Storage: microSD/microSDHC/microSDXC slot, up to 512 GB
Connectivity	Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP	Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes	Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes	Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G, Profile T)
Power	Power: • 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø 5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W	Power: • -2I: 12 VDC ± 25%, 0.58 A, max. 7.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 8.5 W • -4I: 12 VDC ± 25%, 0.83 A, max. 10 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max.11W	Power: • 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: IEEE 802.3af, Class 3, max. 7 W	Power: • 12 VDC ± 25%, 0.6 A, max. 7 W • PoE: IEEE 802.3af, Class 3, max. 8.5 W
Protection	Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)	Protection: • IP67: IEC 60529-2013 • IK10: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Metal	Protection: IP67: IEC 60529-2013 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Base: aluminum, cover: plastic	Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less, non-condensing
Dimensions	Dimension: 72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5") Package Dimension: 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")	Dimension: 89 mm × 93.1 mm × 325.7 mm (3.5" × 3.7" × 12.8") Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")	Dimension: Ø113.6 mm × 72.6 mm (Ø 4.5" × 2.9") Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")	Dimension: 78.8 mm × 78.6 mm × 215.2 mm
Weight	Weight: Approx. 590 g (1.3 lb.) With Package Weight: Approx. 830 g (1.8 lb.)	Weight: Approx. 1230 g (2.7 lb.) With Package Weight: Approx. 1940 g (4.3 lb.)	Weight: Approx. 410 g (0.9 lb.) With Package Weight: Approx. 645 g (1.4 lb.)	Weight: Approx. 725 g (1.6 lb.)
