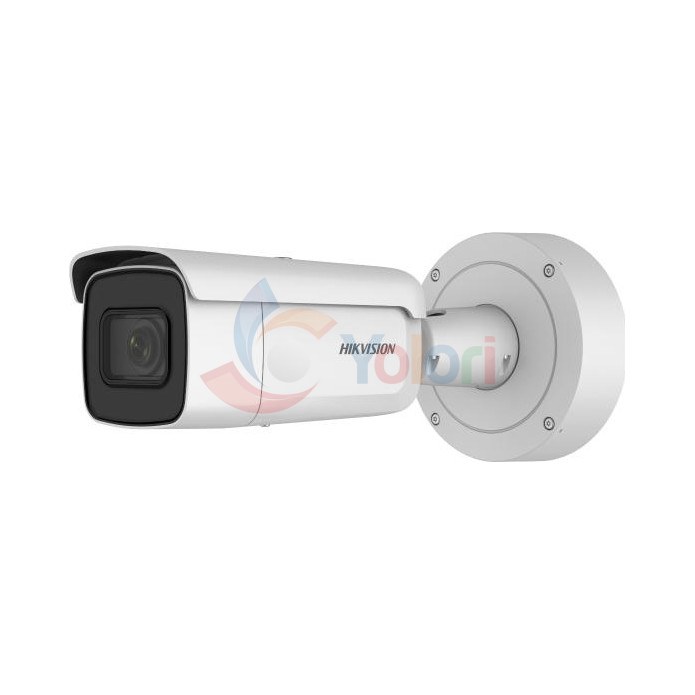

Beranda CCTVHikvision Smart IP Bullet Camera DS-2CD3645G0-IZS - 4 MP, 1/2.5" CMOS, IR 60 m

Hikvision Smart IP Bullet Camera DS-2CD3645G0-IZS - 4 MP, 1/2.5" CMOS, IR 60 m — gambar 1

Tentang merek· Smart IP Bullet Camera

CCTVBaruSKU: DS-2CD3645G0-IZS

Hikvision Smart IP Bullet Camera DS-2CD3645G0-IZS - 4 MP, 1/2.5" CMOS, IR 60 m

Name: Hikvision Smart IP Bullet Camera DS-2CD3645G0-IZS - 4 MP, 1/2.5" CMOS, IR 60 m
Brand: Hikvision
SKU: DS-2CD3645G0-IZS
Price: 6899000 IDR
Availability: InStock

Rp 6.899.000

Hikvision Smart IP Bullet Camera DS-2CD3645G0-IZS adalah kamera bullet IP 4 MP berlensa varifokal bermotor 2,7 sampai 13,5 mm dengan fokus otomatis dan inframerah 60 meter. Sensornya CMOS 1/2.5 inci pada 2688 × 1520 dengan iluminasi minimum 0,008 lux pada F1,2, kartu memori sampai 128 GB, jalur line in dan line out, dan bodi logam IP67 serta IK10. Dayanya PoE 802.3at kelas 4, jadi switch PoE 802.3af biasa tidak mencukupi.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Sensor CMOS 1/2.5 inci merekam 2688 × 1520, atau 4 megapiksel, dengan iluminasi minimum 0,008 lux pada F1,2 dan 0,011 lux pada F1,4 untuk gambar berwarna. Rentang dinamis 120 dB menjaga wajah tetap terbaca saat kamera menghadap pintu kaca, dan 3D DNR menekan bintik pada gambar malam. Lensa varifokal bermotor 2,7 sampai 13,5 mm berbukaan F1,4 dengan dudukan Φ14 dan fokus otomatis menggeser bidang pandang mendatar dari 116 sampai 30 derajat dan bidang pandang tegak dari 60 sampai 17 derajat. Inframerah menjangkau 60 meter pada 850 nm, dan braket dapat diputar pan 0° sampai 360°, dimiringkan 0° sampai 90°, serta dirotasi 0° sampai 360°. Aliran utama berjalan 25 atau 30 bingkai per detik sampai 2688 × 1520, dengan kompresi H.265+ dan H.264+ serta laju bit 32 Kbps sampai 16 Mbps. Analitiknya mencakup lintas garis, penyusupan, barang tertinggal, barang hilang, deteksi wajah, perubahan pemandangan, dan pengecualian audio, dengan satu area ROI tetap. Jalur line in dan line out tersedia lewat konektor 3,5 mm, alarm masuk dan keluar menerima hingga 12 VDC pada 30 mA, dan kartu memori diterima sampai 128 GB. Daya 12 VDC dengan konsumsi maksimum 14,4 watt, atau PoE 802.3at kelas 4 dengan 18 watt, jadi switch PoE 802.3af biasa tidak mencukupi. Bodi logam berdiameter 144,1 mm, panjang 332,7 mm, bobot 1893 gram, peringkat IP67 dan IK10, tahan suhu -30 °C sampai +60 °C. Kamera ini tanpa auto-iris dan tanpa mikrofon bawaan, ONVIF mencakup Profile S dan G tanpa Profile T, pemotongan sasaran tidak didukung, dan kartu memori dibatasi 128 GB. Keluaran video komposit hanya untuk penyetelan.

Garansi

Warranty Months: 12
Warranty Type: Hikvision Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

Image Sensor: Image Sensor: 1/2.5" Progressive Scan CMOS Min. Illumination: Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR WDR: 120dB
Resolution: Max. Resolution: 2688 × 1520 Main Stream: • 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) • 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) Sub-Stream: • 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) Third Stream: • 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) • 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Lens: Focal Length: 2.7 to 13.5 mm Aperture: F1.4 Focus: Auto FOV: • Horizontal FOV: 116° to 30° • Vertical FOV: 60° to 17° • Diagonal FOV: 144° to 33.5° Lens Mount: Φ14 Auto-Iris: No 3-Axis Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Night Vision: IR Range: Up to 60 m Wavelength: 850nm Day & Night: IR Cut Filter Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in
Video Compression: Video Compression: • Main stream: H.265/H.264 • Sub stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.264+: Main stream supports H.265 Type: Main Profile H.265+: Main stream supports
Audio: Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) Audio Sampling Rate: 8kHz/16kHz/32kHz/44.1kHz/48kHz Environment Noise Filtering: Yes Audio: 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Smart Detection: Behavior Analysis: Line crossing detection, intrusion detection, object removal detection, unattended baggage detection Exception Detection: Scene change detection, audio exception detection Face Detection: Yes Region of Interest: Support 1 fixed region for main stream and sub-stream Target Cropping: No Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Storage: On-board storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB Network Storage: Support micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Connectivity: Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour API: ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View: Up to 6 channels Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Video Output: 1Vp-p Composite Output(75Ω) (For adjustment only) Reset Button: Yes
Power: Power Supply: • 12 VDC ± 25%, terminal block for DC input • PoE(802.3at, class 4) Power Consumption and Current: • 12 VDC, 1.2 A, max. 14.4 W • PoE (802.3at, 42.5V to 57V), 0.5 A to 0.3 A, max. 18 W
Protection: Protection Level: IP67, IK10 Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) Material: Metal
Dimensions: Dimensions: Φ144.1 × 332.7 mm (Φ5.7" × 13.1")
Weight: Weight: Camera: approx. 1893 g (4.2 lb.)
