Tentang merek· Smart IP Dome CameraCCTVBaruSKU: DS-2CD3123G2-I(S)U

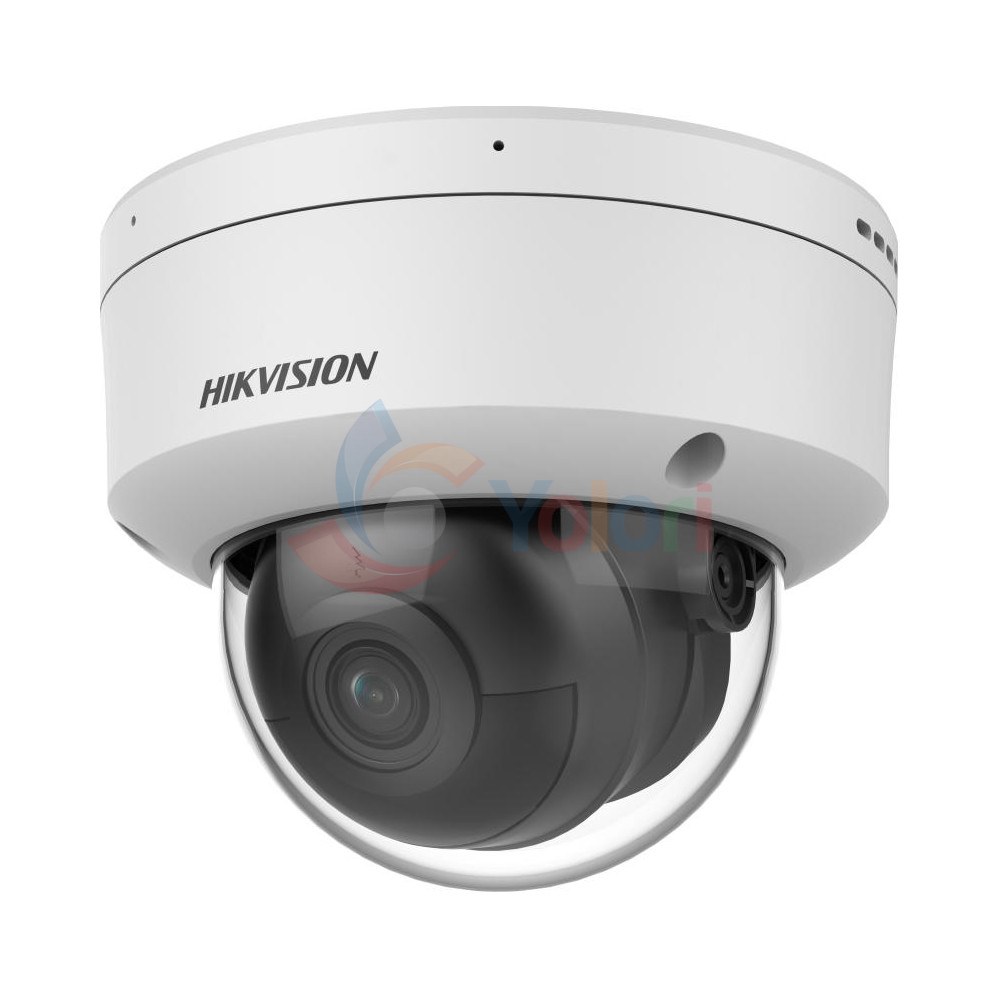

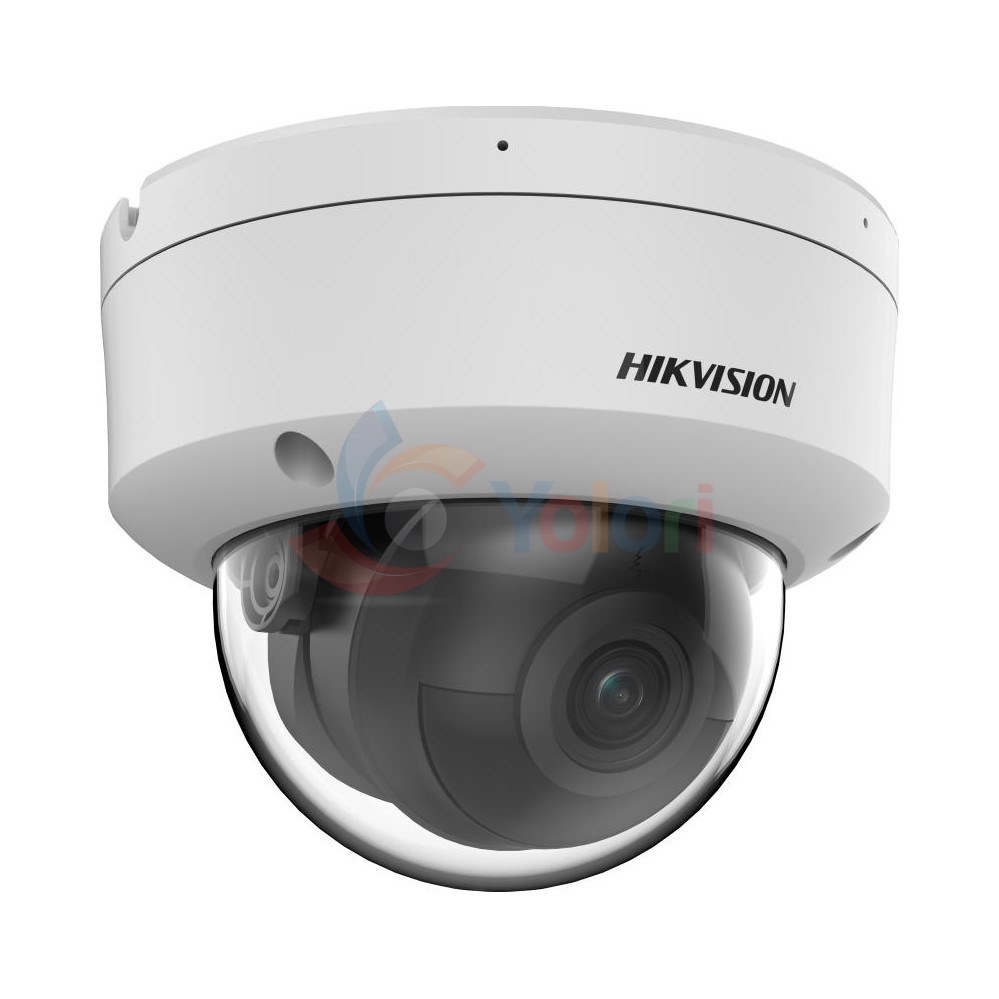

Hikvision Smart IP Dome Camera DS-2CD3123G2-I(S)U - 2 MP, 1/2.7" CMOS, IR 40 m
Rp 3.219.000
Dome AcuSense 2 MP dengan larik mikrofon ganda — dua mikrofon yang bekerja bersama untuk menekan derau sekitar, jarang ada di kamera sekelasnya. Klasifikasi manusia dan kendaraan, kartu sampai 512 GB, bodi IP67 berperingkat IK10.
Dijual oleh
Yolori Mall
4.4 / 7 ulasan|10 produk terjual
DokumenFaktur pajak diterbitkan untuk pembelian ini
Larik mikrofon ganda pada DS-2CD3123G2-I(S)U merekam suara dengan penyaringan derau yang lebih baik daripada satu mikrofon tunggal. Di ruang tunggu atau area kasir, percakapan masih terdengar ketika kamera satu mikrofon hanya menangkap dengung mesin pendingin. Sensor CMOS 1/2.7 inci merekam 1920 × 1080 dengan bukaan F1.6. Lensanya tetap pada pilihan 2,8, 4, atau 6 mm dengan dudukan M12 — pada 2,8 mm bidang pandangnya 112 derajat mendatar. Inframerah pintarnya menjangkau 40 meter pada 850 nm. Klasifikasi manusia dan kendaraan berbasis deep learning menekan alarm palsu, dan perlindungan perimeternya mencakup lintas garis, penyusupan, serta masuk dan keluar area. Jalur line in dan line out tersedia di samping mikrofon bawaan. Kartu sampai 512 GB, empat aliran video, bobot 600 gram, bodi IP67 dan IK10. Konsumsi dayanya 10 watt lewat PoE, tertinggi di antara model dome di daftar ini, jadi anggaran daya switch PoE perlu dihitung kalau beberapa unit dipasang pada satu switch. ONVIF-nya Profile S dan Profile G, tanpa Profile T.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Camera Type
- Type: Fixed Dome Network Camera Signal: IP
- Image Sensor
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Resolution
- Max. Resolution: 1920 × 1080
- Lens
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 112° Vertical FOV: 61° Diagonal FOV: 132.4° • 4 mm Horizontal FOV: 91° Vertical FOV: 47.8° Diagonal FOV: 110.2° • 6 mm Horizontal FOV: 56° Vertical FOV: 29.8° Diagonal FOV: 65.3° Aperture: F1.6 Lens Mount: M12
- Night Vision
- Supplement Light Type: IR Supplement Light Range: Up to 40 m IR Wavelength: 850 nm Smart Supplement Light: Yes
- Video Compression
- Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG
- Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Built-in Microphone: Arrayed dual-microphone Audio In: 1 input (line in) Audio Out: 1 output (line out), 3.5 mm connector
- Smart Detection
- Basic Event: Motion detection, video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Deep Learning: Human and vehicle classification based on deep learning Face Capture: Yes
- Storage
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Connectivity
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
- Power
- Power: • 12 VDC ± 25%, 0.7 A, max. 8.4 W • PoE: IEEE 802.3af, Class 3, max. 10 W
- Protection
- Protection: IP67; IK10 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Dimensions
- Dimension: Ø 121.5 mm × 97.6 mm (Ø 4.78" × 3.84")
- Weight
- Weight: Approx. 600 g
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.

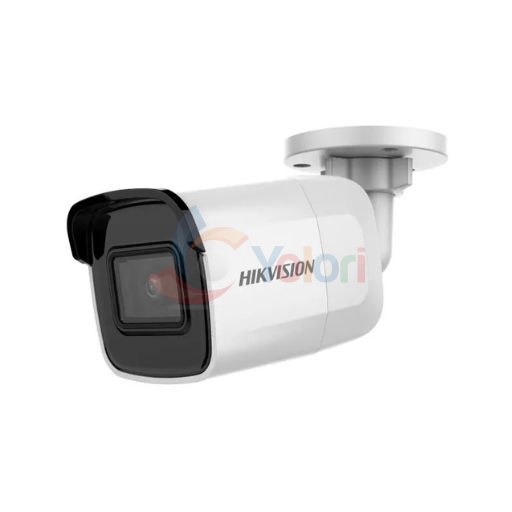

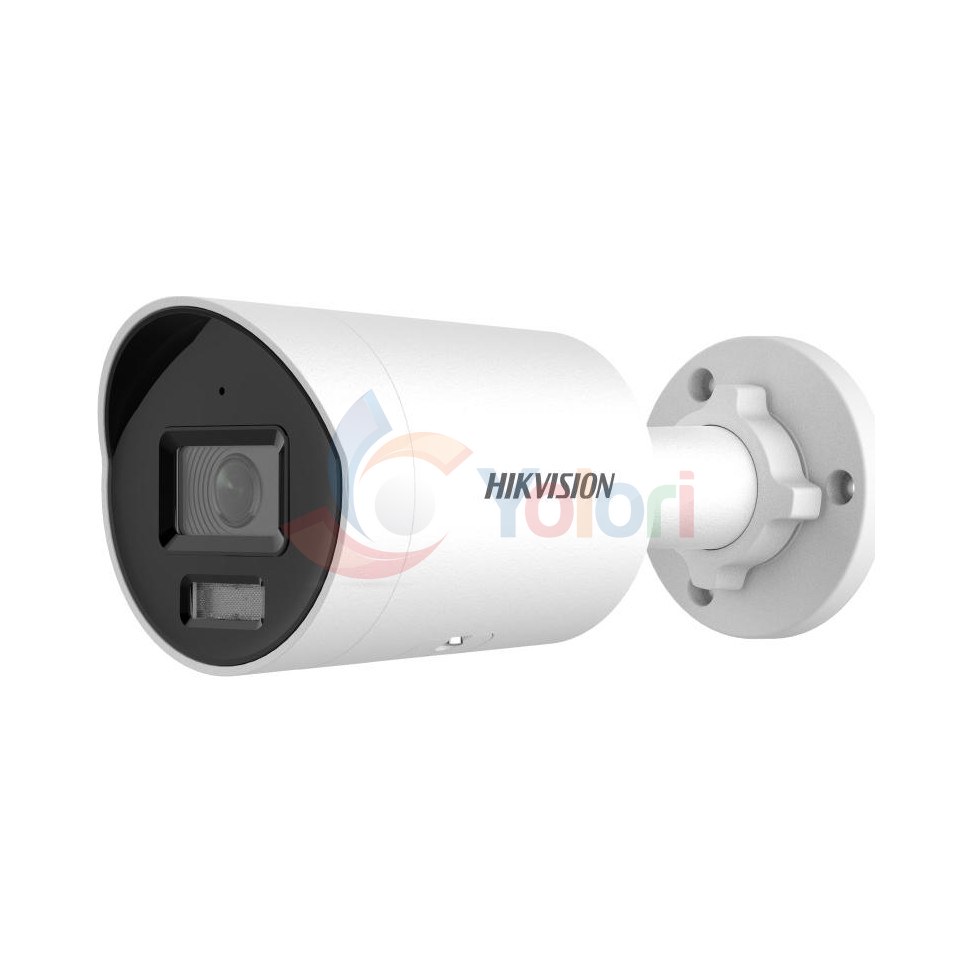

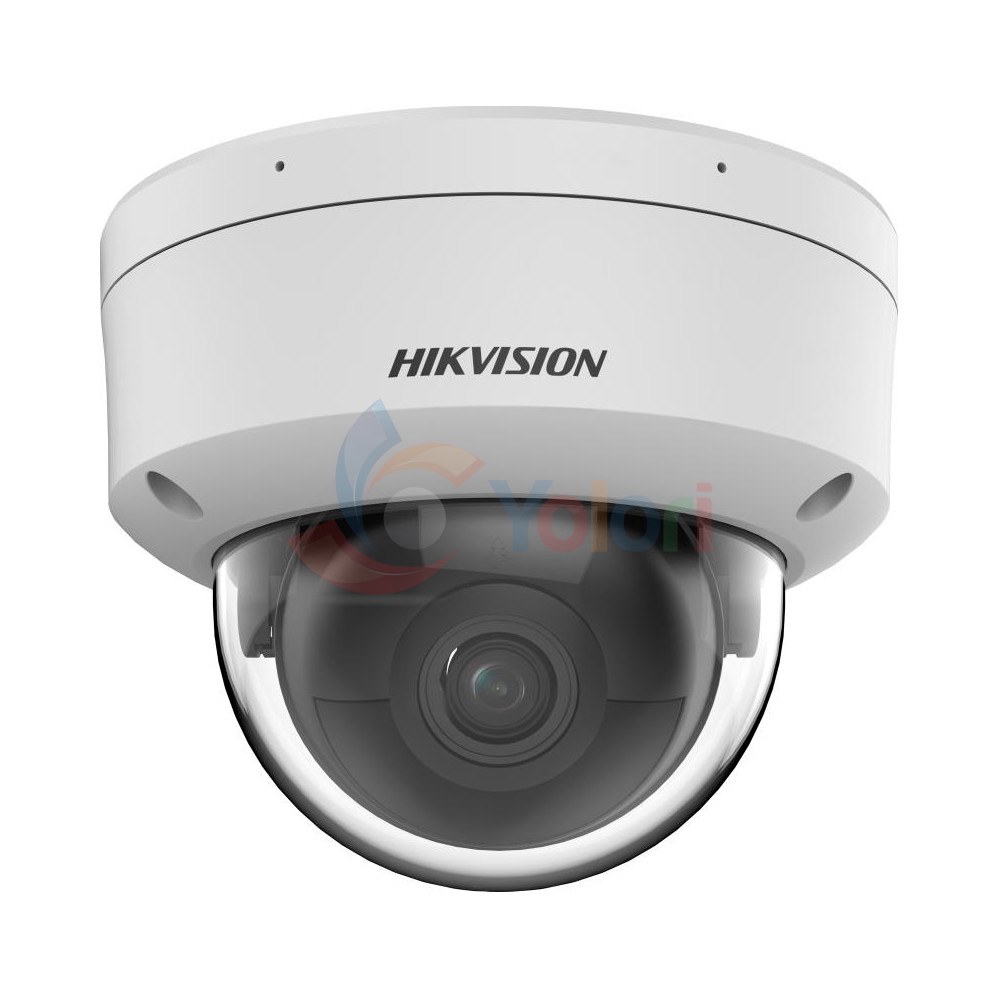

| Sedang dilihatHikvisionHikvision Smart IP Dome Camera DS-2CD3123G2-I(S)U - 2 MP, 1/2.7" CMOS, IR 40 m |  HikvisionHikvision Smart IP Bullet Camera DS-2CD3043G2-IU - 4 MP, 1/2.9" CMOS, IR 40 m | HikvisionHikvision Smart IP Bullet Camera DS-2CD3063G2-IU - 6 MP, 1/2.5" CMOS, IR 40 m |  HikvisionHikvision Smart IP Bullet Camera DS-2CD3025G0-I(B) - 2 MP, 1/2.8" CMOS, IR 40 m | |
|---|---|---|---|---|
| Harga | Rp 3.219.000 | Rp 3.169.000 | Rp 3.369.000 | Rp 3.439.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Camera Type | Type: Fixed Dome Network Camera Signal: IP | Type: AcuSense Fixed Bullet Network Camera Signal: IP | Type: AcuSense Fixed Bullet Network Camera Signal: IP | Type: IR Fixed Bullet Network Camera Signal: IP |
| Image Sensor | Image Sensor: 1/2.7" Progressive Scan CMOS | Image Sensor: 1/2.9" Progressive Scan CMOS | Image Sensor: 1/2.5" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR | Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: • Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR • Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR Wide Dynamic Range: 120dB |
| Resolution | Max. Resolution: 1920 × 1080 | Max. Resolution: 2688 × 1520 | Max. Resolution: 3200 × 1800 | Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream: • 50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) • 60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
| Lens | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 112° Vertical FOV: 61° Diagonal FOV: 132.4° • 4 mm Horizontal FOV: 91° Vertical FOV: 47.8° Diagonal FOV: 110.2° • 6 mm Horizontal FOV: 56° Vertical FOV: 29.8° Diagonal FOV: 65.3° Aperture: F1.6 Lens Mount: M12 | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 103.6° Vertical FOV: 57.2° Diagonal FOV: 121.6° • 4 mm Horizontal FOV: 83.5° Vertical FOV: 44.8° Diagonal FOV: 99.9° • 6 mm Horizontal FOV: 51.8° Vertical FOV: 27.9° Diagonal FOV: 60.5° Aperture: F1.6 Iris Type: Fixed Lens Mount: M12 | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 104.6° Vertical FOV: 54.9° Diagonal FOV: 127.3° • 4 mm Horizontal FOV: 78.4° Vertical FOV: 38.3° Diagonal FOV: 96° • 6 mm Horizontal FOV: 50.5° Vertical FOV: 26.3° Diagonal FOV: 59.4° Aperture: F1.6 Iris Type: Fixed Lens Mount: M12 Depth of Field: • 2.8 mm 1.8 m to ∞ • 4 mm 3.1 m to ∞ • 6 mm 6.4 m to ∞ DORI: • 2.8 mm D: 76 m O: 30 m R: 15 m I: 7 m • 4 mm D: 115 m O: 45 m R: 23 m I: 11 m • 6 mm D: 164 m O: 65 m R: 32 m I: 16 m | Focal Length: 2.8/4/6 mm Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 59° Diagonal FOV: 129° • 4 mm Horizontal FOV: 87° Vertical FOV: 45° Diagonal FOV: 102° • 6 mm Horizontal FOV: 53° |
| Night Vision | Supplement Light Type: IR Supplement Light Range: Up to 40 m IR Wavelength: 850 nm Smart Supplement Light: Yes | Supplement Light Type: IR Supplement Light Range: Up to 40 m IR Wavelength: 850 nm Smart Supplement Light: Yes | Supplement Light Type: IR Supplement Light Range: Up to 40 m IR Wavelength: 850 nm Smart Supplement Light: Yes Day & Night: IR cut filter | IR Range: Up to 40 m Day & Night: IR cut filter Powered by Darkfighter: Yes |
| Video Compression | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Region of Interest: 5 fixed regions for main stream and sub-stream | Video Compression: • Main stream: H.265/H.264 • Sub stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supports |
| Audio | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Built-in Microphone: Arrayed dual-microphone Audio In: 1 input (line in) Audio Out: 1 output (line out), 3.5 mm connector | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Built-in Microphone: Yes, 1 built-in microphone | Built-in Microphone: Yes, 1 built-in microphone | — |
| Smart Detection | Basic Event: Motion detection, video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Deep Learning: Human and vehicle classification based on deep learning Face Capture: Yes | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Deep Learning: Focus on human and vehicle classification based on deep learning Face Capture: Yes | Deep Learning: Focus on human and vehicle classification based on deep learning Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Face Capture: Yes | Behavior Analysis: Line crossing detection, intrusion detection, unattended baggage detection Alarm Trigger: Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error ROI (Region of Interest): Support 1 fixed region for main stream |
| Storage | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB | On-board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Connectivity | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, HTTP/HTTPS, RTSP, RTP, SNMP, IPv4/IPv6, 802.1X API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP | Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 API: ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View: Up to 6 channels |
| Power | Power: • 12 VDC ± 25%, 0.7 A, max. 8.4 W • PoE: IEEE 802.3af, Class 3, max. 10 W | Power: • 12 VDC ± 25%, reverse polarity protection, 0.5 A, max. 6 W • PoE: IEEE 802.3af, Class 3, max. 7.5 W | Power: • 12 VDC ± 25%, reverse polarity protection, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug • PoE: IEEE 802.3af, Class 3, max. 7.5 W | Power: • 12 VDC ± 25%, 5 W • PoE (802.3af, class 3), 6.5 W |
| Protection | Protection: IP67; IK10 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection: IP67; IK10 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection Level: IP67 Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Dimensions | Dimension: Ø 121.5 mm × 97.6 mm (Ø 4.78" × 3.84") | Dimension: Ø 74.4 mm × 179.2 mm (Ø 2.9" × 7.1") | Dimension: Ø 74.4 mm × 179.2 mm (Ø 2.9" × 7.1") | Dimensions: • Camera: Ø 70 mm × 155.03 mm (Ø 2.76" × 6.1") • Package: 216 mm × 121 mm × 118 mm (8.5" × 4.76" × 4.65") |
| Weight | Weight: Approx. 600 g | Weight: Approx. 510 g (1.1 lb.) | Weight: Approx. 510 g (1.1 lb.) | Weight: Camera: 410 g (0.9 lb.) |
