BerandaCCTVHikvision Smart IP Dome Camera DS-2CD3143G2-I(S)U - 4 MP, 1/2.9" CMOS, IR 40 m

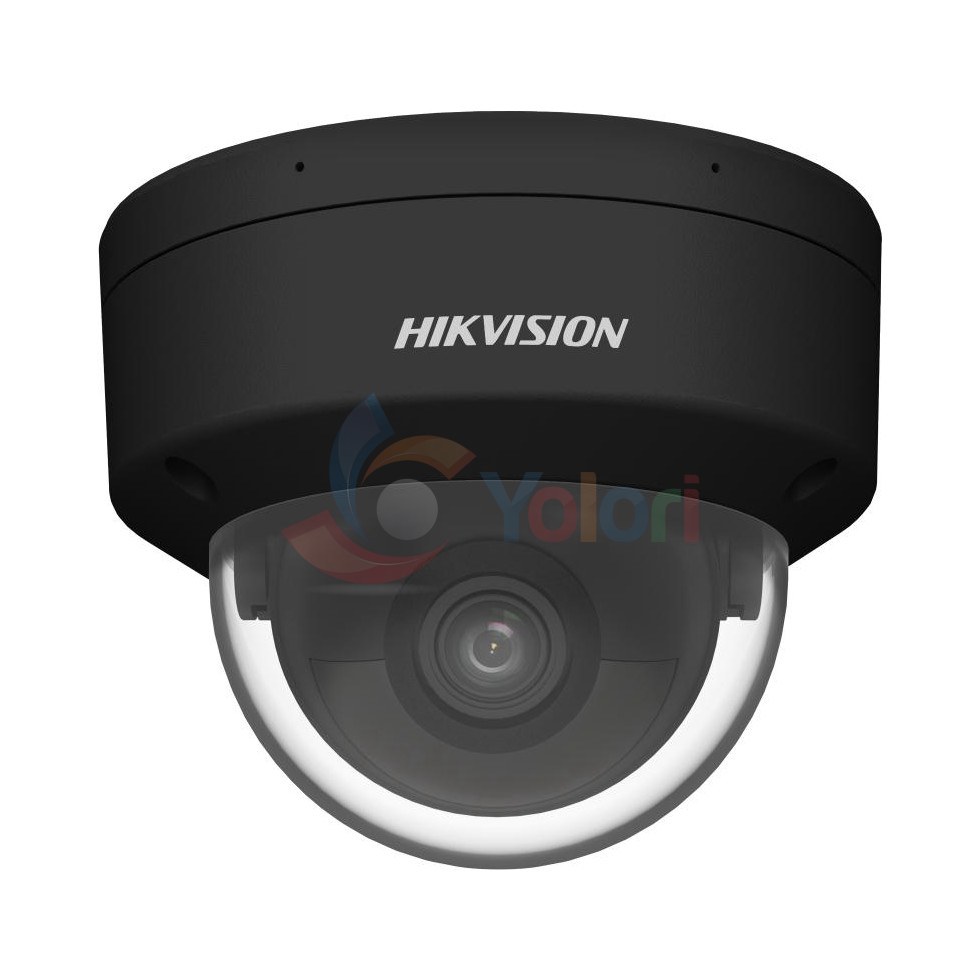

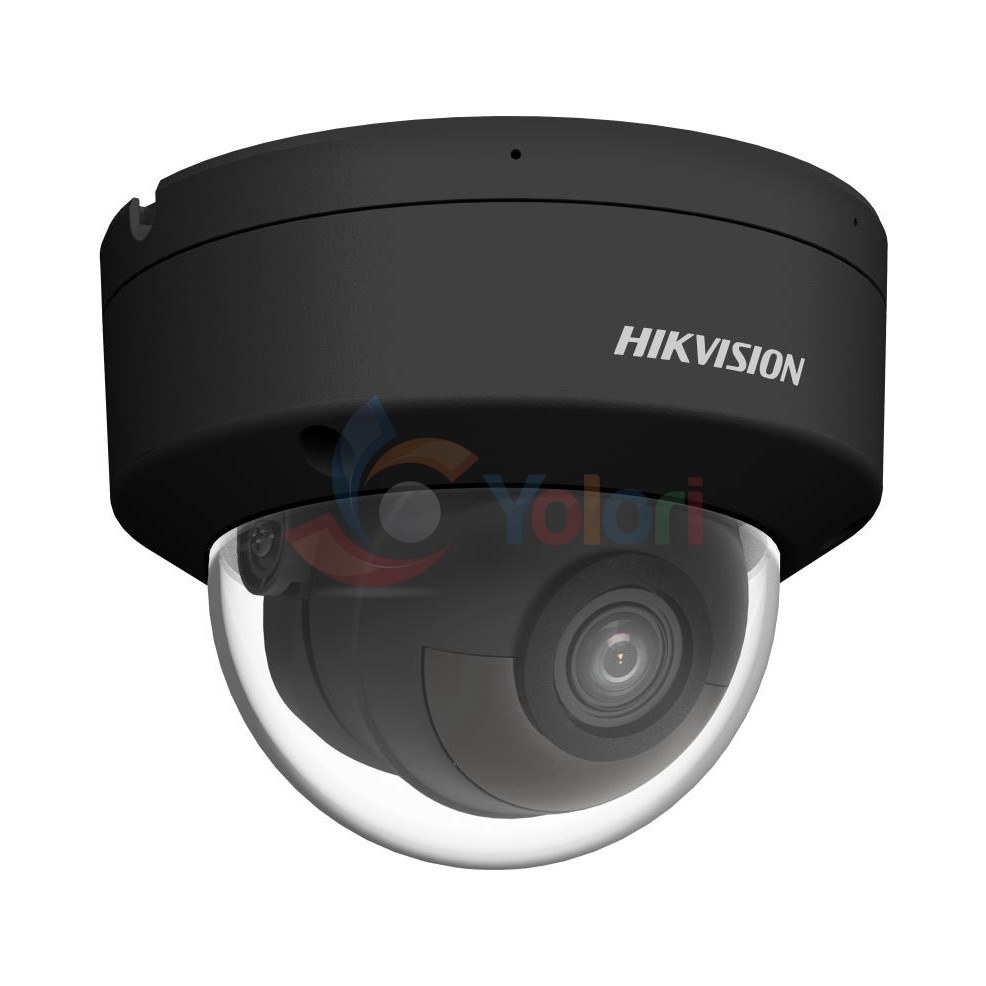

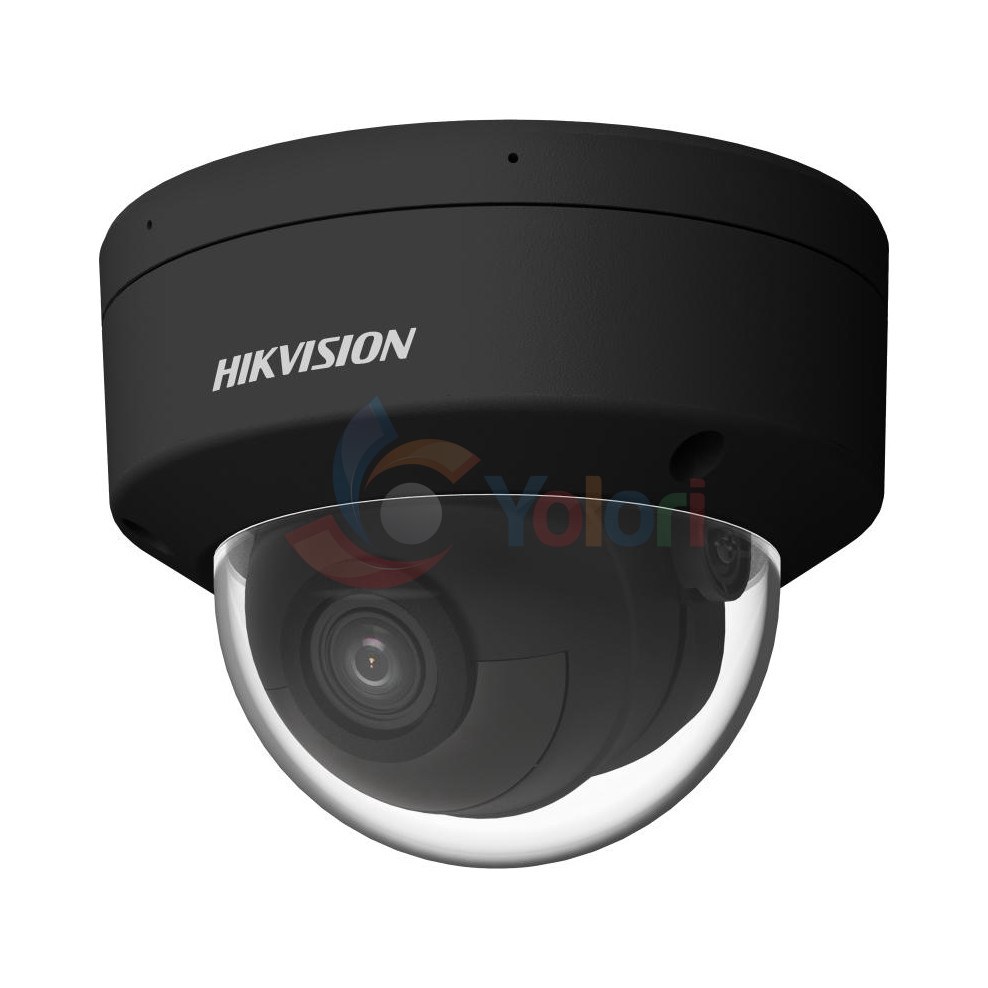

Hikvision Smart IP Dome Camera DS-2CD3143G2-I(S)U - 4 MP, 1/2.9" CMOS, IR 40 m — gambar 1
1 / 4
HikvisionTentang merek· Smart IP Dome Camera
CCTVBaruSKU: DS-2CD3143G2-I(S)U

Hikvision Smart IP Dome Camera DS-2CD3143G2-I(S)U - 4 MP, 1/2.9" CMOS, IR 40 m

Rp 3.439.000

Hikvision Smart IP Dome Camera DS-2CD3143G2-I(S)U adalah kamera dome IP 4 MP dengan resolusi 2688 × 1520, kira-kira dua kali piksel kamera 2 MP, sehingga wajah di sudut ruangan masih terbaca saat rekaman diperbesar. Sensornya CMOS 1/2.9 inci bukaan F1,6, dengan larik mikrofon ganda, klasifikasi manusia dan kendaraan, jalur line in dan line out, kartu memori sampai 512 GB, serta bodi IP67 dan IK10. ONVIF mencakup Profile S dan G tanpa Profile T.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|12 produk terjual
Chat WhatsApp Kunjungi Toko
DokumenFaktur pajak diterbitkan untuk pembelian ini

Resolusi 2688 × 1520 pada DS-2CD3143G2-I(S)U memberi sekitar dua kali piksel kamera 2 MP. Pada pemasangan di plafon ruang luas, selisih itu menentukan apakah wajah orang di sudut ruangan masih terbaca saat rekaman diperbesar. Sensornya CMOS 1/2.9 inci dengan bukaan F1.6. Lensanya tetap pada pilihan 2,8, 4, atau 6 mm — pada 2,8 mm bidang pandangnya 103,6 derajat mendatar. Cahaya bantu inframerahnya menjangkau 40 meter. Larik mikrofon ganda merekam suara dengan penyaringan derau, dan jalur line in serta line out tersedia untuk perangkat luar. Klasifikasi manusia dan kendaraan bekerja bersama tujuh analitik cerdas, termasuk deteksi berkeliaran, kerumunan, dan parkir. Kartu sampai 512 GB, bobot 600 gram, bodi IP67 dan IK10. Konsumsi dayanya 10 watt lewat PoE, sehingga anggaran daya switch perlu diperiksa bila banyak unit dipasang pada satu switch. ONVIF-nya Profile S dan Profile G, tanpa Profile T. Datasheet model ini juga tidak merinci perbedaan antara varian -IU dan -ISU, jadi kelengkapan audio dan alarm pada varian yang dipesan perlu dipastikan ke distributor.

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

4 produk · geser untuk melihat lainnya
Sedang dilihatHikvisionHikvision Smart IP Dome Camera DS-2CD3143G2-I(S)U - 4 MP, 1/2.9" CMOS, IR 40 mHikvisionHikvision Smart IP Bullet Camera DS-2CD3025G0-I(B) - 2 MP, 1/2.8" CMOS, IR 40 mHikvisionHikvision Smart IP Turret Camera DS-2CD3345G0-I(B) - 4 MP, 1/2.5" CMOS, IR 40 mHikvisionHikvision Smart IP Dome Camera DS-2CD3163G2-I(S)U - 6 MP, 1/2.5" CMOS, IR 40 m
HargaRp 3.439.000Rp 3.439.000Rp 3.439.000Rp 3.469.000
Garansi
Warranty Months12121212
Warranty TypeHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official Warranty
Jaminan
Stock StatusTersediaTersediaTersediaTersedia
Spesifikasi Teknis
Camera TypeType: Vandal WDR Fixed Dome Network Camera Signal: IPType: IR Fixed Bullet Network Camera Signal: IP——
Image SensorImage Sensor: 1/2.9" Progressive Scan CMOSImage Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: • Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR • Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR Wide Dynamic Range: 120dBImage Sensor: 1/2.5" Progressive Scan CMOS Min. Illumination: Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR Wide Dynamic Range: 120dBImage Sensor: 1/2.5" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB
ResolutionMax. Resolution: 2688 × 1520Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream: • 50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) • 60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)Max. Resolution: 2688 × 1520 Main Stream: • 50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) • 60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) Sub-Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream: • 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) • 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)Max. Resolution: 3200 × 1800 Main Stream: • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
LensLens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 103.6° Vertical FOV: 57.2° Diagonal FOV: 121.6° • 4 mm Horizontal FOV: 83.5° Vertical FOV: 44.8° Diagonal FOV: 99.9° • 6 mm Horizontal FOV: 51.8° Vertical FOV: 27.9° Diagonal FOV: 60.5° Aperture: F1.6Focal Length: 2.8/4/6 mm Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 59° Diagonal FOV: 129° • 4 mm Horizontal FOV: 87° Vertical FOV: 45° Diagonal FOV: 102° • 6 mm Horizontal FOV: 53°Lens Type: 2.8/4/6 mm Focus: Fixed Focal Length & FOV: • 2.8 mm Horizontal FOV: 115° Vertical FOV: 62° Diagonal FOV: 140° • 4 mm Horizontal FOV: 94° Vertical FOV: 50° Diagonal FOV: 114° • 6 mm Horizontal FOV: 58° Vertical FOV: 31° Diagonal FOV: 68° Aperture: F1.6 Lens Mount: M12 Auto-Iris: No Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 104.6° Vertical FOV: 54.9° Diagonal FOV: 127.3° • 4 mm Horizontal FOV: 78.4° Vertical FOV: 38.3° Diagonal FOV: 96° • 6 mm Horizontal FOV: 50.5° Vertical FOV: 26.3° Diagonal FOV: 59.4° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 Depth of Field: • 2.8 mm 1.8 m to ∞ • 4 mm 3.1 m to ∞ • 6 mm 6.4 m to ∞ DORI: • 2.8 mm D: 76 m O: 30 m R: 15 m I: 7 m • 4 mm D: 115 m O: 45 m R: 23 m I: 11 m • 6 mm D: 164 m O: 65 m R: 32 m I: 16 m Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Night VisionSupplement Light Type: IR Supplement Light Range: Up to 40 mIR Range: Up to 40 m Day & Night: IR cut filter Powered by Darkfighter: YesIR Range: Up to 40 m Wavelength: 850nm Day & Night: IR Cut Filter Day/Night Switch: Day/Night/Auto/ScheduleSupplement Light Type: IR Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule
Video CompressionVideo Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264Video Compression: • Main stream: H.265/H.264 • Sub stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supportsVideo Compression: • Main stream: H.265/H.264 • Sub-stream/third stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supports Scalable Video Coding (SVC): H.264 and H.265 encodingVideo Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Scalable Video Coding (SVC): H.264 and H.265 encoding Bit Rate Control: CBR, VBR
AudioAudio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Built-in Microphone: Arrayed dual-microphone Audio Input: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium Audio Output: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium——Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Arrayed dual-microphone Audio: • 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Smart DetectionBasic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; support alarm triggering by specified target types (human and vehicle) Deep Learning: Human and vehicle classification based on deep learning Face Capture: YesBehavior Analysis: Line crossing detection, intrusion detection, unattended baggage detection Alarm Trigger: Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error ROI (Region of Interest): Support 1 fixed region for main streamBasic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event: • Line crossing detection, up to 1 line configurable • Intrusion detection, up to 1 region configurable • Unattended baggage detection, up to 1 region configurable • Object removal detection, up to 1 region configurable • Face detection: detects faces • Scene change detection Region of Interest (ROI): 5 fixed region for main stream and sub-stream Target Cropping: Yes Linkage Method: • Trigger recording: memory card, network storage, pre-record and post-record • Trigger captured pictures uploading: FTP, HTTP, NAS, Email • Trigger notification: HTTP, ISAPI, EmailBasic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 8 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
StorageOn-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GBOn-board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GBOn-board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Network Storage: • microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ConnectivityEthernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUPCommunication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 API: ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View: Up to 6 channelsCommunication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Interface Style: Pigtail style interface Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL/TLS API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Hardware Reset: Reset via reset button on camera body, web browser and client softwareEthernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes
PowerPower: • 12 VDC ± 25%, 0.7 A, max. 8.4 W, Ø 5.5 mm coaxial power plug, reverse polarity protection • PoE: IEEE 802.3af, Class 3, max. 10 WPower: • 12 VDC ± 25%, 5 W • PoE (802.3af, class 3), 6.5 WPower Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection, PoE (802.3af, class 3) Power Consumption and Current: • 12 VDC, 0.5 A, max. 6 W • PoE (802.3af, 36 V to 57 V), 0.21 A to 0.13 A, max. 7.5 WPower: • 12 VDC ± 25%, 0.7 A, max. 8.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: IEEE 802.3af, Class 3, max. 10 W
ProtectionProtection: IP67: IEC 60529-2013, IK10: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Protection Level: IP67 Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)Protection: Ingress protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)Protection: • IP67: IEC 60529-2013 • IK10: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Base: aluminum alloy, cover: aluminum alloy
DimensionsDimension: Ø 121.5 mm × 97.6 mm (Ø 4.78" × 3.84")Dimensions: • Camera: Ø 70 mm × 155.03 mm (Ø 2.76" × 6.1") • Package: 216 mm × 121 mm × 118 mm (8.5" × 4.76" × 4.65")Camera Dimension: • Camera: Approx. Φ138.3 × 125 mm (5.4" × 4.9") • With package: Approx. 170 × 170 × 150 mm (6.7" × 6.7" × 5.9")Dimension: Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84") Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightWeight: Approx. 600 g (1.3 lb.)Weight: Camera: 410 g (0.9 lb.)Camera Weight: • Camera: Approx. 730 g (1.6 lb.) • With package: Approx. 998 g (2.2 lb.)Weight: Approx. 600 g (1.3 lb.) With Package Weight: Approx. 826 g (1.8 lb.)
