Tentang merek· Smart IP Dome CameraCCTVBaruSKU: DS-2CD3586G2-IS

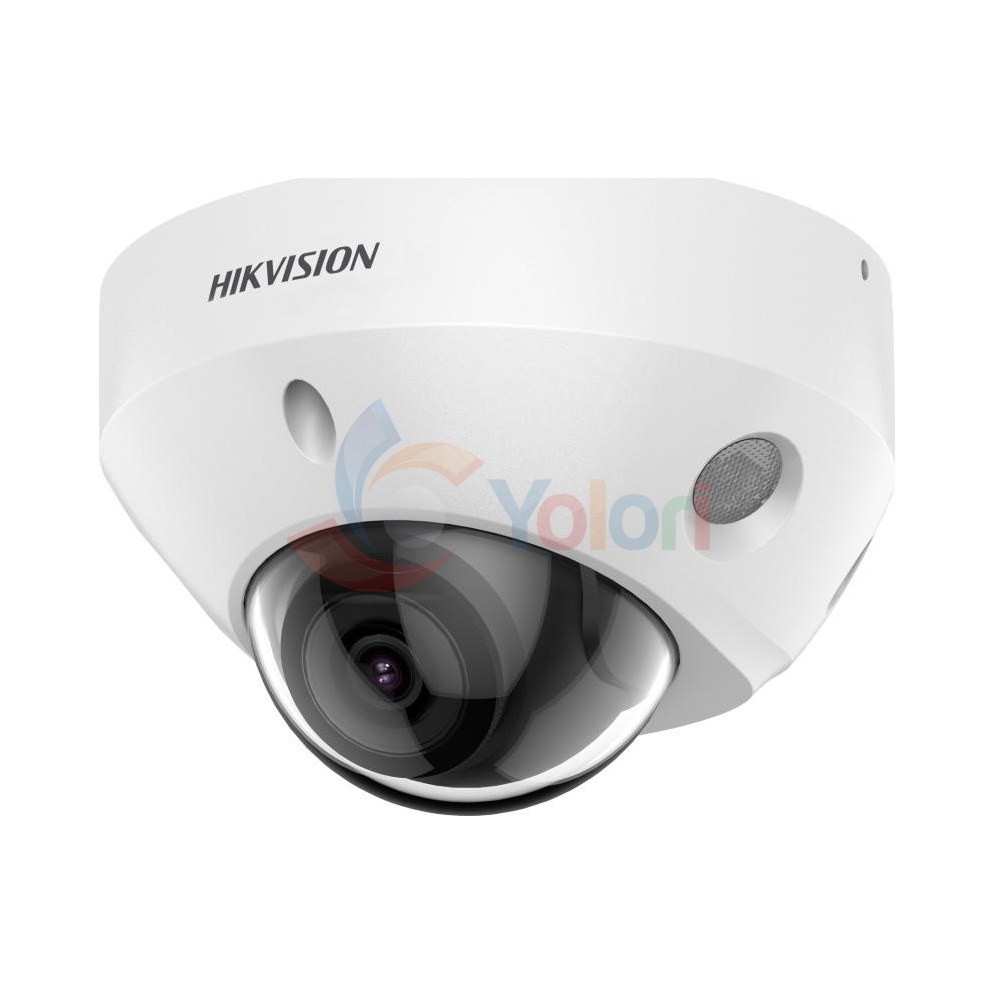

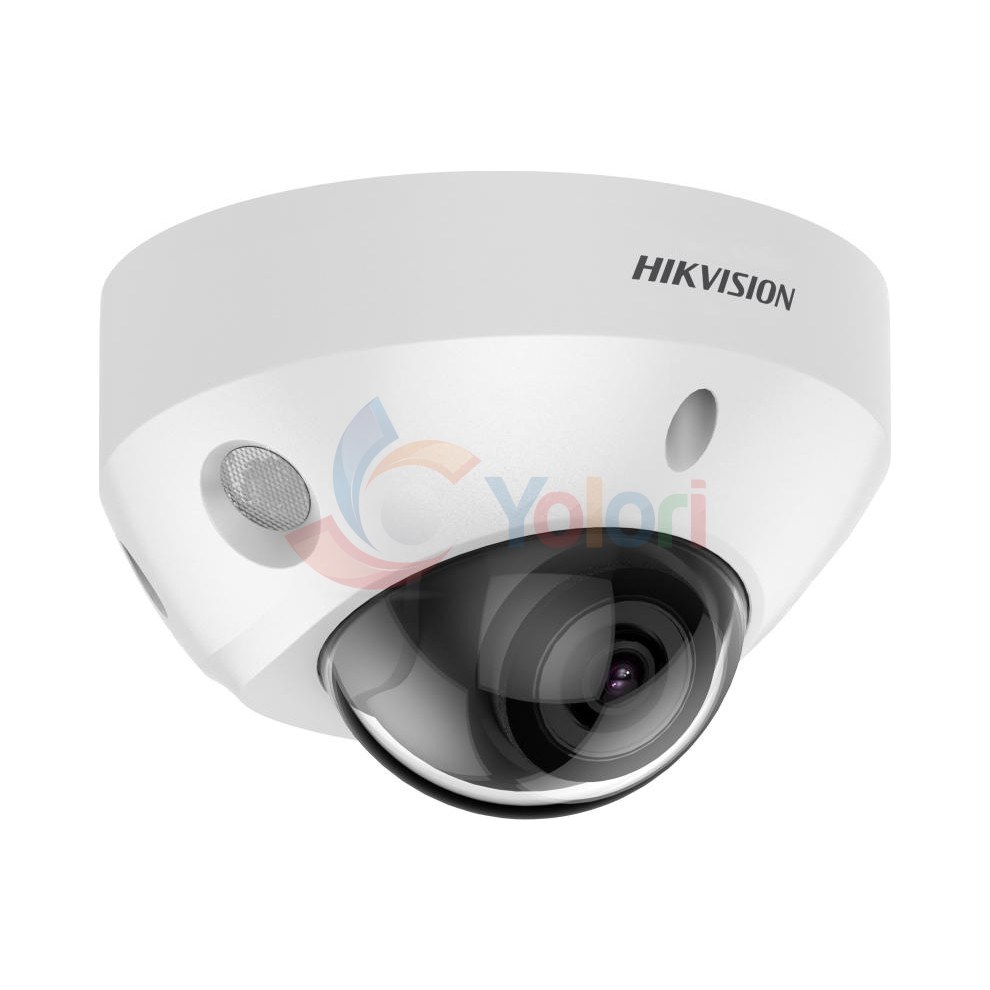

Hikvision Smart IP Dome Camera DS-2CD3586G2-IS - 8 MP, 1/1.8" CMOS, IR 30 m
Rp 5.729.000
Hikvision Smart IP Dome Camera DS-2CD3586G2-IS adalah kamera dome IP 8 MP berbodi mini setebal 72,6 mm dengan sensor CMOS 1/1.8 inci pada 3840 × 2160, yang memberi tiap piksel ruang cahaya lebih besar untuk rekaman malam. Kamera punya klasifikasi manusia dan kendaraan, penghitungan orang, mikrofon bawaan, jalur line in dan line out, kartu memori sampai 512 GB, dan ONVIF sampai Profile T. Bodinya IP67 dan IK08.
Dijual oleh
Yolori Mall
4.4 / 7 ulasan|10 produk terjual
DokumenFaktur pajak diterbitkan untuk pembelian ini
Sensor CMOS 1/1.8 inci merekam 3840 × 2160, empat kali piksel kamera 1080p, dengan bukaan F1,6 dan iluminasi minimum 0,003 lux untuk gambar berwarna. Pada lensa 2,8 mm bidang pandangnya 108 derajat mendatar dan 53 derajat tegak. Bila rekaman diperbesar untuk membaca wajah atau pelat nomor, data pikselnya masih ada. Rasio sinyal terhadap derau di atas 52 dB dan rentang dinamis 120 dB menjaga gambar malam serta adegan membelakangi cahaya tetap terbaca. Lensa tetap pada 2,8, 4, atau 6 mm dengan dudukan M12. Pada 6 mm, bidang pandangnya 60 derajat mendatar dan DORI-nya 140 meter untuk deteksi serta 14 meter untuk identifikasi. Inframerah pintar menjangkau 30 meter pada 850 nm. Pengolahan gambarnya mencakup BLC, HLC, 3D DNR, dan defog, dan kepala dome dapat digeser pan -30° sampai 30°. Alarm gerak dapat dibatasi pada manusia dan kendaraan, dan penghitungan orang tersedia. Perlindungan perimeter mencakup lintas garis, penyusupan, serta masuk dan keluar area, ditambah deteksi perubahan pemandangan, kehilangan fokus, barang tertinggal, barang hilang, dan pengecualian audio. Pada 50 Hz aliran utama berjalan 25 bingkai per detik di resolusi penuh; pada 60 Hz resolusi penuh turun ke 24 bingkai. Kamera menyediakan daya komputasi 1,5 TOPS dan platform HEOP 2.0 untuk aplikasi tambahan yang ditulis dalam C atau C++. Kartu memori sampai 512 GB, ONVIF sampai Profile T, dan keamanan jaringannya mencakup TLS 1.3. Bodi dengan dasar aluminium dan penutup plastik berdiameter 113,6 mm, tinggi 72,6 mm, bobot 415 gram, peringkat IP67 dan IK08. Daya 12 VDC dengan konsumsi maksimum 8 watt, atau PoE 802.3af kelas 3 dengan 9 watt. Rekaman 4K membutuhkan penyimpanan dan jaringan lebih besar daripada kamera 2 MP, dan port jaringannya hanya 10/100 Mbps. Datasheet tidak mencantumkan pengeras suara bawaan.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Image Sensor
- Image Sensor: 1/1.8" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB
- Resolution
- Max. Resolution: 3840 × 2160 Main Stream: • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Lens
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 53° Diagonal FOV: 133° • 4 mm Horizontal FOV: 87° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 60° Vertical FOV: 35° Diagonal FOV: 68° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 DORI: • 2.8 mm D: 97 m O: 38 m R: 19 m I: 9 m • 4 mm D: 111 m O: 44 m R: 22 m I: 11 m • 6 mm D: 140 m O: 55 m R: 28 m I: 14 m Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
- Night Vision
- Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule
- Video Compression
- Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile, Main Profile, High Profile H.265 Type: Main Profile Bit Rate Control: CBR, VBR Scalable Video Coding (SVC): H.264 and H.265 encoding
- Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes, 1 built-in microphone Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Smart Detection
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes People Counting: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 4 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning Open Resources: • Memory: 40 MB • Smart RAM: 350 MB • eMMC: 2 GB Computing Power: 1.5 TOPS Open Capability: HEOP 2.0 OpendevSDK Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX Programming Language: C, C++
- Storage
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Connectivity
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes
- Power
- Power: • 12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: IEEE 802.3af, Class 3, max. 9 W Power Output: 12 VDC, max. 100 mA
- Protection
- Protection: • IP67: IEC 60529-2013 • IK08: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Base: aluminum, cover: plastic
- Dimensions
- Dimension: Ø113.6 mm × 72.6 mm (Ø4.5" × 2.9") Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
- Weight
- Weight: Approx. 415 g (0.9 lb.) With Package Weight: Approx. 650 g (1.4 lb.)
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.

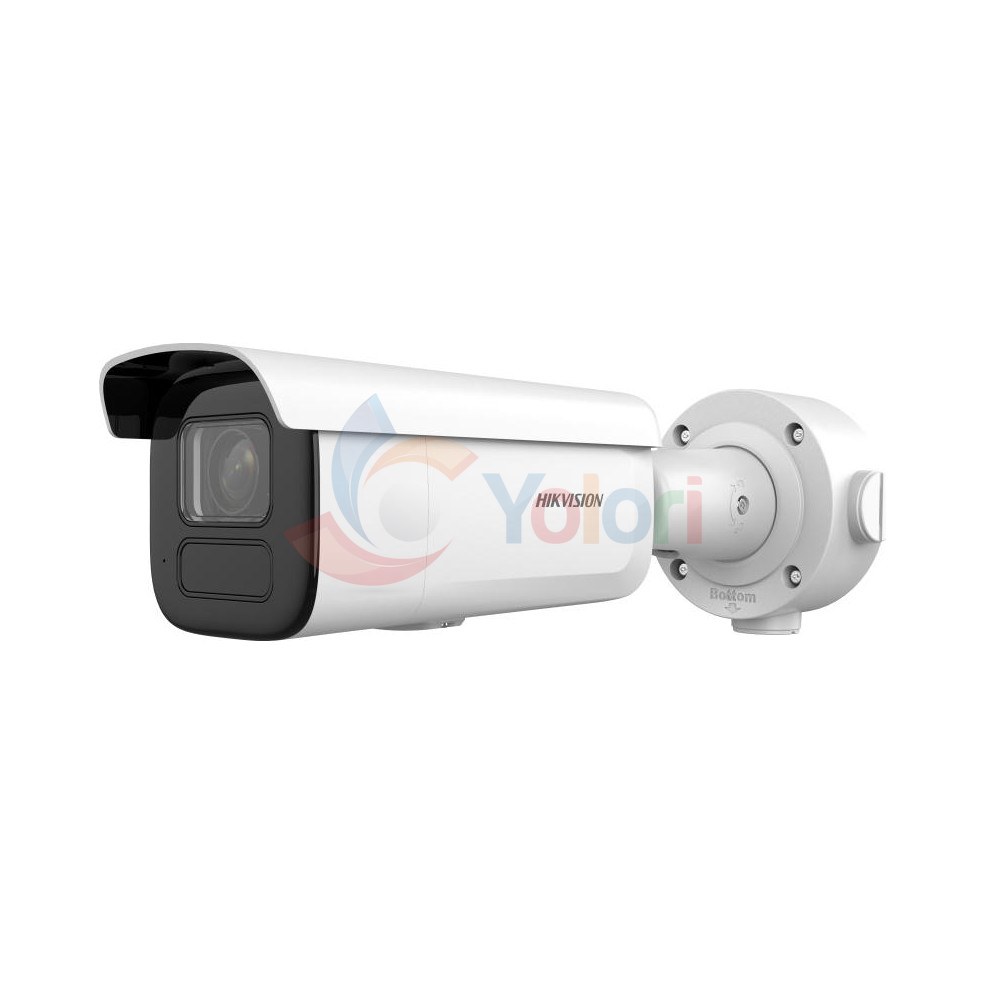

| Sedang dilihatHikvisionHikvision Smart IP Dome Camera DS-2CD3586G2-IS - 8 MP, 1/1.8" CMOS, IR 30 m | HikvisionHikvision Smart IP Dome Camera DS-2CD3547G2-LS - 4 MP, 1/1.8" CMOS, White Light 30 m |  HikvisionHikvision Smart IP Dome Camera DS-2CD3186G2-IS(U) - 8 MP, 1/1.8" CMOS, IR 40 m |  HikvisionHikvision Smart IP Bullet Camera DS-2CD3623G2-IZS - 2 MP, 1/2.7" CMOS, IR 60 m | |
|---|---|---|---|---|
| Harga | Rp 5.729.000 | Rp 5.579.000 | Rp 5.479.000 | Rp 6.179.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Image Sensor | Image Sensor: 1/1.8" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB | Image Sensor: 1/1.8" Progressive Scan CMOS Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light Wide Dynamic Range (WDR): 130 dB SNR: ≥ 52 dB | Image Sensor: 1/1.8" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB | Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB |
| Resolution | Max. Resolution: 3840 × 2160 Main Stream: • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) | Max. Resolution: 2688 × 1520 Main Stream: • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) | Max. Resolution: 3840 × 2160 Main Stream: • 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) | Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) |
| Lens | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 53° Diagonal FOV: 133° • 4 mm Horizontal FOV: 87° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 60° Vertical FOV: 35° Diagonal FOV: 68° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 DORI: • 2.8 mm D: 97 m O: 38 m R: 19 m I: 9 m • 4 mm D: 111 m O: 44 m R: 22 m I: 11 m • 6 mm D: 140 m O: 55 m R: 28 m I: 14 m Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° | Lens Type: Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 112° Vertical FOV: 61° Diagonal FOV: 134° • 4 mm Horizontal FOV: 95° Vertical FOV: 47° Diagonal FOV: 115° Lens Mount: M16 Iris Type: Fixed Aperture: F1.0 Depth of Field: • 2.8 mm 2.3 m to ∞ • 4 mm 3.2 m to ∞ DORI: • 2.8 mm D: 58 m O: 23 m R: 11 m I: 6 m • 4 mm D: 77 m O: 30 m R: 16 m I: 8 m Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 53° Diagonal FOV: 133° • 4 mm Horizontal FOV: 87° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 60° Vertical FOV: 35° Diagonal FOV: 68° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 DORI: • 2.8 mm D: 97 m O: 38 m R: 19 m I: 9 m • 4 mm D: 111 m O: 44 m R: 22 m I: 11 m • 6 mm D: 140 m O: 55 m R: 28 m I: 14 m Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | Lens Type: Varifocal lens, motorized lens, 2.7 to 13.5 mm Focal Length & FOV: • 2.7 to 13.5 mm Horizontal FOV: 111.5° to 33.4° Vertical FOV: 58.4° to 18.8° Diagonal FOV: 134.3° to 38.3° Lens Mount: Ø14 Iris Type: Auto-iris Aperture: F1.6 DORI: • 2.7 to 13.5 mm D: 42.7 m to 132 m O: 16.9 m to 52.4 m R: 8.5 m to 26.4 m I: 4.3 m to 13.2 m Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| Night Vision | Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Type: White Light Supplement Light Range: Up to 30 m Smart Supplement Light: Yes Day & Night: 24/7 color imaging Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Range: Up to 40 m Supplement Light Type: IR Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Type: IR Supplement Light Range: Up to 60 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule |
| Video Compression | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile, Main Profile, High Profile H.265 Type: Main Profile Bit Rate Control: CBR, VBR Scalable Video Coding (SVC): H.264 and H.265 encoding | Video Compression: • Main stream: H.265/H.264/H.265+/H.264+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): H.265 and H.264 encoding | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile, Main Profile, High Profile H.265 Type: Main Profile Bit Rate Control: CBR, VBR Scalable Video Coding (SVC): H.264 and H.265 encoding | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Scalable Video Coding (SVC): H.264 and H.265 encoding Bit Rate Control: CBR, VBR |
| Audio | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes, 1 built-in microphone Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium | Audio Type: Mono sound Environment Noise Filtering: Yes Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Built-in Microphone: Yes Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Type: Mono sound Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: -U: Yes Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes, 1 built-in microphone Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Smart Detection | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes People Counting: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 4 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning Open Resources: • Memory: 40 MB • Smart RAM: 350 MB • eMMC: 2 GB Computing Power: 1.5 TOPS Open Capability: HEOP 2.0 OpendevSDK Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX Programming Language: C, C++ | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 4 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggered by specified target types (human and vehicle) Face Capture: Yes People Counting: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 4 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning Open Resources: • Memory: 40 MB • Smart RAM: 350 MB • eMMC: 2 GB Computing Power: 1.5 TOPS Open Capability: HEOP 2.0 OpendevSDK Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX Programming Language: C, C++ | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 8 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| Storage | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported. | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), auto network replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported. | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported. | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Connectivity | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: -LS: 1 input, 1 output (max. 12 VDC, 20 mA) Reset Key: Yes | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) Reset Key: Yes |
| Power | Power: • 12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: IEEE 802.3af, Class 3, max. 9 W Power Output: 12 VDC, max. 100 mA | Power: • 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W Power Output: 12 VDC, max. 100 mA | Power: • 12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: IEEE 802.3af, Class 3, max. 9.5 W Power Output: 12 VDC, max. 100 mA | Power: • 12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug • PoE: IEEE 802.3at, Class 4, max. 15 W |
| Protection | Protection: • IP67: IEC 60529-2013 • IK08: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Base: aluminum, cover: plastic | Protection: • IP67: IEC 60529-2013 • IK08: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Base: aluminum, cover: plastic | Protection: • IP67: IEC 60529-2013 • IK10: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Base: Metal, cover: Metal | Protection: • IP67: IEC 60529-2013 • IK10: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Aluminum alloy body |
| Dimensions | Dimension: Ø113.6 mm × 72.6 mm (Ø4.5" × 2.9") Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") | Dimension: Ø113.6 mm × 72.6 mm (Ø4.5" × 2.9") Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") | Dimension: Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8") Package Dimension: 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55") | Dimension: 332.8 mm × 97.9 mm × 94.2 mm (13.1" × 3.9" × 3.7") Package Dimension: 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") |
| Weight | Weight: Approx. 415 g (0.9 lb.) With Package Weight: Approx. 650 g (1.4 lb.) | Weight: Approx. 400 g (0.9 lb.) With Package Weight: Approx. 635 g (1.4 lb.) | Weight: Approx. 500 g (1.1 lb.) With Package Weight: Approx. 700 g (1.54 lb.) | Weight: Approx. 1510 g (3.3 lb.) With Package Weight: Approx. 2340 g (5.2 lb.) |
