Beranda CCTVHikvision Smart IP Dome Camera DS-2CD3743G2-IZS - 4 MP, 1/3" CMOS, IR 40 m

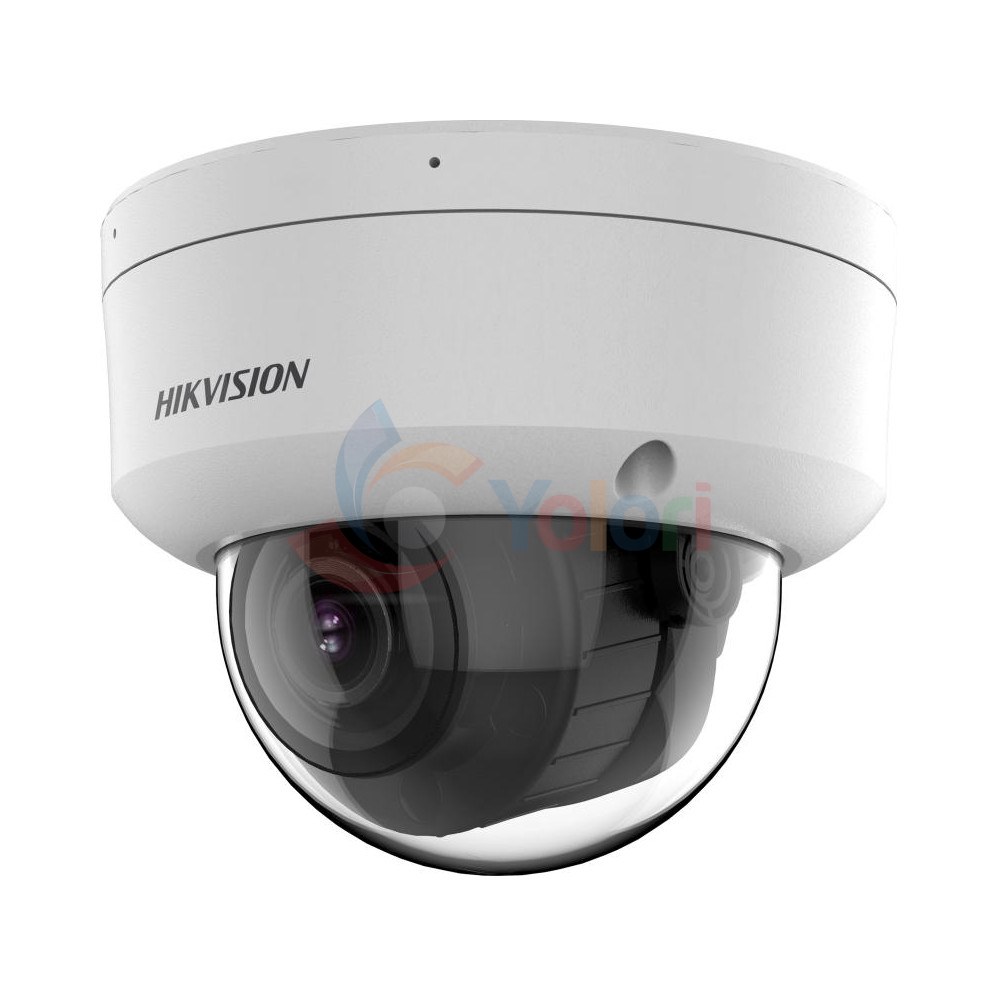

Hikvision Smart IP Dome Camera DS-2CD3743G2-IZS - 4 MP, 1/3" CMOS, IR 40 m — gambar 1

Tentang merek· Smart IP Dome Camera

CCTVBaruSKU: DS-2CD3743G2-IZS

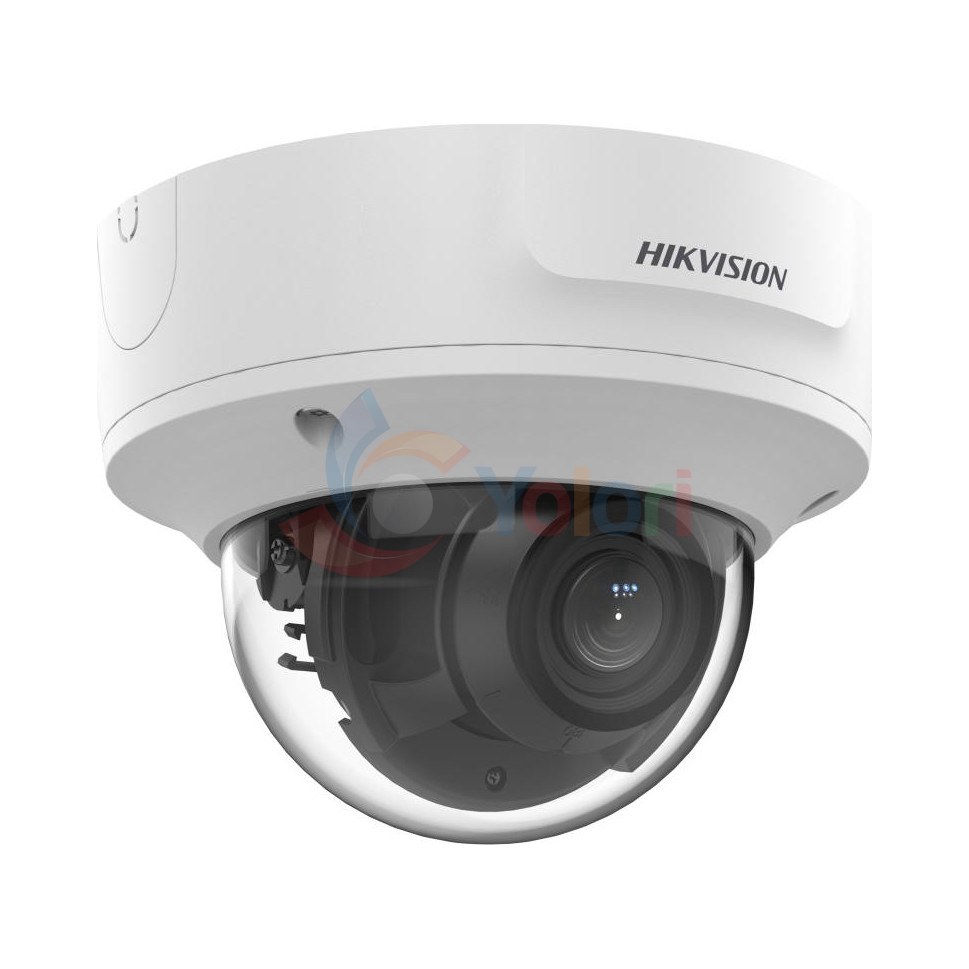

Hikvision Smart IP Dome Camera DS-2CD3743G2-IZS - 4 MP, 1/3" CMOS, IR 40 m

Name: Hikvision Smart IP Dome Camera DS-2CD3743G2-IZS - 4 MP, 1/3" CMOS, IR 40 m
Brand: Hikvision
SKU: DS-2CD3743G2-IZS
Price: 6829000 IDR
Availability: InStock

Rp 6.829.000

Hikvision Smart IP Dome Camera DS-2CD3743G2-IZS adalah kamera dome IP 4 MP berlensa varifokal bermotor 2,7 sampai 13,5 mm dengan DORI deteksi 64 sampai 200 meter, dan alarm geraknya dapat dibatasi pada manusia dan kendaraan. Sensornya CMOS 1/3 inci pada 2688 × 1520, inframerah pintar 40 meter, jalur line in dan line out, serta kartu memori sampai 256 GB. Bodinya logam IP67 dan IK10, tanpa mikrofon bawaan.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Sensor CMOS 1/3 inci merekam 2688 × 1520, atau 4 megapiksel, dengan bukaan F1,6 dan iluminasi minimum 0,005 lux untuk gambar berwarna. Rentang dinamis 120 dB menjaga wajah tetap terbaca saat kamera menghadap pintu kaca, dan rasio sinyal terhadap derau di atas 52 dB menekan bintik pada gambar malam. Lensa varifokal bermotor 2,7 sampai 13,5 mm dengan auto-iris dan dudukan Ø14 menggeser bidang pandang mendatar dari 102 sampai 31 derajat. DORI-nya 64 sampai 200 meter untuk deteksi dan 6,4 sampai 20 meter untuk identifikasi. Inframerah pintar menjangkau 40 meter pada 850 nm, dan kepala dome dapat diputar pan 0° sampai 355°, dimiringkan 0° sampai 75°, serta dirotasi 0° sampai 355°. Alarm gerak dapat dibatasi pada manusia dan kendaraan. Analitiknya mencakup lintas garis, penyusupan, masuk dan keluar area, barang tertinggal, barang hilang, dan penangkapan wajah, dengan lima area ROI tetap dan pemotongan sasaran. Aliran utama berjalan 25 atau 30 bingkai per detik sampai 2688 × 1520, dengan laju bit 32 Kbps sampai 8 Mbps. Jalur line in dan line out tersedia, alarm masuk dan keluar menerima hingga 24 VDC atau 24 VAC pada 1 A, dan kartu memori diterima sampai 256 GB. Daya 12 VDC dengan konsumsi maksimum 10,5 watt, atau PoE 802.3af kelas 3 dengan 12,5 watt. Penutup atas dan dasar terbuat dari logam, kubahnya plastik. Bodi berdiameter 153,3 mm, tinggi 111,6 mm, bobot 890 gram, peringkat IP67 dan IK10, tahan suhu -30 °C sampai 60 °C. Kamera ini tidak punya mikrofon bawaan, ONVIF-nya mencakup Profile S dan G tanpa Profile T, dan kartu memori dibatasi 256 GB.

Garansi

Warranty Months: 12
Warranty Type: Hikvision Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

Image Sensor: Image Sensor: 1/3" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range: 120 dB SNR: ≥ 52 dB
Resolution: Max. Resolution: 2688 × 1520 Main Stream: • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 12 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 12 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Lens: Lens Type: Varifocal lens, motorized lens, 2.7 to 13.5 mm Iris Type: Auto-iris Lens Type & FOV: • 2.7 to 13.5 mm Horizontal FOV: 102° to 31° Vertical FOV: 55° to 18° Diagonal FOV: 122° to 36° Aperture: F1.6 Lens Mount: Ø14 DORI: • 2.7 to 13.5 mm D: 64 m to 200 m O: 25.4 m to 79.4 m R: 12.8 m to 40 m I: 6.4 m to 20 m Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Night Vision: Smart Supplement Light: Yes IR Range: Up to 40 m Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule
Video Compression: Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supports Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): H.265 and H.264 support
Audio: Environment Noise Filtering: Yes Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Smart Detection: Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, Face Capture Region of Interest (ROI): 5 fixed region for main stream and sub-stream Target Cropping: Yes Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output
Storage: On-board Storage: Built-in micro SD card slot, up to 256 GB Network Storage: • MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Connectivity: Communication Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP v2c/v3 API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) Hardware Reset: Yes
Power: Power: • 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: (802.3af, Class 3, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W
Protection: Protection: • IP67 (IEC 60529-2013) • IK10 (IEC 62262:2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: • Upper cover and base: metal • Bubble: plastic
Dimensions: Camera Dimension: Ø153.3 mm × 111.6 mm (Ø6″ × 4.4″) Package Dimension: 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
Weight: Camera Weight: Approx. 890 g (2 lb.) With Package Weight: Approx. 1480 g (3.3 lb.)
