Beranda CCTVHikvision Smart IP Turret Camera DS-2CD3363G2-IU - 6 MP, 1/2.5" CMOS, IR 40 m

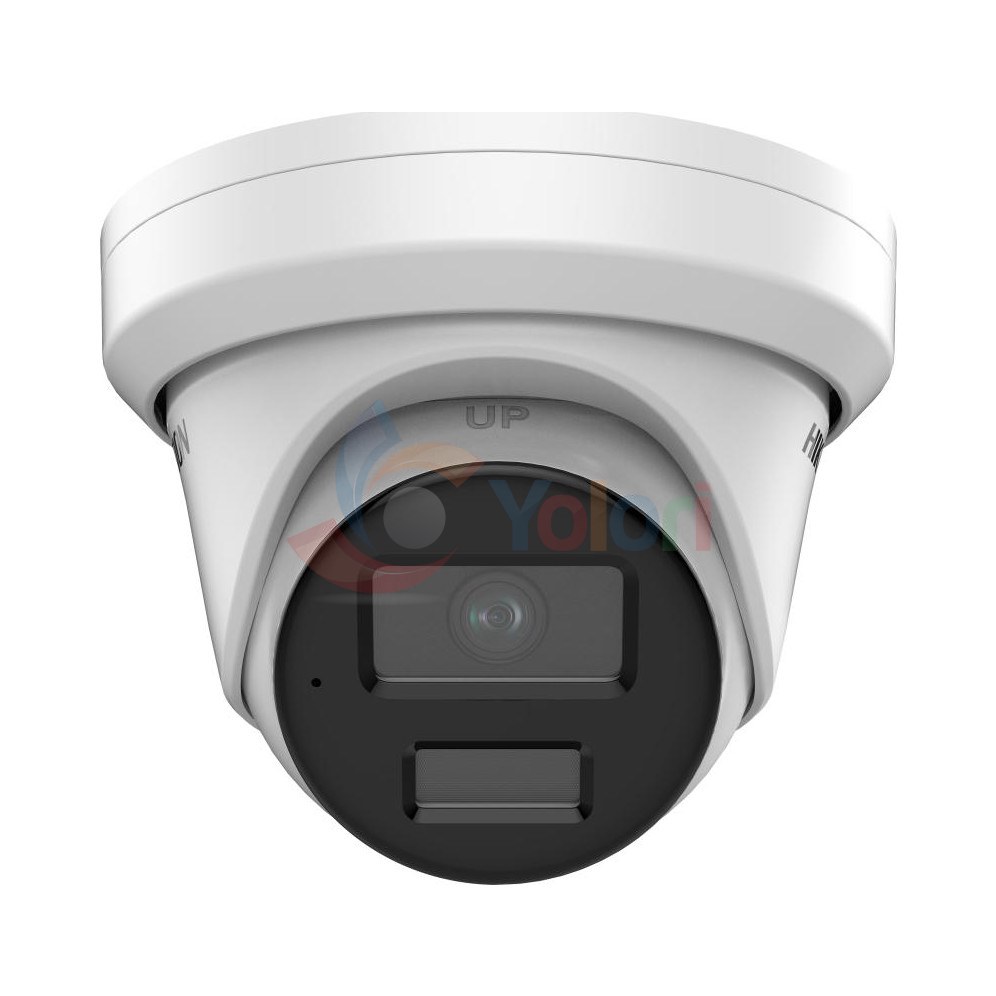

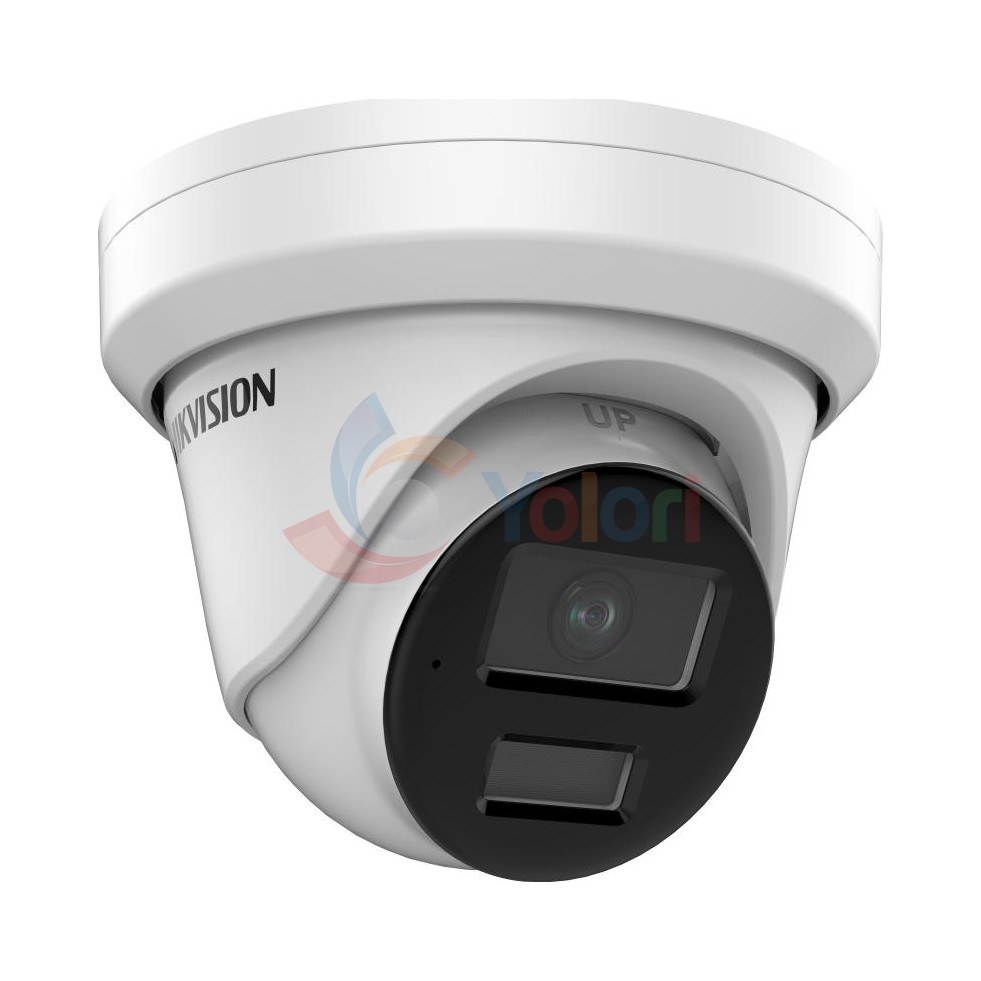

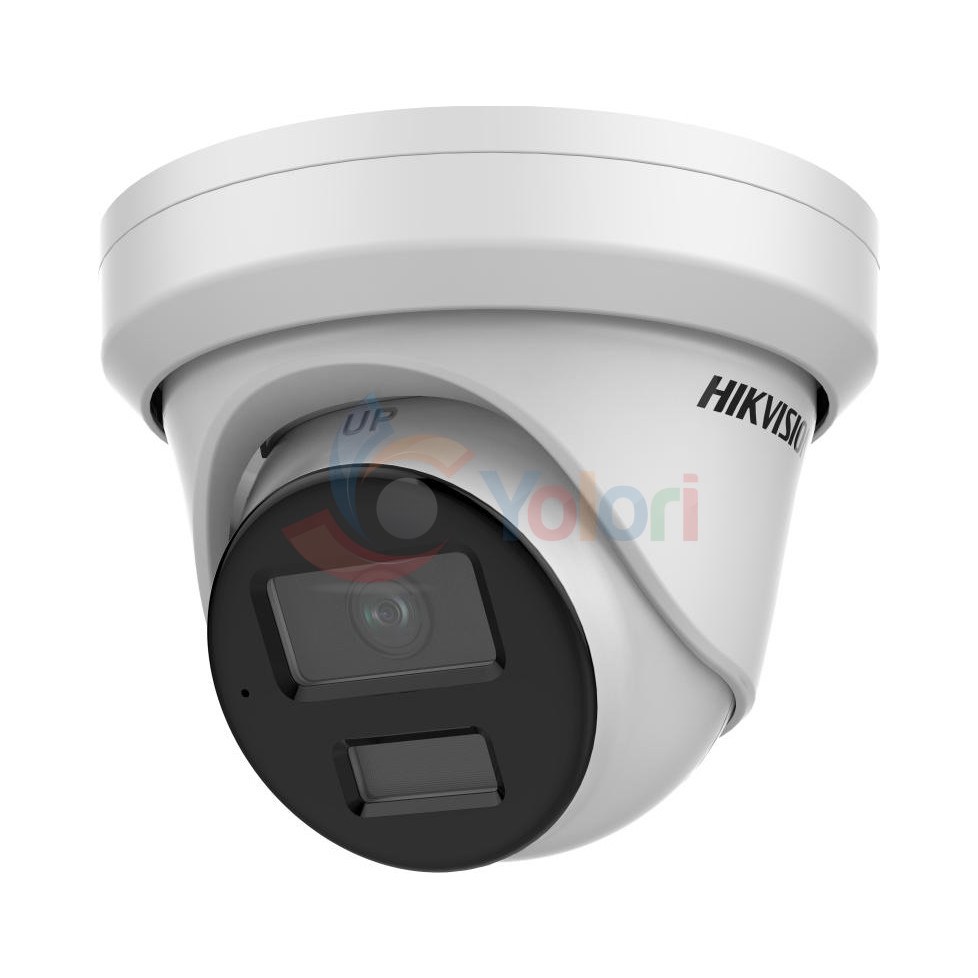

Hikvision Smart IP Turret Camera DS-2CD3363G2-IU - 6 MP, 1/2.5" CMOS, IR 40 m — gambar 1

1 / 3

Tentang merek· Smart IP Turret Camera

CCTVBaruSKU: DS-2CD3363G2-IU

Hikvision Smart IP Turret Camera DS-2CD3363G2-IU - 6 MP, 1/2.5" CMOS, IR 40 m

Name: Hikvision Smart IP Turret Camera DS-2CD3363G2-IU - 6 MP, 1/2.5" CMOS, IR 40 m
Brand: Hikvision
SKU: DS-2CD3363G2-IU
Price: 3389000 IDR
Availability: InStock

Rp 3.389.000

Hikvision Smart IP Turret Camera DS-2CD3363G2-IU adalah kamera turret IP 6 MP dengan jangkauan deteksi DORI 164 meter pada lensa 6 mm, cukup untuk memantau pagar atau lahan parkir yang luas. Sensornya CMOS 1/2.5 inci pada 3200 × 1800, dilengkapi mikrofon bawaan, inframerah pintar 40 meter, kartu memori sampai 512 GB, dan bodi paduan aluminium IP67. Tidak ada pengeras suara bawaan, dan peringkat IK tidak dicantumkan datasheet.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Sensor CMOS 1/2.5 inci merekam 3200 × 1800, sekitar enam megapiksel, dengan bukaan F1,6 dan iluminasi minimum 0,005 lux untuk gambar berwarna. Bidang pandang pada lensa 2,8 mm adalah 104,6 derajat mendatar dan 54,9 derajat tegak, dalam bingkai 16:9. Rentang dinamis 120 dB dan rasio sinyal terhadap derau di atas 52 dB menjaga detail pada pintu kaca dan pada pemandangan malam. Lensa tetap dengan dudukan M12, dipesan pada 2,8, 4, atau 6 mm. Pada lensa 6 mm, DORI-nya 164 meter untuk deteksi, 32 meter untuk pengenalan, dan 16 meter untuk identifikasi, jadi satu kamera menutup jarak yang biasanya butuh dua. Inframerah pintar menjangkau 40 meter pada 850 nm. Kepala turret dapat diputar 0° sampai 360°, dimiringkan 0° sampai 75°, dan dirotasi 0° sampai 360°. Alarm gerak dapat dibatasi pada manusia dan kendaraan. Analitiknya mencakup lintas garis, penyusupan, masuk dan keluar area, berkeliaran, kerumunan, orang berlari, parkir, dan diagnosis mutu video, ditambah penangkapan wajah. Aliran utama berjalan 25 atau 30 bingkai per detik sampai 3200 × 1800, dengan laju bit 32 Kbps sampai 16 Mbps. Mikrofon bawaan merekam suara, dan jalur line in serta line out tersedia untuk perangkat luar. Topeng privasi poligon dapat diatur sampai 8 area. Bodinya berbahan paduan aluminium, berdiameter 127,3 mm, tinggi 96,3 mm, bobot 635 gram, peringkat IP67. Daya 12 VDC dengan konsumsi maksimum 8 watt, atau PoE 802.3af kelas 3 dengan 9,5 watt. Kartu memori sampai 512 GB. ONVIF-nya mencakup Profile S dan G, tanpa Profile T. Kedalaman medan dimulai 6,4 meter pada lensa 6 mm dan 3,1 meter pada 4 mm, sehingga objek yang lebih dekat berada di luar fokus. Peringkat IK tidak dicantumkan, tidak ada pengeras suara bawaan, dan port jaringannya 10/100 Mbps.

Garansi

Warranty Months: 12
Warranty Type: Hikvision Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

Image Sensor: Image Sensor: 1/2.5" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB
Resolution: Max. Resolution: 3200 × 1800 Main Stream: • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Lens: Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 104.6° Vertical FOV: 54.9° Diagonal FOV: 127.3° • 4 mm Horizontal FOV: 78.4° Vertical FOV: 38.3° Diagonal FOV: 96° • 6 mm Horizontal FOV: 50.5° Vertical FOV: 26.3° Diagonal FOV: 59.4° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 Depth of Field: • 2.8 mm 1.8 m to ∞ • 4 mm 3.1 m to ∞ • 6 mm 6.4 m to ∞ DORI: • 2.8 mm D: 76 m O: 30 m R: 15 m I: 7 m • 4 mm D: 115 m O: 45 m R: 23 m I: 11 m • 6 mm D: 164 m O: 65 m R: 32 m I: 16 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Night Vision: Supplement Light Type: IR Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule
Video Compression: Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Scalable Video Coding (SVC): H.264 and H.265 encoding Bit Rate Control: CBR, VBR
Audio: Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes, 1 built-in microphone Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Smart Detection: Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 8 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Storage: On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Connectivity: Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes
Power: Power: • 12 VDC ± 25%, 0.66 A, max. 8.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: IEEE 802.3af, Class 3, max. 9.5 W
Protection: Protection: IP67: IEC 60529-2013 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Aluminum alloy body
Dimensions: Dimension: Ø127.3 mm × 96.3 mm (Ø5.0" × 3.8") Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight: Weight: Approx. 635 g (1.4 lb.) With Package Weight: Approx. 861 g (1.9 lb.)

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Tampilkan hanya yang berbeda

	Sedang dilihatHikvisionHikvision Smart IP Turret Camera DS-2CD3363G2-IU - 6 MP, 1/2.5" CMOS, IR 40 m	HikvisionHikvision Smart IP Turret Camera DS-2CD3325G0-I(B) - 2 MP, 1/2.8" CMOS, IR 40 m	HikvisionHikvision Smart IP Bullet Camera DS-2CD3063G2-IU - 6 MP, 1/2.5" CMOS, IR 40 m	HikvisionHikvision Smart IP Bullet Camera DS-2CD3025G0-I(B) - 2 MP, 1/2.8" CMOS, IR 40 m
Harga	Rp 3.389.000	Rp 3.389.000	Rp 3.369.000	Rp 3.439.000
Garansi
Warranty Months	12	12	12	12
Warranty Type	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty
Jaminan
Stock Status	Tersedia	Tersedia	Tersedia	Tersedia
Spesifikasi Teknis
Camera Type	—	—	Type: AcuSense Fixed Bullet Network Camera Signal: IP	Type: IR Fixed Bullet Network Camera Signal: IP
Image Sensor	Image Sensor: 1/2.5" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB	Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR Wide Dynamic Range: 120dB	Image Sensor: 1/2.5" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR	Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: • Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR • Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR Wide Dynamic Range: 120dB
Resolution	Max. Resolution: 3200 × 1800 Main Stream: • 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)	Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)	Max. Resolution: 3200 × 1800	Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream: • 50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) • 60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Lens	Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 104.6° Vertical FOV: 54.9° Diagonal FOV: 127.3° • 4 mm Horizontal FOV: 78.4° Vertical FOV: 38.3° Diagonal FOV: 96° • 6 mm Horizontal FOV: 50.5° Vertical FOV: 26.3° Diagonal FOV: 59.4° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 Depth of Field: • 2.8 mm 1.8 m to ∞ • 4 mm 3.1 m to ∞ • 6 mm 6.4 m to ∞ DORI: • 2.8 mm D: 76 m O: 30 m R: 15 m I: 7 m • 4 mm D: 115 m O: 45 m R: 23 m I: 11 m • 6 mm D: 164 m O: 65 m R: 32 m I: 16 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°	Lens Type: 2.8/4/6 mm Focus: Fixed Focal Length & FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 58° Diagonal FOV: 128° • 4 mm Horizontal FOV: 86° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 52° Vertical FOV: 29° Diagonal FOV: 60° Aperture: F1.6 Lens Mount: M12 Auto-Iris: No Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°	Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 104.6° Vertical FOV: 54.9° Diagonal FOV: 127.3° • 4 mm Horizontal FOV: 78.4° Vertical FOV: 38.3° Diagonal FOV: 96° • 6 mm Horizontal FOV: 50.5° Vertical FOV: 26.3° Diagonal FOV: 59.4° Aperture: F1.6 Iris Type: Fixed Lens Mount: M12 Depth of Field: • 2.8 mm 1.8 m to ∞ • 4 mm 3.1 m to ∞ • 6 mm 6.4 m to ∞ DORI: • 2.8 mm D: 76 m O: 30 m R: 15 m I: 7 m • 4 mm D: 115 m O: 45 m R: 23 m I: 11 m • 6 mm D: 164 m O: 65 m R: 32 m I: 16 m	Focal Length: 2.8/4/6 mm Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 59° Diagonal FOV: 129° • 4 mm Horizontal FOV: 87° Vertical FOV: 45° Diagonal FOV: 102° • 6 mm Horizontal FOV: 53°
Night Vision	Supplement Light Type: IR Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule	IR Range: Up to 40 m Wavelength: 850nm Day & Night: IR Cut Filter Day/Night Switch: Day/Night/Auto/Schedule	Supplement Light Type: IR Supplement Light Range: Up to 40 m IR Wavelength: 850 nm Smart Supplement Light: Yes Day & Night: IR cut filter	IR Range: Up to 40 m Day & Night: IR cut filter Powered by Darkfighter: Yes
Video Compression	Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Scalable Video Coding (SVC): H.264 and H.265 encoding Bit Rate Control: CBR, VBR	Video Compression: • Main stream: H.265/H.264 • Sub-stream/third stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supports Scalable Video Coding (SVC): H.264 and H.265 encoding	Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Region of Interest: 5 fixed regions for main stream and sub-stream	Video Compression: • Main stream: H.265/H.264 • Sub stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supports
Audio	Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes, 1 built-in microphone Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium	—	Built-in Microphone: Yes, 1 built-in microphone	—
Smart Detection	Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 8 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture	Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event: • Line crossing detection, up to 1 line configurable • Intrusion detection, up to 1 region configurable • Unattended baggage detection, up to 1 region configurable • Object removal detection, up to 1 region configurable • Face detection: detects faces • Scene change detection Region of Interest (ROI): 5 fixed region for main stream and sub-stream Target Cropping: No Linkage Method: • Trigger recording: memory card, network storage, pre-record and post-record • Trigger captured pictures uploading: FTP, HTTP, NAS, Email • Trigger notification: HTTP, ISAPI, Email	Deep Learning: Focus on human and vehicle classification based on deep learning Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Face Capture: Yes	Behavior Analysis: Line crossing detection, intrusion detection, unattended baggage detection Alarm Trigger: Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error ROI (Region of Interest): Support 1 fixed region for main stream
Storage	On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.	On-board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Network Storage: • microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.	On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB	On-board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Connectivity	Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes	Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Interface Style: Pigtail style interface Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL/TLS API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Hardware Reset: Reset via reset button on camera body, web browser and client software	Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP	Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 API: ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View: Up to 6 channels
Power	Power: • 12 VDC ± 25%, 0.66 A, max. 8.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: IEEE 802.3af, Class 3, max. 9.5 W	Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection, PoE (802.3af, class 3) Power Consumption and Current: • 12 VDC, 0.46 A, max. 5.5 W • PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 7 W	Power: • 12 VDC ± 25%, reverse polarity protection, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug • PoE: IEEE 802.3af, Class 3, max. 7.5 W	Power: • 12 VDC ± 25%, 5 W • PoE (802.3af, class 3), 6.5 W
Protection	Protection: IP67: IEC 60529-2013 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Aluminum alloy body	Protection: Ingress protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)	Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)	Protection Level: IP67 Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Dimensions	Dimension: Ø127.3 mm × 96.3 mm (Ø5.0" × 3.8") Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")	Camera Dimension: • Camera: Approx. Φ138.3 × 125 mm (5.4" × 4.9") • With package: Approx. 170 × 170 × 150 mm (6.7" × 6.7" × 5.9")	Dimension: Ø 74.4 mm × 179.2 mm (Ø 2.9" × 7.1")	Dimensions: • Camera: Ø 70 mm × 155.03 mm (Ø 2.76" × 6.1") • Package: 216 mm × 121 mm × 118 mm (8.5" × 4.76" × 4.65")
Weight	Weight: Approx. 635 g (1.4 lb.) With Package Weight: Approx. 861 g (1.9 lb.)	Camera Weight: • Camera: Approx. 730 g (1.6 lb.) • With package: Approx. 998 g (2.2 lb.)	Weight: Approx. 510 g (1.1 lb.)	Weight: Camera: 410 g (0.9 lb.)
