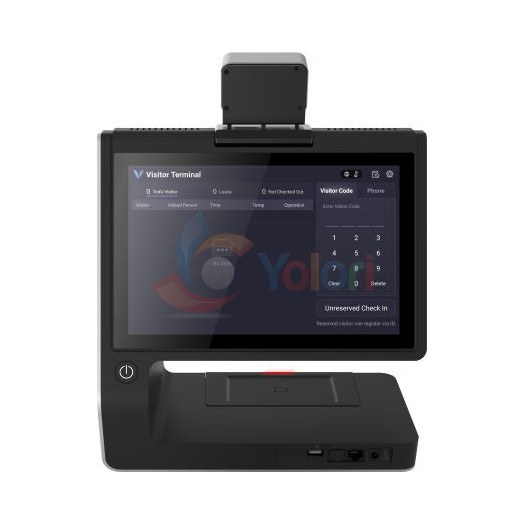

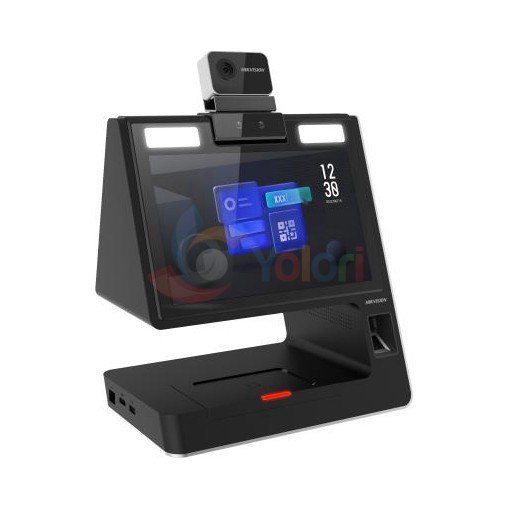

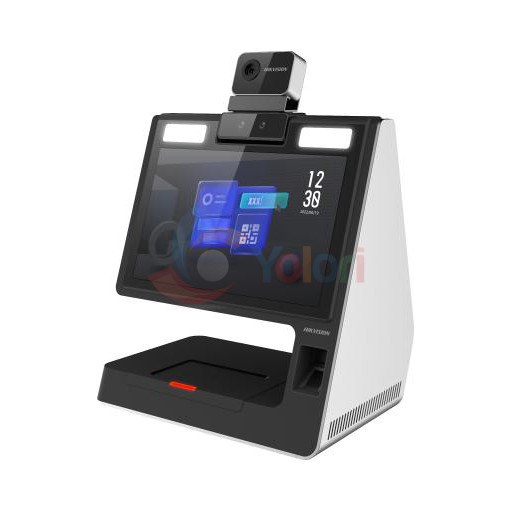

Tentang merek· Visitor Terminal Pro SeriesHikvision Visitor Terminal Pro Series DS-K5032-3XFD - 10.1", Mifare Card, Wi-Fi, Body Temperature
Hikvision Visitor Terminal Pro Series DS-K5032-3XFD adalah Access Door & Absent Machine dengan Face, M1 card (13.56 MHz), Visitor record: 150,000, Size mencakup For administrator: 10.1-inch LCD touch screen dan For visitor: 10.1-inch visitor screen, Card reading duration: ＜ 1 s.
Dijual oleh
Yolori Mall
Hikvision Visitor Terminal Pro Series DS-K5032-3XFD adalah Access Door & Absent Machine dengan Power supply: 12 VDC/3 A. Access Door & Absent Machine dari Hikvision ini juga dibekali Temperature measurement mencakup Temperature range: 30 °C to 45 °C (86 °F to 113 °F); Sensor: Vanadium Oxide uncooled sensor; Resolution: 120 × 160; Frame rate: 25 fps; Measurement accuracy: 0.1 °C; Measurement deviation: ± 0.5 °C, without black body calibration; Measuring distance: 0.3 to 2 m; Pixel: 2 MP; Lens: 2; WDR: Support. Untuk Capacity, tercatat Visitor record: 150,000. Untuk Communication, tercatat Wired network: 10/100/1000 M self-adaptive; Wi-Fi: Support; Network interface: 1; USB: 2. Untuk Device Type, tercatat Visitor terminal, networked. Untuk Display, tercatat Size mencakup For administrator: 10.1-inch LCD touch screen dan For visitor: 10.1-inch visitor screen; Resolution: 1280 × 800. Untuk Identification Method, tercatat Face; M1 card (13.56 MHz). Untuk Operating Environment, tercatat Working temperature: -10 ℃ to 50 ℃ (14 °F to 122 °F); Working humidity: 10％ to 90％. Untuk Software Protocol, tercatat Operation system: Android 7.1.2. Untuk Verification Speed, tercatat Card reading duration: ＜ 1 s. Hikvision Indonesia memberikan garansi resmi selama 12 bulan untuk produk ini.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Device Type
- Visitor terminal, networked
- Identification Method
- • Face • M1 card (13.56 MHz)
- Capacity
- Visitor record: 150,000
- Display
- Size: • For administrator: 10.1-inch LCD touch screen • For visitor: 10.1-inch visitor screen • Resolution: 1280 × 800
- Camera
- Temperature measurement: • Temperature range: 30 °C to 45 °C (86 °F to 113 °F) • Sensor: Vanadium Oxide uncooled sensor • Resolution: 120 × 160 • Frame rate: 25 fps • Measurement accuracy: 0.1 °C • Measurement deviation: ± 0.5 °C, without black body calibration • Measuring distance: 0.3 to 2 m • Pixel: 2 MP • Lens: 2 • WDR: Support
- Verification Speed
- Card reading duration: ＜ 1 s
- Communication
- • Wired network: 10/100/1000 M self-adaptive • Wi-Fi: Support • Network interface: 1 • USB: 2
- Software & Protocol
- Operation system: Android 7.1.2
- Power
- Power supply: 12 VDC/3 A
- Operating Environment
- • Working temperature: -10 ℃ to 50 ℃ (14 °F to 122 °F) • Working humidity: 10％ to 90％
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatHikvisionHikvision Visitor Terminal Pro Series DS-K5032-3XFD - 10.1", Mifare Card, Wi-Fi, Body Temperature |  HikvisionHikvision Visitor Terminal Pro Series DS-K5032-D - 10.1", Mifare Card, Wi-Fi |  HikvisionHikvision Face Recognition Terminal MinMoe Ultra DS-K1T671TM-3XF - 7", Mifare Card, Body Temperature |  HikvisionHikvision Face Recognition Terminal Ultra Series DS-K1T680DFG - 8", Mifare/DESFire/FeliCa Card, Fingerprint, 4G | |
|---|---|---|---|---|
| Harga | Rp 97.619.000 | Rp 82.199.000 | Rp 32.599.000 | Rp 26.689.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Device Type | Visitor terminal, networked | Visitor terminal, networked | Time attendance terminal, standalone | Access control and time attendance terminal, networked |
| Identification Method | • Face • M1 card (13.56 MHz) | • Face • M1 card (13.56 MHz) | • Face • M1 card | • Face • Fingerprint • DESfire card, Felica card • QR code |
| Capacity | Visitor record: 150,000 | Visitor record: 150,000 | — | 100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), 10,000 fingerprint capacity, and 150,000 event capacity |
| Display | Size: • For administrator: 10.1-inch LCD touch screen • For visitor: 10.1-inch visitor screen • Resolution: 1280 × 800 | Size: • For Administrator: 10.1-inch LCD touch screen • For visitor: 10.1-inch display screen • Resolution: 1280 × 800 | • Measuring distance: 0.3 to 2 m • Screen: 7 inch touch screen • Ratio: 16:9 • Resolution: 1024 × 600 | • Screen size: 8 inch • Operation method: Capacitive touch screen • Type: LCD |
| Camera | Temperature measurement: • Temperature range: 30 °C to 45 °C (86 °F to 113 °F) • Sensor: Vanadium Oxide uncooled sensor • Resolution: 120 × 160 • Frame rate: 25 fps • Measurement accuracy: 0.1 °C • Measurement deviation: ± 0.5 °C, without black body calibration • Measuring distance: 0.3 to 2 m • Pixel: 2 MP • Lens: 2 • WDR: Support | • Pixel: 2 MP • Lens: 2 • WDR: Support | Temperature measurement: • Temperature range: 30 °C to 45 °C (86 °F to 113 °F) • Temperature accuracy: ±0.5 °C, without black body calibration | • Lens: 2 • Resolution: 2 MP • FOV: HFOV = 88°; VFOV = 44°; DFOV = 108° |
| Verification Speed | Card reading duration: ＜ 1 s | Card reading duration: ＜ 1 s | — | Face recognition distance: 0.3 m to 3 m, duration ＜ 0.2 s/User, accuracy rate ≥ 99% |
| Communication | • Wired network: 10/100/1000 M self-adaptive • Wi-Fi: Support • Network interface: 1 • USB: 2 | • Wired network: 10/100/1000 M self-adaptive • Wi-Fi: Support • Network interface: 1 • USB: 2 | — | • Wired network: Support • Network interface: 1 RJ-45, 10/100/1000 M self-adaptive • RS-485: 1 RS-485 (Half duplex, HIKVISION) • USB: 1 |
| Access Control Interface | — | — | — | • Lock control: 1 • Exit button: 1 • Door contact input: 1 • Alarm input: 2 • Alarm output: 1 • TAMPER: 1 • Wiegand: 1 Wiegand(Hik 26bit,Hik 34bit) |
| Software & Protocol | Operation system: Android 7.1.2 | Operation system: Android 7.1.2 | — | Hik-Connect: Support |
| Power | Power supply: 12 VDC/3 A | Power supply: 12 VDC/3 A | — | Power supply: 12 VDC to 24 VDC, 3 A |
| Operating Environment | • Working temperature: -10 ℃ to 50 ℃ (14 °F to 122 °F) • Working humidity: 10％ to 90％ | • Working temperature: -10 ℃ to 50 ℃ (14 °F to 122 °F) • Working humidity: 10％ to 90％ | — | • Working temperature: -30 °C to 60 °C (-22 °F to 140 °F) • Working humidity: 0 to 90% (No condensing) • Protective level: IP65 |
| Dimensions | — | — | — | 127.3 mm × 232.1 mm × 23.5 mm (5.0'' × 9.1'' × 0.9'' ) |
