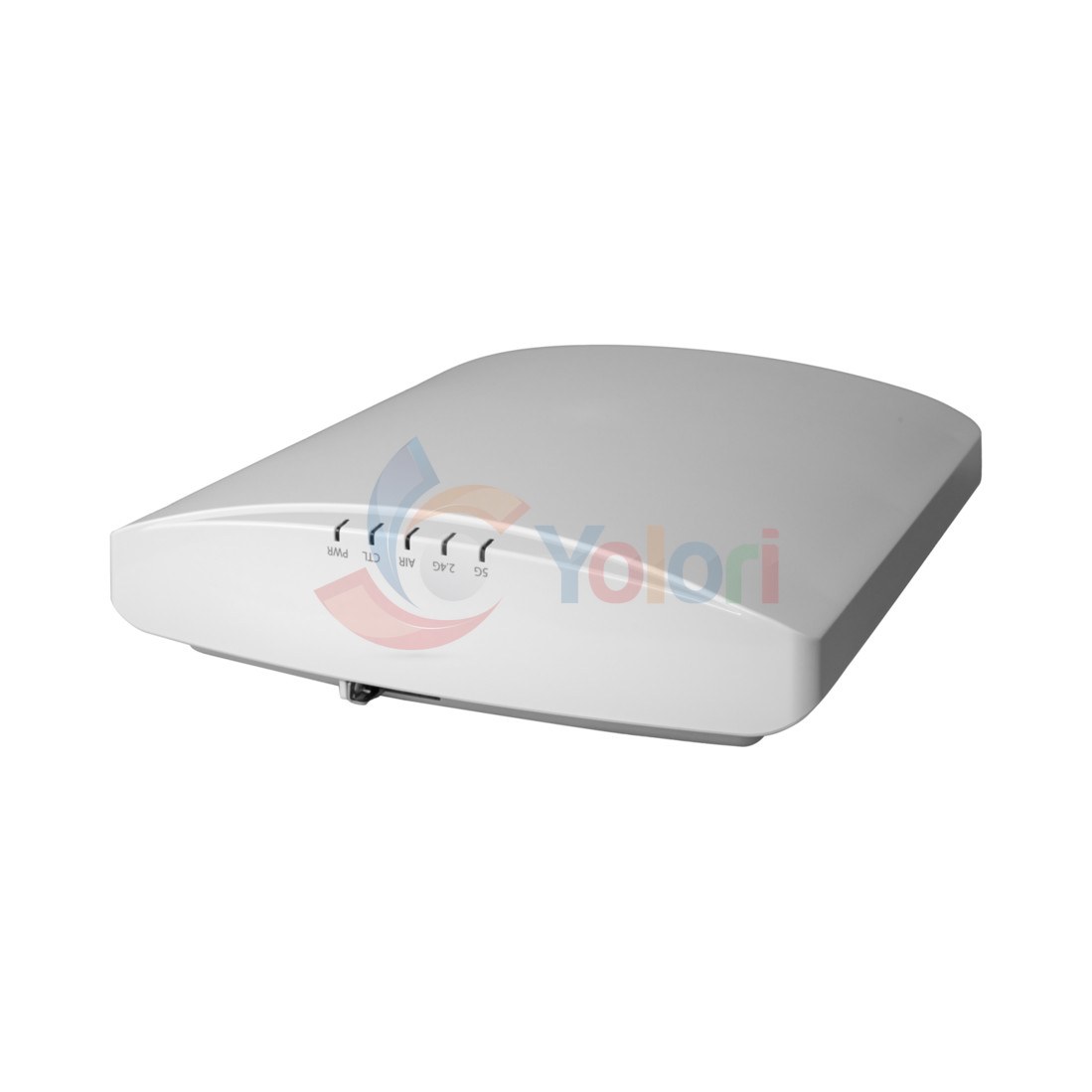

Ruckus Access Point Centralized PoE R750 - Wi-Fi 6

Name: Ruckus Access Point Centralized PoE R750 - Wi-Fi 6
Brand: Ruckus
SKU: 901-R750-WW00-C-S-P
Price: 37859000 IDR
Availability: InStock

Rp 37.859.000

Ruckus Access Point Centralized PoE R750 adalah Access Point dengan Wi-Fi Generation: Wi-Fi 6, Wi-Fi Standards: IEEE 802/11a/b/g/n/ac/ax, Peak PHY Rates mencakup 2.4GHz: 1148 Mbps dan 5GHz: 2400 Mbps, Client Capacity: Up to 1024 clients per AP, SSID: Up to 31 per AP, Ethernet mencakup One 2.5Gbps Ethernet port and one 1Gbps Ethernet port, Power over Ethernet (802.3af/at/bt) with Category 5/5e/6 cable dan LLDP, USB: 1 USB 2.0 port, Type A, Antenna Gain (max): Up to 3dBi.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|12 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Ruckus Access Point Centralized PoE R750 adalah Access Point dengan Wi-Fi Generation: Wi-Fi 6; Wi-Fi Standards: IEEE 802/11a/b/g/n/ac/ax; Supported Rates mencakup 802.11ax: 4 to 2400 Mbps, 802.11ac: 6.5 to 1732 Mbps, 802.11n: 6.5 to 600 Mbps, 802.11a/g: 6 to 54 Mbps dan 802.11b: 1 to 11 Mbps. Untuk kecepatan nirkabel, tercatat Peak PHY Rates mencakup 2.4GHz: 1148 Mbps dan 5GHz: 2400 Mbps; Client Capacity: Up to 1024 clients per AP; SSID: Up to 31 per AP. Perangkat bekerja dengan Frequency Bands mencakup ISM (2.4-2.484GHz), U-NII-1 (5.15-5.25GHz), U-NII-2A (5.25-5.35GHz), U-NII-2C (5.47-5.725GHz) dan U-NII-3 (5.725-5.85GHz); Supported Channels mencakup 2.4GHz: 1-13; 5GHz: 36-64, 100-144, 149-165; Channelization: 20, 40, 80, 160MHz. Bagian antenanya memiliki Antenna Type mencakup BeamFlex+ adaptive antennas with polarization diversity; Adaptive antenna that provides 4,000+ unique antenna patterns per band; Antenna Gain (max): Up to 3dBi; Peak Transmit Power (Tx port/chain + Combining gain) mencakup 2.4GHz: 26dBm dan 5GHz: 28 dBm; MIMO mencakup 4x4 SU-MIMO dan 4x4 MU-MIMO; Spatial Streams: 4 for both SU-MIMO & MU-MIMO; Radio Chains and Streams: 4x4:4. Access Point dari Ruckus ini juga dibekali Other Wi-Fi Features mencakup WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v; Hotspot; Hotspot 2.0; Captive Portal; WISPr; Antenna Optimization mencakup BeamFlex+ dan Polarization Diversity with Maximal Ratio Combining (PD-MRC); Wi-Fi Channel Management mencakup ChannelFly dan Background Scan Based; Client Density Management mencakup Adaptive Band Balancing, Client Load Balancing, Airtime Fairness dan Airtime-based WLAN Prioritization; SmartCast Quality of Service mencakup QoS-based scheduling, Directed Multicast dan L2/L3/L4 ACLs; Mobility: SmartRoam; Diagnostic Tools mencakup Spectrum Analysis dan SpeedFlex; Mesh: SmartMesh™ wireless meshing technology. Self-healing Mesh; IP: IPv4, IPv6, dual-stack; VLAN mencakup 802.1Q (1 per BSSID or dynamic per user based on RADIUS), VLAN Pooling dan Port-based; 802.1x: Authenticator & Supplicant; Tunnel: L2TP, GRE, Soft-GRE; Policy Management Tools mencakup Application Recognition and Control, Access Control Lists, Device Fingerprinting dan Rate Limiting. Perangkat ini mendukung IoT Capable. Untuk manajemen, tersedia Controller Platform Support mencakup SmartZone, ZoneDirector, Unleashed, Standalone dan Cloud. Untuk keamanan, tersedia Security mencakup WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE; WIPS/WIDS; Physical Security mencakup Hidden latching mechanism, T-bar Torx dan Bracket (902-0120-0000) Torx screw & padlock (sold separately). Access Point dari Ruckus ini juga dibekali Ethernet mencakup One 2.5Gbps Ethernet port and one 1Gbps Ethernet port, Power over Ethernet (802.3af/at/bt) with Category 5/5e/6 cable dan LLDP; USB: 1 USB 2.0 port, Type A. Untuk daya, tercatat 802.3af PoE mencakup 2.4GHz radio: 2x4, 19dBm per chain; 5GHz radio: 2x4, 20dBm per chain; 2nd Ethernet port, onboard IoT & USB disabled; Max Power Consumption: PoE: 12.54W; 802.3at PoE+ mencakup Full Functionality; 2.4GHz radio: 4x4, 20 dBm per chain; 5GHz radio: 4x4, 22 dBm per chain; 2nd Ethernet Port, onboard IoT & USB Enabled (3W); Max Power Consumption: PoE+: 22.34W; Max Power Consumption: DC Power: 22.69W. Dimensinya 23.5cm (L), 20.6cm (W), 6.2cm (H). Beratnya 1.01 kg. Pilihan pemasangannya Wall, acoustic ceiling, desk; Secure bracket (sold separately). Untuk lingkungan operasi, tercatat Operating Temperature: 0ºC (32ºF) - 50ºC (122ºF); Operating Humidity: Up to 95%, non-condensing. Sertifikasi dan kepatuhan standarnya meliputi Wi-Fi Alliance mencakup Wi-Fi CERTIFIED™ a, b, g, n, ac, ax; Passpoint® , Vantage; Standards Compliance mencakup EN 60950-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS dan ISTA 2A Transportation. Perlu diperhatikan: - Bracket pengaman (dijual terpisah). - Tidak termasuk adaptor daya. - POWER 802.3af PoE: port Ethernet ke-2, IoT & USB onboard dinonaktifkan. Ruckus Indonesia memberikan garansi resmi selama 12 bulan untuk produk ini.

Garansi

Warranty Months: 12
Warranty Type: Ruckus Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

I/O Port: Ethernet: • One 2.5Gbps Ethernet port and one 1Gbps Ethernet port • Power over Ethernet (802.3af/at/bt) with Category 5/5e/6 cable • LLDP USB: 1 USB 2.0 port, Type A
Security: Security: • WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE • WIPS/WIDS Physical Security: • Hidden latching mechanism • T-bar Torx • Bracket (902-0120-0000) Torx screw & padlock (sold separately)
Mounting Type: • Wall, acoustic ceiling, desk • Secure bracket (sold separately)
WiFi Standard: Wi-Fi Generation: Wi-Fi 6 Wi-Fi Standards: IEEE 802/11a/b/g/n/ac/ax Supported Rates: • 802.11ax: 4 to 2400 Mbps • 802.11ac: 6.5 to 1732 Mbps • 802.11n: 6.5 to 600 Mbps • 802.11a/g: 6 to 54 Mbps • 802.11b: 1 to 11 Mbps
Frequency Band: Frequency Bands: • ISM (2.4-2.484GHz) • U-NII-1 (5.15-5.25GHz) • U-NII-2A (5.25-5.35GHz) • U-NII-2C (5.47-5.725GHz) • U-NII-3 (5.725-5.85GHz) Supported Channels: • 2.4GHz: 1-13 • 5GHz: 36-64, 100-144, 149-165 Channelization: 20, 40, 80, 160MHz
Wireless Speed: Peak PHY Rates: • 2.4GHz: 1148 Mbps • 5GHz: 2400 Mbps Client Capacity: Up to 1024 clients per AP SSID: Up to 31 per AP
Antenna: Antenna Type: • BeamFlex+ adaptive antennas with polarization diversity • Adaptive antenna that provides 4,000+ unique antenna patterns per band Antenna Gain (max): Up to 3dBi Peak Transmit Power (Tx port/chain + Combining gain): • 2.4GHz: 26dBm • 5GHz: 28 dBm MIMO: • 4x4 SU-MIMO • 4x4 MU-MIMO Spatial Streams: 4 for both SU-MIMO & MU-MIMO Radio Chains and Streams: 4x4:4
Management: Controller Platform Support: • SmartZone • ZoneDirector • Unleashed • Standalone • Cloud
Environment: Operating Temperature: 0ºC (32ºF) - 50ºC (122ºF) Operating Humidity: Up to 95%, non-condensing
Certification: Wi-Fi Alliance: • Wi-Fi CERTIFIED™ a, b, g, n, ac, ax • Passpoint® , Vantage Standards Compliance: • EN 60950-1 Safety • EN 60601-1-2 Medical • EN 61000-4-2/3/5 Immunity • EN 50121-1 Railway EMC • EN 50121-4 Railway Immunity • IEC 61373 Railway Shock & Vibration • UL 2043 Plenum • EN 62311 Human Safety/RF Exposure • WEEE & RoHS • ISTA 2A Transportation
Features: Other Wi-Fi Features: • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v • Hotspot • Hotspot 2.0 • Captive Portal • WISPr Antenna Optimization: • BeamFlex+ • Polarization Diversity with Maximal Ratio Combining (PD-MRC) Wi-Fi Channel Management: • ChannelFly • Background Scan Based Client Density Management: • Adaptive Band Balancing • Client Load Balancing • Airtime Fairness • Airtime-based WLAN Prioritization SmartCast Quality of Service: • QoS-based scheduling • Directed Multicast • L2/L3/L4 ACLs Mobility: SmartRoam Diagnostic Tools: • Spectrum Analysis • SpeedFlex Mesh: SmartMesh™ wireless meshing technology. Self-healing Mesh IP: IPv4, IPv6, dual-stack VLAN: • 802.1Q (1 per BSSID or dynamic per user based on RADIUS) • VLAN Pooling • Port-based 802.1x: Authenticator & Supplicant Tunnel: L2TP, GRE, Soft-GRE Policy Management Tools: • Application Recognition and Control • Access Control Lists • Device Fingerprinting • Rate Limiting IoT Capable: Yes
Dimensions: 23.5cm (L), 20.6cm (W), 6.2cm (H)
Weight: 1.01 kg
Power: 802.3af PoE: • 2.4GHz radio: 2x4, 19dBm per chain • 5GHz radio: 2x4, 20dBm per chain • 2nd Ethernet port, onboard IoT & USB disabled • Max Power Consumption: PoE: 12.54W 802.3at PoE+: • Full Functionality • 2.4GHz radio: 4x4, 20 dBm per chain • 5GHz radio: 4x4, 22 dBm per chain • 2nd Ethernet Port, onboard IoT & USB Enabled (3W) • Max Power Consumption: PoE+ : 22.34W • Max Power Consumption: DC Power: 22.69W

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Tampilkan hanya yang berbeda

4 produk · geser untuk melihat lainnya

Ulasan Pembeli

Memuat ulasan...

	Sedang dilihatRuckusRuckus Access Point Centralized PoE R750 - Wi-Fi 6	Sedang dilihatRuckusRuckus Access Point Stand Alone R850 - Wi-Fi 6	Sedang dilihatRuckusRuckus Access Point Stand Alone PoE R750 - Wi-Fi 6	Sedang dilihatRuckusRuckus Access Point Centralized R750 - Wi-Fi 6
Harga	Rp 37.859.000	Rp 38.759.000	Rp 35.129.000	Rp 34.759.000
Garansi
Warranty Months	12	12	12	12
Warranty Type	Ruckus Indonesia Official Warranty	Ruckus Indonesia Official Warranty	Ruckus Indonesia Official Warranty	Ruckus Indonesia Official Warranty
Jaminan
Stock Status	Tersedia	Tersedia	Tersedia	Tersedia
Spesifikasi Teknis
I/O Port	Ethernet: • One 2.5Gbps Ethernet port and one 1Gbps Ethernet port • Power over Ethernet (802.3af/at/bt) with Category 5/5e/6 cable • LLDP USB: 1 USB 2.0 port, Type A	Ethernet: • 1x 1/2.5/5 Gbps port, RJ-45 • 1x 10/100/1000 Mbps port, RJ-45 USB: 1 USB 2.0 port, Type A	Ethernet: • One 2.5Gbps Ethernet port and one 1Gbps Ethernet port • Power over Ethernet (802.3af/at/bt) with Category 5/5e/6 cable • LLDP USB: 1 USB 2.0 port, Type A	Ethernet: • One 2.5Gbps Ethernet port and one 1Gbps Ethernet port • Power over Ethernet (802.3af/at/bt) with Category 5/5e/6 cable • LLDP USB: 1 USB 2.0 port, Type A
Security	Security: • WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE • WIPS/WIDS Physical Security: • Hidden latching mechanism • T-bar Torx • Bracket (902-0120-0000) Torx screw & padlock (sold separately)	Security: • WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK • WIPS/WIDS Physical Security: Hidden Latching Mechanism	Security: • WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE • WIPS/WIDS Physical Security: • Hidden latching mechanism • T-bar Torx • Bracket (902-0120-0000) Torx screw & padlock (sold separately)	Security: • WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE • WIPS/WIDS Physical Security: • Hidden latching mechanism • T-bar Torx • Bracket (902-0120-0000) Torx screw & padlock (sold separately)
Mounting Type	• Wall, acoustic ceiling, desk • Secure bracket (sold separately)	• Wall, Acoustic ceiling, Desk • Secure Bracket (sold separately)	• Wall, acoustic ceiling, desk • Secure bracket (sold separately)	• Wall, acoustic ceiling, desk • Secure bracket (sold separately)
WiFi Standard	Wi-Fi Generation: Wi-Fi 6 Wi-Fi Standards: IEEE 802/11a/b/g/n/ac/ax Supported Rates: • 802.11ax: 4 to 2400 Mbps • 802.11ac: 6.5 to 1732 Mbps • 802.11n: 6.5 to 600 Mbps • 802.11a/g: 6 to 54 Mbps • 802.11b: 1 to 11 Mbps	Wi-Fi Generation: Wi-Fi 6 Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax Supported Rates: • 802.11ax: 4 to 4800 Mbps • 802.11ac: 6.5 to 3467 Mbps • 802.11n: 6.5 to 600 Mbps • 802.11a/g: 6 to 54 Mbps • 802.11b: 1 to 11 Mbps	Wi-Fi Generation: Wi-Fi 6 Wi-Fi Standards: IEEE 802/11a/b/g/n/ac/ax Supported Rates: • 802.11ax: 4 to 2400 Mbps • 802.11ac: 6.5 to 1732 Mbps • 802.11n: 6.5 to 600 Mbps • 802.11a/g: 6 to 54 Mbps • 802.11b: 1 to 11 Mbps	Wi-Fi Generation: Wi-Fi 6 Wi-Fi Standards: IEEE 802/11a/b/g/n/ac/ax Supported Rates: • 802.11ax: 4 to 2400 Mbps • 802.11ac: 6.5 to 1732 Mbps • 802.11n: 6.5 to 600 Mbps • 802.11a/g: 6 to 54 Mbps • 802.11b: 1 to 11 Mbps
Frequency Band	Frequency Bands: • ISM (2.4-2.484GHz) • U-NII-1 (5.15-5.25GHz) • U-NII-2A (5.25-5.35GHz) • U-NII-2C (5.47-5.725GHz) • U-NII-3 (5.725-5.85GHz) Supported Channels: • 2.4GHz: 1-13 • 5GHz: 36-64, 100-144, 149-165 Channelization: 20, 40, 80, 160MHz	Frequency Bands: • 2.4 - 2.484 GHz • 5.17 - 5.33 GHZ • 5.49 - 5.71 GHz • 5.735 - 5.835 GHz Supported Channels: • 2.4GHz: 1-13 • 5GHz: 36-64, 100-144, 149-165 Channelization: 20, 40, 80, 160 MHz	Frequency Bands: • ISM (2.4-2.484GHz) • U-NII-1 (5.15-5.25GHz) • U-NII-2A (5.25-5.35GHz) • U-NII-2C (5.47-5.725GHz) • U-NII-3 (5.725-5.85GHz) Supported Channels: • 2.4GHz: 1-13 • 5GHz: 36-64, 100-144, 149-165 Channelization: 20, 40, 80, 160MHz	Frequency Bands: • ISM (2.4-2.484GHz) • U-NII-1 (5.15-5.25GHz) • U-NII-2A (5.25-5.35GHz) • U-NII-2C (5.47-5.725GHz) • U-NII-3 (5.725-5.85GHz) Supported Channels: • 2.4GHz: 1-13 • 5GHz: 36-64, 100-144, 149-165 Channelization: 20, 40, 80, 160MHz
Wireless Speed	Peak PHY Rates: • 2.4GHz: 1148 Mbps • 5GHz: 2400 Mbps Client Capacity: Up to 1024 clients per AP SSID: Up to 31 per AP	Peak PHY Rates: • 2.4GHz: 1.148 Gbps (11ax) • 5GHz: 4.8 Gbps (11ax) Client Capacity: Up to 1024 clients per AP SSID: Up to 16 per radio	Peak PHY Rates: • 2.4GHz: 1148 Mbps • 5GHz: 2400 Mbps Client Capacity: Up to 1024 clients per AP SSID: Up to 31 per AP	Peak PHY Rates: • 2.4GHz: 1148 Mbps • 5GHz: 2400 Mbps Client Capacity: Up to 1024 clients per AP SSID: Up to 31 per AP
Antenna	Antenna Type: • BeamFlex+ adaptive antennas with polarization diversity • Adaptive antenna that provides 4,000+ unique antenna patterns per band Antenna Gain (max): Up to 3dBi Peak Transmit Power (Tx port/chain + Combining gain): • 2.4GHz: 26dBm • 5GHz: 28 dBm MIMO: • 4x4 SU-MIMO • 4x4 MU-MIMO Spatial Streams: 4 for both SU-MIMO & MU-MIMO Radio Chains and Streams: 4x4:4	Antenna Type: • BeamFlex+ Adaptive Antennas with 4000+ unique antenna patterns • Horiziontal and Vertical polarization (PD-MRC) Antenna Gain (max): Up to 2 dBi MIMO: • 8x8 MU-MIMO • 8x8 SU-MIMO Spatial Streams: • 8 MU-MIMO • 8 SU-MIMO Radio Chains and Streams: 8x8:8	Antenna Type: • BeamFlex+ adaptive antennas with polarization diversity • Adaptive antenna that provides 4,000+ unique antenna patterns per band Antenna Gain (max): Up to 3dBi Peak Transmit Power (Tx port/chain + Combining gain): • 2.4GHz: 26dBm • 5GHz: 28 dBm MIMO: • 4x4 SU-MIMO • 4x4 MU-MIMO Spatial Streams: 4 for both SU-MIMO & MU-MIMO Radio Chains and Streams: 4x4:4	Antenna Type: • BeamFlex+ adaptive antennas with polarization diversity • Adaptive antenna that provides 4,000+ unique antenna patterns per band Antenna Gain (max): Up to 3dBi Peak Transmit Power (Tx port/chain + Combining gain): • 2.4GHz: 26dBm • 5GHz: 28 dBm MIMO: • 4x4 SU-MIMO • 4x4 MU-MIMO Spatial Streams: 4 for both SU-MIMO & MU-MIMO Radio Chains and Streams: 4x4:4
Management	Controller Platform Support: • SmartZone • ZoneDirector • Unleashed • Standalone • Cloud	Controller Platform Support: • SmartZone • ZoneDirector • Standalone • Cloud • Unleashed	Controller Platform Support: • SmartZone • ZoneDirector • Unleashed • Standalone • Cloud	Controller Platform Support: • SmartZone • ZoneDirector • Unleashed • Standalone • Cloud
Environment	Operating Temperature: 0ºC (32ºF) - 50ºC (122ºF) Operating Humidity: Up to 95%, non-condensing	Operating Temperature: -0C (32F) to 50°C (122°F) Operating Humidity: Up to 95%, non-condensing	Operating Temperature: 0ºC (32ºF) - 50ºC (122ºF) Operating Humidity: Up to 95%, non-condensing	Operating Temperature: 0ºC (32ºF) - 50ºC (122ºF) Operating Humidity: Up to 95%, non-condensing
Certification	Wi-Fi Alliance: • Wi-Fi CERTIFIED™ a, b, g, n, ac, ax • Passpoint® , Vantage Standards Compliance: • EN 60950-1 Safety • EN 60601-1-2 Medical • EN 61000-4-2/3/5 Immunity • EN 50121-1 Railway EMC • EN 50121-4 Railway Immunity • IEC 61373 Railway Shock & Vibration • UL 2043 Plenum • EN 62311 Human Safety/RF Exposure • WEEE & RoHS • ISTA 2A Transportation	Wi-Fi Alliance: • Wi-Fi CERTIFIED™ a, b, g, n, ac, ax • Passpoint® • Vantage Standards Compliance: • EN 60950-1 Safety • EN 60601-1-2 Medical • EN 61000-4-2/3/5 Immunity • EN 50121-1 Railway EMC • EN 50121-4 Railway Immunity • IEC 61373 Railway Shock & Vibration • EN 62311 Human Safety/RF Exposure • UL 2043 Plenum • WEEE & RoHS • ISTA 2A Transportation	Wi-Fi Alliance: • Wi-Fi CERTIFIED™ a, b, g, n, ac, ax • Passpoint® , Vantage Standards Compliance: • EN 60950-1 Safety • EN 60601-1-2 Medical • EN 61000-4-2/3/5 Immunity • EN 50121-1 Railway EMC • EN 50121-4 Railway Immunity • IEC 61373 Railway Shock & Vibration • UL 2043 Plenum • EN 62311 Human Safety/RF Exposure • WEEE & RoHS • ISTA 2A Transportation	Wi-Fi Alliance: • Wi-Fi CERTIFIED™ a, b, g, n, ac, ax • Passpoint® , Vantage Standards Compliance: • EN 60950-1 Safety • EN 60601-1-2 Medical • EN 61000-4-2/3/5 Immunity • EN 50121-1 Railway EMC • EN 50121-4 Railway Immunity • IEC 61373 Railway Shock & Vibration • UL 2043 Plenum • EN 62311 Human Safety/RF Exposure • WEEE & RoHS • ISTA 2A Transportation
Features	Other Wi-Fi Features: • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v • Hotspot • Hotspot 2.0 • Captive Portal • WISPr Antenna Optimization: • BeamFlex+ • Polarization Diversity with Maximal Ratio Combining (PD-MRC) Wi-Fi Channel Management: • ChannelFly • Background Scan Based Client Density Management: • Adaptive Band Balancing • Client Load Balancing • Airtime Fairness • Airtime-based WLAN Prioritization SmartCast Quality of Service: • QoS-based scheduling • Directed Multicast • L2/L3/L4 ACLs Mobility: SmartRoam Diagnostic Tools: • Spectrum Analysis • SpeedFlex Mesh: SmartMesh™ wireless meshing technology. Self-healing Mesh IP: IPv4, IPv6, dual-stack VLAN: • 802.1Q (1 per BSSID or dynamic per user based on RADIUS) • VLAN Pooling • Port-based 802.1x: Authenticator & Supplicant Tunnel: L2TP, GRE, Soft-GRE Policy Management Tools: • Application Recognition and Control • Access Control Lists • Device Fingerprinting • Rate Limiting IoT Capable: Yes	Other Wi-Fi Features: • WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/vHotspot • Hotspot 2.0 • Captive Portal • WISPr Antenna Optimization: • BeamFlex+ • PD-MRC Wi-Fi Channel Management: ChannelFly Client Density Management: • Band Balancing • Client Load Balancing • Airtime Fairness • Airtime-based WLAN Prioritization Queuing & Scheduling: SmartCast Diagnostic Tools: • SmartRoam • Spectrum Analysis • SpeedFlex • Perpacket Adaptive Power Mesh: SmartMesh™ wireless meshing technology IP: IPv4, IPv6 VLAN: • 802.1Q • BSSID-based (16 BSSIDs / radio) • Port-based • Dynamic, per user based on RADIUS 802.1x: • Wired & wireless • Authenticator & Supplicant Tunnel: RuckusGRE, SoftGRE Policy Management Tools: • Application Recognition and Control • Access Control Lists • Device Fingerprinting IoT Capable: Yes	Other Wi-Fi Features: • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v • Hotspot • Hotspot 2.0 • Captive Portal • WISPr Antenna Optimization: • BeamFlex+ • Polarization Diversity with Maximal Ratio Combining (PD-MRC) Wi-Fi Channel Management: • ChannelFly • Background Scan Based Client Density Management: • Adaptive Band Balancing • Client Load Balancing • Airtime Fairness • Airtime-based WLAN Prioritization SmartCast Quality of Service: • QoS-based scheduling • Directed Multicast • L2/L3/L4 ACLs Mobility: SmartRoam Diagnostic Tools: • Spectrum Analysis • SpeedFlex Mesh: SmartMesh™ wireless meshing technology. Self-healing Mesh IP: IPv4, IPv6, dual-stack VLAN: • 802.1Q (1 per BSSID or dynamic per user based on RADIUS) • VLAN Pooling • Port-based 802.1x: Authenticator & Supplicant Tunnel: L2TP, GRE, Soft-GRE Policy Management Tools: • Application Recognition and Control • Access Control Lists • Device Fingerprinting • Rate Limiting IoT Capable: Yes	Other Wi-Fi Features: • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v • Hotspot • Hotspot 2.0 • Captive Portal • WISPr Antenna Optimization: • BeamFlex+ • Polarization Diversity with Maximal Ratio Combining (PD-MRC) Wi-Fi Channel Management: • ChannelFly • Background Scan Based Client Density Management: • Adaptive Band Balancing • Client Load Balancing • Airtime Fairness • Airtime-based WLAN Prioritization SmartCast Quality of Service: • QoS-based scheduling • Directed Multicast • L2/L3/L4 ACLs Mobility: SmartRoam Diagnostic Tools: • Spectrum Analysis • SpeedFlex Mesh: SmartMesh™ wireless meshing technology. Self-healing Mesh IP: IPv4, IPv6, dual-stack VLAN: • 802.1Q (1 per BSSID or dynamic per user based on RADIUS) • VLAN Pooling • Port-based 802.1x: Authenticator & Supplicant Tunnel: L2TP, GRE, Soft-GRE Policy Management Tools: • Application Recognition and Control • Access Control Lists • Device Fingerprinting • Rate Limiting IoT Capable: Yes
Dimensions	23.5cm (L), 20.6cm (W), 6.2cm (H)	22.19 x 24.96 x 6 cm	23.5cm (L), 20.6cm (W), 6.2cm (H)	23.5cm (L), 20.6cm (W), 6.2cm (H)
Weight	1.01 kg	1.53 kg	1.01 kg	1.01 kg
Power	802.3af PoE: • 2.4GHz radio: 2x4, 19dBm per chain • 5GHz radio: 2x4, 20dBm per chain • 2nd Ethernet port, onboard IoT & USB disabled • Max Power Consumption: PoE: 12.54W 802.3at PoE+: • Full Functionality • 2.4GHz radio: 4x4, 20 dBm per chain • 5GHz radio: 4x4, 22 dBm per chain • 2nd Ethernet Port, onboard IoT & USB Enabled (3W) • Max Power Consumption: PoE+ : 22.34W • Max Power Consumption: DC Power: 22.69W	—	802.3af PoE: • 2.4GHz radio: 2x4, 19dBm per chain • 5GHz radio: 2x4, 20dBm per chain • 2nd Ethernet port, onboard IoT & USB disabled • Max Power Consumption: PoE: 12.54W 802.3at PoE+: • Full Functionality • 2.4GHz radio: 4x4, 20 dBm per chain • 5GHz radio: 4x4, 22 dBm per chain • 2nd Ethernet Port, onboard IoT & USB Enabled (3W) • Max Power Consumption: PoE+ : 22.34W • Max Power Consumption: DC Power: 22.69W	802.3af PoE: • 2.4GHz radio: 2x4, 19dBm per chain • 5GHz radio: 2x4, 20dBm per chain • 2nd Ethernet port, onboard IoT & USB disabled • Max Power Consumption: PoE: 12.54W 802.3at PoE+: • Full Functionality • 2.4GHz radio: 4x4, 20 dBm per chain • 5GHz radio: 4x4, 22 dBm per chain • 2nd Ethernet Port, onboard IoT & USB Enabled (3W) • Max Power Consumption: PoE+ : 22.34W • Max Power Consumption: DC Power: 22.69W
