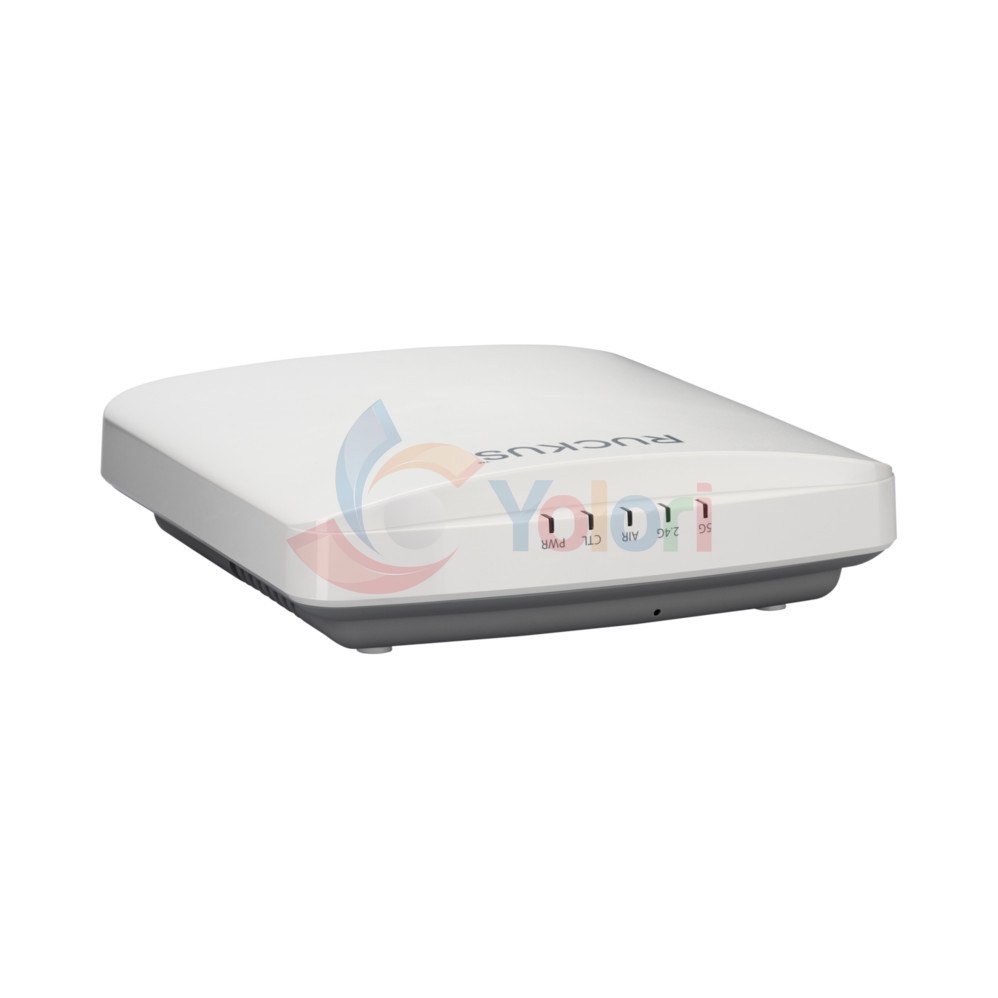

Ruckus Access Point Stand Alone R650 - Wi-Fi 6

Spesifikasi Teknis

I/O Port

Ethernet: • One 2.5Gbps Ethernet port and one 1Gbps Ethernet port • Power over Ethernet (802.3af/at) with Category 5/5e/6 cable • LLDP USB: 1 USB 2.0 port, Type A

Security

Security: • WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE • WIPS/WIDS Physical Security: • Hidden latching mechanism • T-bar Torx • Bracket (902-0120-0000) Torx screw & padlock (sold separately)

Mounting Type

• Wall, acoustic ceiling, desk • Secure bracket (sold separately)

WiFi Standard

Wi-Fi Generation: Wi-Fi 6 Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax Supported Rates: • 802.11ax: 4 to 2400 Mbps • 802.11ac: 6.5 to 1732 Mbps • 802.11n: 6.5 to 600 Mbps • 802.11a/g: 6 to 54 Mbps • 802.11b: 1 to 11 Mbps

Frequency Band

Frequency Bands: • ISM (2.4-2.484GHz) • U-NII-1 (5.15-5.25GHz) • U-NII-2A (5.25-5.35GHz) • U-NII-2C (5.47-5.725GHz) • U-NII-3 (5.725-5.85GHz) Supported Channels: • 2.4GHz: 1-13 • 5GHz: 36-64, 100-144, 149-165 Channelization: 20, 40, 80, 160MHz

Wireless Speed

Peak PHY Rates: • 2.4GHz: 574 Mbps • 5GHz: 2400 Mbps Client Capacity: Up to 512 clients per AP SSID: Up to 31 per AP

Antenna

Antenna Type: • BeamFlex+ adaptive antennas with polarization diversity • Adaptive antenna that provides unique antenna patterns per band Antenna Gain (max): Up to 3dBi Peak Transmit Power (Tx port/chain + Combining gain): • 2.4GHz: 26dBm • 5GHz: 28 dBm MIMO: • 4x4 SU-MIMO • 4x4 MU-MIMO Spatial Streams: • 4 streams SU/MU MIMO 5GHz • 2 streams SU/MU MIMO 2.4GHz Radio Chains and Streams: • 4x4:4 (5GHz) • 2x2:2 (2.4GHz)

Management

Controller Platform Support: • SmartZone • ZoneDirector • Standalone • Unleashed

Environment

Operating Temperature: 0ºC (32ºF) - 50ºC (122ºF) Operating Humidity: Up to 95%, non-condensing

Certification

Wi-Fi Alliance: • Wi-Fi CERTIFIED™ a, b, g, n, ac, ax • Passpoint® , Vantage Standards Compliance: • EN 60950-1 Safety • EN 60601-1-2 Medical • EN 61000-4-2/3/5 Immunity • EN 50121-1 Railway EMC • EN 50121-4 Railway Immunity • IEC 61373 Railway Shock & Vibration • UL 2043 Plenum • EN 62311 Human Safety/RF Exposure • WEEE & RoHS • ISTA 2A Transportation

Features

Other Wi-Fi Features: • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v • Hotspot • Hotspot 2.0 • Captive Portal • WISPr Antenna Optimization: • BeamFlex+ • Polarization Diversity with Maximal Ratio Combining (PD-MRC) Wi-Fi Channel Management: • ChannelFly • Background Scan Based Client Density Management: • Adaptive Band Balancing • Client Load Balancing • Airtime Fairness • Airtime-based WLAN Prioritization SmartCast Quality of Service: • QoS-based scheduling • Directed Multicast • L2/L3/L4 ACLs Mobility: SmartRoam Diagnostic Tools: • Spectrum Analysis • SpeedFlex Mesh: SmartMesh™ wireless meshing technology. Self-healing Mesh IP: IPv4, IPv6, dual-stack VLAN: • 802.1Q (1 per BSSID or dynamic per user based on RADIUS) • VLAN Pooling • Port-based 802.1x: Authenticator & Supplicant Tunnel: L2TP, GRE, Soft-GRE Policy Management Tools: • Application Recognition and Control • Access Control Lists • Device Fingerprinting • Rate Limiting

Dimensions

22.4cm (L), 19.4cm (W), 4.7cm (H)

Weight

0.854 kg

Power

802.3af PoE: • 2.4GHz radio: 2x2, 19dBm per chain • 5GHz radio: 2x4, 20dBm per chain • 2nd Ethernet port, onboard IoT & USB disabled • Max Power Consumption: 12.25W 802.3at PoE+: • Full Functionality • 2.4GHz radio: 2x2, 23 dBm per chain • 5GHz radio: 4x4, 22 dBm per chain • 2nd Ethernet Port, onboard IoT & USB Enabled (3W) • Max Power Consumption: PoE+ : 21.59W • Max Power Consumption: DC Power: 21.46W
