BerandaDroneDJI Mini 3 Pro (with RC) - 1/1.3-inch CMOS 48MP, 34 min, 12 km

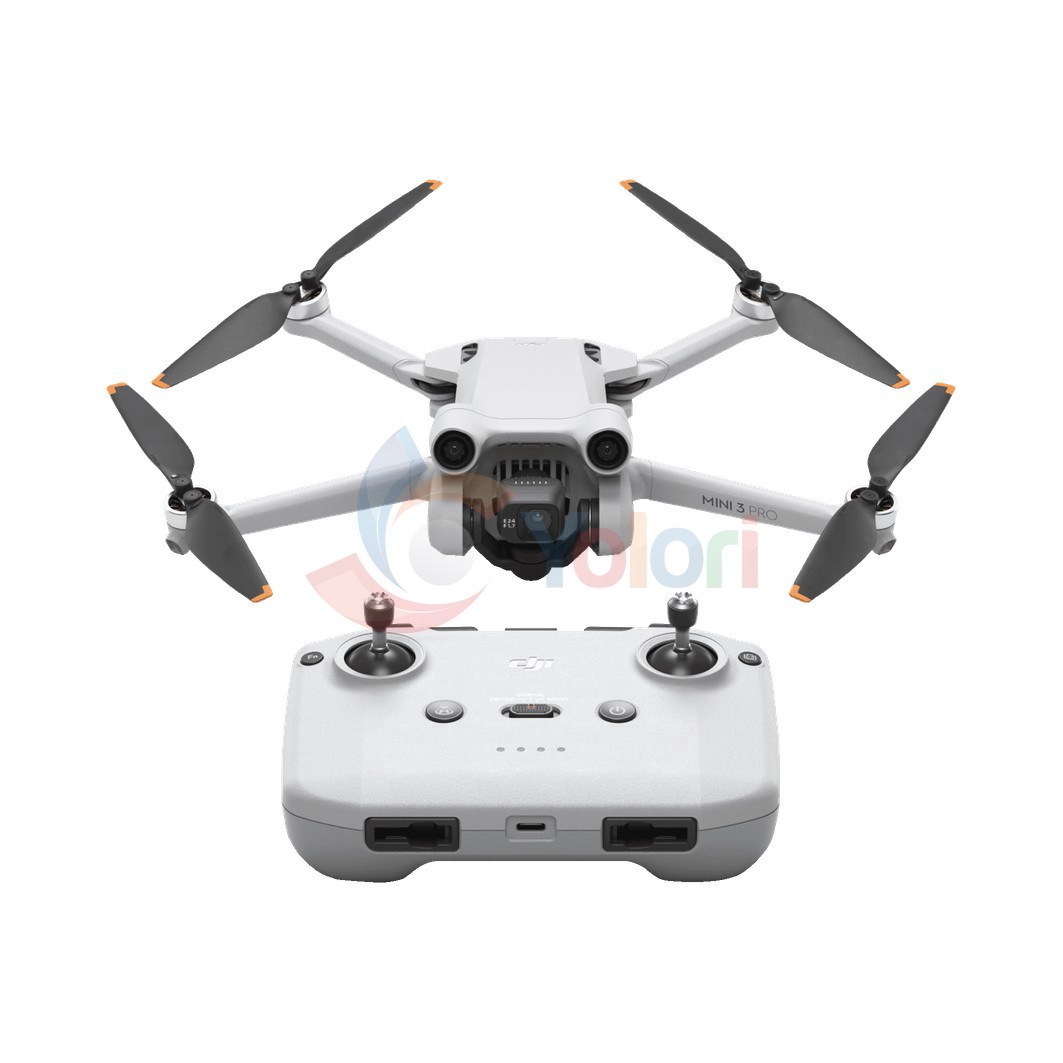

DJI Mini 3 Pro (with RC) - 1/1.3-inch CMOS 48MP, 34 min, 12 km — gambar 1
djiTentang merek· Mini 3 Pro
DroneBaruSKU: DJIMINI3PRO-WITHRC

DJI Mini 3 Pro (with RC) - 1/1.3-inch CMOS 48MP, 34 min, 12 km

Rp 17.949.000

Mini 3 Pro menahan bobot terbangnya di bawah 249 gram sambil membawa sensor rintangan tiga arah — hal yang tidak ada pada Mini 3. Kameranya bersensor 1/1.3 inci 48 MP berbukaan f/1.7. Terbang 34 menit per baterai dengan jangkauan tautan O3 sampai 12 km. Konfigurasi yang ditawarkan: with RC.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|12 produk terjual
Chat WhatsApp Kunjungi Toko
DokumenFaktur pajak diterbitkan untuk pembelian ini

Sensor CMOS 1/1.3 inci 48 MP dengan lensa setara 24 mm dan bukaan f/1.7 adalah dasar kamera Mini 3 Pro. Rentang rananya 2 sampai 1/8000 detik dan zoomnya 2x pada 4K sampai 4x pada FHD. Sumbu guling gimbalnya dapat diputar 90 derajat, jadi rekaman potret diambil pada bingkai penuh dan tidak dipotong dari gambar mendatar. Daya tahan terbangnya 34 menit per baterai, dengan tautan O3 sampai 12 km. Yang membedakannya dari Mini 3 adalah sensor rintangan: depan sampai 25 m, belakang sampai 23,4 m, dan bawah sampai 9 m, ditambah lampu bantu di bagian bawah. Pada pengambilan yang mengikuti obyek bergerak, tiga arah itu menurunkan risiko tabrakan. Bobot terbangnya di bawah 249 gram. Terlipat ukurannya 145x90x62 mm, terbuka 171x245x62 mm, dan dengan propeler terbuka menjadi 251x362x70 mm. Baris ini konfigurasi dengan pengendali RC berlayar menyatu. Sisi kiri dan kanan tidak terawasi sensor. Gerak menyamping tetap harus dilihat sendiri. Pesawat ini juga tidak punya penyimpanan di dalam badan — kartu memori minimal UHS-I Speed Class 3 wajib dipasang, dan kartu yang lebih lambat akan menggagalkan rekaman pada laju bit tinggi. (Catatan: Gambar yang ditampilkan hanya berfungsi sebagai ilustrasi).

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

4 produk · geser untuk melihat lainnya
Sedang dilihatdjiDJI Mini 3 Pro (with RC) - 1/1.3-inch CMOS 48MP, 34 min, 12 kmdjiDJI Air 2S - 1" CMOS 20MP, 31 min, 12 kmdjiDJI Air 3 (with RC-N2) - 1/1.3-inch CMOS 48MP, 46 min, 20 kmdjiDJI Mini 3 Pro - 1/1.3-inch CMOS 48MP, 34 min, 12 km
HargaRp 17.949.000Rp 19.579.000Rp 20.979.000Rp 14.719.000
Garansi
Warranty Months12121212
Warranty TypeDJI Indonesia Official WarrantyDJI Indonesia Official WarrantyDJI Indonesia Official WarrantyDJI Indonesia Official Warranty
Jaminan
Stock StatusTersediaTersediaTersediaTersedia
Spesifikasi Teknis
CameraNumber of Camera:1 Sensor: • 1/1.3-inch CMOS, Effective Pixels: 48 MP Lens • FOV: 82.1° Format Equivalent: 24 mm Aperture: f/1.7 Focus Range: 1 m to ∞ Shutter Speed: • Electronic Shutter: 2-1/8000 s Zoom Range • 4K: 2x • 2.7K: 3x • FHD: 4xNumber of Camera:1 Sensor: • 1" CMOS, Effective Pixels: 20 MP; 2.4μm Pixel Size Lens • FOV: 88° Format Equivalent: 22 mm Aperture: f/2.8 Shooting Range: 0.6 m to ∞ Digital Zoom • 4K/30fps: 4x • 2.7K/60fps: 4x • 2.7K/30fps: 6x • 1080p/60fps: 6x • 1080p/30fps: 8xNumber of Camera:2 Image Sensor: • Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP • Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP Lens • Wide-Angle Camera FOV: 82° Format Equivalent: 24 mm Aperture: f/1.7 Focus: 1 m to ∞ • Medium Tele Camera FOV: 35° Format Equivalent: 70 mm Aperture: f/2.8 Focus: 3 m to ∞ Shutter Speed • Wide-Angle Camera 12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure) 48MP Photo: 1/8000-2 s • Medium Tele Camera 12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure) 48MP Photo: 1/8000-2 s Digital Zoom • Wide-Angle Camera: 1-3x • Medium Tele Camera: 3-9xNumber of Camera:1 Sensor: • 1/1.3-inch CMOS, Effective Pixels: 48 MP Lens • FOV: 82.1° Format Equivalent: 24 mm Aperture: f/1.7 Focus Range: 1 m to ∞ Shutter Speed: • Electronic Shutter: 2-1/8000 s Zoom Range • 4K: 2x • 2.7K: 3x • FHD: 4x
ISO RangeVideo • 100-6400 (Auto) • 100-6400 (Manual) Photo • 100-6400 (Auto) • 100-6400 (Manual)Video • 100-3200 (Auto) • 100-6400 (Manual) 10-Bit Dlog-M Video • 100-800 (Auto) • 100-1600 (Manual) Photo • 100-3200 (Auto) • 100-12800 (Manual)Video • Normal and Slow Motion 100-6400 (Normal) 100-1600 (D-Log M) 100-1600 (HLG) • Night 100-12800 (Normal) Photo • 100-6400 (12 MP) • 100-3200 (48 MP)Video • 100-6400 (Auto) • 100-6400 (Manual) Photo • 100-6400 (Auto) • 100-6400 (Manual)
Photo FormatPhoto Format: • JPEG/DNG (RAW) Still Photography Modes • Single Shot: 12 MP • 48 MP: 48 MP • Burst Shooting: 12 MP, 3/5/7 frames • Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s • Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames at 2/3 EV step • Panorama: Sphere, 180°, Wide Angle, Vertical • HDR: The Single Shot mode supports outputting HDR images. QuickShot Modes: • Dronie, Helix, Rocket, Circle, Boomerang, and AsteroidPhoto Format: • JPEG/DNG (RAW) Still Photography Modes • Single shot: 20 MP • Burst shooting: 20 MP (continuous burst) • Auto Exposure Bracketing (AEB): 20 MP, 3/5 bracketed frames at 0.7 EV bias • Timed: 20 MP, 2/3/5/7/10/15/20/30/60s • SmartPhoto (including HDR and HyperLight): 20 MP HDR Panorama • Vertical (3×1): 3328×8000 (width×height) • Wide-angle (3×3): 8000×6144 (width×height) • 180° (3×7): 8192×3500 (width×height) • Sphere (3×8+1): 8192×4096 (width×height)Photo Format: • JPEG/DNG (RAW) Still Photography Modes • Wide-Angle Camera Single Shot: 12 MP and 48 MP Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3/5 frames at 0.7 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s • Medium Tele Camera Single Shot: 12 MP and 48 MP Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3/5 frames at 0.7 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 sPhoto Format: • JPEG/DNG (RAW) Still Photography Modes • Single Shot: 12 MP • 48 MP: 48 MP • Burst Shooting: 12 MP, 3/5/7 frames • Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s • Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames at 2/3 EV step • Panorama: Sphere, 180°, Wide Angle, Vertical • HDR: The Single Shot mode supports outputting HDR images. QuickShot Modes: • Dronie, Helix, Rocket, Circle, Boomerang, and Asteroid
Video FormatVideo Format: • MP4/MOV (H.264/H.265) Max Video Bitrate: • 150 Mbps Color Profiles • Normal • D-Cinelike HDR Mode • Photo: HDR supported in Single Shot mode • Video: HDR supported when shooting at 24/25/30fps Supported File System • FAT32 (≤32 GB) • exFAT (>32 GB)Video Format: • MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC) Max Video Bitrate: • 150 Mbps Supported File System: • FAT32/exFAT • Supports a microSD card with a capacity of up to 256 GB.Video Format: • MP4 (MPEG-4 AVC/H.264, HEVC/H.265) Max Video Bitrate: • H.264/H.265: 150 Mbps Color Mode and Sampling Method • Wide-Angle Camera Normal: 8-bit 4:2:0 (H.264/H.265) HLG/D-Log M: 10-bit 4:2:0 (H.265) • Medium Tele Camera Normal: 8-bit 4:2:0 (H.264/H.265) HLG/D-Log M: 10-bit 4:2:0 (H.265) Supported File System: • exFATVideo Format: • MP4/MOV (H.264/H.265) Max Video Bitrate: • 150 Mbps Color Profiles • Normal • D-Cinelike HDR Mode • Photo: HDR supported in Single Shot mode • Video: HDR supported when shooting at 24/25/30fps Supported File System • FAT32 (≤32 GB) • exFAT (>32 GB)
ResolutionPhoto • Max Image Size: 8064 × 6048 Video • 4K: 3840×2160@24/25/30/48/50/60fps • 2.7K: 2688×1512@24/25/30/48/50/60fps • FHD: 1920×1080@24/25/30/48/50/60fps • Slow Motion: 1920×1080@120fpsPhoto • Still Image Size: 20 MP • 5472×3648 (3:2) • 5472×3078 (16:9) Video • 5.4K: 5472×3078 @ 24/25/30 fps • 4K Ultra HD: 3840×2160 @ 24/25/30/48/50/60 fps • 2.7K: 2688x1512 @ 24/25/30/48/50/60 fps • FHD: 1920×1080 @ 24/25/30/48/50/60/120 fpsPhoto • Wide-Angle Camera: Max Image Size 8064×6048 • Medium Tele Camera: Max Image Size 8064×6048 Video • Wide-Angle Camera, H.264/H.265 4K: 3840×2160@24/25/30/48/50/60/100fps FHD: 1920×1080@24/25/30/48/50/60/100/200fps 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fps • Medium Tele Camera, H.264/H.265 4K: 3840×2160@24/25/30/48/50/60/100fps FHD: 1920×1080@24/25/30/48/50/60/100/200fps 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fpsPhoto • Max Image Size: 8064 × 6048 Video • 4K: 3840×2160@24/25/30/48/50/60fps • 2.7K: 2688×1512@24/25/30/48/50/60fps • FHD: 1920×1080@24/25/30/48/50/60fps • Slow Motion: 1920×1080@120fps
GimbalStabilization: • 3-axis mechanical gimbal (tilt, roll, and pan) Mechanical Range • Tilt: -135° to 80° • Roll: -135° to 45° • Pan: -30° to 30° Controllable Range • Tilt: -90° to 60° • Roll: -90° or 0° Max Control Speed (tilt): • 100°/s Angular Vibration Range: • ±0.01°Stabilization: • 3-axis (tilt, roll, pan) Mechanical Range • Tilt: -135° to 45° • Roll: -45° to 45° • Pan: -100° to 100° Pan Axis: • Pan: -80° to 80° Controllable Range: • Tilt: -90° to 0° (default); -90° to 24° (extended) Max Controllable Speed (tilt): • 100°/s Angular Vibration Range: • ±0.01°Stabilization: • 3-axis mechanical gimbal (tilt, roll, pan) Mechanical Range • Tilt: -135° to 70° • Roll: -50° to 50° • Pan: -27° to 27° Controllable Range • Tilt: -90° to 60° • Pan: -5° to 5° Max Control Speed (tilt): • 100°/s Angular Vibration Range: • ±0.0037°Stabilization: • 3-axis mechanical gimbal (tilt, roll, and pan) Mechanical Range • Tilt: -135° to 80° • Roll: -135° to 45° • Pan: -30° to 30° Controllable Range • Tilt: -90° to 60° • Roll: -90° or 0° Max Control Speed (tilt): • 100°/s Angular Vibration Range: • ±0.01°
SensingForward • Precision Measurement Range: 0.39-25 m • Effective Sensing Speed: Flight speed <10.5 m/s • FOV: Horizontal 106°, Vertical 90° Backward • Precision Measurement Range: 0.36-23.4 m • Effective Sensing Speed: Flight speed <8 m/s • FOV: Horizontal 58°, Vertical 73° Downward • Precision Measurement Range: 0.15-9 m • Precise Hovering Range: 0.5-12 m • Vision Sensor Hovering Range: 0.5-30 m • Effective Sensing Speed: Flight speed <3 m/s • FOV: Forward/Backward 104.8°, Left/Right 87.6° Auxiliary Bottom Light: • N/A Operating Environment • Diffuse reflective surface with a clear pattern and reflectivity >20% (such as cement pavement) • Adequate lighting (lux >15, e.g. normal exposure environment with indoor fluorescent lamp)Forward • Precision Measurement Range: 0.38-23.8 m • Effective Sensing Speed: ≤15 m/s • Field of View (FOV): 72° (horizontal), 58° (vertical) Backward • Precision Measurement Range: 0.37-23.4 m • Effective Sensing Speed: ≤12 m/s • Field of View (FOV): 57° (horizontal), 44° (vertical) Downward • ToF Measurement Range: 0.1-8 m • Hovering Range: 0.5-30 m • Vision Sensor Hovering Range: 0.5-60 m Left/Right • N/A Upward • Precision Measurement Range: 0.34-28.6 m • Field of View (FOV): 63° (horizontal), 78° (vertical) Downward Auxiliary Light: • Single LEDSensing Type: • Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft Forward • Measurement Range: 0.5-18 m • Detection Range: 0.5-200 m • Effective Sensing Speed: Flight Speed ≤ 15 m/s • FOV: Horizontal 90°, Vertical 72° Backward • Measurement Range: 0.5-18 m • Effective Sensing Speed: Flight Speed ≤ 14 m/s • FOV: Horizontal 90°, Vertical 72° Lateral • Measurement Range: 0.5-30 m • Effective Sensing Speed: Flight Speed ≤ 14 m/s • FOV: Horizontal 90°, Vertical 72° Upward • Measurement Range: 0.5-18 m • Effective Sensing Speed: Flight Speed ≤ 6 m/s • FOV: Front and Back 72°, Left and Right 90° Downward • Measurement Range: 0.3-14 m • Effective Sensing Speed: Flight Speed ≤ 6 m/s • FOV: Front and Back 106°, Left and Right 90° Operating Environment • Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 15) • Downward: Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15) 3D Infrared Sensor • Measurement Range: 0.1-8 m (reflectivity > 10%) • FOV: Front and Back 60°, Left and Right 60°Forward • Precision Measurement Range: 0.39-25 m • Effective Sensing Speed: Flight speed <10.5 m/s • FOV: Horizontal 106°, Vertical 90° Backward • Precision Measurement Range: 0.36-23.4 m • Effective Sensing Speed: Flight speed <8 m/s • FOV: Horizontal 58°, Vertical 73° Downward • Precision Measurement Range: 0.15-9 m • Precise Hovering Range: 0.5-12 m • Vision Sensor Hovering Range: 0.5-30 m • Effective Sensing Speed: Flight speed <3 m/s • FOV: Forward/Backward 104.8°, Left/Right 87.6° Auxiliary Bottom Light: • N/A Operating Environment • Diffuse reflective surface with a clear pattern and reflectivity >20% (such as cement pavement) • Adequate lighting (lux >15, e.g. normal exposure environment with indoor fluorescent lamp)
AircraftMax Ascent Speed • 5 m/s (S Mode) • 3 m/s (N Mode) • 2 m/s (C Mode) Max Descent Speed • 5 m/s (S Mode) • 3 m/s (N Mode) • 1.5 m/s (C Mode) Max Speed (at sea level, no wind) • 16 m/s (S Mode) • 10 m/s (N Mode) • 6 m/s (C Mode) Max Service Ceiling Above Sea Level • With Intelligent Flight Battery: 4000 m • With Intelligent Flight Battery Plus: 3000 m Max Flight Time • 34 mins (with Intelligent Flight Battery and measured while flying at 21.6 kph in windless conditions) • 47 mins (with Intelligent Flight Battery Plus and measured while flying at 21.6 kph in windless conditions) Max Hovering Time • 30 mins (with Intelligent Flight Battery, no wind) • 40 mins (with Intelligent Flight Battery Plus, no wind) Max Flight Distance • 18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions) • 25 km (with Intelligent Flight Battery Plus and measured while flying at 43.2 kph in windless conditions) Max Wind Speed Resistance: • 10.7 m/s (Level 5) Max Pitch Angle • Forward: 40°, Backward: 35° (S Mode) • 25° (N Mode) • 25° (C Mode) Max Angular Velocity (by default) • 130°/s (S Mode) • 75°/s (N Mode) • 30°/s (C Mode) Operating Temperature: • -10° to 40° C (14° to 104° F) Global Navigation Satellite System (GNSS): • GPS + Galileo + BeiDou Hovering Accuracy Range • Vertical ±0.1 m (with vision positioning) ±0.5 m (with GNSS positioning) • Horizontal ±0.3 m (with vision positioning) ±0.5 m (with high-precision positioning system) Class: • C0 (EU)Max Ascent Speed • 6 m/s (S Mode) • 6 m/s (N Mode) Max Descent Speed • 6 m/s (S Mode) • 6 m/s (N Mode) Max Flight Speed (near sea level, no wind) • 19 m/s (S Mode) • 15 m/s (N Mode) • 5 m/s (C Mode) Max Service Ceiling Above Sea Level: • 5000 m Max Flight Time (no wind): • 31 minutes Max Hovering Time (no wind): • 30 minutes Max Flight Distance (no wind): • 18.5 km Max Wind Speed Resistance: • 10.7 m/s Max Pitch Angle • 35° (S Mode) • Front: 30°, Back: 20°, Left: 35°, Right: 35° (N Mode) Max Angular Velocity • 250°/s (S Mode) • 90°/s (N Mode) • 60°/s (C Mode) Operating Temperature Range: • 0° to 40°C (32° to 104°F) GNSS: • GPS+GLONASS+GALILEO Hovering Accuracy Range • Vertical ± 0.1 m (with vision positioning) ± 0.5 m (with GNSS positioning) • Horizontal ± 0.1 m (with vision positioning) ± 1.5 m (with GNSS positioning) Propellers: • Quick release, low noise, folding Aircraft Arms: • Foldable Compass: • Single Compass IMU: • Single IMUMax Ascent Speed: • 10 m/s Max Descent Speed: • 10 m/s Max Horizontal Speed (at sea level, no wind) • 21 m/s • 19 m/s in EU regions. Max Takeoff Altitude: • 6000 m Max Flight Time: • 46 minutes Max Hovering Time: • 42 minutes Max Flight Distance: • 32 km Max Wind Speed Resistance: • 12 m/s Max Pitch Angle: • 35° Operating Temperature: • -10° to 40° C (14° to 104° F) Global Navigation Satellite System: • GPS + Galileo + BeiDou Hovering Accuracy Range • Vertical ±0.1 m (with vision positioning) ±0.5 m (with GNSS positioning) • Horizontal ±0.3 m (with vision positioning) ±0.5 m (with high-precision positioning system) Class: • C1 (EU)Max Ascent Speed • 5 m/s (S Mode) • 3 m/s (N Mode) • 2 m/s (C Mode) Max Descent Speed • 5 m/s (S Mode) • 3 m/s (N Mode) • 1.5 m/s (C Mode) Max Speed (at sea level, no wind) • 16 m/s (S Mode) • 10 m/s (N Mode) • 6 m/s (C Mode) Max Service Ceiling Above Sea Level • With Intelligent Flight Battery: 4000 m • With Intelligent Flight Battery Plus: 3000 m Max Flight Time • 34 mins (with Intelligent Flight Battery and measured while flying at 21.6 kph in windless conditions) • 47 mins (with Intelligent Flight Battery Plus and measured while flying at 21.6 kph in windless conditions) Max Hovering Time • 30 mins (with Intelligent Flight Battery, no wind) • 40 mins (with Intelligent Flight Battery Plus, no wind) Max Flight Distance • 18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions) • 25 km (with Intelligent Flight Battery Plus and measured while flying at 43.2 kph in windless conditions) Max Wind Speed Resistance: • 10.7 m/s (Level 5) Max Pitch Angle • Forward: 40°, Backward: 35° (S Mode) • 25° (N Mode) • 25° (C Mode) Max Angular Velocity (by default) • 130°/s (S Mode) • 75°/s (N Mode) • 30°/s (C Mode) Operating Temperature: • -10° to 40° C (14° to 104° F) Global Navigation Satellite System (GNSS): • GPS + Galileo + BeiDou Hovering Accuracy Range • Vertical ±0.1 m (with vision positioning) ±0.5 m (with GNSS positioning) • Horizontal ±0.3 m (with vision positioning) ±0.5 m (with high-precision positioning system) Class: • C0 (EU)
TransmissionVideo Transmission System: • DJI O3 Live View Quality: • 1080p/30fps Operation Frequency • 2.400-2.4835 GHz • 5.725-5.850 GHz Transmitter Power (EIRP) • 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) • 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE) Communication Bandwidth: • 1.4MHz/3MHz/10MHz/20MHz/40MHz Latency (depending on environmental conditions and mobile device): • Aircraft + Remote Controller: Approx. 120 ms Max Video Bitrate: • Aircraft + Remote Controller: 18 Mbps Max Download Bitrate • DJI O3: RC-N1 Remote Controller and DJI RC: 5.5 MB/s • Wi-Fi 5: Max 25 MB/s Max Transmission Distance (free of interference) • FCC: 12 km • CE: 8 km • SRRC: 8 km • MIC: 8 km Max Transmission Distance (with interference) • Strong Interference: urban landscape, approx. 1.5-3 km • Medium Interference: suburban landscape, approx. 3-7 km • Low Interference: suburb/seaside, approx. 7-12 km Antennas: • 4 antennas, 1T2R Audio Transmission: • N/ATransmission System • O3 • 2.4 GHz/5.8 GHz Auto-Switching (compatible with OcuSync 2.0) • 4-antenna 2T4R Max Transmission Distance • 12 km (FCC), 8 km (CE) • 8 km (SRRC), 8 km (MIC) Live View Quality/Latency • Drone + Remote Controller: 1080p/30fps 12 Mbps 120 ms • Drone + DJI Smart Controller: 1080p/30fps 12Mbps 130 ms Max Transmission Bitrate • 44 Mbps (download bitrate) • 16 Mbps (live video bitrate) Operating Frequency • 2.4 GHz • 5.8 GHz Transmission Power (EIRP) • 2.4 GHz FCC: ≤30 dBm CE: ≤20 dBm SRRC: ≤20 dBm MIC: ≤20 dBm • 5.8 GHz FCC: ≤30 dBm CE: ≤14 dBm SRRC: ≤29 dBmVideo Transmission System: • O4 Live View Quality: • Remote Controller: 1080p/30fps, 1080p/60fps Operating Frequency • 2.4000-2.4835 GHz • 5.170-5.250 GHz • 5.725-5.850 GHz Transmitter Power (EIRP) • 2.4 GHz < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) • 5.1 GHz < 23 dBm (CE) • 5.8 GHz < 33 dBm (FCC) < 30 dBm (SRRC) < 14 dBm (CE) Max Transmission Distance (unobstructed, free of interference) • FCC: 20 km • CE: 10 km • SRRC: 10 km • MIC: 10 km Max Transmission Distance (unobstructed, with interference) • Strong Interference: urban landscape, approx. 1.5-4 km • Medium Interference: suburban landscape, approx. 4-10 km • Low Interference: suburb/seaside, approx. 10-20 km Max Transmission Distance (obstructed, with interference) • Low Interference and Obstructed by Buildings: approx. 0-0.5 km • Low Interference and Obstructed by Trees: approx. 0.5-3 km Max Download Speed • O4 10 MB/s (with DJI RC-N2 Remote Controller) 10 MB/s (with DJI RC 2) • Wi-Fi 5: 30 MB/s Lowest Latency: • Aircraft + Remote Controller: approx. 120 ms Antenna: • 6 antennas, 2T4RVideo Transmission System: • DJI O3 Live View Quality: • 1080p/30fps Operation Frequency • 2.400-2.4835 GHz • 5.725-5.850 GHz Transmitter Power (EIRP) • 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) • 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE) Communication Bandwidth: • 1.4MHz/3MHz/10MHz/20MHz/40MHz Latency (depending on environmental conditions and mobile device): • Aircraft + Remote Controller: Approx. 120 ms Max Video Bitrate: • Aircraft + Remote Controller: 18 Mbps Max Download Bitrate • DJI O3: RC-N1 Remote Controller and DJI RC: 5.5 MB/s • Wi-Fi 5: Max 25 MB/s Max Transmission Distance (free of interference) • FCC: 12 km • CE: 8 km • SRRC: 8 km • MIC: 8 km Max Transmission Distance (with interference) • Strong Interference: urban landscape, approx. 1.5-3 km • Medium Interference: suburban landscape, approx. 3-7 km • Low Interference: suburb/seaside, approx. 7-12 km Antennas: • 4 antennas, 1T2R Audio Transmission: • N/A
ConnectivityWi-Fi • Protocol: 802.11 a/b/g/n/ac • Transmitter Power (EIRP) 2.400-2.4835 GHz: <19 dBm (FCC/CE/SRRC/MIC) 5.725-5.850 GHz: <20 dBm (FCC/SRRC), <14 dBm (CE) Bluetooth • Protocol: Bluetooth 5.2 • Transmitter Power (EIRP): 2.400-2.4835 GHz: <8 dBm—Wi-Fi • Protocol: 802.11 a/b/g/n/ac • Operating Frequency 2.400-2.4835 GHz 5.725-5.850 GHz • Transmitter Power (EIRP) 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.8 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE) Bluetooth • Protocol: Bluetooth 5.2 • Operating Frequency: 2.400-2.4835 GHz • Transmitter Power (EIRP): < 10 dBmWi-Fi • Protocol: 802.11 a/b/g/n/ac • Transmitter Power (EIRP) 2.400-2.4835 GHz: <19 dBm (FCC/CE/SRRC/MIC) 5.725-5.850 GHz: <20 dBm (FCC/SRRC), <14 dBm (CE) Bluetooth • Protocol: Bluetooth 5.2 • Transmitter Power (EIRP): 2.400-2.4835 GHz: <8 dBm
StorageSupported Memory Cards: • UHS-I Speed Class 3 or above is required. Supported File System • FAT32 (≤32 GB) • exFAT (>32 GB)Internal Storage: • 8 GB Supported File System: • FAT32/exFAT • Supports a microSD card with a capacity of up to 256 GB.Internal Storage: • 8 GB Supported File System: • exFATSupported Memory Cards: • UHS-I Speed Class 3 or above is required. Supported File System • FAT32 (≤32 GB) • exFAT (>32 GB)
BatteryIntelligent Flight Battery • Capacity: 2453 mAh • Weight: Approx. 80.5 g • Voltage: 7.38 V • Charging Voltage Limit: 8.5 V • Battery Type: Li-ion • Energy: 18.1 Wh • Charging Temperature Range: 5° to 40° C (41° to 104° F) • Charging Time 64 mins (with the DJI 30W USB-C Charger and the battery mounted to the aircraft) 56 mins (with the DJI 30W USB-C Charger and the battery inserted into the DJI Mini 3 Pro Two-Way Charging Hub) Intelligent Flight Battery Plus • Capacity: 3850 mAh • Weight: Approx. 121 g • Voltage: 7.38 V • Charging Voltage Limit: 8.5 V • Battery Type: Li-ion • Energy: 28.4 Wh • Charging Temperature Range: 5° to 40° C (41° to 104° F) • Charging Time 101 mins (with the DJI 30W USB-C Charger and the battery mounted to the aircraft) 78 mins (with the DJI 30W USB-C Charger and the battery inserted into the DJI Mini 3 Pro Two-Way Charging Hub)Capacity: • 3750 mAh / 3500 mAh Voltage: • 11.04 V / 11.55 V Max Charging Voltage: • 12.6 V / 13.2 V Battery Type: • LiPo 3S Energy: • 41.4 Wh / 40.42 Wh Weight: • 198 g Charging Temperature Range: • 5° to 40°C (41° to 104°F) Max Charging Power: • 38 WCapacity: • 4241 mAh Weight: • Approx. 267 g Nominal Voltage: • 14.76 V Max Charging Voltage: • 17 V Type: • Li-ion 4S Energy: • 62.6 Wh Charging Temperature: • 5° to 40° C (41° to 104° F) Charging Time • Approx. 80 minutes (with DJI 65W Portable Charger) • Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)Intelligent Flight Battery • Capacity: 2453 mAh • Weight: Approx. 80.5 g • Voltage: 7.38 V • Charging Voltage Limit: 8.5 V • Battery Type: Li-ion • Energy: 18.1 Wh • Charging Temperature Range: 5° to 40° C (41° to 104° F) • Charging Time 64 mins (with the DJI 30W USB-C Charger and the battery mounted to the aircraft) 56 mins (with the DJI 30W USB-C Charger and the battery inserted into the DJI Mini 3 Pro Two-Way Charging Hub) Intelligent Flight Battery Plus • Capacity: 3850 mAh • Weight: Approx. 121 g • Voltage: 7.38 V • Charging Voltage Limit: 8.5 V • Battery Type: Li-ion • Energy: 28.4 Wh • Charging Temperature Range: 5° to 40° C (41° to 104° F) • Charging Time 101 mins (with the DJI 30W USB-C Charger and the battery mounted to the aircraft) 78 mins (with the DJI 30W USB-C Charger and the battery inserted into the DJI Mini 3 Pro Two-Way Charging Hub)
Dimensions• Folded: 145×90×62 mm (L×W×H) • Unfolded: 171×245×62 mm (L×W×H) • Unfolded (with propellers): 251×362×70 mm (L×W×H) • Diagonal Length: 247 mm• Folded: 180×97×77 mm (length×width×height) • Unfolded: 183×253×77 mm (length×width×height) • Diagonal Length: 302 mm• Folded (without propellers): 207×100.5×91.1 mm (L×W×H) • Unfolded (without propellers): 258.8×326×105.8 mm (L×W×H)• Folded: 145×90×62 mm (L×W×H) • Unfolded: 171×245×62 mm (L×W×H) • Unfolded (with propellers): 251×362×70 mm (L×W×H) • Diagonal Length: 247 mm
Weight<249 g595 g720 g<249 g
