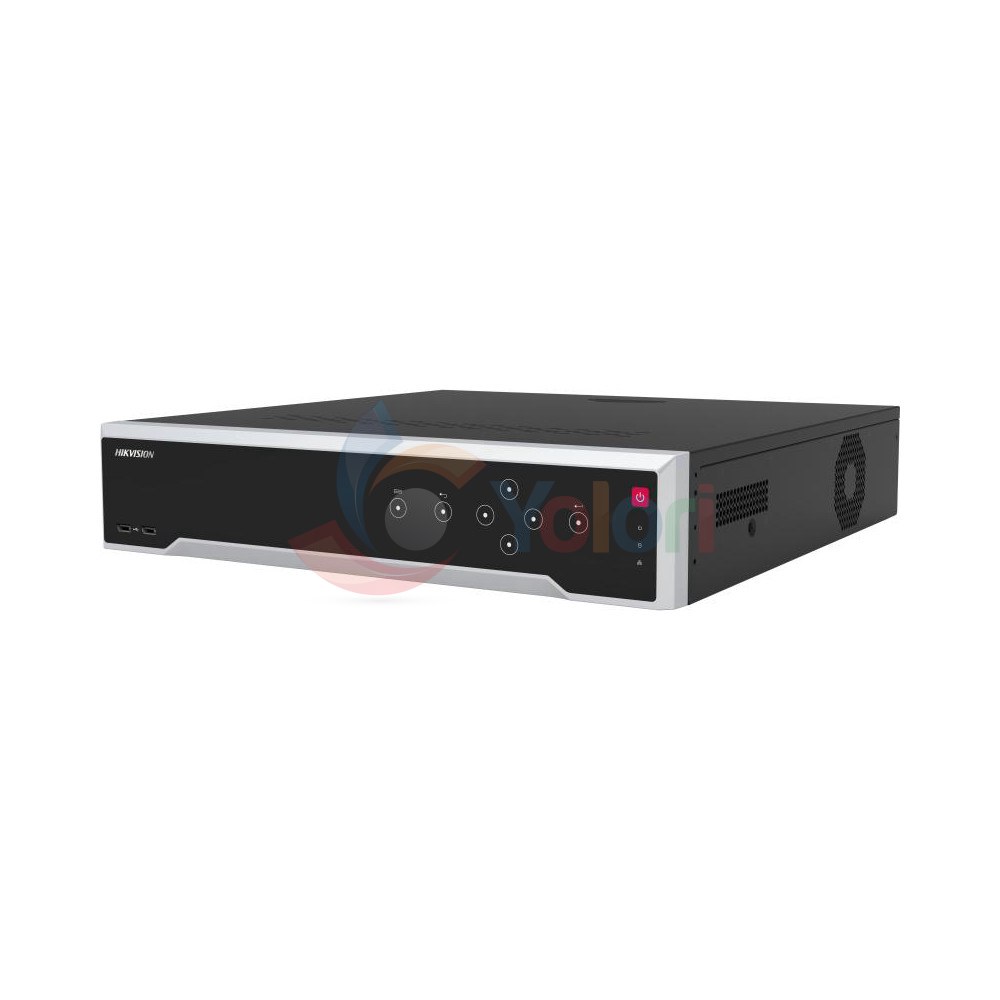

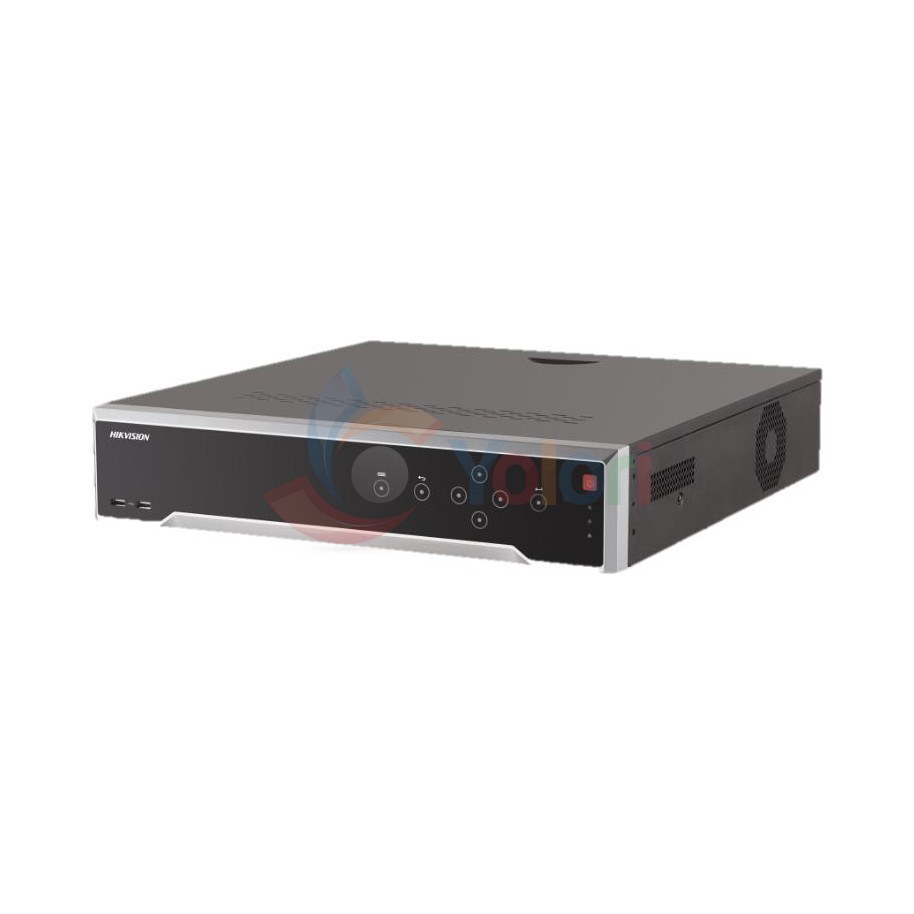

Hikvision NVR AcuSense 1.5U DS-7916NXI-I4/S - 16-ch, 4K

Name: Hikvision NVR AcuSense 1.5U DS-7916NXI-I4/S - 16-ch, 4K
Brand: Hikvision
SKU: DS-7916NXI-I4/S
Price: 11949000 IDR
Availability: InStock

Rp 11.949.000

Hikvision NVR AcuSense 1.5U DS-7916NXI-I4/S adalah Recorder dengan IP Video Input mencakup 16-ch dan Up to 12 MP resolution, Incoming Bandwidth: 320 Mbps, Decoding Capability: 16-ch @ 1080p (30 fps), SATA: 4 SATA interfaces supporting hot-plug, Capacity: Up to 10 TB capacity for each disk.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|12 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Hikvision NVR AcuSense 1.5U DS-7916NXI-I4/S adalah Recorder dengan Power Supply: 100 to 240 VAC, 50 to 60 Hz; Consumption: ≤ 30 W (without HDD). Dimensinya 445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0"). Beratnya ≤ 5.6 kg (12.3 lb). Recorder dari Hikvision ini juga dibekali Audio Output: 1-ch, RCA (Linear, 1 KΩ); Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ); Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2. Untuk Interface, tercatat Serial Interface: RS-485 (half-duplex), RS-232, Keyboard; Alarm In/Out: 16/8; USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0. Untuk Network, tercatat Remote Connection: 128; Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS; Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface. Untuk Operating Environment, tercatat Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 10% to 90%. Untuk Playback, tercatat Playback Mode: Normal/Smart, Event, Tag, Eternal File; Synchronous Playback: 16-ch; Live View Window Division: 1/2/4/6/8/9/16; Aux Port Window Division: 1/2/4/6/8/9/16. Untuk Recorder Type, tercatat 19-inch rack-mounted 1.5U chassis. Untuk Recording, tercatat Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4; Recording Resolution mencakup 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF; Decoding Capability: 16-ch @ 1080p (30 fps). Untuk Smart Function, tercatat Human/Vehicle Analysis mencakup Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm dan Up to 12 rules in total; Facial Detection and Analytics: Face picture comparison, human face capture, face picture search; Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB); Face Picture Comparison: 4-ch face picture comparison alarm; Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265); Human/Vehicle Analysis: 16-ch. Untuk Storage, tercatat SATA: 4 SATA interfaces supporting hot-plug; Capacity: Up to 10 TB capacity for each disk; eSATA: 1 eSATA interface. Untuk Video Input, tercatat IP Video Input mencakup 16-ch dan Up to 12 MP resolution; Incoming Bandwidth: 320 Mbps; Outgoing Bandwidth: 256 Mbps. Untuk Video Output, tercatat HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output; HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output; VGA Output mencakup 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI1/VGA simultaneous output; CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480. Hikvision Indonesia memberikan garansi resmi selama 12 bulan untuk produk ini.

Garansi

Warranty Months: 12
Warranty Type: Hikvision Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

Recorder Type: 19-inch rack-mounted 1.5U chassis
Video Input: IP Video Input: • 16-ch • Up to 12 MP resolution • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps
Video Output: • HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output • HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output VGA Output: • 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, • HDMI1/VGA simultaneous output • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Recording: • Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 Recording Resolution: • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF • Decoding Capability: 16-ch @ 1080p (30 fps)
Playback: • Playback Mode: Normal/Smart, Event, Tag, Eternal File • Synchronous Playback: 16-ch • Live View Window Division: 1/2/4/6/8/9/16 • Aux Port Window Division: 1/2/4/6/8/9/16
Storage: • SATA: 4 SATA interfaces supporting hot-plug • Capacity: Up to 10 TB capacity for each disk • eSATA: 1 eSATA interface
Network: • Remote Connection: 128 • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Smart Function: Human/Vehicle Analysis: • Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; • Up to 12 rules in total • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search • Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) • Face Picture Comparison: 4-ch face picture comparison alarm • Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265) • Human/Vehicle Analysis: 16-ch
Audio: • Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2
Interface: • Serial Interface: RS-485 (half-duplex), RS-232, Keyboard • Alarm In/Out: 16/8 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power: • Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤ 30 W (without HDD)
Operating Environment: • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10% to 90%
Dimensions: 445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")
Weight: ≤ 5.6 kg (12.3 lb)

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Tampilkan hanya yang berbeda

4 produk · geser untuk melihat lainnya

Ulasan Pembeli

Memuat ulasan...

	Sedang dilihatHikvisionHikvision NVR AcuSense 1.5U DS-7916NXI-I4/S - 16-ch, 4K	Sedang dilihatHikvisionHikvision NVR 2U DS-8616NI-K8 - 16-ch, 4K	Sedang dilihatHikvisionHikvision NVR 1.5U DS-7932NI-I4 - 32-ch	Sedang dilihatHikvisionHikvision NVR AcuSense 1U DS-7816NXI-I2/16P/S - 16-ch, 16 PoE, 4K
Harga	Rp 11.949.000	Rp 12.159.000	Rp 12.479.000	Rp 11.399.000
Garansi
Warranty Months	12	12	12	12
Warranty Type	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty
Jaminan
Stock Status	Tersedia	Tersedia	Tersedia	Tersedia
Spesifikasi Teknis
Recorder Type	19-inch rack-mounted 1.5U chassis	—	19-inch rack-mounted 1.5U chassis	1U
Video Input	IP Video Input: • 16-ch • Up to 12 MP resolution • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps	IP Video Input: • 16-ch • Up to 8 MP resolution • 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF • Incoming Bandwidth: 160 Mbps • Outgoing Bandwidth: 160 Mbps	• IP Video Input: 32-ch • Incoming Bandwidth: 320 Mbps/256 Mbps	• IP Video Input: 16 • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps
Video Output	• HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output • HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output VGA Output: • 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, • HDMI1/VGA simultaneous output • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480	• HDMI 1 Output: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz • HDMI 2 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz • VGA 1 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz • VGA 2 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz Video Output Mode: • HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; • HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output	• HDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output: • HDMI • VGA • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480	• HDMI 1 Output: HDMI1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output HDMI2 output:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output • VGA 1 Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Recording	• Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 Recording Resolution: • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF • Decoding Capability: 16-ch @ 1080p (30 fps)	• Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF • Decoding Capability: 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)	• Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4 • Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) Recording Resolution: • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF	Decoding Format: • H.265 • H.265+ • H.264 • H.264+ • MPEG4 • Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF • Decoding Capability: 16-ch @ 1080p (30 fps)
Playback	• Playback Mode: Normal/Smart, Event, Tag, Eternal File • Synchronous Playback: 16-ch • Live View Window Division: 1/2/4/6/8/9/16 • Aux Port Window Division: 1/2/4/6/8/9/16	Synchronous playback: 16-ch	Synchronous playback: 16-ch	• Playback Mode: Normal/Smart, Event, Tag, Eternal File • Synchronous Playback: 16-ch • Live View Window Division: 1/4/6/8/9/16 • Aux Port Window Division: 1/4/6/8/9/16
Storage	• SATA: 4 SATA interfaces supporting hot-plug • Capacity: Up to 10 TB capacity for each disk • eSATA: 1 eSATA interface	• SATA: 8 SATA interfaces • eSATA: 1 eSATA interface • Capacity: Up to 8 TB capacity for each disk	• RAID Type: No • SATA: 4 SATA interfaces for 4HDDs • Capacity: Up to 6TB capacity for each HDD	• SATA: 2 SATA interfaces • Capacity: Up to 8 TB capacity for each disk • eSATA: 1 eSATA interface
Network	• Remote Connection: 128 • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface	• Remote Connection: 128 • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface	• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS • Remote Connection: 128 • Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces	• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface • PoE Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface • PoE Power: ≤ 200W • PoE Standard: IEEE 802.3 af/at
Smart Function	Human/Vehicle Analysis: • Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; • Up to 12 rules in total • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search • Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) • Face Picture Comparison: 4-ch face picture comparison alarm • Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265) • Human/Vehicle Analysis: 16-ch	—	—	• Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm • Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) • Face Picture Comparison: 4-ch face picture comparison alarm • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search • Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 8 MP , H.264/H.265) • Human/Vehicle Analysis: 16-ch
Audio	• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2	• Audio Output: 2-ch, RCA (Linear, 1 K Ω) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726	• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)	• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Compression: • G.711ulaw • G.711alaw • G.722 • G.726 • MP2L2
Interface	• Serial Interface: RS-485 (half-duplex), RS-232, Keyboard • Alarm In/Out: 16/8 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0	• Serial Interface: RS-232, RS-485, keyboard • Alarm In/Out: 16/4 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0	• Serial Interface: 1 RS-485 (half-duplex), 1 RS-232 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 • Alarm In/Out: 16/8	• Serial Interface: RS-485 (half-duplex), RS-232, Keyboard • Alarm In/Out: 4/1 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power	• Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤ 30 W (without HDD)	• Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤ 30 W (without HDD)	• Power Supply: 100 to 240 VAC • Consumption: ≤20 W	• Power Supply: ≤ 280 W • Consumption: ≤ 15W
Operating Environment	• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10% to 90%	• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %	• Working Temperature: -10 to +55º C (+14 to +131º F) • Working Humidity: 10 to 90 %	• Working Temperature: -10℃～＋55℃ • Working Humidity: 10％～90％
Dimensions	445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")	445 × 470 × 94 mm (17.5"× 18.5" × 3.7")	445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")	385 × 315 ×52 mm ( 11.6"× 9.5" × 1.6")
Weight	≤ 5.6 kg (12.3 lb)	≤ 8 kg (17.6 lb)	≤ 5 kg (11 lb)	≤ 3 kg (6.6 lb)
