Tentang merek· NVR DeepinMindRecorderBaruSKU: iDS-6704NXI-I/BA(C)

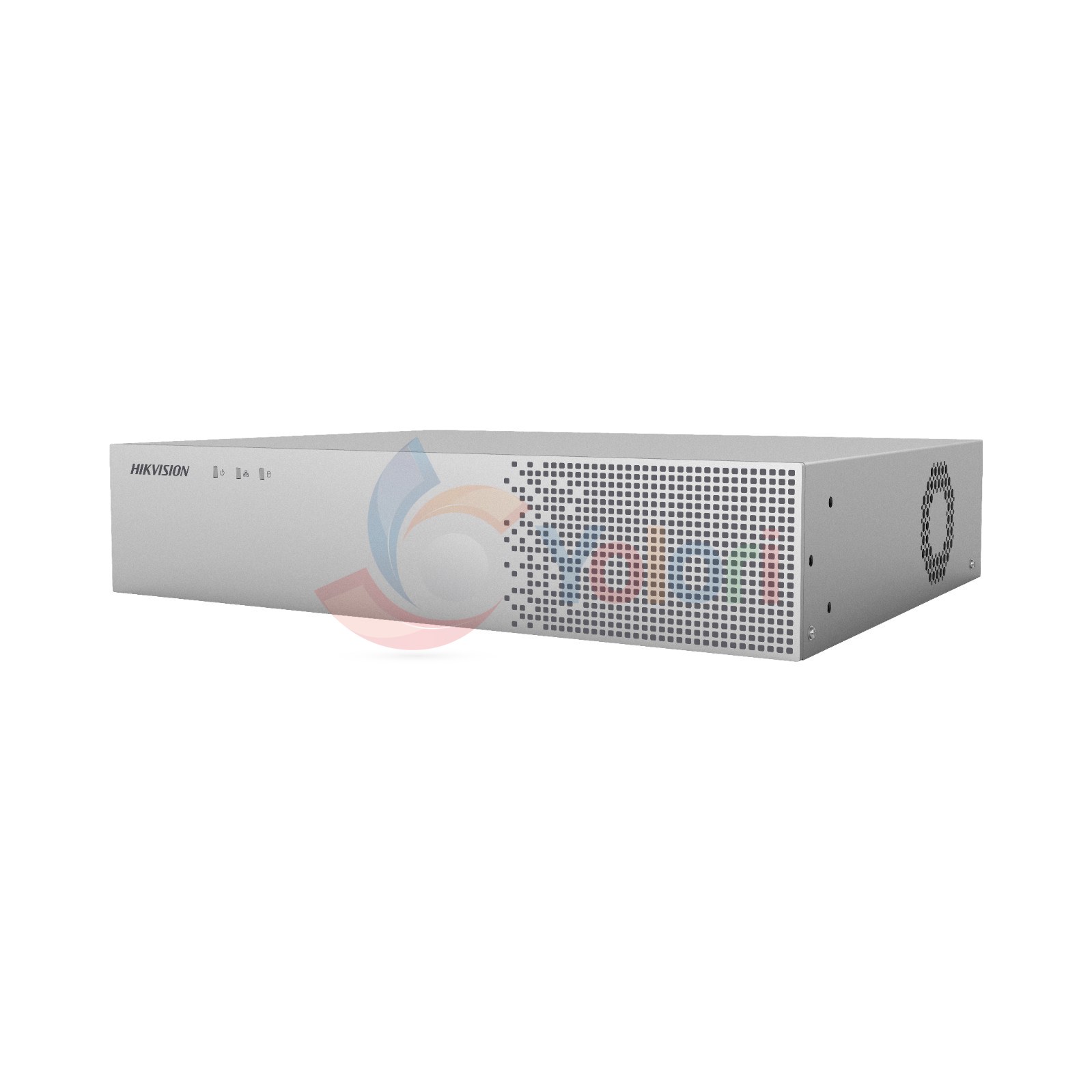

Hikvision NVR DeepinMind iDS-6704NXI-I/BA(C)
Rp 24.369.000
Hikvision NVR DeepinMind iDS-6704NXI-I/BA(C) adalah Recorder dengan IP Video Input mencakup 4-ch Up to 12 MP resolution dan *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled, Incoming Bandwidth: 320 Mbps, Decoding Capability: 4-ch@8 MP (30 fps), SATA: 1 SATA interface.
Dijual oleh
Yolori Mall
4.4 / 7 ulasan|10 produk terjual
DokumenFaktur pajak diterbitkan untuk pembelian ini
Hikvision NVR DeepinMind iDS-6704NXI-I/BA(C) adalah Recorder dengan Power Supply: 12 VDC, 3.33 A; Consumption: ≤ 30 W. Dimensinya 319 × 247 × 70 mm (12.6"× 9.7" × 2.8"). Beratnya ≤ 3.9 kg (8.6 lb). Recorder dari Hikvision ini juga dibekali Audio Output: 1-ch, RCA (Linear, 1 KΩ); Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ); Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2. Untuk Interface, tercatat Serial Interface: RS-232. Untuk Network, tercatat Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS. Untuk Operating Environment, tercatat Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 10 to 90 %. Untuk Playback, tercatat Synchronous playback: 4-ch. Untuk Recording, tercatat Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4; Recording Resolution mencakup 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3, MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF dan *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled; Decoding Capability: 4-ch@8 MP (30 fps). Untuk Storage, tercatat SATA: 1 SATA interface. Untuk Video Input, tercatat IP Video Input mencakup 4-ch Up to 12 MP resolution dan *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled; Incoming Bandwidth: 320 Mbps; Outgoing Bandwidth: 256 Mbps. Untuk Video Output, tercatat HDMI Output mencakup 1-ch, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz; 1280 × 720/60Hz, 1024 × 768/60Hz; VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; Video Output Mode: HDMI/VGA independent output. Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Video Input
- IP Video Input: • 4-ch Up to 12 MP resolution • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps
- Video Output
- HDMI Output: • 1-ch, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, • 1280 × 720/60Hz, 1024 × 768/60Hz • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • Video Output Mode: HDMI/VGA independent output
- Recording
- • Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 Recording Resolution: • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 • MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. • Decoding Capability: 4-ch@8 MP (30 fps)
- Playback
- Synchronous playback: 4-ch
- Storage
- SATA: 1 SATA interface
- Network
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Audio
- • Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2
- Interface
- Serial Interface: RS-232
- Power
- • Power Supply: 12 VDC, 3.33 A • Consumption: ≤ 30 W
- Operating Environment
- • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %
- Dimensions
- 319 × 247 × 70 mm (12.6"× 9.7" × 2.8")
- Weight
- ≤ 3.9 kg (8.6 lb)
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatHikvisionHikvision NVR DeepinMind iDS-6704NXI-I/BA(C) |  HikvisionHikvision NVR 2U DS-9632NI-I8 - 32-ch, 4K |  HikvisionHikvision NVR DeepinMind iDS-6708NXI-I/FA(C) | HikvisionHikvision NVR DeepinMind iDS-6716NXI-I/S(C) | |
|---|---|---|---|---|
| Harga | Rp 24.369.000 | Rp 24.369.000 | Rp 24.369.000 | Rp 24.369.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Recorder Type | — | 2U chassis | — | — |
| Video Input | IP Video Input: • 4-ch Up to 12 MP resolution • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps | IP Video Input: • 32-ch • Up to 12 MP resolution • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I8, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch. • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps • Incoming Bandwidth (RAID Mode): 200 Mbps • Outgoing Bandwidth (RAID mode): 200 Mbps | IP Video Input: • 8-ch • Up to 12 MP resolution • Incoming Bandwidth: 128 Mbps • Outgoing Bandwidth: 128 Mbps | IP Video Input: • 16-ch • Up to 12 MP resolution • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps |
| Video Output | HDMI Output: • 1-ch, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, • 1280 × 720/60Hz, 1024 × 768/60Hz • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • Video Output Mode: HDMI/VGA independent output | • HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • VGA 1 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • VGA 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Video Output Mode: • HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; • HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | • HDMI Output: 1-ch, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • Video Output Mode: HDMI/VGA independent output | — |
| Recording | • Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 Recording Resolution: • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 • MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. • Decoding Capability: 4-ch@8 MP (30 fps) | • Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 Recording Resolution: • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I8, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch. • Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps) | • Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF • Decoding Capability: 8-ch@1080p (30fps) | Decoding Format: • H.265+ • H.265 • H.264+ • H.264 • MPEG4 • Decoding Capability: 16-ch@1080p (30 fps) • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Playback | Synchronous playback: 4-ch | Synchronous playback: 16-ch | Synchronous playback: 8-ch | Synchronous playback: 16-ch |
| Storage | SATA: 1 SATA interface | • RAID Type: RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD) • SATA: 8 SATA interfaces supporting hot-plug • eSATA: 1 eSATA interface • Capacity: Up to 10TB capacity for each disk | • SATA: 1 SATA interface • Capacity: 1 built-in 3.5-inch 2 TB SATA hard disk | • RAID Type: No • SATA: 1 SATA interface • Capacity: 1 built-in 3.5-inch 2 TB SATA hard disk |
| Network | Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS | • Remote Connection: 128 • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | • Remote Connection: 128 • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Remote Connection: 128 • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Smart Function | — | — | • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search • Face Picture Library: Up to 16 face picture libraries, with up to 100,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 20 GB) • Face Picture Comparison: 8-ch face picture comparison alarm • Facial Detection and Analytics Performance: 8-ch human face capture (HD network camera, up to 4 MP, H.264/H.265) | Human/Vehicle Analysis: Up to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
| Audio | • Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2 | • Audio Output: 2-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM | • Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2 | • Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2 |
| Interface | Serial Interface: RS-232 | • Serial Interface: 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard • Alarm In/Out: 16/4 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 | • Serial Interface: 1 RS-232 • Alarm In/Out: 4/1 • USB Interface: Rear panel: 1 × USB 3.0, 1 × USB 2.0 | • Serial Interface: RS-485 (full-duplex), RS-232 • Alarm In/Out: 16/4 |
| Power | • Power Supply: 12 VDC, 3.33 A • Consumption: ≤ 30 W | • Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤ 30 W | • Power Supply: 12 VDC, 3.33 A • Consumption: ≤ 30 W | • Power Supply: 12 VDC, 3.33 A • Consumption: ≤ 30 W |
| Operating Environment | • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 % | • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10% to 90% | • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 % | • Working Temperature: -10 to +55° C (+14 to +131° F) • Working Humidity: 10 to 90 % |
| Dimensions | 319 × 247 × 70 mm (12.6"× 9.7" × 2.8") | 445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6") | 319 × 247 × 70 mm (12.6"× 9.7" × 2.8") | 320 × 245 × 70 mm (12.6"× 9.6" × 2.8") |
| Weight | ≤ 3.9 kg (8.6 lb) | ≤ 10 kg (22 lb) | ≤ 3.9 kg (8.6 lb) | ≤ 4.5 kg (9.9 lb) |
