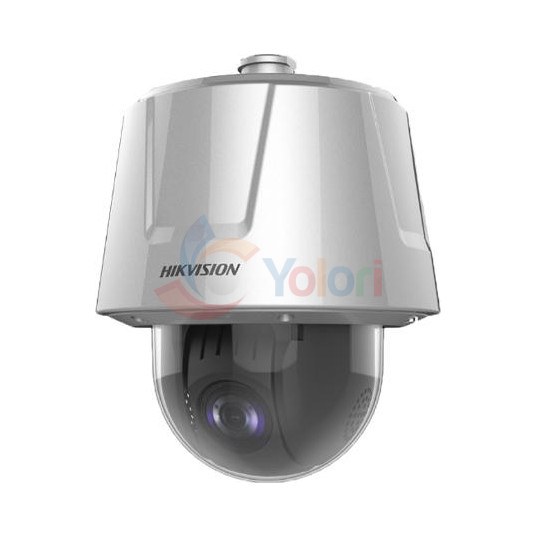

Tentang merek· PTZ Camera Positioning System DarkFighterHikvision PTZ Camera Positioning System DarkFighter DS-2DY7236W-A - 7-inch, 2 MP, 36X, non-IR
Hikvision PTZ Camera Positioning System DarkFighter DS-2DY7236W-A adalah CCTV dengan Image Sensor: 1/1.8" progressive scan CMOS, Max. Resolution: 1920 × 1080, Focal Length: 5.7 mm to 205 mm, 36× Optical, Movement Range (Pan): 360° endless, Presets: 300.
Dijual oleh
Yolori Mall
Hikvision PTZ Camera Positioning System DarkFighter DS-2DY7236W-A adalah CCTV dengan Power: 24 VAC (Max. 45 W). Dimensinya Φ181 mm × 396 mm × 377.5 mm (Φ 7.13" × 15.59" × 14.86"). Beratnya Approx. 7.6 kg (16.76 lb). CCTV dari Hikvision ini juga dibekali Audio Input: 1-ch audio input; Audio Output: 1-ch audio output; Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM; Audio Bitrate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2). Untuk Connectivity, tercatat BNC: 1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC; Alarm Output: 1-ch alarm output; Alarm Input: 2-ch alarm input; Network Interface: 1 RJ45 10 M/100 M Ethernet Interface; RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour; API: Open-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party Management Platform; Simultaneous Live View: Up to 20 channels; User/Host mencakup Up to 32 users; 3 levels: Administrator, Operator and User; Client: iVMS-4200, iVMS-5200; Web Browser: IE 8+, Firefox 30+, Safari 8.0+ web browser; Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering. Untuk Image Sensor, tercatat AGC: Auto/Manual; Image Sensor: 1/1.8" progressive scan CMOS; Min. Illumination mencakup Color: 0.002 Lux @(F1.5, AGC ON); B/W: 0.0002 Lux @(F1.5, AGC ON); White Balance: Auto/Manual/ATW (Auto-tracing White Balance)/ Indoor/Outdoor/Fluorescent lamp/Sodium lamp; Shutter Time: 1/1 s to 1/30,000 s; Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus; WDR: 120 dB WDR. Untuk Lens, tercatat Digital Zoom: 16×; Focus Mode: Auto/Semi-automatic/Manual; FOV mencakup Horizontal field of view: 59.8° to 2.0° (wide-tele), Vertical field of view: 33.6° to 1.1° (wide-tele) dan Diagonal field of view: 68.6° to 2.3° (wide-tele); Zoom Speed: Approx. 4.4 s (optical lens, wide-tele); Working Distance: 10 mm to 1500 mm (wide-tele); Aperture Range: F1.5 to F4.5; Focal Length: 5.7 mm to 205 mm, 36× Optical. Untuk Night Vision, tercatat Day & Night: IR Cut Filter. Untuk Protection, tercatat Material: Aluminum alloy ADC12; Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection; Working Temperature: Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F); Working Humidity: Humidity: ≤ 90%. Untuk Ptz, tercatat Movement Range (Pan): 360° endless; Pan Speed: Configurable, from 0.1°/s to 150°/s, Preset Speed: 150°/s; Movement Range (Tilt): From -10° to 90° (Auto Flip); Tilt Speed: Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s; Proportional Zoom: Support; Presets: 300; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan; Power-off Memory: Support; Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan; PTZ Status Display: ON/OFF; Preset Freezing: Support; Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output. Untuk Resolution, tercatat Max. Resolution: 1920 × 1080; Sub-Stream mencakup 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240); Main Stream mencakup 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720); 60fps (1920 × 1080, 1280 × 960, 1280 × 720); Third Stream mencakup 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240). Untuk Smart Detection, tercatat Smart Detection: Intrusion Detection, Line Crossing Detection, Audio Exception Detection; Smart Record: ANR (Automatic Network Replenishment), Dual-VCA; ROI: Main stream, sub-stream and third stream respectively support two fixed areas.; Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. Untuk Storage, tercatat Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR. Untuk Video Compression, tercatat H.264+: Support; H.265+: Support; H.264 Type: Baseline Profile/Main Profile/High Profile; Video Compression mencakup Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG dan Third Stream: H.265/H.264/MJPEG; H.265 Type: Main Profile; Video Bitrate: 256 kbps to 16384 kbps; SVC: Support. Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Image Sensor
- • AGC: Auto/Manual • Image Sensor: 1/1.8" progressive scan CMOS Min. Illumination: • Color: 0.002 Lux @(F1.5, AGC ON) • B/W: 0.0002 Lux @(F1.5, AGC ON) • White Balance: Auto/Manual/ATW (Auto-tracing White Balance)/ Indoor/Outdoor/Fluorescent lamp/Sodium lamp • Shutter Time: 1/1 s to 1/30,000 s • Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus • WDR: 120 dB WDR
- Resolution
- • Max. Resolution: 1920 × 1080 Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Main Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) • 50fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60fps (1920 × 1080, 1280 × 960, 1280 × 720) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Lens
- • Digital Zoom: 16× • Focus Mode: Auto/Semi-automatic/Manual FOV: • Horizontal field of view: 59.8° to 2.0° (wide-tele) • Vertical field of view: 33.6° to 1.1° (wide-tele) • Diagonal field of view: 68.6° to 2.3° (wide-tele) • Zoom Speed: Approx. 4.4 s (optical lens, wide-tele) • Working Distance: 10 mm to 1500 mm (wide-tele) • Aperture Range: F1.5 to F4.5 • Focal Length: 5.7 mm to 205 mm, 36× Optical
- PTZ
- • Movement Range (Pan): 360° endless • Pan Speed: Configurable, from 0.1°/s to 150°/s, Preset Speed: 150°/s • Movement Range (Tilt): From -10° to 90° (Auto Flip) • Tilt Speed: Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s • Proportional Zoom: Support • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Power-off Memory: Support • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • PTZ Status Display: ON/OFF • Preset Freezing: Support • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
- Night Vision
- Day & Night: IR Cut Filter
- Video Compression
- • H.264+: Support • H.265+: Support • H.264 Type: Baseline Profile/Main Profile/High Profile Video Compression: • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264/MJPEG • Third Stream: H.265/H.264/MJPEG • H.265 Type: Main Profile • Video Bitrate: 256 kbps to 16384 kbps • SVC: Support
- Audio
- • Audio Input: 1-ch audio input • Audio Output: 1-ch audio output • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM • Audio Bitrate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Smart Detection
- • Smart Detection: Intrusion Detection, Line Crossing Detection, Audio Exception Detection • Smart Record: ANR (Automatic Network Replenishment), Dual-VCA • ROI: Main stream, sub-stream and third stream respectively support two fixed areas. • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Storage
- Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
- Connectivity
- • BNC: 1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC • Alarm Output: 1-ch alarm output • Alarm Input: 2-ch alarm input • Network Interface: 1 RJ45 10 M/100 M Ethernet Interface • RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour • API: Open-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party Management Platform • Simultaneous Live View: Up to 20 channels User/Host: • Up to 32 users. • 3 levels: Administrator, Operator and User • Client: iVMS-4200, iVMS-5200 • Web Browser: IE 8+, Firefox 30+, Safari 8.0+ web browser • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Power
- Power: 24 VAC (Max. 45 W)
- Protection
- • Material: Aluminum alloy ADC12 • Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection • Working Temperature: Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F) • Working Humidity: Humidity: ≤ 90%
- Dimensions
- Φ181 mm × 396 mm × 377.5 mm (Φ 7.13" × 15.59" × 14.86")
- Weight
- Approx. 7.6 kg (16.76 lb)
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.

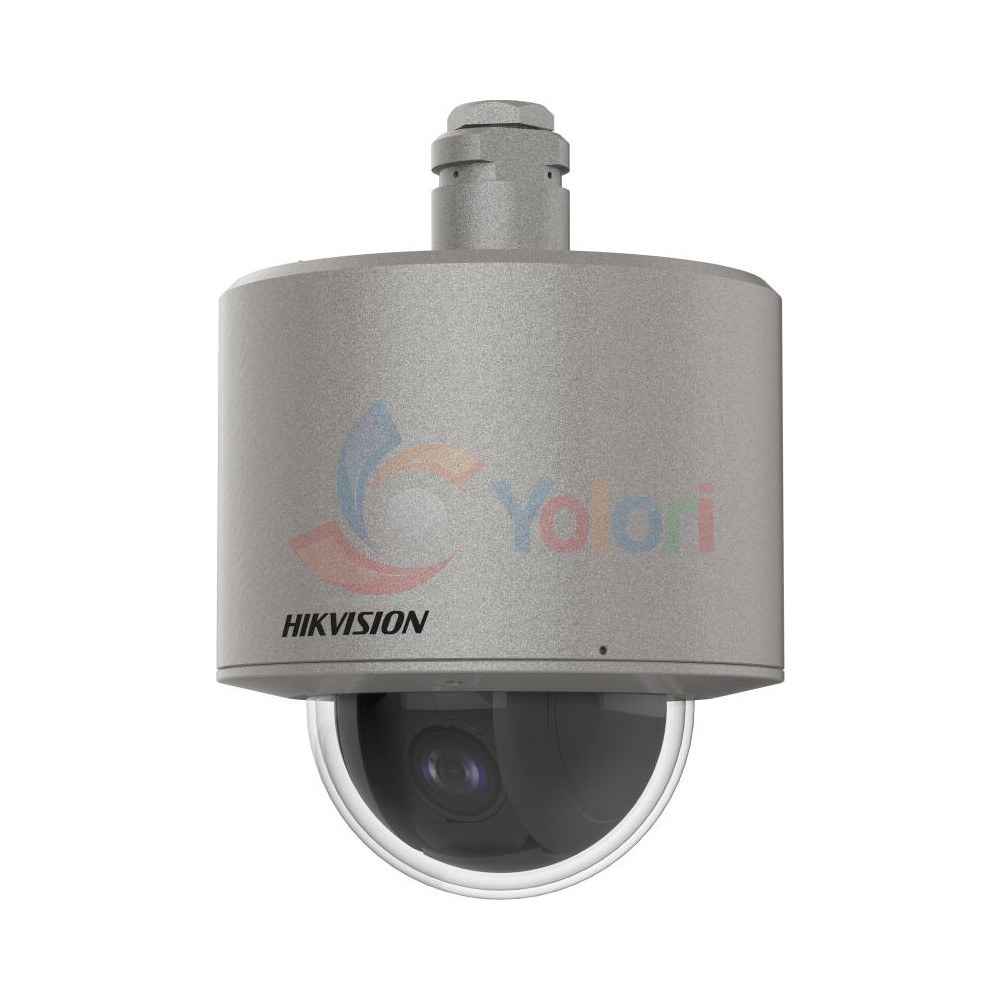

| Sedang dilihatHikvisionHikvision PTZ Camera Positioning System DarkFighter DS-2DY7236W-A - 7-inch, 2 MP, 36X, non-IR |  HikvisionHikvision PTZ Camera Speed Dome DarkFighter iDS-2PT9A144MXS-D/T2 - 2*4 MP, 10X |  HikvisionHikvision PTZ Camera Speed Dome Anti-corrosion DS-2DT6223-AELY - 6-inch, 23X |  HikvisionHikvision PTZ Camera Speed Dome Explosion-proof DS-2DF4220-DX(W/316L) - 4-inch, 20X | |
|---|---|---|---|---|
| Harga | Rp 46.399.000 | Rp 44.889.000 | Rp 48.799.000 | Rp 48.829.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Image Sensor | • AGC: Auto/Manual • Image Sensor: 1/1.8" progressive scan CMOS Min. Illumination: • Color: 0.002 Lux @(F1.5, AGC ON) • B/W: 0.0002 Lux @(F1.5, AGC ON) • White Balance: Auto/Manual/ATW (Auto-tracing White Balance)/ Indoor/Outdoor/Fluorescent lamp/Sodium lamp • Shutter Time: 1/1 s to 1/30,000 s • Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus • WDR: 120 dB WDR | • Image Sensor: Two sensors, 1/1.8" progressive scan CMOS • Min. Illumination: [Panoramic channel] Color: 0.002 Lux @(F1.0, AGC ON), B/W: 0.0005 Lux @(F1.0, AGC ON); [PTZ channel] Color: 0.0035 Lux @ (F1.6, AGC ON), 0 Lux with supplement light • Slow Shutter: Yes • Image Enhancement: BLC, HLC, 3D DNR • Wide Dynamic Range (WDR): 120 dB WDR • Defog: Yes • Image Stabilization: EIS • SNR: ≥ 55 dB | • Image Sensor: 1/1.8" progressive scan CMOS • White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp • Shutter Time: 1/1 s to 1/30,000 s • WDR: 120 dB | • Image Sensor: 1/2.8" progressive scan CMOS Min. Illumination: • Color: 0.015 Lux @ (F2.8, AGC ON) • B/W: 0.003 Lux @ (F2.8, AGC ON) • Shutter Speed: 1/1 s to 1/30,000 s • Slow Shutter: yes • White Balance: auto;MWB;ATW;indoor;outdoor;sodium lamp;fluorescent lamp |
| Resolution | • Max. Resolution: 1920 × 1080 Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Main Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) • 50fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60fps (1920 × 1080, 1280 × 960, 1280 × 720) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | • Max. Resolution: 2560 × 1440 Main Stream: • [Both channels] 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) • [Both channels] 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • [Both channels] 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • [Both channels] 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • [Both channels] 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • [Both channels] 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | • Max. Resolution: 1920 × 1080 • Sub-Stream: 50Hz: 25fps (704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120) • Main Stream: 50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps(1920×1080, 1280×960, 1280×720) Third Stream: • 50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144) • 60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120) | • Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 35 2× 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Lens | • Digital Zoom: 16× • Focus Mode: Auto/Semi-automatic/Manual FOV: • Horizontal field of view: 59.8° to 2.0° (wide-tele) • Vertical field of view: 33.6° to 1.1° (wide-tele) • Diagonal field of view: 68.6° to 2.3° (wide-tele) • Zoom Speed: Approx. 4.4 s (optical lens, wide-tele) • Working Distance: 10 mm to 1500 mm (wide-tele) • Aperture Range: F1.5 to F4.5 • Focal Length: 5.7 mm to 205 mm, 36× Optical | • Zoom: [PTZ channel] 4x optical, 16x digital • Focus: Auto, semi-auto, manual • Focal Length: [Panoramic channel] 6 mm, [PTZ channel] 13 to 52 mm • Zoom Speed: [PTZ channel] approx. 1.8 s (optical, wide-tele) FOV: • [Panoramic channel] horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63° • [PTZ channel] horizontal FOV 32° to 8°, vertical FOV 18° to 4.5°, diagonal FOV 37° to 9° • Aperture: [Panoramic channel] F1.0, [PTZ channel] F1.6 | • Digital Zoom: 16× • Focus Mode: Auto/Semi-automatic/Manual • FOV: 59.8° to 3.0° (Wide-Tele) • Zoom Speed: Approx. 4.4 s (Optical Wide-Tele) • Working Distance: 10 mm to 1500 mm (wide-tele) • Aperture Range: F1.5 to F3.4 • Focal Length: 5.9 to 135.7 mm, 23× optical zoom | • Digital Zoom: 16x • Focal Length: 4.7 mm to 94 mm, 20 × optical zoom • Zoom Speed: Approx. 3.4 s FOV: • horizontal FOV: 54.5° to 4° (Wide-Tele) • vertical FOV: 31.5° to 2.5°(Wide-Tele) • diagonal FOV: 61.5° to 4.5°(Wide-Tele) • Aperture: F2.8 |
| PTZ | • Movement Range (Pan): 360° endless • Pan Speed: Configurable, from 0.1°/s to 150°/s, Preset Speed: 150°/s • Movement Range (Tilt): From -10° to 90° (Auto Flip) • Tilt Speed: Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s • Proportional Zoom: Support • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Power-off Memory: Support • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • PTZ Status Display: ON/OFF • Preset Freezing: Support • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output | • Movement Range (Pan): [PTZ channel] 0-210° • Movement Range (Tilt): [PTZ channel] -15° to 22° • Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 200°/s; preset speed: 300°/s • Tilt Speed: [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 120°/s • Proportional Pan: Yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: No • Power-off Memory: Yes • Park Action: Preset, patrol scan • 3D Positioning: Yes • PTZ Status Display: Yes • Preset Freezing: No • Scheduled Task: Preset, patrol scan, dome reboot, dome adjust, aux output | • Movement Range (Pan): 360° endless • Pan Speed: Configurable, from 0.1°/s to 300°/s, preset speed: 540°/s • Movement Range (Tilt): From -10° to 90° • Tilt Speed: Configurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s • Proportional Zoom: Yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 patterns, with the recording time not less than 10 minutes per pattern • Power-off Memory: Yes • Park Action: Preset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan • Scheduled Task: Preset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan/Dome reboot/Dome adjust/Aux output | • Movement Range (Pan): 360° • Movement Range (Tilt): 0° to 90° • Pan Speed: configurable from 0.1° to 160°/s; preset speed: 160°/s • Tilt Speed: configurable from 0.1° to 120°/s, preset speed 120°/s • Proportional Zoom: yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Power-off Memory: yes • Park Action: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan • 3D Positioning: yes • PTZ Status Display: yes • Preset Freezing: yes • Scheduled Task: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output |
| Night Vision | Day & Night: IR Cut Filter | Supplement Light Range: • [PTZ channel] up to 30 m for human face, and up to 40 m for human body. Adjusted automatically according to scenes to prevent overexposure • [Panoramic channel] warm white light, up to 15 m for vehicle • Smart Supplement Light: Yes • IR Wavelength: [PTZ channel] hybrid illumination, max. wavelength 750 nm • Day & Night: IR cut filter • Day/Night Switch: Day, night, auto, scheduled-switch | Day & Night: IR Cut Filter | • Day & Night: ICR Day/Night Switch: • day • night • auto • scheduled-switch |
| Video Compression | • H.264+: Support • H.265+: Support • H.264 Type: Baseline Profile/Main Profile/High Profile Video Compression: • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264/MJPEG • Third Stream: H.265/H.264/MJPEG • H.265 Type: Main Profile • Video Bitrate: 256 kbps to 16384 kbps • SVC: Support | Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264/MJPEG • Video Bit Rate: 32 - 16384 Kbps • H.264 Type: Baseline profile, main profile, high profile • H.265 Type: Main profile • Scalable Video Coding (SVC): H.264 and H.265 encoding | SVC: Yes | • Video Compression: H.265, H.264, MJPEG • Video Bit Rate: 32 kbps to 16384 kbps • H.264 Type: baseline profile, main profile, high profile • H.265 Type: main profile • H.264+: yes • H.265+: yes • SVC: yes |
| Audio | • Audio Input: 1-ch audio input • Audio Output: 1-ch audio output • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM • Audio Bitrate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) | • Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM • Environment Noise Filtering: Yes • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω | — | — |
| Smart Detection | • Smart Detection: Intrusion Detection, Line Crossing Detection, Audio Exception Detection • Smart Record: ANR (Automatic Network Replenishment), Dual-VCA • ROI: Main stream, sub-stream and third stream respectively support two fixed areas. • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. | • Basic Event: Motion detection, video tampering alarm, alarm input and output, exception • Smart Event: Scene change detection • Smart Tracking: No • Alarm Linkage: Memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP • Multi-Target-Type Detection: Both camera channels support detecting and capturing human face and body. The panoramic channel provides additional vehicle detection and capture • Face Capture: Detects up to 30 faces at the same time. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture • Face Comparison: Yes • Region of Interest (ROI): No | — | • Basic Event: motion detection, video tampering alarm, alarm input, alarm output, exception • Smart Event: intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection • Smart Record: ANR;Dual-VCA • Alarm Linkage: preset;patrol scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording • Smart Encoding: H.265+;H.264+;ROI;SVC • ROI: yes |
| Storage | Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR | • On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC (up to 256 GB) • Network Storage: NAS (NFS, SMB/ CIFS) | — | On-board Storage: support microSD/microSDHC/microSDXC cards;up to 128 GB |
| Connectivity | • BNC: 1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC • Alarm Output: 1-ch alarm output • Alarm Input: 2-ch alarm input • Network Interface: 1 RJ45 10 M/100 M Ethernet Interface • RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour • API: Open-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party Management Platform • Simultaneous Live View: Up to 20 channels User/Host: • Up to 32 users. • 3 levels: Administrator, Operator and User • Client: iVMS-4200, iVMS-5200 • Web Browser: IE 8+, Firefox 30+, Safari 8.0+ web browser • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering | • Ethernet Interface: RJ45, Self-adaptive 10M/100M/1000M Ethernet port • Alarm: 1 input, 1 output • RS-485: No • Protocols: ISUP, IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • API: ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Ehome, Hik-Connect • Simultaneous Live View: Up to 20 channels • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user • Security: Authenticated username and password, HTTPS encryption, 802.1X authenticated access, IP address filter • Client: iVMS-4200, HikCentral Pro, Hik-Connect • Web Browser: Firefox30+, Chrome31-44, IE8+, Safari11+ | — | • Alarm Input: 1 alarm input • Alarm Output: 1 alarm output • Video Output: 1.0V[p-p]/75Ω;PAL;NTSC;BNC connector • RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive • Protocols: IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour;TCP/IP • API: Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform • Simultaneous Live View: Up to 20 channels • User/Host: Up to 32 users. 3 levels: Administrator, Operator and User • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering • Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect • Web Browser: IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+ |
| Power | Power: 24 VAC (Max. 45 W) | Power: 36 VDC ± 25%, max. 60 W (including max. 6 W for panorama channel illuminator, max. 7.8 W for PTZ channel illuminator, max. 10 W for heater) | — | Power: DC9-12V, Max. 12 W; POE |
| Protection | • Material: Aluminum alloy ADC12 • Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection • Working Temperature: Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F) • Working Humidity: Humidity: ≤ 90% | • Protection: IP66 • Operating Condition: Outdoor: -40°C to 70°C (-40°F to 158°F), humidity lower than 90%RH • Material: Aluminum alloy ADC12, PC, PC + ABS, PC + 10%gf | — | • Protection: IP68, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection • Operating Conditions: Temperature: -30°C to 60°C (-22°F to 140°F)，Humidity: ≤ 95% • Material: Enclosure: stainless steel 316L |
| Dimensions | Φ181 mm × 396 mm × 377.5 mm (Φ 7.13" × 15.59" × 14.86") | 230 mm × 277 mm × 470 mm (9.06" × 10.91" × 18.5") | — | Φ 264.2 mm × 184 mm (10.40" × 7.24") |
| Weight | Approx. 7.6 kg (16.76 lb) | Approx. 4.9 kg (10.8 lb.) for camera, 2.9 kg (6.39 lb.) for included wall mount, 7.8 kg (16.53 lb.) in total | — | Approx. 8 kg (17.64 lb) |
