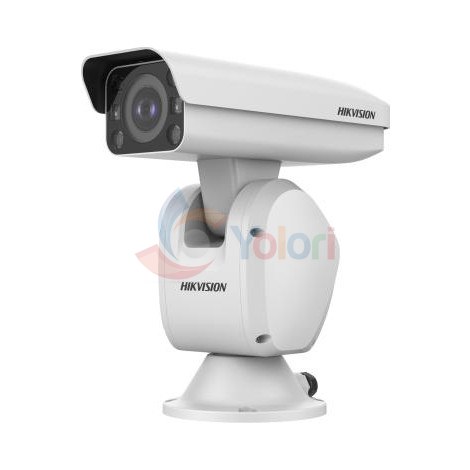

Tentang merek· PTZ Camera Speed Dome DarkFighterHikvision PTZ Camera Speed Dome DarkFighter iDS-2PT9A144MXS-D/T2 - 2*4 MP, 10X
Hikvision PTZ Camera Speed Dome DarkFighter iDS-2PT9A144MXS-D/T2 adalah CCTV.
Dijual oleh
Yolori Mall
Hikvision PTZ Camera Speed Dome DarkFighter iDS-2PT9A144MXS-D/T2 adalah CCTV dengan Power: 36 VDC ± 25%, max. 60 W (including max. 6 W for panorama channel illuminator, max. 7.8 W for PTZ channel illuminator, max. 10 W for heater). Dimensinya 230 mm × 277 mm × 470 mm (9.06" × 10.91" × 18.5"). Beratnya Approx. 4.9 kg (10.8 lb.) for camera, 2.9 kg (6.39 lb.) for included wall mount, 7.8 kg (16.53 lb.) in total. CCTV dari Hikvision ini juga dibekali Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM; Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω. Perangkat ini mendukung Environment Noise Filtering. Untuk Connectivity, tercatat Ethernet Interface: RJ45, Self-adaptive 10M/100M/1000M Ethernet port; Alarm: 1 input, 1 output; Protocols: ISUP, IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour; API: ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Ehome, Hik-Connect; Simultaneous Live View: Up to 20 channels; User/Host: Up to 32 users, 3 user levels: administrator, operator, and user; Security: Authenticated username and password, HTTPS encryption, 802.1X authenticated access, IP address filter; Client: iVMS-4200, HikCentral Pro, Hik-Connect; Web Browser: Firefox30+, Chrome31-44, IE8+, Safari11+. Perangkat ini tidak mendukung RS-485. Untuk Image Sensor, tercatat Image Sensor: Two sensors, 1/1.8" progressive scan CMOS; Min. Illumination: [Panoramic channel] Color: 0.002 Lux @(F1.0, AGC ON), B/W: 0.0005 Lux @(F1.0, AGC ON); [PTZ channel] Color: 0.0035 Lux @ (F1.6, AGC ON), 0 Lux with supplement light; Image Enhancement: BLC, HLC, 3D DNR; Wide Dynamic Range (WDR): 120 dB WDR; Image Stabilization: EIS; SNR: ≥ 55 dB. Perangkat ini mendukung Slow Shutter dan Defog. Untuk Lens, tercatat Zoom: [PTZ channel] 4x optical, 16x digital; Focus: Auto, semi-auto, manual; Focal Length: [Panoramic channel] 6 mm, [PTZ channel] 13 to 52 mm; Zoom Speed: [PTZ channel] approx. 1.8 s (optical, wide-tele); FOV mencakup [Panoramic channel] horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°; [PTZ channel] horizontal FOV 32° to 8°, vertical FOV 18° to 4.5°, diagonal FOV 37° to 9°; Aperture: [Panoramic channel] F1.0, [PTZ channel] F1.6. Untuk Night Vision, tercatat Supplement Light Range mencakup [PTZ channel] up to 30 m for human face, and up to 40 m for human body. Adjusted automatically according to scenes to prevent overexposure; [Panoramic channel] warm white light, up to 15 m for vehicle; IR Wavelength: [PTZ channel] hybrid illumination, max. wavelength 750 nm; Day & Night: IR cut filter; Day/Night Switch: Day, night, auto, scheduled-switch. Perangkat ini mendukung Smart Supplement Light. Untuk Protection, tercatat Protection: IP66; Operating Condition: Outdoor: -40°C to 70°C (-40°F to 158°F), humidity lower than 90%RH; Material: Aluminum alloy ADC12, PC, PC + ABS, PC + 10%gf. Untuk Ptz, tercatat Movement Range (Pan): [PTZ channel] 0-210°; Movement Range (Tilt): [PTZ channel] -15° to 22°; Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 200°/s; preset speed: 300°/s; Tilt Speed: [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 120°/s; Presets: 300; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Park Action: Preset, patrol scan; Scheduled Task: Preset, patrol scan, dome reboot, dome adjust, aux output. Perangkat ini mendukung Proportional Pan, Power-off Memory, 3D Positioning dan PTZ Status Display. Perangkat ini tidak mendukung Pattern Scan dan Preset Freezing. Untuk Resolution, tercatat Max. Resolution: 2560 × 1440; Main Stream mencakup [Both channels] 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); [Both channels] 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream mencakup [Both channels] 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); [Both channels] 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240); Third Stream mencakup [Both channels] 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); [Both channels] 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240). Untuk Smart Detection, tercatat Basic Event: Motion detection, video tampering alarm, alarm input and output, exception; Smart Event: Scene change detection; Alarm Linkage: Memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP; Multi-Target-Type Detection: Both camera channels support detecting and capturing human face and body. The panoramic channel provides additional vehicle detection and capture; Face Capture: Detects up to 30 faces at the same time. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture. Perangkat ini mendukung Face Comparison. Perangkat ini tidak mendukung Smart Tracking dan Region of Interest (ROI). Untuk Storage, tercatat On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC (up to 256 GB); Network Storage: NAS (NFS, SMB/ CIFS). Untuk Video Compression, tercatat Video Compression mencakup Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG dan Third stream: H.265/H.264/MJPEG; Video Bit Rate: 32 - 16384 Kbps; H.264 Type: Baseline profile, main profile, high profile; H.265 Type: Main profile; Scalable Video Coding (SVC): H.264 and H.265 encoding. Hikvision Indonesia memberikan garansi resmi selama 12 bulan untuk produk ini.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Image Sensor
- • Image Sensor: Two sensors, 1/1.8" progressive scan CMOS • Min. Illumination: [Panoramic channel] Color: 0.002 Lux @(F1.0, AGC ON), B/W: 0.0005 Lux @(F1.0, AGC ON); [PTZ channel] Color: 0.0035 Lux @ (F1.6, AGC ON), 0 Lux with supplement light • Slow Shutter: Yes • Image Enhancement: BLC, HLC, 3D DNR • Wide Dynamic Range (WDR): 120 dB WDR • Defog: Yes • Image Stabilization: EIS • SNR: ≥ 55 dB
- Resolution
- • Max. Resolution: 2560 × 1440 Main Stream: • [Both channels] 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) • [Both channels] 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • [Both channels] 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • [Both channels] 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • [Both channels] 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • [Both channels] 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Lens
- • Zoom: [PTZ channel] 4x optical, 16x digital • Focus: Auto, semi-auto, manual • Focal Length: [Panoramic channel] 6 mm, [PTZ channel] 13 to 52 mm • Zoom Speed: [PTZ channel] approx. 1.8 s (optical, wide-tele) FOV: • [Panoramic channel] horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63° • [PTZ channel] horizontal FOV 32° to 8°, vertical FOV 18° to 4.5°, diagonal FOV 37° to 9° • Aperture: [Panoramic channel] F1.0, [PTZ channel] F1.6
- PTZ
- • Movement Range (Pan): [PTZ channel] 0-210° • Movement Range (Tilt): [PTZ channel] -15° to 22° • Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 200°/s; preset speed: 300°/s • Tilt Speed: [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 120°/s • Proportional Pan: Yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: No • Power-off Memory: Yes • Park Action: Preset, patrol scan • 3D Positioning: Yes • PTZ Status Display: Yes • Preset Freezing: No • Scheduled Task: Preset, patrol scan, dome reboot, dome adjust, aux output
- Night Vision
- Supplement Light Range: • [PTZ channel] up to 30 m for human face, and up to 40 m for human body. Adjusted automatically according to scenes to prevent overexposure • [Panoramic channel] warm white light, up to 15 m for vehicle • Smart Supplement Light: Yes • IR Wavelength: [PTZ channel] hybrid illumination, max. wavelength 750 nm • Day & Night: IR cut filter • Day/Night Switch: Day, night, auto, scheduled-switch
- Video Compression
- Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264/MJPEG • Video Bit Rate: 32 - 16384 Kbps • H.264 Type: Baseline profile, main profile, high profile • H.265 Type: Main profile • Scalable Video Coding (SVC): H.264 and H.265 encoding
- Audio
- • Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM • Environment Noise Filtering: Yes • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Smart Detection
- • Basic Event: Motion detection, video tampering alarm, alarm input and output, exception • Smart Event: Scene change detection • Smart Tracking: No • Alarm Linkage: Memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP • Multi-Target-Type Detection: Both camera channels support detecting and capturing human face and body. The panoramic channel provides additional vehicle detection and capture • Face Capture: Detects up to 30 faces at the same time. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture • Face Comparison: Yes • Region of Interest (ROI): No
- Storage
- • On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC (up to 256 GB) • Network Storage: NAS (NFS, SMB/ CIFS)
- Connectivity
- • Ethernet Interface: RJ45, Self-adaptive 10M/100M/1000M Ethernet port • Alarm: 1 input, 1 output • RS-485: No • Protocols: ISUP, IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • API: ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Ehome, Hik-Connect • Simultaneous Live View: Up to 20 channels • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user • Security: Authenticated username and password, HTTPS encryption, 802.1X authenticated access, IP address filter • Client: iVMS-4200, HikCentral Pro, Hik-Connect • Web Browser: Firefox30+, Chrome31-44, IE8+, Safari11+
- Power
- Power: 36 VDC ± 25%, max. 60 W (including max. 6 W for panorama channel illuminator, max. 7.8 W for PTZ channel illuminator, max. 10 W for heater)
- Protection
- • Protection: IP66 • Operating Condition: Outdoor: -40°C to 70°C (-40°F to 158°F), humidity lower than 90%RH • Material: Aluminum alloy ADC12, PC, PC + ABS, PC + 10%gf
- Dimensions
- 230 mm × 277 mm × 470 mm (9.06" × 10.91" × 18.5")
- Weight
- Approx. 4.9 kg (10.8 lb.) for camera, 2.9 kg (6.39 lb.) for included wall mount, 7.8 kg (16.53 lb.) in total
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatHikvisionHikvision PTZ Camera Speed Dome DarkFighter iDS-2PT9A144MXS-D/T2 - 2*4 MP, 10X |  Sedang dilihatHikvisionHikvision PTZ Camera Speed Dome DarkFighterX DS-2DF9C435IHS-DLW(T2) - 9-inch, 4 MP, 35X, IR |  Sedang dilihatHikvisionHikvision PTZ Camera Positioning System DarkFighter DS-2DY7236W-A - 7-inch, 2 MP, 36X, non-IR |  Sedang dilihatHikvisionHikvision PTZ Camera Speed Dome Anti-corrosion DS-2DT6223-AELY - 6-inch, 23X | |
|---|---|---|---|---|
| Harga | Rp 44.889.000 | Rp 43.909.000 | Rp 46.399.000 | Rp 48.799.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Image Sensor | • Image Sensor: Two sensors, 1/1.8" progressive scan CMOS • Min. Illumination: [Panoramic channel] Color: 0.002 Lux @(F1.0, AGC ON), B/W: 0.0005 Lux @(F1.0, AGC ON); [PTZ channel] Color: 0.0035 Lux @ (F1.6, AGC ON), 0 Lux with supplement light • Slow Shutter: Yes • Image Enhancement: BLC, HLC, 3D DNR • Wide Dynamic Range (WDR): 120 dB WDR • Defog: Yes • Image Stabilization: EIS • SNR: ≥ 55 dB | • Image Sensor: 1/1.8" progressive scan CMOS, dual-sensor structure • Min. Illumination: Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with IR • Shutter Speed: 1/1 to 1/30,000s • Slow Shutter: Yes • Image Enhancement: BLC, HLC, 3D DNR • Wide Dynamic Range (WDR): 140 dB WDR • Defog: Optical defog • Image Stabilization: EIS (Built-in gyroscope to improve EIS performance) • SNR: ≥ 55 dB | • AGC: Auto/Manual • Image Sensor: 1/1.8" progressive scan CMOS Min. Illumination: • Color: 0.002 Lux @(F1.5, AGC ON) • B/W: 0.0002 Lux @(F1.5, AGC ON) • White Balance: Auto/Manual/ATW (Auto-tracing White Balance)/ Indoor/Outdoor/Fluorescent lamp/Sodium lamp • Shutter Time: 1/1 s to 1/30,000 s • Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus • WDR: 120 dB WDR | • Image Sensor: 1/1.8" progressive scan CMOS • White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp • Shutter Time: 1/1 s to 1/30,000 s • WDR: 120 dB |
| Resolution | • Max. Resolution: 2560 × 1440 Main Stream: • [Both channels] 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) • [Both channels] 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • [Both channels] 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • [Both channels] 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • [Both channels] 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • [Both channels] 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | • Max. Resolution: 2688 × 1512 Main Stream: • 50Hz: 25fps (2688 × 1512，2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 30fps (2688 × 1512，2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | • Max. Resolution: 1920 × 1080 Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Main Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) • 50fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60fps (1920 × 1080, 1280 × 960, 1280 × 720) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | • Max. Resolution: 1920 × 1080 • Sub-Stream: 50Hz: 25fps (704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120) • Main Stream: 50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps(1920×1080, 1280×960, 1280×720) Third Stream: • 50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144) • 60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120) |
| Lens | • Zoom: [PTZ channel] 4x optical, 16x digital • Focus: Auto, semi-auto, manual • Focal Length: [Panoramic channel] 6 mm, [PTZ channel] 13 to 52 mm • Zoom Speed: [PTZ channel] approx. 1.8 s (optical, wide-tele) FOV: • [Panoramic channel] horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63° • [PTZ channel] horizontal FOV 32° to 8°, vertical FOV 18° to 4.5°, diagonal FOV 37° to 9° • Aperture: [Panoramic channel] F1.0, [PTZ channel] F1.6 | • Zoom: 35x optical, 16x digital • Focus: Auto, semi-auto, manual, rapid focus • Focal Length: 5.9 mm to 206.5 mm • Zoom Speed: Approx. 4.4 s FOV: • Horizontal field of view: 58.9° to 2.2°(wide-tele) • Vertical field of view: 35.3° to 1.2°(wide-tele) • Diagonal field of view: 65.9° to 2.5° (wide-tele) • Aperture: Max. F1.6 | • Digital Zoom: 16× • Focus Mode: Auto/Semi-automatic/Manual FOV: • Horizontal field of view: 59.8° to 2.0° (wide-tele) • Vertical field of view: 33.6° to 1.1° (wide-tele) • Diagonal field of view: 68.6° to 2.3° (wide-tele) • Zoom Speed: Approx. 4.4 s (optical lens, wide-tele) • Working Distance: 10 mm to 1500 mm (wide-tele) • Aperture Range: F1.5 to F4.5 • Focal Length: 5.7 mm to 205 mm, 36× Optical | • Digital Zoom: 16× • Focus Mode: Auto/Semi-automatic/Manual • FOV: 59.8° to 3.0° (Wide-Tele) • Zoom Speed: Approx. 4.4 s (Optical Wide-Tele) • Working Distance: 10 mm to 1500 mm (wide-tele) • Aperture Range: F1.5 to F3.4 • Focal Length: 5.9 to 135.7 mm, 23× optical zoom |
| PTZ | • Movement Range (Pan): [PTZ channel] 0-210° • Movement Range (Tilt): [PTZ channel] -15° to 22° • Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 200°/s; preset speed: 300°/s • Tilt Speed: [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 120°/s • Proportional Pan: Yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: No • Power-off Memory: Yes • Park Action: Preset, patrol scan • 3D Positioning: Yes • PTZ Status Display: Yes • Preset Freezing: No • Scheduled Task: Preset, patrol scan, dome reboot, dome adjust, aux output | • Movement Range (Pan): 360° • Movement Range (Tilt): -25° to 90° (auto flip) • Pan Speed: configurable from 0.1° to 210°/s; preset speed: 280°/s • Tilt Speed: configurable from 0.1° to 150°/s, preset speed 250°/s • Proportional Pan: Yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Power-off Memory: Yes • Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan • 3D Positioning: Yes • PTZ Status Display: Yes • Preset Freezing: Yes • Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output | • Movement Range (Pan): 360° endless • Pan Speed: Configurable, from 0.1°/s to 150°/s, Preset Speed: 150°/s • Movement Range (Tilt): From -10° to 90° (Auto Flip) • Tilt Speed: Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s • Proportional Zoom: Support • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Power-off Memory: Support • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • PTZ Status Display: ON/OFF • Preset Freezing: Support • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output | • Movement Range (Pan): 360° endless • Pan Speed: Configurable, from 0.1°/s to 300°/s, preset speed: 540°/s • Movement Range (Tilt): From -10° to 90° • Tilt Speed: Configurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s • Proportional Zoom: Yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 patterns, with the recording time not less than 10 minutes per pattern • Power-off Memory: Yes • Park Action: Preset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan • Scheduled Task: Preset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan/Dome reboot/Dome adjust/Aux output |
| Night Vision | Supplement Light Range: • [PTZ channel] up to 30 m for human face, and up to 40 m for human body. Adjusted automatically according to scenes to prevent overexposure • [Panoramic channel] warm white light, up to 15 m for vehicle • Smart Supplement Light: Yes • IR Wavelength: [PTZ channel] hybrid illumination, max. wavelength 750 nm • Day & Night: IR cut filter • Day/Night Switch: Day, night, auto, scheduled-switch | • Supplement Light Range: IR Distance: up to 500 m • Smart Supplement Light: Yes • Day & Night: Controlled by dual-sensor • Day/Night Switch: Day, night, auto, scheduled-switch | Day & Night: IR Cut Filter | Day & Night: IR Cut Filter |
| Video Compression | Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264/MJPEG • Video Bit Rate: 32 - 16384 Kbps • H.264 Type: Baseline profile, main profile, high profile • H.265 Type: Main profile • Scalable Video Coding (SVC): H.264 and H.265 encoding | Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264/MJPEG • Video Bit Rate: 32 Kbps to 16384 Kbps • H.264 Type: Baseline profile, main profile, high profile • H.265 Type: Main profile • Scalable Video Coding (SVC): H.264 and H.265 encoding | • H.264+: Support • H.265+: Support • H.264 Type: Baseline Profile/Main Profile/High Profile Video Compression: • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264/MJPEG • Third Stream: H.265/H.264/MJPEG • H.265 Type: Main Profile • Video Bitrate: 256 kbps to 16384 kbps • SVC: Support | SVC: Yes |
| Audio | • Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM • Environment Noise Filtering: Yes • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω | • Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2) Audio: • 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; • 1 output (line out), line level, output impedance: 600 Ω | • Audio Input: 1-ch audio input • Audio Output: 1-ch audio output • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM • Audio Bitrate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) | — |
| Smart Detection | • Basic Event: Motion detection, video tampering alarm, alarm input and output, exception • Smart Event: Scene change detection • Smart Tracking: No • Alarm Linkage: Memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP • Multi-Target-Type Detection: Both camera channels support detecting and capturing human face and body. The panoramic channel provides additional vehicle detection and capture • Face Capture: Detects up to 30 faces at the same time. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture • Face Comparison: Yes • Region of Interest (ROI): No | • Basic Event: Motion detection, video tampering alarm, alarm input and output, exception • Smart Event: Object removal detection, unattended baggage detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection • Smart Tracking: Manual tracking, auto-tracking • Alarm Linkage: Preset, patrol scan, pattern scan, memory card video recording, alarm output, send email, notify surveillance center, upload to FTP, smart tracking, NAS video recording • Face Capture: Detects up to 30 faces at the same time. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture Road Traffic: • Supports vehicle detection (license plate number • vehicle model, and vehicle color recognition) • Region of Interest (ROI): 8 fixed regions for each stream | • Smart Detection: Intrusion Detection, Line Crossing Detection, Audio Exception Detection • Smart Record: ANR (Automatic Network Replenishment), Dual-VCA • ROI: Main stream, sub-stream and third stream respectively support two fixed areas. • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. | — |
| Storage | • On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC (up to 256 GB) • Network Storage: NAS (NFS, SMB/ CIFS) | On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB | Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR | — |
| Connectivity | • Ethernet Interface: RJ45, Self-adaptive 10M/100M/1000M Ethernet port • Alarm: 1 input, 1 output • RS-485: No • Protocols: ISUP, IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • API: ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Ehome, Hik-Connect • Simultaneous Live View: Up to 20 channels • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user • Security: Authenticated username and password, HTTPS encryption, 802.1X authenticated access, IP address filter • Client: iVMS-4200, HikCentral Pro, Hik-Connect • Web Browser: Firefox30+, Chrome31-44, IE8+, Safari11+ | • Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port • Alarm: 7 inputs, 2 output • Video Output: 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • API: ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK • Simultaneous Live View: Up to 20 channels • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user • Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter • Web Browser: IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+ | • BNC: 1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC • Alarm Output: 1-ch alarm output • Alarm Input: 2-ch alarm input • Network Interface: 1 RJ45 10 M/100 M Ethernet Interface • RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour • API: Open-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party Management Platform • Simultaneous Live View: Up to 20 channels User/Host: • Up to 32 users. • 3 levels: Administrator, Operator and User • Client: iVMS-4200, iVMS-5200 • Web Browser: IE 8+, Firefox 30+, Safari 8.0+ web browser • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering | — |
| Power | Power: 36 VDC ± 25%, max. 60 W (including max. 6 W for panorama channel illuminator, max. 7.8 W for PTZ channel illuminator, max. 10 W for heater) | Power: 36 VDC, max. 90 W, including max. 18 W for IR | Power: 24 VAC (Max. 45 W) | — |
| Protection | • Protection: IP66 • Operating Condition: Outdoor: -40°C to 70°C (-40°F to 158°F), humidity lower than 90%RH • Material: Aluminum alloy ADC12, PC, PC + ABS, PC + 10%gf | • Protection: IP67 • Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% • Material: ADC12 | • Material: Aluminum alloy ADC12 • Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection • Working Temperature: Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F) • Working Humidity: Humidity: ≤ 90% | — |
| Dimensions | 230 mm × 277 mm × 470 mm (9.06" × 10.91" × 18.5") | Φ 293 mm × 422 mm (Φ 11.5" × 16.6") | Φ181 mm × 396 mm × 377.5 mm (Φ 7.13" × 15.59" × 14.86") | — |
| Weight | Approx. 4.9 kg (10.8 lb.) for camera, 2.9 kg (6.39 lb.) for included wall mount, 7.8 kg (16.53 lb.) in total | Approx. 13 kg (28.7 lb) | Approx. 7.6 kg (16.76 lb) | — |
