BerandaCCTVHikvision PTZ Camera Positioning System DarkFighter Explosion-proof DS-2DY9236I-CWX(W/316L) - 9-inch, 2 MP, 36X

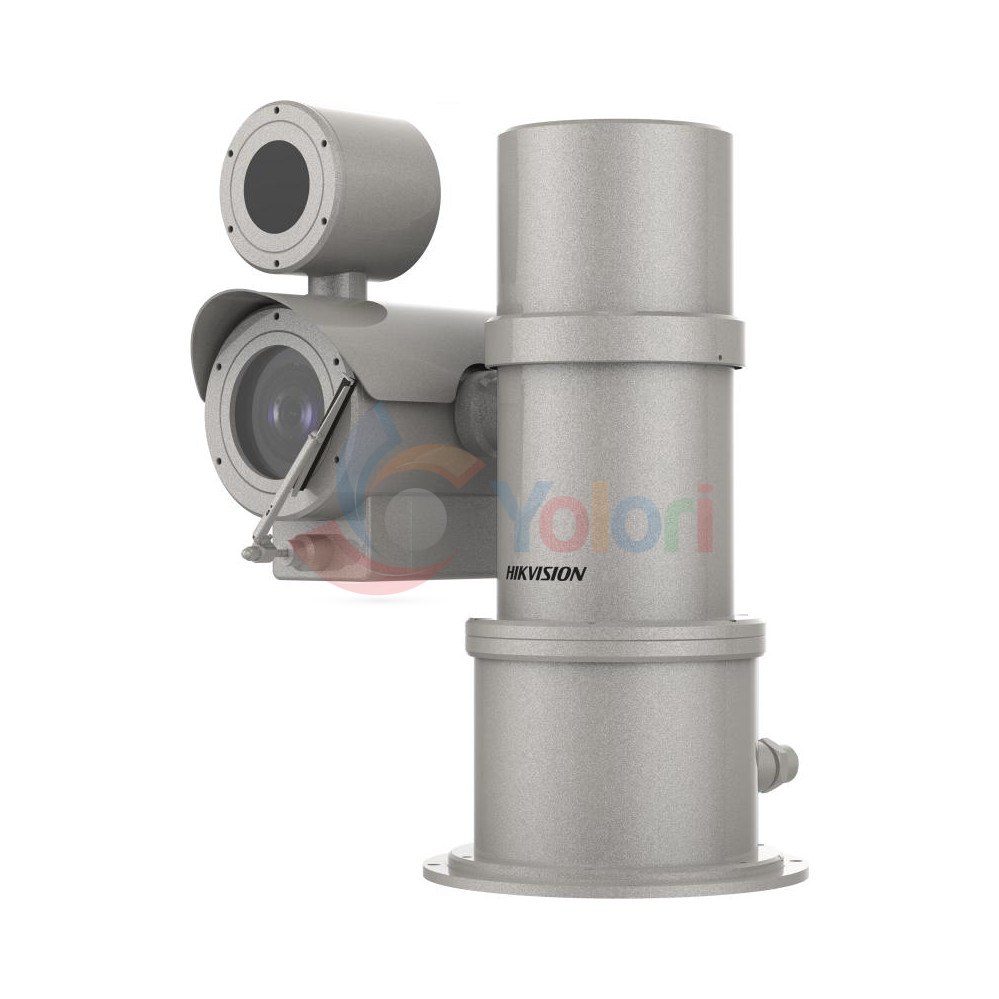

Hikvision PTZ Camera Positioning System DarkFighter Explosion-proof DS-2DY9236I-CWX(W/316L) - 9-inch, 2 MP, 36X — gambar 1
HikvisionTentang merek· PTZ Camera Positioning System DarkFighter Explosion-proof
CCTVBaruSKU: DS-2DY9236I-CWX(W/316L)

Hikvision PTZ Camera Positioning System DarkFighter Explosion-proof DS-2DY9236I-CWX(W/316L) - 9-inch, 2 MP, 36X

Rp 195.329.000

Hikvision PTZ Camera Positioning System DarkFighter Explosion-proof DS-2DY9236I-CWX(W/316L) adalah CCTV dengan Image Sensor: 1/1.8" progressive scan CMOS, Max. Resolution: 1920 × 1080, Focal Length: 5.7 mm to 205 mm, 36× optical zoom, Movement Range (Pan): 360° endless, Presets: 300.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual
Chat WhatsApp Kunjungi Toko
DokumenFaktur pajak diterbitkan untuk pembelian ini

Hikvision PTZ Camera Positioning System DarkFighter Explosion-proof DS-2DY9236I-CWX(W/316L) adalah CCTV dengan Power mencakup 100 VAC to 240 VAC dan Max.: 100 W (Max. 15 W for IR). Dimensinya 445 mm × 245 mm × 510 mm (17.52" × 9.65" × 20.08"). Beratnya Approx. 36.7 kg (80.91 lb). CCTV dari Hikvision ini juga dibekali Audio Input: 1-ch audio input; Audio Output: 1-ch audio output; Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM; Audio Bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps (MP2L2). Untuk Connectivity, tercatat BNC: 1.0V [p-p]/75 Ω, NTSC (or PAL) composite; Alarm Output: 2-ch alarm output; Alarm Input: 7-ch alarm input; Network Interface: 1 RJ45 10 M/100 M Ethernet; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour; API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform; Simultaneous Live View: Up to 20 channels; User/Host mencakup Up to 32 users; 3 levels: Administrator, Operator and User; Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect; Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51; Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering. Untuk Image Sensor, tercatat Image Sensor: 1/1.8" progressive scan CMOS; Min. Illumination mencakup Color: 0.002 Lux @(F1.5, AGC ON); B/W: 0.0002 Lux @(F1.5, AGC ON); 0 Lux with IR; White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp; Shutter Time mencakup 50Hz: 1/1 s to 1/30,000 s; 60Hz: 1/1 s to 1/30,000 s; Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus; WDR: 120 dB WDR. Untuk Lens, tercatat Digital Zoom: 16×; Focus Mode: Auto/Semi-automatic/Manual; FOV mencakup Horizontal field of view: 59.8° to 2.0° (wide-tele), Vertical field of view: 35° to 1.1° (wide-tele) dan Diagonal field of view: 66.2° to 2.3° (wide-tele); Zoom Speed: Approx. 4.4 s (optical lens, wide-tele); Working Distance: 10 mm to 1500 mm (wide-tele); Aperture Range: F1.5 to F4.5; Focal Length: 5.7 mm to 205 mm, 36× optical zoom. Untuk Night Vision, tercatat IR Distance: 150 m; Smart IR: Support; Day & Night: IR Cut Filter. Untuk Protection, tercatat Material: SUS316L; Protection Level: IP68 Standard, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection; Working Temperature: -40°C to 60°C (-40°F to 140°F); Working Humidity: ≤ 90%. Untuk Ptz, tercatat Movement Range (Pan): 360° endless; Pan Speed mencakup Configurable, from 0.1°/s to 50°/s; Preset speed: 50°/s; Movement Range (Tilt): From -90° to 90° (auto-flip); Tilt Speed mencakup Configurable, from 0.1°/s to 40°/s; Preset Speed: 40°/s; Proportional Zoom: Support; Presets: 300; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan; Power-off Memory: Support; Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan; 3D Positioning: Support; PTZ Status Display: Support; Preset Freezing: Support; Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output. Untuk Resolution, tercatat Max. Resolution: 1920 × 1080; Sub-Stream mencakup 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240); Main Stream mencakup 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720); Third Stream mencakup 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240). Untuk Smart Detection, tercatat Basic Event Detection: Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception; Smart Detection: Face Detection, Audio Exception Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection; Smart Record: Dual-VCA; ROI: Main stream, sub-stream, and third stream respectively support four fixed areas.; Alarm Linkage: Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc. Untuk Storage, tercatat Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS). Untuk Video Compression, tercatat H.264+: Support; H.265+: Support; H.264 Type: Baseline Profile/Main Profile/High Profile; Video Compression mencakup Main Stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG dan Third Stream: H.265/H.264/MJPEG; H.265 Type: Main Profile; Video Bitrate: 32 Kbps to 16384 Kbps; SVC: Support. Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Sedang dilihatHikvisionHikvision PTZ Camera Positioning System DarkFighter Explosion-proof DS-2DY9236I-CWX(W/316L) - 9-inch, 2 MP, 36XHikvisionHikvision PTZ Camera Positioning System DarkFighter Laser DS-2DY9250IAX-A(D) - 9-inch, 2 MP, 50X, 1000m IRHikvisionHikvision PTZ Camera Panoramic DS-2DP3236ZIXS - 32 MP, 360°
HikvisionHikvision PTZ Camera Panoramic DS-2DP2427ZIXS - 24 MP, 270°
HargaRp 195.329.000Rp 144.089.000Rp 126.949.000Rp 107.409.000
Garansi
Warranty Months12121212
Warranty TypeHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official Warranty
Jaminan
Stock StatusTersediaTersediaTersediaTersedia
Spesifikasi Teknis
Image Sensor• Image Sensor: 1/1.8" progressive scan CMOS Min. Illumination: • Color: 0.002 Lux @(F1.5, AGC ON) • B/W: 0.0002 Lux @(F1.5, AGC ON) • 0 Lux with IR • White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp Shutter Time: • 50Hz: 1/1 s to 1/30,000 s • 60Hz: 1/1 s to 1/30,000 s • Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus • WDR: 120 dB WDR—• Image Sensor: [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS Min. Illumination: • [Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); • [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR • Shutter Speed: 1 s to 1/30000 s • Slow Shutter: Yes • Wide Dynamic Range (WDR): [Panoramic channel] no, [PTZ channel] 120 dB • SNR: ≥ 55 dB • Defog: [Panoramic channel]: no; [PTZ channel]: optical defog • Image Stabilization: EIS • Image Enhancement: BLC, HLC, 3D DNRImage Sensor: • [Panoramic channel] Six sensors, 1/1.8" progressive scan CMOS • [PTZ channel] 1/1.8" progressive scan CMOS Min. Illumination: • [Panoramic channel] Color: 0.0005 Lux @(F1.6, AGC ON), B/W: 0.0001 Lux @(F1.6, AGC ON) • [PTZ channel] Color: 0.0005 Lux @(F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2, AGC ON), 0 Lux with IR • Shutter Speed: 1 s to 1/30,000 s • Slow Shutter: Yes • Wide Dynamic Range (WDR): 120 dB • SNR: ≥52dB • Defog: Optical defog • Image Stabilization: EIS • Image Enhancement: BLC, HLC, 3D DNR
Resolution• Max. Resolution: 1920 × 1080 Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Main Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)—• Max. Resolution: [Panoramic channel] 5520 × 2400, [PTZ channel] 2560 × 1440 Main Stream: • [Panoramic channel]: • 50 Hz: 25 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) • 60 Hz: 30 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) • [PTZ channel]: • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • [Panoramic channel]: • 50 Hz: 25 fps (3072 × 1280, 1560 × 656, 704 × 320) • 60 Hz: 30 fps (3072 × 1280, 1560 × 656, 704 × 320) • [PTZ channel]: • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • [Panoramic channel]: no • [PTZ channel]: • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)Main Stream: • [Panoramic channel] 50Hz: 25fps (8160 × 2400, 6120 × 1800, 5760 × 1696, 3840 × 1080) • [Panoramic channel] 60Hz: 30fps (8160 × 2400, 6120 × 1800, 5760 × 1696, 3840 × 1080) • [PTZ channel] 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) • [PTZ channel] 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • [Panoramic channel] 50Hz: 25fps (2048 × 600, 1280 × 376) • [Panoramic channel] 60Hz: 30fps (2048 × 600, 1280 × 376) • [PTZ channel] 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • [PTZ channel] 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • [Panoramic channel] 50Hz: 25fps (4096 × 1200, 3840 × 1080, 2048 × 600, 1280 × 376) • [Panoramic channel] 60Hz: 30fps (4096 × 1200, 3840 × 1080, 2048 × 600, 1280 × 376) • [PTZ channel] 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • [PTZ channel] 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Lens• Digital Zoom: 16× • Focus Mode: Auto/Semi-automatic/Manual FOV: • Horizontal field of view: 59.8° to 2.0° (wide-tele) • Vertical field of view: 35° to 1.1° (wide-tele) • Diagonal field of view: 66.2° to 2.3° (wide-tele) • Zoom Speed: Approx. 4.4 s (optical lens, wide-tele) • Working Distance: 10 mm to 1500 mm (wide-tele) • Aperture Range: F1.5 to F4.5 • Focal Length: 5.7 mm to 205 mm, 36× optical zoom—• Zoom: [PTZ channel] 40x optical, 16x digital • Focal Length: [Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm • FOV: Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0° • Focus: Auto, semi-auto, manual, rapid focus • Aperture: Max. F1.0 • Zoom Speed: [PTZ channel] Approx. 5.6 s• Zoom: [PTZ channel] 40 × optical, 16 × digital Focal Length: • [Panoramic channel] 2.8 mm • [PTZ channel] 6.0 to 240 mm FOV: • [Panoramic channel] Horizontal field of view: 270°, Vertical field of view: 85° • [PTZ channel] Horizontal field of view: 56.6° to 1.8° (Wide-Tele) • [PTZ channel] Vertical field of view: 33.7° to 1.0° (Wide-Tele) • [PTZ channel] Diagonal field of view: 63.4° to 2.0° (Wide-Tele) • Aperture: F1.2 • Zoom Speed: Approx. 4.4 s
PTZ• Movement Range (Pan): 360° endless Pan Speed: • Configurable, from 0.1°/s to 50°/s, • Preset speed: 50°/s • Movement Range (Tilt): From -90° to 90° (auto-flip) Tilt Speed: • Configurable, from 0.1°/s to 40°/s • Preset Speed: 40°/s • Proportional Zoom: Support • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Power-off Memory: Support • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • 3D Positioning: Support • PTZ Status Display: Support • Preset Freezing: Support • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output—• Movement Range (Pan): 360° • Movement Range (Tilt): -15° to 90° (auto flip) • Pan Speed: configurable from 0.1° to 210°/s; preset speed: 240°/s • Tilt Speed: configurable from 0.1° to 150°/s, preset speed 200°/s • Proportional Pan: [Panoramic channel]: no; [PTZ channel]: yes • Presets: 300 • Preset Freezing: Yes • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan • 3D Positioning: Yes • PTZ Status Display: Yes • Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output • Power-off Memory: Yes• Movement Range (Pan): 360° endless • Movement Range (Tilt): -15° to 90° (Auto Flip) • Pan Speed: Pan Manual Speed: 0.1°/s to 210°/s (Configurable), Pan Preset Speed: 240°/s • Tilt Speed: Tilt Manual Speed: 0.1°/s to 150°/s (Configurable), Tilt Preset Speed: 200°/s • Proportional Pan: Yes • Presets: 300 • Preset Freezing: Yes • Patrol Scan: 8 patrols • Pattern Scan: 4 patterns • Park Action: Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan • 3D Positioning: Yes • PTZ Status Display: Yes • Scheduled Task: Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/ Dome Reboot/ Dome Adjust/ Aux Output • Power-off Memory: Yes
Night Vision• IR Distance: 150 m • Smart IR: Support • Day & Night: IR Cut Filter—• Supplement Light Type: IR • Supplement Light Range: Up to 250 m • Smart Supplement Light: Yes • Day & Night: IR cut filter • Day/Night Switch: Day, night, auto, scheduled-switch• Supplement Light Type: IR • Supplement Light Range: 250 m • Smart Supplement Light: Yes
Video Compression• H.264+: Support • H.265+: Support • H.264 Type: Baseline Profile/Main Profile/High Profile Video Compression: • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third Stream: H.265/H.264/MJPEG • H.265 Type: Main Profile • Video Bitrate: 32 Kbps to 16384 Kbps • SVC: Support—Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264/MJPEGVideo Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264/MJPEG • Third Stream: H.265/H.264 • H.264 Type: Baseline Profile/Main Profile/High Profile • Scalable Video Coding (SVC): H.264 and H.265 encoding
Audio• Audio Input: 1-ch audio input • Audio Output: 1-ch audio output • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM • Audio Bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps (MP2L2)—• Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM • Audio Sampling Rate: PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω• Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM • Audio Sampling Rate: MP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz, PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz Audio: • 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, • 1 audio output, line level, impedance: 600 Ω
Smart Detection• Basic Event Detection: Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception • Smart Detection: Face Detection, Audio Exception Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection • Smart Record: Dual-VCA • ROI: Main stream, sub-stream, and third stream respectively support four fixed areas. • Alarm Linkage: Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc.—• Smart Event: Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) • Smart Tracking: Manual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes Face Capture: • Detects up to 30 faces simultaneously, • Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture • People Density: Supports detecting the level of people density in the configured area • Congestion Alarm: YesSmart Event: • [Panoramic channel] Intrusion detection, line crossing detection, region entrance detection, region exiting detection • [PTZ channel] Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection • Alarm Linkage: Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP • Smart Tracking: Manual Tracking; Panoramic Tracking; Event Tracking; support patrol tracking in multiple scenes • Face Capture: [PTZ Channel] Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face • People Density: [Panoramic Channel] Support detecting the level of people density in the configured area • Region of Interest (ROI): Yes
StorageNetwork Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS)Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR• On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB • Network Storage: NAS (NFS, SMB/CIFS), ANR• On-board Storage: Built-in microSD slot, support microSD/microSDHC/microSDXC cards, up to 256 GB • Network Storage: NAS (NFS, SMB/CIFS)
Connectivity• BNC: 1.0V [p-p]/75 Ω, NTSC (or PAL) composite • Alarm Output: 2-ch alarm output • Alarm Input: 7-ch alarm input • Network Interface: 1 RJ45 10 M/100 M Ethernet • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform • Simultaneous Live View: Up to 20 channels User/Host: • Up to 32 users • 3 levels: Administrator, Operator and User • Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect • Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filteringProtocols: • IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, • RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour User/Host: • Up to 32 users. • 3 levels: Administrator, Operator and User• Ethernet Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port • Alarm: 7 alarm inputs, 2 alarm outputs • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • Simultaneous Live View: Up to 20 channels • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP • User/Host: Up to 32 users. 3 user levels: administrator, operator, and user • Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter • Client: iVMS-4200, HikCentral Pro, Hik-Connect • Web Browser: IE10-11, Chrome 57+, Firefox 52+, Safari 12+• Ethernet Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port • Alarm: 7-ch alarm input, 2-ch alarm output • RS-485: Half duplex, HIKVISION, Pelco-P and Pelco-D self-adaptive • Protocols: TCP/IP, IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • Simultaneous Live View: 20 • API: Open-ended API, ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Third-party management platform, ISUP • User/Host: 32 • Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter • Client: iVMS-4200 • Web Browser: IE 8+
PowerPower: • 100 VAC to 240 VAC • Max.: 100 W (Max. 15 W for IR)—Power: 36 VDC, max. 135 W (including max. 12 W for IR)Power: 36 VDC, max. 150 W; Hi-POE, max. 75 W
Protection• Material: SUS316L • Protection Level: IP68 Standard, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection • Working Temperature: -40°C to 60°C (-40°F to 140°F) • Working Humidity: ≤ 90%—• Protection: IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10 • Material: ADC12 • Operating Condition: -40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)• Protection: IP66 Standard, IK10, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection • Material: ADC12 • Operating Condition: -40°C to 70°C (-40°F to 158°F). Humidity 95% or less (non-condensing)
Dimensions445 mm × 245 mm × 510 mm (17.52" × 9.65" × 20.08")—Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")Ø 391.8mm × 400.5mm (Ø 15.43"×15.77")
WeightApprox. 36.7 kg (80.91 lb)—Approx. 18 kg (39.68 lb.)Approx. 18 kg (39.68 lb)
