Beranda CCTVHikvision Smart IP Dome Camera DS-2CD3121G0-I - 2 MP, 1/2.7" CMOS, IR 40 m

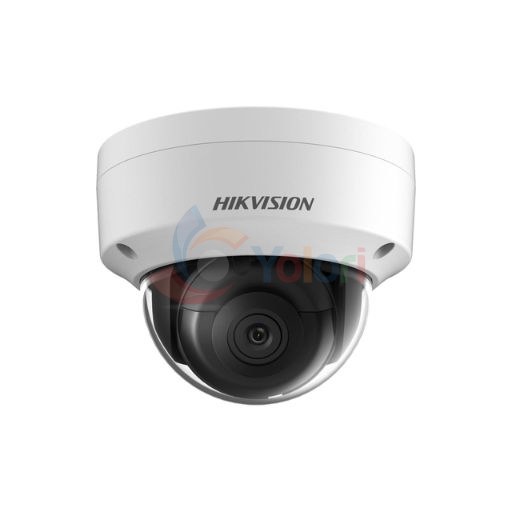

Hikvision Smart IP Dome Camera DS-2CD3121G0-I - 2 MP, 1/2.7" CMOS, IR 40 m — gambar 1

1 / 2

Tentang merek· Smart IP Dome Camera

CCTVBaruSKU: DS-2CD3121G0-I

Hikvision Smart IP Dome Camera DS-2CD3121G0-I - 2 MP, 1/2.7" CMOS, IR 40 m

Name: Hikvision Smart IP Dome Camera DS-2CD3121G0-I - 2 MP, 1/2.7" CMOS, IR 40 m
Brand: Hikvision
SKU: DS-2CD3121G0-I
Price: 1639000 IDR
Availability: InStock

Rp 1.639.000

Hikvision Smart IP Dome Camera DS-2CD3121G0-I adalah kamera dome IP 2 MP berperingkat IK10, yang berarti principal menjamin bodinya menahan benturan, dengan bodi IP67 dan inframerah 40 meter. Sensornya CMOS 1/2.7 inci bukaan F1,6, lensa 2,8 atau 4 mm, dan konsumsi daya 5 watt pada 12 VDC. Kamera tidak punya mikrofon, jalur audio, maupun slot kartu memori, dan analitiknya hanya lintas garis dan penyusupan.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|12 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Bentuk dome membuat arah lensa sulit ditebak dari bawah, dan kubah plastiknya melindungi mekanisme dari tangan yang iseng. DS-2CD3121G0-I memadukan itu dengan peringkat IK10, yang berarti principal menjamin bodinya menahan benturan — berguna di koridor sekolah, lorong kos, atau area yang tidak selalu terawasi. Sensor CMOS 1/2.7 inci merekam 1920 × 1080 dengan iluminasi minimum 0,005 lux pada bukaan F1.6. Lensanya tetap pada 2,8 atau 4 mm dengan dudukan M12. Pada 4 mm, angka DORI principal menyebut deteksi sampai 53 meter dan identifikasi 6 meter. Kompresi H.265+ berjalan di tiga aliran dengan laju bit 32 Kbps sampai 8 Mbps. Sudut pemasangannya dapat diatur memutar 355 derajat dan miring sampai 75 derajat. Bodinya logam dan plastik dengan bobot 497 gram, konsumsi 5 watt pada 12 VDC atau 6,5 watt lewat PoE. Kamera ini tidak punya mikrofon, jalur audio, maupun slot kartu memori: rekamannya bisu dan harus ditampung NVR atau NAS. Analitiknya hanya lintas garis dan penyusupan. Antarmuka ONVIF-nya disebut tanpa rincian profil, sehingga kecocokan dengan perekam merek lain perlu diuji sebelum dipasang dalam jumlah banyak.

Garansi

Warranty Months: 12
Warranty Type: Hikvision Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

Camera Type: Type: Fixed Dome Network Camera Signal: IP
Image Sensor: Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Resolution: Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360)
Lens: Focal Length & FOV: • 2.8 mm Horizontal FOV: 111.6° Vertical FOV: 59.3° Diagonal FOV: 133.9° • 4 mm Horizontal FOV: 91.5° Vertical FOV: 46.1° Diagonal FOV: 109.8° Aperture: F1.6 Lens Mount: M12 DORI: • 2.8 mm D: 43 m O: 17 m R: 9 m I: 5 m • 4 mm D: 53 m O: 21 m R: 11 m I: 6 m
Night Vision: Smart Supplement Light: Yes Day/Night Switch: Day, Night, Auto, Schedule
Video Compression: Video Compression: • Main stream: H.265/H.264/H.265+/H.264+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile
Smart Detection: Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Perimeter Protection: Line crossing, intrusion Region of Interest (ROI): 1 fixed region for main stream
Connectivity: Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, ONVIF API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels
Power: Power: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Protection: Protection: IP67 (IEC 60529-2013); IK10 (IEC 62262:2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) Material: Metal & Plastic
Dimensions: Dimension: Ø 110.8 mm × 84.7 mm (4.4" × 3.3") Package Dimension: 135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3")
Weight: Weight: Approx. 497 g (1.1 lb.) With Package Weight: Approx. 597 g (1.3 lb.)

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Tampilkan hanya yang berbeda

4 produk · geser untuk melihat lainnya

	Sedang dilihatHikvisionHikvision Smart IP Dome Camera DS-2CD3121G0-I - 2 MP, 1/2.7" CMOS, IR 40 m	Sedang dilihatHikvisionHikvision Smart IP Bullet Camera DS-2CD3021G0-I - 2 MP, 1/2.8" CMOS, IR 40 m	Sedang dilihatHikvisionHikvision Smart IP Turret Camera DS-2CD3327G0E-LUF - 2 MP, 1/2.8" CMOS, White Light 30 m	Sedang dilihatHikvisionHikvision Smart IP Bullet Camera DS-2CD3051G0-I - 5 MP, 1/2.7" CMOS, IR 40 m
Harga	Rp 1.639.000	Rp 1.489.000	Rp 2.209.000	Rp 2.349.000
Garansi
Warranty Months	12	12	12	12
Warranty Type	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty
Jaminan
Stock Status	Tersedia	Tersedia	Tersedia	Tersedia
Spesifikasi Teknis
Camera Type	Type: Fixed Dome Network Camera Signal: IP	Type: IR Fixed Network Bullet Camera Signal: IP	—	Type: IR Fixed Network Bullet Camera Signal: IP
Image Sensor	Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR	Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON) Wide Dynamic Range: DWDR	Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light Wide Dynamic Range (WDR): 130 dB	Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON) Wide Dynamic Range: 120 dB
Resolution	Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360)	Max. Resolution: 1920 × 1080 Main Stream Max. Frame Rate: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)	Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360)	Max. Resolution: 2560 × 1920 Main Stream: • 50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) • 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) Sub Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Lens	Focal Length & FOV: • 2.8 mm Horizontal FOV: 111.6° Vertical FOV: 59.3° Diagonal FOV: 133.9° • 4 mm Horizontal FOV: 91.5° Vertical FOV: 46.1° Diagonal FOV: 109.8° Aperture: F1.6 Lens Mount: M12 DORI: • 2.8 mm D: 43 m O: 17 m R: 9 m I: 5 m • 4 mm D: 53 m O: 21 m R: 11 m I: 6 m	Focal Length: 2.8 mm, 4 mm, 6 mm Aperture: F2.0 Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 114.8° Vertical FOV: 62° Diagonal FOV: 135.5° • 4 mm Horizontal FOV: 86° Vertical FOV: 46.5° Diagonal FOV: 102.5° • 6 mm Horizontal FOV: 54° Vertical FOV: 30° Diagonal FOV: 62° Lens Mount: M12	Focal Length & FOV: • 2.8 mm Horizontal FOV: 105.2° Vertical FOV: 56.5° Diagonal FOV: 125.1° • 4 mm Horizontal FOV: 83.6° Vertical FOV: 46.2° Diagonal FOV: 97.5° Lens Mount: M12 Focus: Fixed Aperture: F1.0 DORI: • 2.8 mm D: 44.1 m O: 17.5 m R: 8.8 m I: 4.4 m • 4 mm D: 53.4 m O: 21.2 m R: 10.7 m I: 5.3 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°	Focal Length: 2.8/4/6 mm Aperture: F2.0 Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 100° Vertical FOV: 74° Diagonal FOV: 130° • 4 mm Horizontal FOV: 75° Vertical FOV: 55° Diagonal FOV: 98° • 6 mm Horizontal FOV: 49° Vertical FOV: 37° Diagonal FOV: 60°
Night Vision	Smart Supplement Light: Yes Day/Night Switch: Day, Night, Auto, Schedule	IR Range: Up to 40 m Wavelength: 850 nm Day & Night: IR cut filter	Supplement Light Range: Up to 30 m Smart Supplement Light: Yes Day/Night Switch: Day, Night, Auto, Schedule	Day & Night: IR Cut Filter Digital Noise Reduction: 3D DNR
Video Compression	Video Compression: • Main stream: H.265/H.264/H.265+/H.264+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile	Video Compression: • Main stream: H.265/H.264 • Sub stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Main Profile/High Profile/Baseline Profile H.265 Type: Main Profile	Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile	Video Compression: • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supports
Audio	—	—	Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes	—
Smart Detection	Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Perimeter Protection: Line crossing, intrusion Region of Interest (ROI): 1 fixed region for main stream	Behavior Analysis: Line crossing detection, intrusion detection Region of Interest: 1 fixed region for main stream Alarm Trigger: Motion detection, video tampering alarm, illegal login	Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Region of Interest (ROI): 1 fixed region for main stream Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture	Behavior Analysis: Line crossing detection, intrusion detection Region of Interest: Support 1 fixed region for main stream and sub-stream Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
Storage	—	—	On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB	Network Storage: NAS (NFS, SMB/CIFS)
Connectivity	Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, ONVIF API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels	Communication Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP API: ONVIF (PROFILE S), ISAPI Simultaneous Live View: Up to 6 channels	Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels Reset Key: Yes	Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x API: ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View: Up to 6 channels
Power	Power: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W	Power Consumption and Current: • 12 VDC, 0.3 A, max. 3.5 W • PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.5 W	Power: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W	Power Supply: 12 VDC ± 25% PoE: 802.3af, 36 to 57 V, 0.2 A to 0.1 A, max. 6.5 W
Protection	Protection: IP67 (IEC 60529-2013); IK10 (IEC 62262:2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) Material: Metal & Plastic	Protection Level: IP67 Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Front cover: metal, back cover & bracket: plastic	Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)	Protection Level: IP67 Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) Material: Front cover: metal, bracket: plastic, camera body: plastic
Dimensions	Dimension: Ø 110.8 mm × 84.7 mm (4.4" × 3.3") Package Dimension: 135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3")	Dimensions: • Camera: Ø 70 mm × 172.7 mm (2.8" × 6.8") • With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")	Dimension: Ø109.9 mm × 103.6 mm (Ø4.33" × 4.08") Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")	Dimensions: • Camera: Ø 70 mm × 172.7 mm (2.7" × 6.8") • With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight	Weight: Approx. 497 g (1.1 lb.) With Package Weight: Approx. 597 g (1.3 lb.)	Weight: • Camera: Approx. 270 g (0.6 lb.) • With package: Approx. 510 g (1.1 lb.)	Weight: Approx. 370 g (0.82 lb.) With Package Weight: Approx. 600 g (1.32 lb.)	Weight: • Camera: 300 g (0.7 lb) • With package: 550 g (1.2 lb)
