Tentang merek· Smart IP Dome CameraCCTVBaruSKU: DS-2CD3145G0-IS

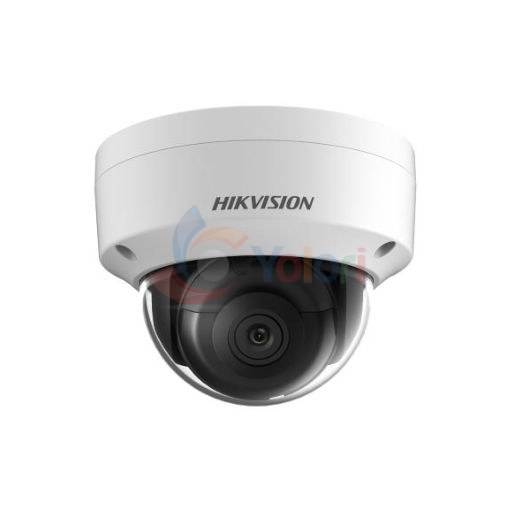

Hikvision Smart IP Dome Camera DS-2CD3145G0-IS - 4 MP, 1/2.5" CMOS, IR 40 m
Rp 3.829.000
Hikvision Smart IP Dome Camera DS-2CD3145G0-IS adalah kamera dome IP 4 MP dengan sensor CMOS 1/2.5 inci dan iluminasi minimum 0,008 lux pada F1,2, sehingga gambar bertahan berwarna lebih lama di ruang berlampu redup. Resolusinya 2688 × 1520 dengan rentang dinamis 120 dB, inframerah 40 meter, masukan audio line in atau mikrofon, keluaran audio, alarm masuk dan keluar, serta kartu memori sampai 128 GB. Analitiknya tanpa klasifikasi manusia dan kendaraan.
Dijual oleh
Yolori Mall
4.4 / 7 ulasan|12 produk terjual
DokumenFaktur pajak diterbitkan untuk pembelian ini
Sensor 1/2.5 inci pada DS-2CD3145G0-IS memberi iluminasi minimum 0,008 lux pada bukaan F1.2. Pada ruang berlampu redup atau teras malam, kamera ini bertahan berwarna lebih lama sebelum beralih ke hitam putih. Resolusinya 2688 × 1520 pada 25 sampai 30 bingkai per detik, dengan rentang dinamis 120 dB. Lensanya tetap pada pilihan 2,8, 4, atau 6 mm dengan bukaan F1.6 dan dudukan M12. Inframerahnya menjangkau 40 meter pada 850 nm. Jalur audio masuk menerima line in maupun mikrofon, dengan satu keluaran audio, dan alarm in/out tersedia lewat terminal blok dengan batas 12 VDC 30 mA. Slot kartu menampung sampai 128 GB dengan ANR. Bingkai kameranya logam dengan kubah plastik, bobot 500 gram, konsumsi 5,5 watt pada 12 VDC atau 7 watt lewat PoE. Kapasitas kartunya 128 GB, jadi rekaman 4 MP hanya bertahan beberapa hari sebelum tertimpa. Analitiknya juga tingkat G0 — lintas garis, penyusupan, barang tertinggal, dan barang hilang — tanpa klasifikasi manusia dan kendaraan. ONVIF-nya Profile S dan Profile G saja.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Camera Type
- Type: IR Fixed Dome Network Camera Signal: IP
- Image Sensor
- Image Sensor: 1/2.5" Progressive Scan CMOS Min. Illumination: • Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR • Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR Wide Dynamic Range: 120 dB
- Resolution
- Max. Resolution: 2688 × 1520 Main Stream: • 50 Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) • 60 Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) • 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) Third Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) • 60 Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
- Lens
- Focal Length: 2.8, 4, 6 mm Aperture: F1.6 Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 109° Vertical FOV: 60° Diagonal FOV: 131° • 4 mm Horizontal FOV: 88° Vertical FOV: 46° Diagonal FOV: 105° • 6 mm Horizontal FOV: 53° Vertical FOV: 30° Diagonal FOV: 61° Lens Mount: M12
- Night Vision
- IR Range: Up to 40 m Wavelength: 850 nm Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in
- Video Compression
- Video Compression: • Main stream: H.265/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile
- Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Audio Interface: 1 input (line in/microphone), 1 output (line out), terminal block, mono sound
- Smart Detection
- Behavior Analysis: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection Alarm Interface: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Storage
- On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB Network Storage: microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Connectivity
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Video Output: No Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS API: ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View: Up to 6 channels
- Power
- Power Supply: 12 VDC ± 25%, Ø 5.5 mm coaxial power plug; PoE (802.3af, class 3) Power Consumption and Current: • 12 VDC, 0.5 A, max. 5.5 W • PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
- Protection
- Protection: IP67, IK10 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) Material: Camera frame: metal, bubble: plastic
- Dimensions
- Camera Dimension: Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2") Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
- Weight
- Camera Weight: 500 g (1.1 lb.)
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
4 produk · geser untuk melihat lainnya
| Sedang dilihatHikvisionHikvision Smart IP Dome Camera DS-2CD3145G0-IS - 4 MP, 1/2.5" CMOS, IR 40 m |  Sedang dilihatHikvisionHikvision Smart IP Bullet Camera DS-2CD3T43G2-4IS - 4 MP, 1/2.9" CMOS, IR 90 m |  Sedang dilihatHikvisionHikvision Smart IP Turret Camera DS-2CD3326G2-ISU/SL - 2 MP, 1/2.8" CMOS, IR 30 m |  Sedang dilihatHikvisionHikvision Smart IP Bullet Camera DS-2CD3T23G2-4IS - 2 MP, 1/2.7" CMOS, IR 90 m | |
|---|---|---|---|---|
| Harga | Rp 3.829.000 | Rp 3.829.000 | Rp 3.859.000 | Rp 3.709.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Camera Type | Type: IR Fixed Dome Network Camera Signal: IP | — | — | — |
| Image Sensor | Image Sensor: 1/2.5" Progressive Scan CMOS Min. Illumination: • Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR • Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR Wide Dynamic Range: 120 dB | Image Sensor: 1/2.9" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB | Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB | Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB |
| Resolution | Max. Resolution: 2688 × 1520 Main Stream: • 50 Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) • 60 Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) • 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) Third Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) • 60 Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240) | Max. Resolution: 2688 × 1520 Main Stream: • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) | Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) |
| Lens | Focal Length: 2.8, 4, 6 mm Aperture: F1.6 Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 109° Vertical FOV: 60° Diagonal FOV: 131° • 4 mm Horizontal FOV: 88° Vertical FOV: 46° Diagonal FOV: 105° • 6 mm Horizontal FOV: 53° Vertical FOV: 30° Diagonal FOV: 61° Lens Mount: M12 | Lens Type: Fixed lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 103.6° Vertical FOV: 57.2° Diagonal FOV: 121.6° • 4 mm Horizontal FOV: 83.5° Vertical FOV: 44.8° Diagonal FOV: 99.9° • 6 mm Horizontal FOV: 51.8° Vertical FOV: 27.9° Diagonal FOV: 60.5° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 Depth of Field: • 2.8 mm 1.4 m to ∞ • 4 mm 1.5 m to ∞ • 6 mm 3.5 m to ∞ DORI: • 2.8 mm D: 63 m O: 25 m R: 12 m I: 6 m • 4 mm D: 78 m O: 31 m R: 15 m I: 7 m • 6 mm D: 128 m O: 50 m R: 25 m I: 12 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 107° Vertical FOV: 57° Diagonal FOV: 129° • 4 mm Horizontal FOV: 86° Vertical FOV: 47° Diagonal FOV: 102° Lens Mount: M12 Iris Type: Fixed Aperture: F1.4 Depth of Field: • 2.8 mm 1.1 m to ∞ • 4 mm 1.2 m to ∞ DORI: • 2.8 mm D: 44 m O: 17 m R: 9 m I: 4 m • 4 mm D: 53 m O: 21 m R: 11 m I: 5 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | Lens Type: Fixed lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 112° Vertical FOV: 61° Diagonal FOV: 132.4° • 4 mm Horizontal FOV: 91° Vertical FOV: 47.8° Diagonal FOV: 110.2° • 6 mm Horizontal FOV: 56° Vertical FOV: 29.8° Diagonal FOV: 65.3° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 Depth of Field: • 2.8 mm 1 m to ∞ • 4 mm 1.1 m to ∞ • 6 mm 2.8 m to ∞ DORI: • 2.8 mm D: 42 m O: 16 m R: 8 m I: 4 m • 4 mm D: 52 m O: 20 m R: 10 m I: 5 m • 6 mm D: 85 m O: 33 m R: 17 m I: 8 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Night Vision | IR Range: Up to 40 m Wavelength: 850 nm Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in | Supplement Light Type: IR Supplement Light Range: • -2ISU model: up to 60 m • -4ISU model: up to 90 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Type: IR Supplement Light Range: • -2ISU model: up to 60 m • -4ISU model: up to 90 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule |
| Video Compression | Video Compression: • Main stream: H.265/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Scalable Video Coding (SVC): H.264 and H.265 encoding Bit Rate Control: CBR, VBR | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile, Main Profile, High Profile H.265 Type: Main Profile Bit Rate Control: CBR, VBR Scalable Video Coding (SVC): H.264 and H.265 encoding | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Scalable Video Coding (SVC): H.264 and H.265 encoding Bit Rate Control: CBR, VBR |
| Audio | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Audio Interface: 1 input (line in/microphone), 1 output (line out), terminal block, mono sound | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes, 1 built-in microphone Audio: • 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium | Audio Type: Mono sound Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes Built-in Speaker: Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB Audio: • 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes, 1 built-in microphone Audio: • 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Smart Detection | Behavior Analysis: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection Alarm Interface: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 8 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)) Face Capture: Yes Region of Interest (ROI): 1 fixed region(s) for main stream and sub-stream Privacy Mask: Yes Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, strobe light Flashing Light: Yes | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 8 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| Storage | On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB Network Storage: microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported. | On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported. | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Connectivity | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Video Output: No Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS API: ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View: Up to 6 channels | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Smooth Streaming: Yes Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) Reset Key: Yes | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes |
| Power | Power Supply: 12 VDC ± 25%, Ø 5.5 mm coaxial power plug; PoE (802.3af, class 3) Power Consumption and Current: • 12 VDC, 0.5 A, max. 5.5 W • PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W | Power: • -2I: 12 VDC ± 25%, 0.58 A, max. 7.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 8.5 W • -4I: 12 VDC ± 25%, 0.83 A, max. 10 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max.11W | Power: • 12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: 802.3af, Class 3, 36 V to 57 V, 0.26 A to 0.16 A, max. 9.5 W | Power: • -2I: 12 VDC ± 25%, 0.58 A, max. 7.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 8.5 W • -4I: 12 VDC ± 25%, 0.83 A, max. 10 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max.11W |
| Protection | Protection: IP67, IK10 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) Material: Camera frame: metal, bubble: plastic | Protection: • IP67: IEC 60529-2013 • IK10: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Metal | Protection: IP67: IEC 60529-2013 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection: • IP67: IEC 60529-2013 • IK10: IEC 62262:2002 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Metal |
| Dimensions | Camera Dimension: Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2") Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") | Dimension: 89 mm × 93.1 mm × 325.7 mm (3.5" × 3.7" × 12.8") Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1") | Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") Package Dimension: 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") | Dimension: 89 mm × 93.1 mm × 325.7 mm (3.5" × 3.7" × 12.8") Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1") |
| Weight | Camera Weight: 500 g (1.1 lb.) | Weight: Approx. 1230 g (2.7 lb.) With Package Weight: Approx. 1940 g (4.3 lb.) | Weight: Approx. 780 g (1.7 lb.) With Package Weight: Approx. 1080 g (2.4 lb.) | Weight: Approx. 1230 g (2.7 lb.) With Package Weight: Approx. 1940 g (4.3 lb.) |
