Tentang merek· Smart IP Dome CameraCCTVBaruSKU: DS-2CD3151G0-I

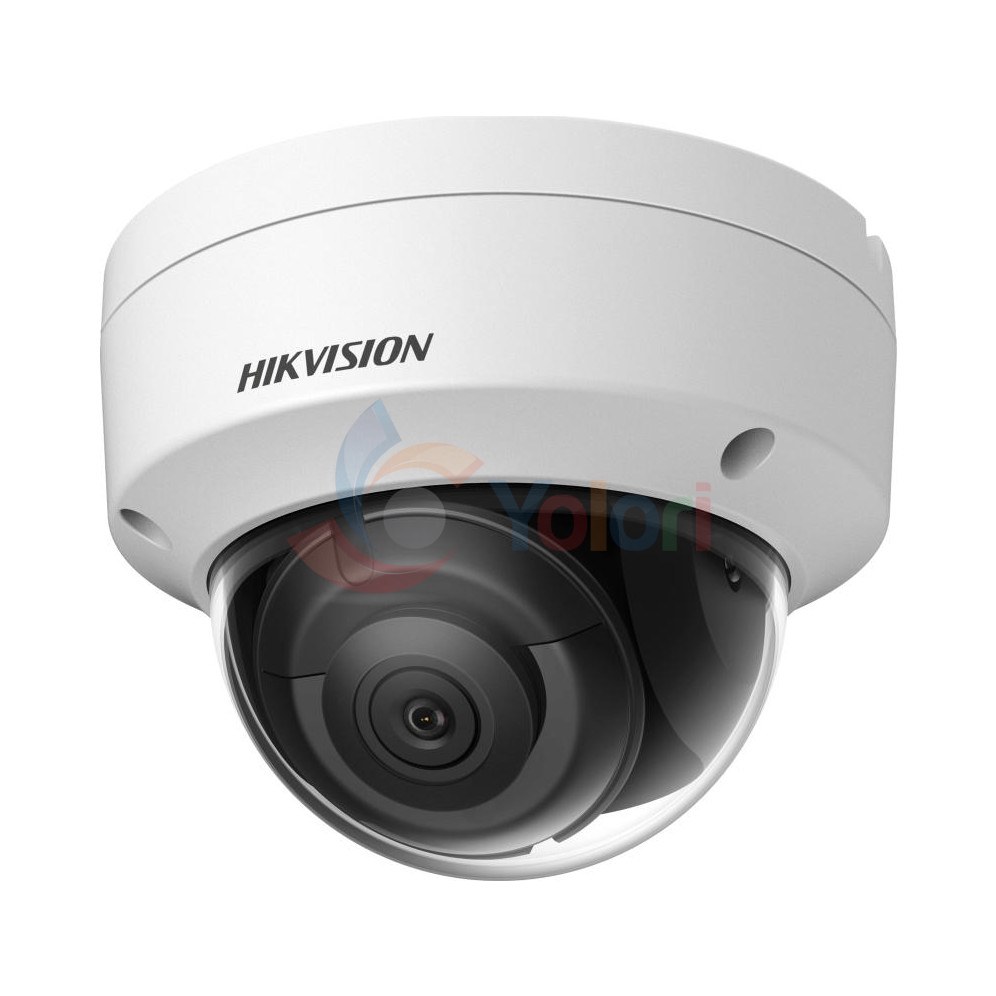

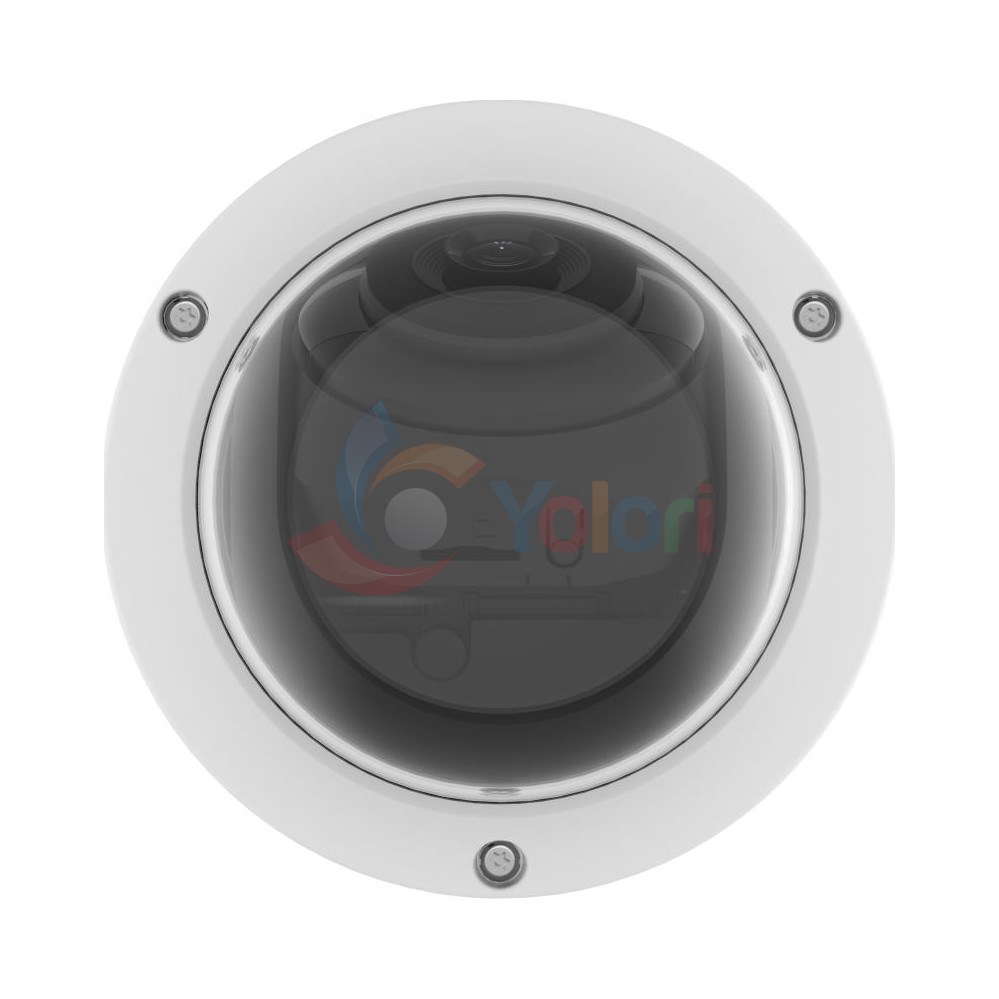

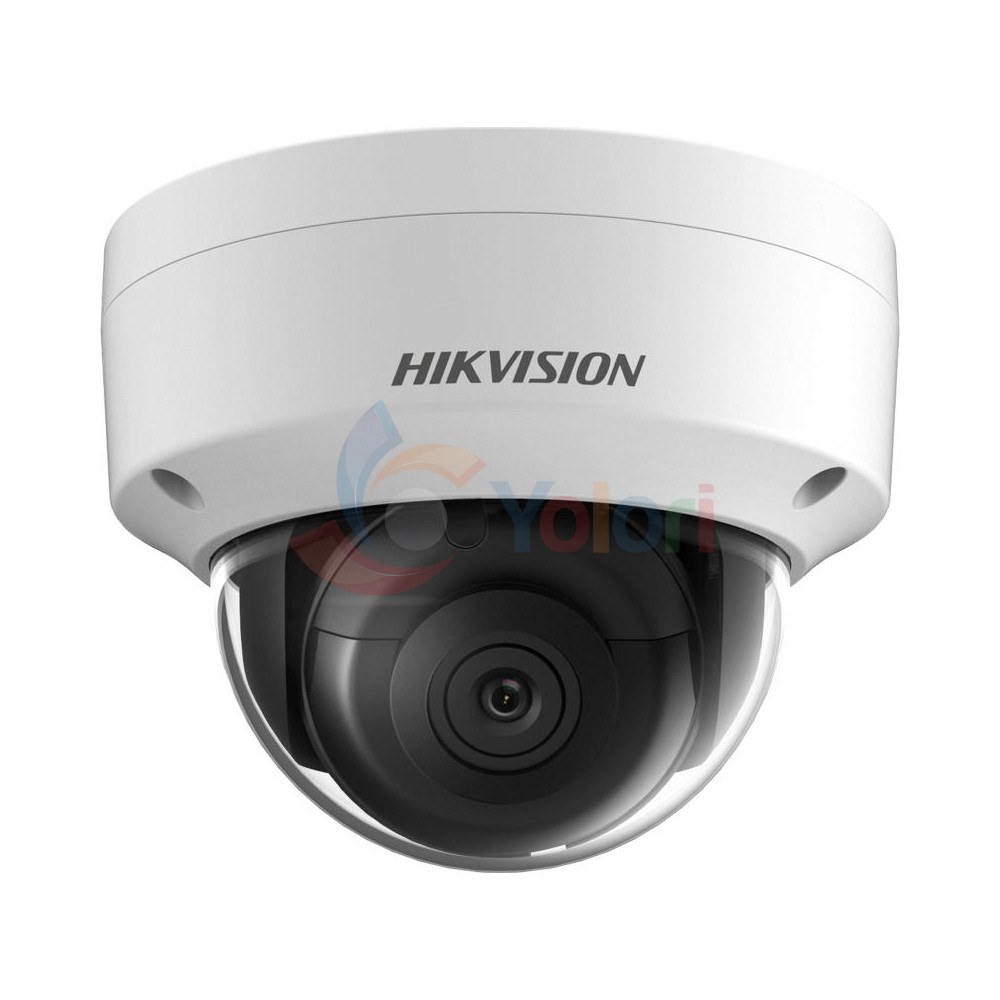

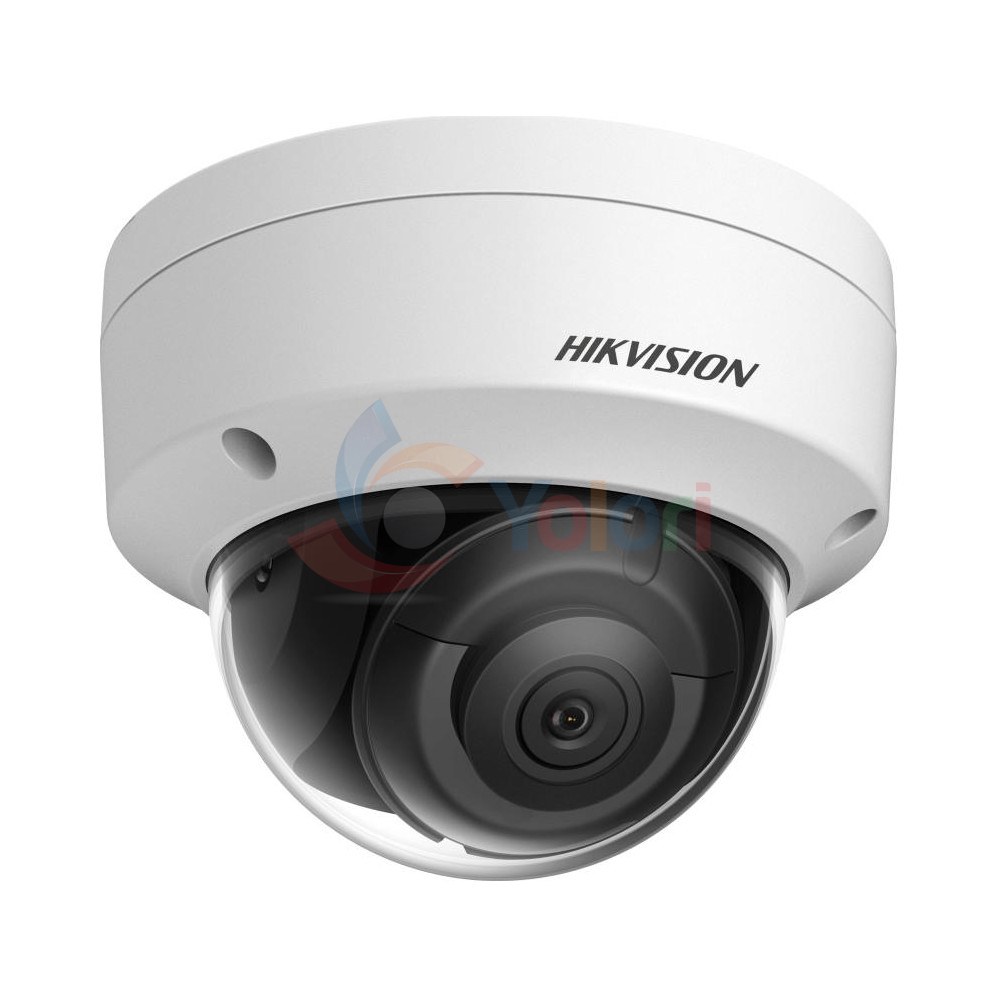

Hikvision Smart IP Dome Camera DS-2CD3151G0-I - 5 MP, 1/2.7" CMOS, IR 40 m
Rp 2.449.000
Hikvision Smart IP Dome Camera DS-2CD3151G0-I adalah kamera dome IP 5 MP dengan resolusi 2560 × 1920 berbentuk 4:3, sehingga bidang pandang tegaknya mencapai 72 derajat pada lensa 2,8 mm. Sensornya CMOS 1/2.7 inci, inframerah pintarnya menjangkau 40 meter, dan bodinya IP67 serta IK10. Tipe -I tidak membawa mikrofon, slot kartu memori, maupun I/O alarm.
Dijual oleh
Yolori Mall
4.4 / 7 ulasan|10 produk terjual
DokumenFaktur pajak diterbitkan untuk pembelian ini
Sensor CMOS 1/2.7 inci pada DS-2CD3151G0-I merekam hingga 2560 × 1920, atau sekitar lima megapiksel. Bingkainya berbentuk 4:3, sehingga bidang pandang tegaknya lebih tinggi daripada kamera 16:9: 72 derajat tegak dan 99 derajat mendatar pada lensa 2,8 mm. Bila kamera dipasang tinggi di langit-langit, lantai di bawahnya ikut masuk bingkai. Iluminasi minimumnya 0,005 lux pada F1,6 untuk gambar berwarna, dan 0 lux dengan inframerah menyala. Lensanya tetap dengan dudukan M12, dipesan pada 2,8, 4, atau 6 mm. Lensa 6 mm menyempitkan bidang pandang ke 49 derajat mendatar dan memperpanjang jangkauan deteksi DORI hingga 128 meter, jadi cocok untuk halaman atau pagar yang jauh. Inframerah pintar menjangkau 40 meter pada panjang gelombang 850 nm. Kepala dome dapat diputar 0° sampai 355°, dimiringkan 0° sampai 75°, dan dirotasi 0° sampai 355°, sehingga arah bidik bisa disetel setelah terpasang. Aliran utama berjalan pada 20 bingkai per detik di resolusi penuh dan 25 sampai 30 bingkai pada 2560 × 1440 atau lebih rendah. Kompresi H.265+ dan H.264+ menekan ukuran rekaman, dengan laju bit 32 Kbps sampai 16 Mbps. Rentang dinamis 120 dB menjaga wajah tetap terbaca saat kamera menghadap pintu kaca. Analitiknya lintas garis dan penyusupan, dengan satu area ROI tetap. Sampai enam kanal tampilan langsung dapat dibuka bersamaan, dan antarmukanya mendukung ONVIF serta ISAPI. Daya masuk lewat 12 VDC atau PoE 802.3af kelas 3, dengan konsumsi maksimum 5 watt dan 6,5 watt. Bodinya logam dan plastik, berdiameter 110,8 mm, tinggi 84,7 mm, bobot 497 gram, peringkat IP67 dan IK10, serta bekerja pada suhu -30 °C sampai 60 °C. Tipe -I ini tidak punya mikrofon, jalur audio, slot kartu memori, maupun masukan dan keluaran alarm; semuanya tertulis di datasheet hanya untuk tipe berakhiran SF. Rekaman harus ditampung perekam di luar kamera, dan hasilnya bisu. Analitiknya terbatas pada lintas garis dan penyusupan, tanpa klasifikasi manusia dan kendaraan.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Image Sensor
- Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB
- Resolution
- Max. Resolution: 2560 × 1920 Main Stream: • 50 Hz: 20 fps (2560 × 1920), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) • 60 Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360)
- Lens
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 99° Vertical FOV: 72° Diagonal FOV: 130° • 4 mm Horizontal FOV: 78° Vertical FOV: 57° Diagonal FOV: 100° • 6 mm Horizontal FOV: 49° Vertical FOV: 36° Diagonal FOV: 63° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 DORI: • 2.8 mm D: 63 m O: 25 m R: 12 m I: 6 m • 4 mm D: 79 m O: 31 m R: 15 m I: 7 m • 6 mm D: 128 m O: 50 m R: 25 m I: 12 m Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Night Vision
- Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day/Night Switch: Day, Night, Auto, Schedule
- Video Compression
- Video Compression: • Main stream: H.265/H.264/H.265+/H.264+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile
- Smart Detection
- Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Region of Interest (ROI): 1 fixed region for main stream and sub stream Linkage: -I: Upload to FTP, notify surveillance center, send email, trigger capture
- Connectivity
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels
- Power
- Power: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Protection
- Protection: • IP67 (IEC 60529-2013) • IK10 (IEC 62262: 2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Metal & Plastic
- Dimensions
- Dimension: Ø110.8 mm × 84.7 mm (4.4" × 3.3") Package Dimension: 135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3")
- Weight
- Weight: Approx. 497 g (1.1 lb.) With Package Weight: Approx. 597 g (1.3 lb.)
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatHikvisionHikvision Smart IP Dome Camera DS-2CD3151G0-I - 5 MP, 1/2.7" CMOS, IR 40 m |  HikvisionHikvision Smart IP Bullet Camera DS-2CD3027G0E-LUF - 2 MP, 1/2.8" CMOS, Lampu Putih 30 m |  HikvisionHikvision Smart IP Turret Camera DS-2CD3347G0E-LUF - 4 MP, 1/3" CMOS, White Light 30 m |  HikvisionHikvision Smart IP Bullet Camera DS-2CD3051G0-I - 5 MP, 1/2.7" CMOS, IR 40 m | |
|---|---|---|---|---|
| Harga | Rp 2.449.000 | Rp 2.479.000 | Rp 2.419.000 | Rp 2.349.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Camera Type | — | Type: ColorVu Fixed Bullet Network Camera Signal: IP | — | Type: IR Fixed Network Bullet Camera Signal: IP |
| Image Sensor | Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB | Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: 0 Lux with white light | Image Sensor: 1/3" Progressive Scan CMOS Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light Wide Dynamic Range (WDR): 130 dB | Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON) Wide Dynamic Range: 120 dB |
| Resolution | Max. Resolution: 2560 × 1920 Main Stream: • 50 Hz: 20 fps (2560 × 1920), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) • 60 Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360) | Max. Resolution: 1920 × 1080 | Max. Resolution: 2560 × 1440 Main Stream: • 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360) | Max. Resolution: 2560 × 1920 Main Stream: • 50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) • 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) Sub Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Lens | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 99° Vertical FOV: 72° Diagonal FOV: 130° • 4 mm Horizontal FOV: 78° Vertical FOV: 57° Diagonal FOV: 100° • 6 mm Horizontal FOV: 49° Vertical FOV: 36° Diagonal FOV: 63° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 DORI: • 2.8 mm D: 63 m O: 25 m R: 12 m I: 6 m • 4 mm D: 79 m O: 31 m R: 15 m I: 7 m • 6 mm D: 128 m O: 50 m R: 25 m I: 12 m Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | Focal Length & FOV: • 2.8 mm Horizontal FOV: 105.2° Vertical FOV: 56.5° Diagonal FOV: 125.1° • 4 mm Horizontal FOV: 83.6° Vertical FOV: 46.2° Diagonal FOV: 97.5° Aperture: F1.0 Lens Mount: M12 Focus: Fixed | Focal Length & FOV: • 2.8 mm Horizontal FOV: 96.5° Vertical FOV: 50.8° Diagonal FOV: 113.9° • 4 mm Horizontal FOV: 75.8° Vertical FOV: 40.8° Diagonal FOV: 89.1° Lens Mount: M12 Focus: Fixed Aperture: F1.0 DORI: • 2.8 mm D: 64.0 m O: 25.4 m R: 12.8 m I: 6.4 m • 4 mm D: 77.4 m O: 30.7 m R: 15.5 m I: 7.7 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | Focal Length: 2.8/4/6 mm Aperture: F2.0 Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 100° Vertical FOV: 74° Diagonal FOV: 130° • 4 mm Horizontal FOV: 75° Vertical FOV: 55° Diagonal FOV: 98° • 6 mm Horizontal FOV: 49° Vertical FOV: 37° Diagonal FOV: 60° |
| Night Vision | Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Range: Up to 30 m Smart Supplement Light: Yes | Supplement Light Range: Up to 30 m Smart Supplement Light: Yes Day/Night Switch: Day, Night, Auto, Schedule | Day & Night: IR Cut Filter Digital Noise Reduction: 3D DNR |
| Video Compression | Video Compression: • Main stream: H.265/H.264/H.265+/H.264+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile | Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 | Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile | Video Compression: • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supports |
| Audio | — | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Built-in Microphone: Yes | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes | — |
| Smart Detection | Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Region of Interest (ROI): 1 fixed region for main stream and sub stream Linkage: -I: Upload to FTP, notify surveillance center, send email, trigger capture | Smart Event: Line crossing detection, intrusion detection Region of Interest: 1 fixed region for main stream | Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Region of Interest (ROI): 1 fixed region for main stream Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture | Behavior Analysis: Line crossing detection, intrusion detection Region of Interest: Support 1 fixed region for main stream and sub-stream Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full |
| Storage | — | On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB | On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB | Network Storage: NAS (NFS, SMB/CIFS) |
| Connectivity | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels Reset Key: Yes | Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x API: ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View: Up to 6 channels |
| Power | Power: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W | Power: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug • PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W | Power: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W | Power Supply: 12 VDC ± 25% PoE: 802.3af, 36 to 57 V, 0.2 A to 0.1 A, max. 6.5 W |
| Protection | Protection: • IP67 (IEC 60529-2013) • IK10 (IEC 62262: 2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Metal & Plastic | Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection Level: IP67 Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) Material: Front cover: metal, bracket: plastic, camera body: plastic |
| Dimensions | Dimension: Ø110.8 mm × 84.7 mm (4.4" × 3.3") Package Dimension: 135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3") | Dimension: Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5") | Dimension: Ø109.9 mm × 103.6 mm (Ø4.33" × 4.08") Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") | Dimensions: • Camera: Ø 70 mm × 172.7 mm (2.7" × 6.8") • With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
| Weight | Weight: Approx. 497 g (1.1 lb.) With Package Weight: Approx. 597 g (1.3 lb.) | Weight: Approx. 420 g (0.93 lb.) With Package Weight: Approx. 668 g (1.47 lb.) | Weight: Approx. 390 g (0.86 lb.) With Package Weight: Approx. 620 g (1.37 lb.) | Weight: • Camera: 300 g (0.7 lb) • With package: 550 g (1.2 lb) |
