Tentang merek· Smart IP Turret CameraCCTVBaruSKU: DS-2CD3347G0E-LUF

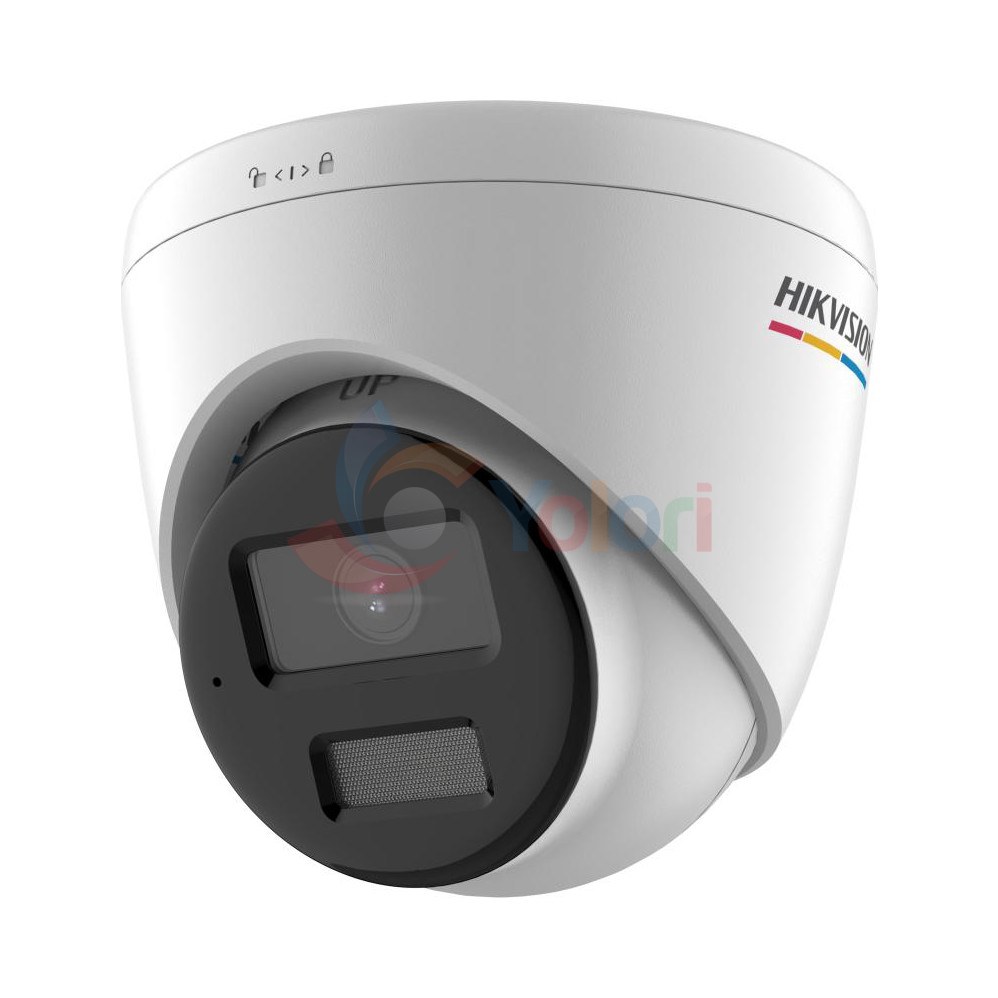

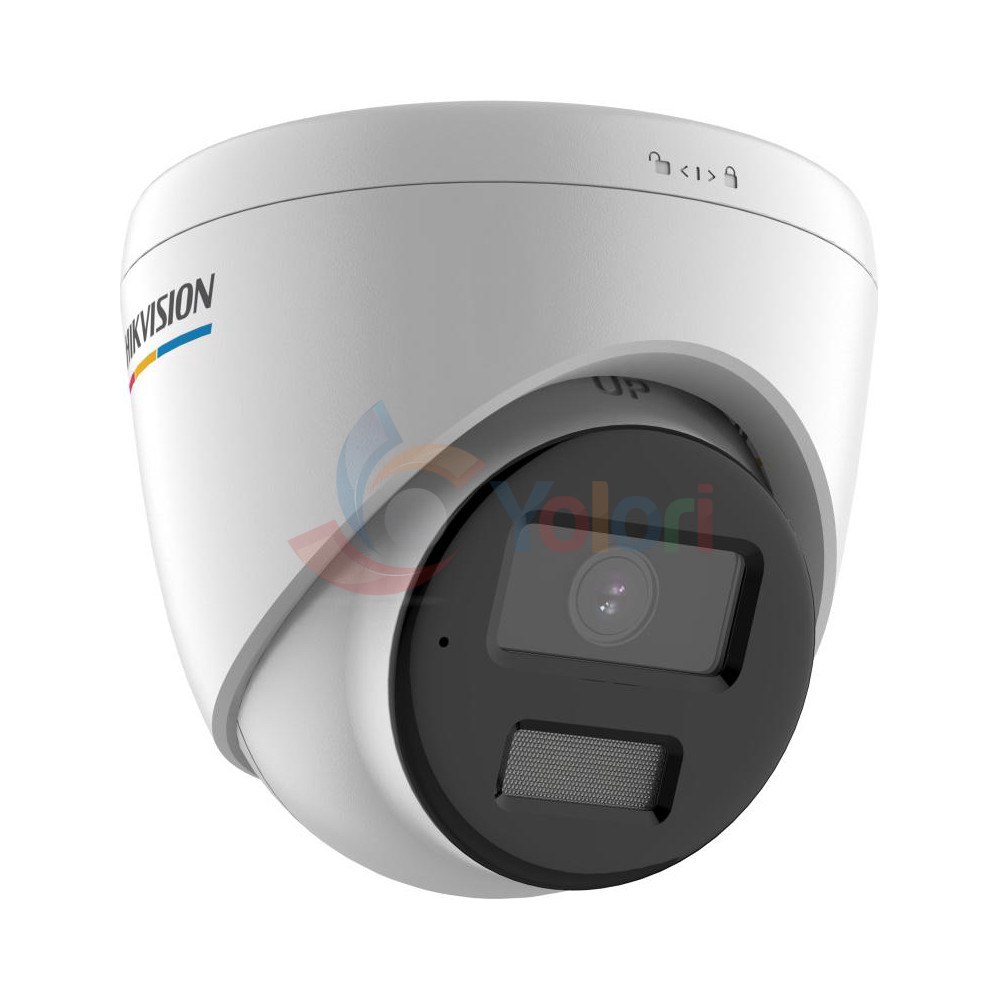

Hikvision Smart IP Turret Camera DS-2CD3347G0E-LUF - 4 MP, 1/3" CMOS, White Light 30 m
Rp 2.419.000
Hikvision Smart IP Turret Camera DS-2CD3347G0E-LUF adalah kamera turret IP 4 MP berlampu putih 30 meter yang menjaga rekaman malam tetap berwarna, dengan bukaan F1.0 dan iluminasi minimum 0,001 lux. Sensornya CMOS 1/3 inci merekam 2560 × 1440 dengan rentang dinamis 130 dB, dilengkapi mikrofon bawaan dan slot kartu sampai 256 GB. Lampu putih membuat kamera terlihat menyala di malam hari, dan analitiknya hanya lintas garis dan penyusupan.
Dijual oleh
Yolori Mall
4.4 / 7 ulasan|10 produk terjual
DokumenFaktur pajak diterbitkan untuk pembelian ini
Cahaya bantu putih pada DS-2CD3347G0E-LUF mengambil alih peran inframerah. Hasilnya rekaman malam berwarna, dan untuk penyelidikan sesudah kejadian, warna pakaian atau kendaraan menjadi keterangan yang bisa dicocokkan. Iluminasi minimumnya 0,001 lux pada F1,0, dan 0 lux ketika lampu putih menyala. Sensor CMOS 1/3 inci merekam 2560 × 1440, atau 4 megapiksel, dengan rentang dinamis 130 dB, sehingga wajah di depan jendela terang tidak menjadi siluet. Lensa tetap dengan dudukan M12, bidang pandang 96,5 derajat mendatar pada 2,8 mm dan 75,8 derajat pada 4 mm. DORI pada 4 mm adalah 77,4 meter untuk deteksi dan 7,7 meter untuk identifikasi. Jangkauan cahaya bantunya 30 meter, dan kepala turret dapat diputar 0° sampai 360°, dimiringkan 0° sampai 75°, serta dirotasi 0° sampai 360°. Aliran utama berjalan 20 bingkai per detik pada 2560 × 1440 dan 25 sampai 30 bingkai pada 1920 × 1080 atau lebih rendah, dengan kompresi H.265+, laju bit 32 Kbps sampai 8 Mbps, dan satu area ROI tetap. Mikrofon bawaan merekam suara, dan kartu memori diterima sampai 256 GB. Analitiknya lintas garis dan penyusupan. Sampai enam kanal tampilan langsung dapat dibuka bersamaan, dengan antarmuka Open Network Video Interface dan ISAPI. Daya 12 VDC dengan konsumsi maksimum 5 watt, atau PoE 802.3af kelas 3 dengan 6,5 watt. Bodi berdiameter 109,9 mm, tinggi 103,6 mm, bobot 390 gram, peringkat IP67, tahan suhu -30 °C sampai 60 °C. Lampu putih membuat kamera terlihat menyala di malam hari dan cahayanya dapat mengganggu penghuni di dekatnya. Analitiknya terbatas pada lintas garis dan penyusupan tanpa klasifikasi manusia dan kendaraan. Kamera ini tidak punya jalur audio masuk dan keluar maupun I/O alarm, profil ONVIF tidak dirinci datasheet, dan peringkat IK tidak dicantumkan.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Image Sensor
- Image Sensor: 1/3" Progressive Scan CMOS Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light Wide Dynamic Range (WDR): 130 dB
- Resolution
- Max. Resolution: 2560 × 1440 Main Stream: • 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360)
- Lens
- Focal Length & FOV: • 2.8 mm Horizontal FOV: 96.5° Vertical FOV: 50.8° Diagonal FOV: 113.9° • 4 mm Horizontal FOV: 75.8° Vertical FOV: 40.8° Diagonal FOV: 89.1° Lens Mount: M12 Focus: Fixed Aperture: F1.0 DORI: • 2.8 mm D: 64.0 m O: 25.4 m R: 12.8 m I: 6.4 m • 4 mm D: 77.4 m O: 30.7 m R: 15.5 m I: 7.7 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Night Vision
- Supplement Light Range: Up to 30 m Smart Supplement Light: Yes Day/Night Switch: Day, Night, Auto, Schedule
- Video Compression
- Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile
- Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes
- Smart Detection
- Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Region of Interest (ROI): 1 fixed region for main stream Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
- Storage
- On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
- Connectivity
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels Reset Key: Yes
- Power
- Power: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Protection
- Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Dimensions
- Dimension: Ø109.9 mm × 103.6 mm (Ø4.33" × 4.08") Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Weight
- Weight: Approx. 390 g (0.86 lb.) With Package Weight: Approx. 620 g (1.37 lb.)
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatHikvisionHikvision Smart IP Turret Camera DS-2CD3347G0E-LUF - 4 MP, 1/3" CMOS, White Light 30 m |  HikvisionHikvision Smart IP Dome Camera DS-2CD3151G0-I - 5 MP, 1/2.7" CMOS, IR 40 m |  HikvisionHikvision Smart IP Bullet Camera DS-2CD3027G0E-LUF - 2 MP, 1/2.8" CMOS, Lampu Putih 30 m |  HikvisionHikvision Smart IP Bullet Camera DS-2CD3051G0-I - 5 MP, 1/2.7" CMOS, IR 40 m | |
|---|---|---|---|---|
| Harga | Rp 2.419.000 | Rp 2.449.000 | Rp 2.479.000 | Rp 2.349.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Camera Type | — | — | Type: ColorVu Fixed Bullet Network Camera Signal: IP | Type: IR Fixed Network Bullet Camera Signal: IP |
| Image Sensor | Image Sensor: 1/3" Progressive Scan CMOS Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light Wide Dynamic Range (WDR): 130 dB | Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB | Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: 0 Lux with white light | Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON) Wide Dynamic Range: 120 dB |
| Resolution | Max. Resolution: 2560 × 1440 Main Stream: • 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360) | Max. Resolution: 2560 × 1920 Main Stream: • 50 Hz: 20 fps (2560 × 1920), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) • 60 Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360) | Max. Resolution: 1920 × 1080 | Max. Resolution: 2560 × 1920 Main Stream: • 50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) • 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) Sub Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Lens | Focal Length & FOV: • 2.8 mm Horizontal FOV: 96.5° Vertical FOV: 50.8° Diagonal FOV: 113.9° • 4 mm Horizontal FOV: 75.8° Vertical FOV: 40.8° Diagonal FOV: 89.1° Lens Mount: M12 Focus: Fixed Aperture: F1.0 DORI: • 2.8 mm D: 64.0 m O: 25.4 m R: 12.8 m I: 6.4 m • 4 mm D: 77.4 m O: 30.7 m R: 15.5 m I: 7.7 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 99° Vertical FOV: 72° Diagonal FOV: 130° • 4 mm Horizontal FOV: 78° Vertical FOV: 57° Diagonal FOV: 100° • 6 mm Horizontal FOV: 49° Vertical FOV: 36° Diagonal FOV: 63° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 DORI: • 2.8 mm D: 63 m O: 25 m R: 12 m I: 6 m • 4 mm D: 79 m O: 31 m R: 15 m I: 7 m • 6 mm D: 128 m O: 50 m R: 25 m I: 12 m Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | Focal Length & FOV: • 2.8 mm Horizontal FOV: 105.2° Vertical FOV: 56.5° Diagonal FOV: 125.1° • 4 mm Horizontal FOV: 83.6° Vertical FOV: 46.2° Diagonal FOV: 97.5° Aperture: F1.0 Lens Mount: M12 Focus: Fixed | Focal Length: 2.8/4/6 mm Aperture: F2.0 Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 100° Vertical FOV: 74° Diagonal FOV: 130° • 4 mm Horizontal FOV: 75° Vertical FOV: 55° Diagonal FOV: 98° • 6 mm Horizontal FOV: 49° Vertical FOV: 37° Diagonal FOV: 60° |
| Night Vision | Supplement Light Range: Up to 30 m Smart Supplement Light: Yes Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Range: Up to 30 m Smart Supplement Light: Yes | Day & Night: IR Cut Filter Digital Noise Reduction: 3D DNR |
| Video Compression | Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile | Video Compression: • Main stream: H.265/H.264/H.265+/H.264+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile | Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 | Video Compression: • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile H.264+: Main stream supports H.265+: Main stream supports |
| Audio | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes | — | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Built-in Microphone: Yes | — |
| Smart Detection | Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Region of Interest (ROI): 1 fixed region for main stream Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture | Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Region of Interest (ROI): 1 fixed region for main stream and sub stream Linkage: -I: Upload to FTP, notify surveillance center, send email, trigger capture | Smart Event: Line crossing detection, intrusion detection Region of Interest: 1 fixed region for main stream | Behavior Analysis: Line crossing detection, intrusion detection Region of Interest: Support 1 fixed region for main stream and sub-stream Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full |
| Storage | On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB | — | On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB | Network Storage: NAS (NFS, SMB/CIFS) |
| Connectivity | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels Reset Key: Yes | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI | Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x API: ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View: Up to 6 channels |
| Power | Power: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W | Power: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W | Power: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug • PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W | Power Supply: 12 VDC ± 25% PoE: 802.3af, 36 to 57 V, 0.2 A to 0.1 A, max. 6.5 W |
| Protection | Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection: • IP67 (IEC 60529-2013) • IK10 (IEC 62262: 2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Metal & Plastic | Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection Level: IP67 Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) Material: Front cover: metal, bracket: plastic, camera body: plastic |
| Dimensions | Dimension: Ø109.9 mm × 103.6 mm (Ø4.33" × 4.08") Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") | Dimension: Ø110.8 mm × 84.7 mm (4.4" × 3.3") Package Dimension: 135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3") | Dimension: Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5") | Dimensions: • Camera: Ø 70 mm × 172.7 mm (2.7" × 6.8") • With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
| Weight | Weight: Approx. 390 g (0.86 lb.) With Package Weight: Approx. 620 g (1.37 lb.) | Weight: Approx. 497 g (1.1 lb.) With Package Weight: Approx. 597 g (1.3 lb.) | Weight: Approx. 420 g (0.93 lb.) With Package Weight: Approx. 668 g (1.47 lb.) | Weight: • Camera: 300 g (0.7 lb) • With package: 550 g (1.2 lb) |
