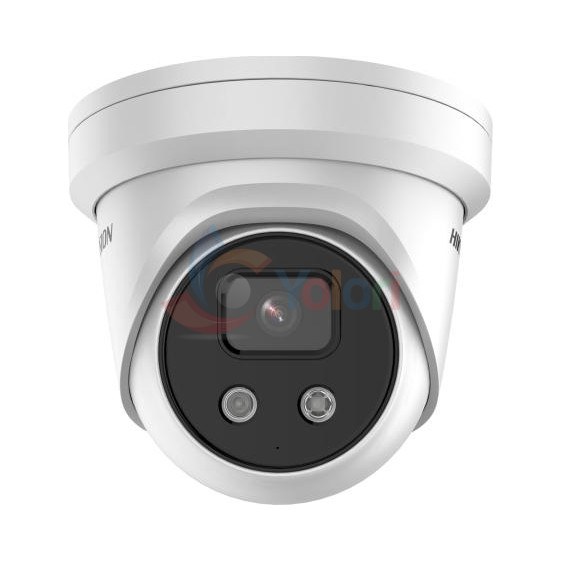

Hikvision Smart IP Dome Camera DS-2CD3543G2-IS - 4 MP, 1/2.9" CMOS, IR 30 m
Rp 4.039.000
Hikvision Smart IP Dome Camera DS-2CD3543G2-IS adalah kamera dome IP 4 MP berbodi mini setebal 72,6 mm yang merekam 2688 × 1520, kira-kira dua kali piksel kamera 2 MP, dengan alarm gerak yang dapat dibatasi pada manusia dan kendaraan. Sensornya CMOS 1/2.9 inci bukaan F1,6, inframerah pintar 30 meter, mikrofon bawaan, jalur line in dan line out, serta kartu memori sampai 512 GB. Peringkat IK tidak dicantumkan datasheet.
Dijual oleh
Yolori Mall
4.4 / 7 ulasan|10 produk terjual
DokumenFaktur pajak diterbitkan untuk pembelian ini
Sensor CMOS 1/2.9 inci merekam 2688 × 1520, atau 4 megapiksel, dengan bukaan F1,6 dan iluminasi minimum 0,005 lux untuk gambar berwarna. Pada lensa 2,8 mm bidang pandangnya 103,6 derajat mendatar dan 57,2 derajat tegak. Rentang dinamis 120 dB menjaga wajah tetap terbaca saat kamera menghadap pintu kaca, dan rasio sinyal terhadap derau di atas 52 dB menekan bintik pada gambar malam. Lensa tetap dengan dudukan M12, dipesan pada 2,8 atau 4 mm. Kedalaman medannya mulai 1,4 meter pada 2,8 mm dan 1,5 meter pada 4 mm. Pada 4 mm bidang pandangnya 83,5 derajat mendatar dan DORI-nya 78 meter untuk deteksi serta 7 meter untuk identifikasi. Inframerah pintar menjangkau 30 meter pada 850 nm. Kepala dome dapat digeser pan -30° sampai 30°, dimiringkan 0° sampai 75°, dan dirotasi 0° sampai 360°. Alarm gerak dapat dibatasi pada manusia dan kendaraan. Perlindungan perimeter mencakup lintas garis, penyusupan, serta masuk dan keluar area, dan analitik lain meliputi berkeliaran, kerumunan, orang berlari, parkir, barang tertinggal, barang hilang, serta diagnosis mutu video. Aliran utama berjalan 25 atau 30 bingkai per detik sampai 2688 × 1520, dengan laju bit 32 Kbps sampai 8 Mbps. Mikrofon bawaan merekam suara, jalur line in dan line out tersedia untuk perangkat luar, dan kartu memori diterima sampai 512 GB. Daya 12 VDC dengan konsumsi maksimum 6 watt, atau PoE 802.3af kelas 3 dengan 7 watt. Bodi dengan dasar aluminium dan penutup plastik berdiameter 113,6 mm, tinggi 72,6 mm, bobot 410 gram, peringkat IP67, tahan suhu -30 °C sampai 60 °C. Datasheet tidak mencantumkan peringkat IK, jadi ketahanan terhadap benturan tidak dijamin principal. ONVIF-nya mencakup Profile S dan G, tanpa Profile T. Tidak ada pengeras suara bawaan, dan port jaringannya 10/100 Mbps.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Image Sensor
- Image Sensor: 1/2.9" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB
- Resolution
- Max. Resolution: 2688 × 1520 Main Stream: • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Lens
- Lens Type: Fixed focal lens, 2.8, 4 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 103.6° Vertical FOV: 57.2° Diagonal FOV: 121.6° • 4 mm Horizontal FOV: 83.5° Vertical FOV: 44.8° Diagonal FOV: 99.9° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 Depth of Field: • 2.8 mm 1.4 m to ∞ • 4 mm 1.5 m to ∞ DORI: • 2.8 mm D: 63 m O: 25 m R: 12 m I: 6 m • 4 mm D: 78 m O: 31 m R: 15 m I: 7 m Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
- Night Vision
- Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule
- Video Compression
- Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Scalable Video Coding (SVC): H.264 and H.265 encoding Bit Rate Control: CBR, VBR
- Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes, 1 built-in microphone Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Smart Detection
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 8 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
- Storage
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Connectivity
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes
- Power
- Power: • 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: IEEE 802.3af, Class 3, max. 7 W
- Protection
- Protection: IP67: IEC 60529-2013 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Base: aluminum, cover: plastic
- Dimensions
- Dimension: Ø113.6 mm × 72.6 mm (Ø 4.5" × 2.9") Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
- Weight
- Weight: Approx. 410 g (0.9 lb.) With Package Weight: Approx. 645 g (1.4 lb.)
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatHikvisionHikvision Smart IP Dome Camera DS-2CD3543G2-IS - 4 MP, 1/2.9" CMOS, IR 30 m |  HikvisionHikvision Smart IP Turret Camera DS-2CD3356G2-ISU/SL - 5 MP, 1/2.7" CMOS, IR 40 m |  HikvisionHikvision Smart IP Bullet Camera DS-2CD3621G0-IZ(S) - 2 MP, 1/2.7" CMOS, IR 60 m |  HikvisionHikvision Smart IP Dome Camera DS-2CD3721G0-IZ(S) - 2 MP, 1/2.7" CMOS, IR 40 m | |
|---|---|---|---|---|
| Harga | Rp 4.039.000 | Rp 4.079.000 | Rp 4.189.000 | Rp 4.189.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Image Sensor | Image Sensor: 1/2.9" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB | Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB | Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB | Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB |
| Resolution | Max. Resolution: 2688 × 1520 Main Stream: • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) | Max. Resolution: 2592 × 1944 Main Stream: • 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) | Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360) | Max. Resolution: 1920 × 1080 Main Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 720) • 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360) |
| Lens | Lens Type: Fixed focal lens, 2.8, 4 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 103.6° Vertical FOV: 57.2° Diagonal FOV: 121.6° • 4 mm Horizontal FOV: 83.5° Vertical FOV: 44.8° Diagonal FOV: 99.9° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 Depth of Field: • 2.8 mm 1.4 m to ∞ • 4 mm 1.5 m to ∞ DORI: • 2.8 mm D: 63 m O: 25 m R: 12 m I: 6 m • 4 mm D: 78 m O: 31 m R: 15 m I: 7 m Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 98° Vertical FOV: 72° Diagonal FOV: 131° • 4 mm Horizontal FOV: 80° Vertical FOV: 58° Diagonal FOV: 104° • 6 mm Horizontal FOV: 51° Vertical FOV: 37° Diagonal FOV: 66° Lens Mount: M12 Iris Type: Fixed Aperture: F1.4 DORI: • 2.8 mm D: 64 m O: 25 m R: 12 m I: 6 m • 4 mm D: 77 m O: 30 m R: 15 m I: 7 m • 6 mm D: 126 m O: 50 m R: 25 m I: 12 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | Lens Type: Varifocal Lens, motorized lens, 2.7 to 13.5 mm Focal Length & FOV: • 2.7 to 13.5 mm Horizontal FOV: 94° to 36° Vertical FOV: 50° to 20° Diagonal FOV: 109° to 41° Lens Mount: Ø14 Iris Type: Fixed Aperture: F1.6 DORI: • Varifocal lens: Wide D: 46 m O: 18 m R: 9 m I: 4 m • Varifocal lens: Tele D: 125 m O: 49 m R: 25 m I: 12 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | Lens Type: Varifocal Lens, motorized lens, 2.7 to 13.5 mm Focal Length & FOV: • 2.7 to 13.5 mm Horizontal FOV: 98° to 38° Vertical FOV: 52° to 21° Diagonal FOV: 115° to 43° Lens Mount: Ø14 Iris Type: Fixed Aperture: F1.6 DORI: • Varifocal lens: Wide D: 44 m O: 17 m R: 8 m I: 4 m • Varifocal lens: Tele D: 133 m O: 52 m R: 26 m I: 13 m Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Night Vision | Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Type: IR Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Range: Up to 60 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day/Night Switch: Day, Night, Auto, Schedule |
| Video Compression | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Scalable Video Coding (SVC): H.264 and H.265 encoding Bit Rate Control: CBR, VBR | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): H.264 and H.265 encoding | Video Compression: • Main stream: H.265/H.264/H.265+/H.264+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile | Video Compression: • Main stream: H.265/H.264/H.265+/H.264+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile |
| Audio | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes, 1 built-in microphone Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes Built-in Speaker: Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Environment Noise Filtering: Yes Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Environment Noise Filtering: Yes Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Smart Detection | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Privacy Mask: 8 programmable polygon privacy masks Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture | Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning | Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Perimeter Protection: Line crossing, intrusion Region of Interest (ROI): 1 fixed region for main stream Linkage: • Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture • -S: Trigger alarm output | Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Perimeter Protection: Line crossing, intrusion Region of Interest (ROI): 1 fixed region for main stream Linkage: • Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture • -S: Trigger alarm output |
| Storage | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported. | On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB Network Storage: • MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported. | On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB | On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB |
| Connectivity | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key: Yes | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: • Visual alarm • 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA) Reset Key: Yes | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels Alarm: 1 input, 1 output, (max. 12 VDC, 30 mA) Reset Key: Yes | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels Alarm: 1 input, 1 output, (max. 12 VDC, 30 mA) Reset Key: Yes |
| Power | Power: • 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: IEEE 802.3af, Class 3, max. 7 W | Power: • 12 VDC ± 25%, 0.65 A, max. 7.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.8 W | Power: • 12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W | Power: • 12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.33 A to 0.21 A, max. 12 W |
| Protection | Protection: IP67: IEC 60529-2013 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Base: aluminum, cover: plastic | Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) | Protection: • IP67 (IEC 60529-2013) • IK10 (IEC 62262:2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Dimensions | Dimension: Ø113.6 mm × 72.6 mm (Ø 4.5" × 2.9") Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") | Dimension: Ø138.3 mm × 124.5 mm (Ø5.4" × 4.9") Package Dimension: 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") | Dimension: Ø105 mm × 294.5 mm (4.1" × 11.6") Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1") | Dimension: Ø153.3 mm × 111.6 mm (6" × 4.4 ") Package Dimension: 239 mm × 169 mm × 160 mm (9.4" × 6.7" × 6.3") |
| Weight | Weight: Approx. 410 g (0.9 lb.) With Package Weight: Approx. 645 g (1.4 lb.) | Weight: Approx. 820 g (1.8 lb.) With Package Weight: Approx. 1120 g (2.5 lb.) | Weight: Approx. 1050 g (2.3 lb.) With Package Weight: Approx. 1500 g (3.3 lb.) | Weight: Approx. 880 g (1.9 lb.) With Package Weight: Approx. 1300 g (2.9 lb.) |
