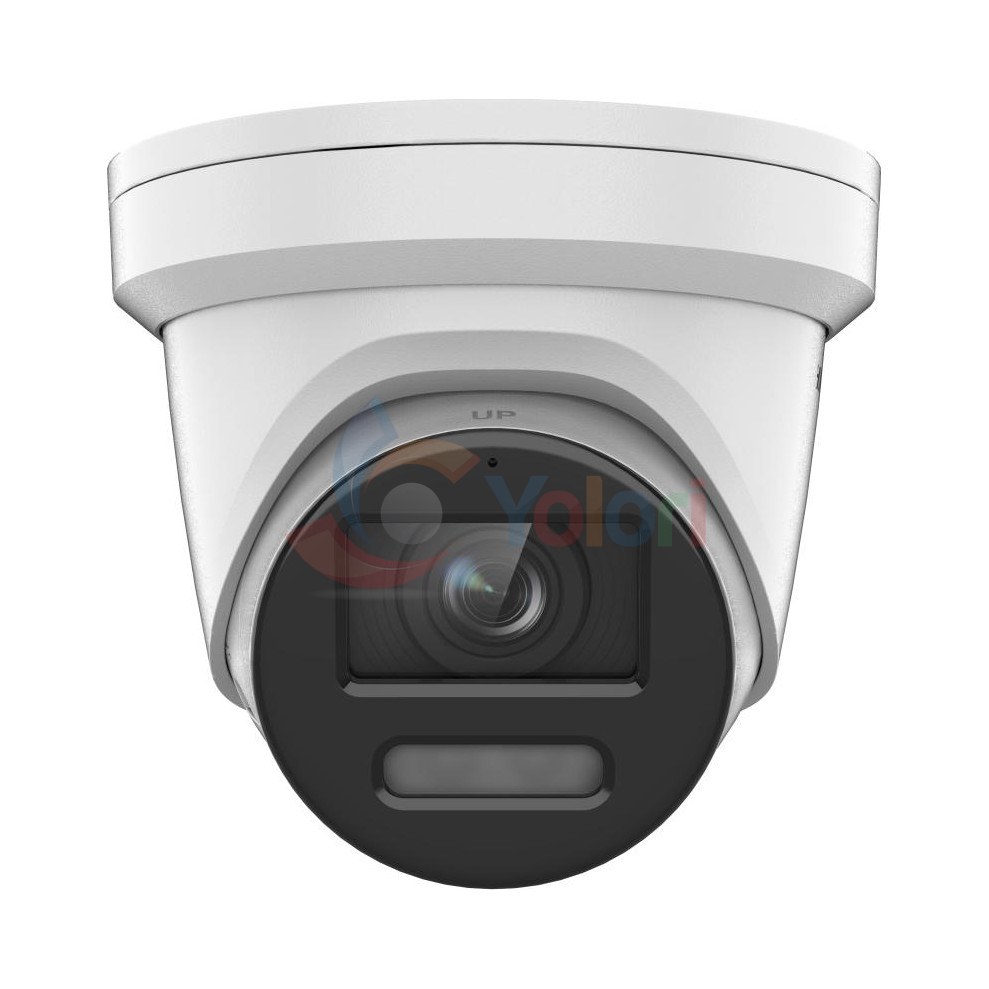

Hikvision Smart IP Dome Camera DS-2CD3756G2T-IZS - 5 MP, 1/2.7" CMOS, IR 40 m

Name: Hikvision Smart IP Dome Camera DS-2CD3756G2T-IZS - 5 MP, 1/2.7" CMOS, IR 40 m
Brand: Hikvision
SKU: DS-2CD3756G2T-IZS
Price: 7129000 IDR
Availability: InStock

Rp 7.129.000

Hikvision Smart IP Dome Camera DS-2CD3756G2T-IZS adalah kamera dome IP 5 MP berlensa varifokal bermotor 2,7 sampai 13,5 mm dengan auto-iris, bukaan F1,4, dan inframerah 40 meter. Sensornya CMOS 1/2.7 inci pada 2592 × 1944, dengan klasifikasi manusia dan kendaraan, dua masukan dan dua keluaran alarm, jalur line in dan line out, serta kartu memori sampai 256 GB. Tidak ada mikrofon bawaan.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Sensor CMOS 1/2.7 inci merekam 2592 × 1944, atau 5 megapiksel, dalam bingkai 4:3 dengan bidang pandang tegak 73 derajat pada posisi lebar lensa 2,7 sampai 13,5 mm. Iluminasi minimumnya 0,003 lux pada F1,4 untuk gambar berwarna, rentang dinamis 120 dB menjaga wajah tetap terbaca saat kamera menghadap pintu kaca, dan rasio sinyal terhadap derau di atas 52 dB menekan bintik pada gambar malam. Lensa varifokal bermotor 2,7 sampai 13,5 mm dengan auto-iris dan bukaan F1,4 membuka bidang pandang mendatar 103 sampai 32 derajat, dengan DORI deteksi 64 sampai 187 meter dan identifikasi 6 sampai 18 meter. Inframerah pintar menjangkau 40 meter pada 850 nm. Kepala dome dapat diputar pan 0° sampai 355°, dimiringkan 0° sampai 75°, dan dirotasi 0° sampai 355°. Alarm gerak dapat dibatasi pada manusia dan kendaraan, dan perlindungan perimeter mencakup lintas garis, penyusupan, serta masuk dan keluar area. Analitik lain meliputi perubahan pemandangan, pengecualian audio, barang tertinggal, dan barang hilang, ditambah penangkapan wajah. Pada 50 Hz aliran utama berjalan 25 bingkai per detik di resolusi penuh; pada 60 Hz resolusi penuh turun ke 24 bingkai. Dua masukan dan dua keluaran alarm menerima hingga 24 VDC atau 24 VAC pada 1 A, keluaran daya 12 VDC tersedia sampai 100 mA, dan kartu memori diterima sampai 256 GB. ONVIF mencakup Profile S, G, dan T. Daya 12 VDC dengan konsumsi maksimum 10,8 watt, atau PoE 802.3af kelas 3 dengan 12,9 watt. Bodi berdiameter 153,3 mm, tinggi 111,6 mm, bobot 885 gram, peringkat IP67 dan IK10, tahan suhu -30 °C sampai 60 °C. Kamera ini tidak punya mikrofon bawaan, kartu memorinya dibatasi 256 GB, dan port jaringannya 10/100 Mbps.

Garansi

Warranty Months: 12
Warranty Type: Hikvision Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

Image Sensor: Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB
Resolution: Max. Resolution: 2592 × 1944 Main Stream: • 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (640 × 480, 640 × 360) • 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Lens: Lens Type: Varifocal lens, motor-driven lens, 2.7 to 13.5 mm Focal Length & FOV: • 2.7 to 13.5 mm Horizontal FOV: 103° to 32° Vertical FOV: 73° to 24° Diagonal FOV: 142° to 40° Lens Mount: Ø14 Iris Type: Auto-iris Aperture: F1.4 DORI: • 2.7 to 13.5 mm D: 64 to 187 m O: 25 to 74 m R: 12 to 37 m I: 6 to 18 m Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Night Vision: Supplement Light Type: IR Supplement Light Range: 2.7 to 13.5 mm: up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule
Video Compression: Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): H.264 and H.265 encoding
Audio: Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Audio: • 1 input (line in), 3.5 mm connector, max input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), 3.5 mm connector, max output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
Smart Detection: Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
Storage: On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB Network Storage: • MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Connectivity: Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: 2 inputs, 2 outputs (max. 24 VAC/24 VDC, 1 A) Reset Key: Yes
Power: Power: • 12 VDC ± 25%, 0.9 A, max. 10.8 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W Power Output: 12 VDC, max. 100 mA
Protection: Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimensions: Dimension: Ø153.3 mm × 111.6 mm (6.0" × 4.4") Package Dimension: 261 mm × 217 mm × 197 mm (10.3" × 8.5" × 7.8")
Weight: Weight: Approx. 885 g (1.9 lb.) With Package Weight: Approx. 1843 g (3.2 lb.)
