RuckusTentang merek· Switch Stand Alone
SwitchBaruSKU: ICX7250-24-2X10G

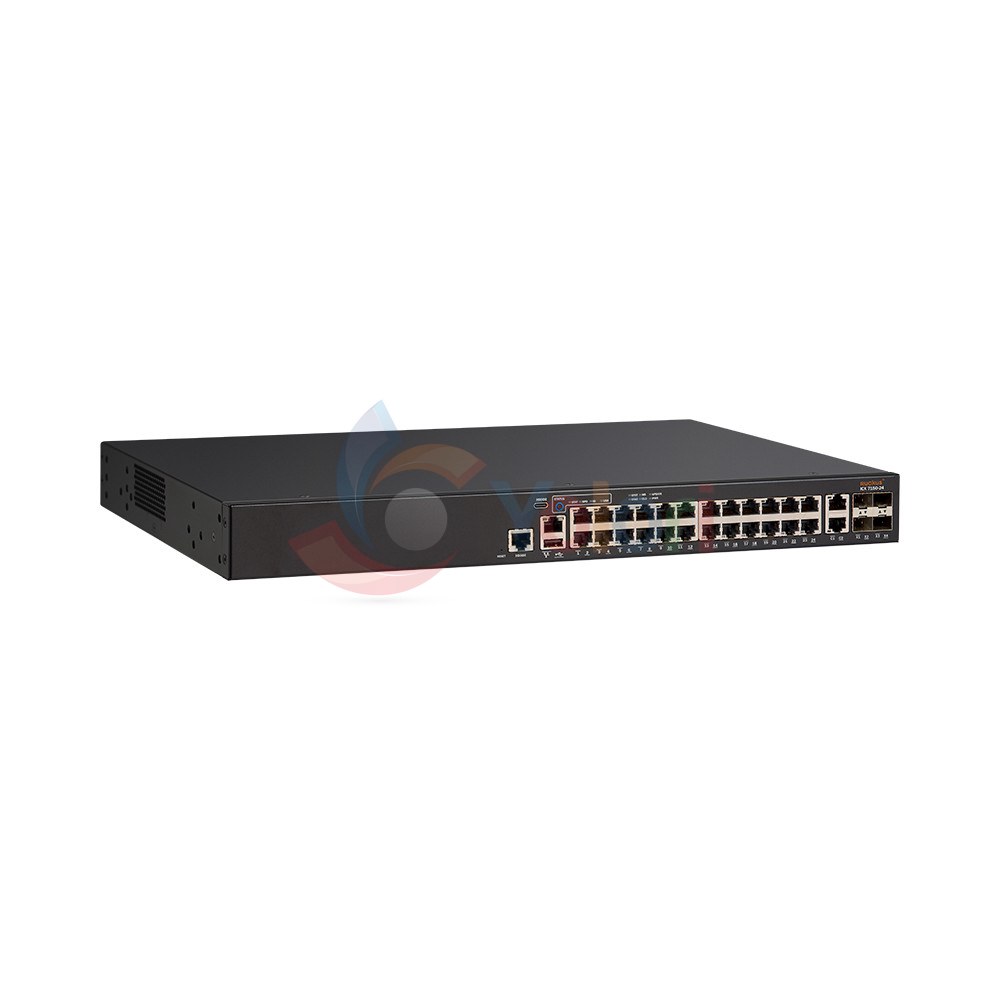

Ruckus Switch Stand Alone ICX7250-24-2X10G
Rp 66.229.000
Ruckus Switch Stand Alone ICX7250-24-2X10G adalah Switch Switch.
Dijual oleh
Yolori Mall
4.4 / 7 ulasan|10 produk terjual
DokumenFaktur pajak diterbitkan untuk pembelian ini
Ruckus memberikan Ruckus Indonesia Official Warranty selama 12 bulan untuk produk ini.
Garansi
- Warranty Months
- 12
- Warranty Type
- Ruckus Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.

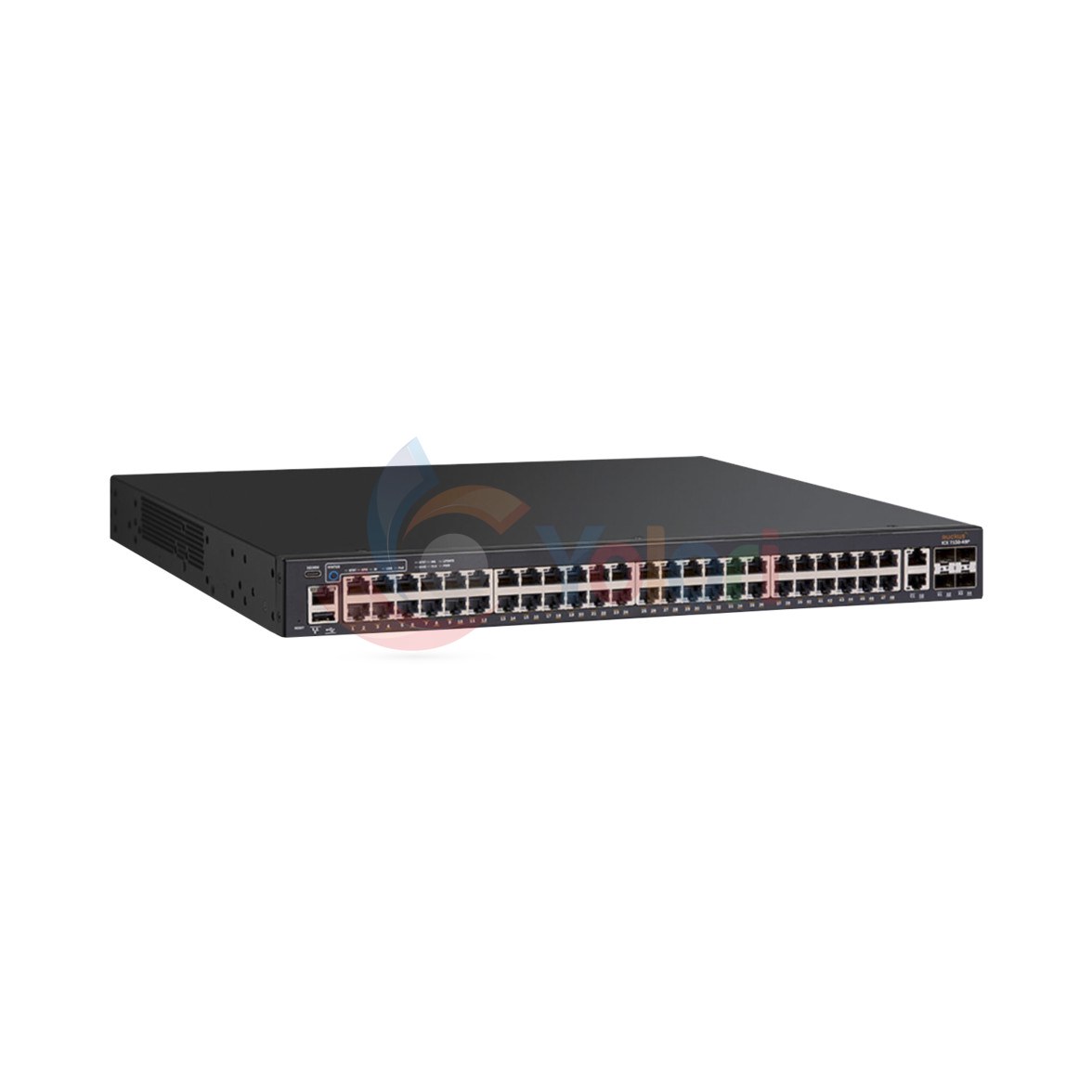

| Sedang dilihatRuckusRuckus Switch Stand Alone ICX7250-24-2X10G |  RuckusRuckus Switch Stand Alone PoE ICX7150-48P-4X1G - 48 + 2 x 1 GbE RJ45, 4 x 1 GbE SFP, 4 x 10 GbE SFP+ |  RuckusRuckus Switch Stand Alone PoE ICX7150-C10ZP-2X10GR - 10 x 1 GbE RJ45, 2 x 1 GbE SFP, 2 x 10 GbE SFP+, 8 x 1/2.5 GbE RJ45, 2 x 1/2.5/5/10 GbE RJ45 | RuckusRuckus Switch Stand Alone ICX7250-24 | |
|---|---|---|---|---|
| Harga | Rp 66.229.000 | Rp 72.339.000 | Rp 75.029.000 | Rp 54.849.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Ruckus Indonesia Official Warranty | Ruckus Indonesia Official Warranty | Ruckus Indonesia Official Warranty | Ruckus Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| I/O Port | — | USB Type-C port (for console management): Yes RJ45 serial port (for serial console management): Yes USB Type-A port (for external file storage): Yes RJ45 Ethernet port (for out of band network management): Yes | USB Type-C port (for console management): Yes RJ45 serial port (for serial console management): Yes USB Type-A port (for external file storage): Yes RJ45 Ethernet port (for out of band network management): Yes | — |
| Security | — | Security: • 802.1X authentication • MAC authentication • Flexible authentication • Web authentication • DHCP snooping • Dynamic ARP inspection • Neighbor Discovery (ND) Inspection • Bi-level Access Mode (Standard and EXEC Level) • EAP pass-through support • IEEE 802.1X username export in sFlow • Protection against Denial of Service (DoS) attacks Authentication, Authorization, and Accounting (AAA) • MAC Address Locking MAC Port Security • Advanced Encryption Standard (AES) with SSHv2 • RADIUS/TACACS/TACACS+ • Secure Copy (SCP) • Secure Shell (SSHv2) • Protected Ports • Local Username/Password • Change of Authorization (CoA) RFC 5176 • Trusted Platform Module • RADSEC (RFC 6614) Encrypted Syslog (RFC 5425) MACsec: No | Security: • 802.1X authentication • MAC authentication • Flexible authentication • Web authentication • DHCP snooping • Dynamic ARP inspection • Neighbor Discovery (ND) Inspection • Bi-level Access Mode (Standard and EXEC Level) • EAP pass-through support • IEEE 802.1X username export in sFlow • Protection against Denial of Service (DoS) attacks Authentication, Authorization, and Accounting (AAA) • MAC Address Locking MAC Port Security • Advanced Encryption Standard (AES) with SSHv2 • RADIUS/TACACS/TACACS+ • Secure Copy (SCP) • Secure Shell (SSHv2) • Protected Ports • Local Username/Password • Change of Authorization (CoA) RFC 5176 • Trusted Platform Module • RADSEC (RFC 6614) Encrypted Syslog (RFC 5425) MACsec: No | — |
| Port Count | — | 1 GbE RJ45 Ports, quantity, maximum: 48 + 2 1 GbE SFP Ports, quantity, maximum: 4 10 GbE SFP+ Ports, quantity, maximum: 4 (with license) | 1 GbE RJ45 Ports, quantity, maximum: 10 1 GbE SFP Ports, quantity, maximum: 2 10 GbE SFP+ Ports, quantity, maximum: 2 1/2.5 GbE RJ45 Ports, quantity, maximum: 8 1/2.5/5/10 GbE RJ45 Ports, quantity, maximum: 2 | — |
| Management | — | Management: • DHCP Auto Configuration • Configuration Logging • Digital Optical Monitoring • Display Log Messages on Multiple Terminals • Embedded Web Management (HTTP/HTTPS) • Embedded DHCP Server • Industry-standard Command Line Interface (CLI) • RUCKUS SmartZone, RUCKUS Cloud, RUCKUS Unleashed • CLI activation of optional software features • USB file management and storage • Macro for batch execution • Out-of-band Ethernet Management • RSPAN • TFTP • TELNET Client and Server SSH / SSH V2 • Bootp • SNMPv1/v2c • DHCP Server and DHCP Relay • SNMPv3 Intro to Framework • Architecture for Describing SNMP Framework • SNMP Message Processing and Dispatching • SNMPv3 Applications • SNMPv3 User-based Security Model • SNMP View-based Access Control Model SNMP • sFlow • Network Time Protocol (NTP) • Multiple Syslog Servers • SCP • Virtual Cable Tester (VCT) From management MIB, please see the ICX technical documentation at www.ruckusnetworks.com | Management: • DHCP Auto Configuration • Configuration Logging • Digital Optical Monitoring • Display Log Messages on Multiple Terminals • Embedded Web Management (HTTP/HTTPS) • Embedded DHCP Server • Industry-standard Command Line Interface (CLI) • RUCKUS SmartZone, RUCKUS Cloud, RUCKUS Unleashed • CLI activation of optional software features • USB file management and storage • Macro for batch execution • Out-of-band Ethernet Management • RSPAN • TFTP • TELNET Client and Server SSH / SSH V2 • Bootp • SNMPv1/v2c • DHCP Server and DHCP Relay • SNMPv3 Intro to Framework • Architecture for Describing SNMP Framework • SNMP Message Processing and Dispatching • SNMPv3 Applications • SNMPv3 User-based Security Model • SNMP View-based Access Control Model SNMP • sFlow • Network Time Protocol (NTP) • Multiple Syslog Servers • SCP • Virtual Cable Tester (VCT) From management MIB, please see the ICX technical documentation at www.ruckusnetworks.com | — |
| PoE | — | PoE/PoE+: Yes PoE Power Budget, maximum: 370 W 802.3bt2 (90 W PoE Power per Port): No PoE/PoE+ ports: 48 Maximum PoE Class 3 ports (15.4 W per port): 24 Maximum PoE+ Class 4 ports (30 W per port): 12 | PoE/PoE+: Yes PoE Power Budget, maximum: 240 W 802.3bt2 (90 W PoE Power per Port): No PoE/PoE+ ports: 6 Maximum PoE Class 3 ports (15.4 W per port): 10 Maximum PoE+ Class 4 ports (30 W per port): 8 | — |
| Bandwidth | — | Switching Capacity, maximum: 180 Gb/s Forwarding capacity (data rate, full duplex): 134 Mpps Aggregate Stack Bandwidth, maximum: 480 Gb/s | Switching Capacity, maximum: 120 Gb/s Forwarding capacity (data rate, full duplex): 89 Mpps Aggregate Stack Bandwidth, maximum: 240 Gb/s | — |
| Cooling | — | Airflow: Side-to-back Acoustics (25°C, min fan speed): 41.8 dBA Reversible Airflow Option: No Hot Swap Internal Power Supplies & Fans: No | Airflow: Fanless Acoustics (25°C, min fan speed): Fanless Reversible Airflow Option: No Hot Swap Internal Power Supplies & Fans: No | — |
| Environment | — | Temperature: • Operating Temperatures: 0°C to 45°C • Storage Temperatures: -40°C to 70°C Humidity: • Operating relative humidity: 5% to 95% at 45°C, non-condensing • Non-operating relative humidity: 0% to 95% at 70°C, non-condensing | Temperature: • Operating Temperatures: 0°C to 45°C • Storage Temperatures: -40°C to 70°C Humidity: • Operating relative humidity: 5% to 95% at 45°C, non-condensing • Non-operating relative humidity: 0% to 95% at 70°C, non-condensing | — |
| Certification | — | Electromagnetic emissions: FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003 Electromagnetic Emission; AS/NZS 55022; EN 61000-3-2 Power Line Harmonics; EN 61000-3-3 Voltage Fluctuation and Flicker; EN 61000-6-3 Emission Standard (supersedes: EN 50081-1) Safety: CAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1 Second Edition; IEC 60950-1 Second Edition; EN 60950-1:2006 Safety of Information Technology Equipment; EN 60825-1 Safety of Laser Products—Part 1: Equipment Classification, Requirements and User’s Guide; EN 60825-2 Safety of Laser Products—Part 2: Safety of Optical Fibre Communication Systems Immunity: EN 61000-6-1 Generic Immunity and Susceptibility (supersedes EN 50082-1); EN 55024 Immunity Characteristics (supersedes EN 61000-4-2 ESD); EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field; EN 61000-4-4 Electrical Fast Transient; EN 61000-4-5 Surge; EN 61000-4-6 Conducted Disturbances Induced by Radio-Frequency Fields; EN 61000-4-8 Power Frequency Magnetic Field; EN 61000-4-11 Voltage Dips and Sags Environmental regulatory compliance: RoHS-compliant (6 of 6); WEEE-compliant | Electromagnetic emissions: FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003 Electromagnetic Emission; AS/NZS 55022; EN 61000-3-2 Power Line Harmonics; EN 61000-3-3 Voltage Fluctuation and Flicker; EN 61000-6-3 Emission Standard (supersedes: EN 50081-1) Safety: CAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1 Second Edition; IEC 60950-1 Second Edition; EN 60950-1:2006 Safety of Information Technology Equipment; EN 60825-1 Safety of Laser Products—Part 1: Equipment Classification, Requirements and User’s Guide; EN 60825-2 Safety of Laser Products—Part 2: Safety of Optical Fibre Communication Systems Immunity: EN 61000-6-1 Generic Immunity and Susceptibility (supersedes EN 50082-1); EN 55024 Immunity Characteristics (supersedes EN 61000-4-2 ESD); EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field; EN 61000-4-4 Electrical Fast Transient; EN 61000-4-5 Surge; EN 61000-4-6 Conducted Disturbances Induced by Radio-Frequency Fields; EN 61000-4-8 Power Frequency Magnetic Field; EN 61000-4-11 Voltage Dips and Sags Environmental regulatory compliance: RoHS-compliant (6 of 6); WEEE-compliant | — |
| Features | — | Switches per Stack, maximum: 12 Stacking: Yes sFlow: Yes Layer 3 (static routing and RIP): Yes OpenFlow with Hybrid Port Mode: Yes Campus Fabric Technology: Yes Redundant Power Option: No VRF: No EEE (Energy Efficient Ethernet): Yes IPsec VPN, with service module: No BGP: No VxLAN: No Multi Chassis Trunking (MCT): No DRAM: 1 GB NVRAM (Flash): 2 GB Packet buffer size: 8/10/12/24 port: 2 MB, 48 port: 4 MB Maximum MAC addresses: 16,384 Maximum VLANs: 4,095 Maximum PVLANs: 32 Maximum STP (spanning trees instances): 254 Maximum VEs: 382 Maximum ARP entries: 4,094 Maximum routes (in hardware): 1,000 (IPv4), 1,000 (IPv6) Next hop address: 4,094 Trunking: Maximum ports per trunk: 8 Maximum trunk groups: 128 Maximum jumbo frame size: 9,216 bytes QoS priority queues: 8 per port Multicast groups: 3,072 (Layer 2) 2,048 (Layer 3) Quality of Service (QoS): • ACL Mapping and Marking of ToS/DSCP (CoS) • ACL Mapping and Marking of 802.1p • ACL Mapping to Priority Queue • Classifying and Limiting Flows Based on TCP Flags DiffServ Support • Honoring DSCP and 802.1p (CoS) • MAC Address Mapping to Priority Queue Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP Traffic management: • ACL-based inbound rate limiting and traffic policies • Broadcast, multicast, and unknown unicast rate limiting • Inbound rate limiting per port Outbound rate limiting per port and per queue SDN features: • OpenFlow1 v1.0 and v1.3 • OpenFlow with hybrid port mode Operates with an OpenDayLight Controller High availability: • Layer 3 VRRP/VRRP-E protocol redundancy • Real-time state synchronization across the stack • Hitless failover and switchover from master to standby stack controller • Hot insertion and removal of stacked units • Layer 2 VSRP switch redundancy In Service Software Update (ISSU) Layer 2 feature set: • 802.1s Multiple Spanning Tree • 802.1x Authentication • Auto MDI/MDIX • BPDU Guard, Root Guard • Dual-Mode VLANs • MAC-based VLANs, Dynamic MAC-based VLAN activation • Dynamic VLAN Assignment • Dynamic Voice VLAN Assignment • Fast Port Span • GVRP: GARP VLAN Registration Protocol • IGMP Snooping (v1/v2/v3) • IGMP Proxy for Static Groups • IGMP v2/v3 Fast Leave • Inter-Packet Gap (IPG) adjustment • Link Fault Signaling (LFS) • MAC Address Filtering MAC Learning Disable • MLD Snooping (v1/v2) • Multi-device Authentication • Per-VLAN Spanning Tree (PVST/PVST+/PRST) Mirroring: Port-based, ACL-based, MAC Filter-based, and • VLAN-based • PIM-SM v2 Snooping • Port Loop Detection • Private VLAN • Remote Fault Notification (RFN) • Single-instance Spanning Tree • Trunk Groups (static, LACP) • Uni-Directional Link Detection (UDLD) • Metro-Ring Protocol (MRP) (v1, v2) • Virtual Switch Redundancy Protocol (VSRP) • Q-in-Q and selective Q-in-Q • VLAN Mapping Topology Groups Base Layer 3 IP routing feature set: • IPv4 and IPv6 static routes • – RIP v1/v2, RIPng • ECMP • Port-based Access Control Lists Layer 3/Layer 4 ACLs • Host routes • Virtual Interfaces • Routed Interfaces • Route-only Support Routing Between Directly Connected Subnets Premium Layer 3 IP routing feature set with software license: • IPv4 and IPv6 dynamic routes • OSPF v2, v3 • PIM-SM, PIM-SSM, PIM-DM, PIM passive (IPv4, IPv6) PBR • Virtual Route Redundancy Protocol VRRP (IPv4) • VRRP v3 (IPv6) VRRP-E(IPv4/IPv6) MTBF (25°C): 335,853 hours | Switches per Stack, maximum: 12 Stacking: Yes sFlow: Yes Layer 3 (STATIC, RIP, OSPF): Yes OpenFlow with Hybrid Port Mode: Yes Campus Fabric Technology: Yes Redundant Power Option: No VRF: No EEE (Energy Efficient Ethernet): No IPsec VPN, with service module: No BGP: No VxLAN: No Multi Chassis Trunking (MCT): No DRAM: 1 GB NVRAM (Flash): 2 GB Packet buffer size: 8/10/12/24 port: 2 MB, 48 port: 4 MB Maximum MAC addresses: 16,384 Maximum VLANs: 4,095 Maximum PVLANs: 32 Maximum STP (spanning trees instances): 254 Maximum VEs: 382 Maximum ARP entries: 4,094 Maximum routes (in hardware): 1,000 (IPv4), 1,000 (IPv6) Next hop address: 4,094 Trunking: Maximum ports per trunk: 8 Maximum trunk groups: 128 Maximum jumbo frame size: 9,216 bytes QoS priority queues: 8 per port Multicast groups: 3,072 (Layer 2) 2,048 (Layer 3) Quality of Service (QoS): • ACL Mapping and Marking of ToS/DSCP (CoS) • ACL Mapping and Marking of 802.1p • ACL Mapping to Priority Queue • Classifying and Limiting Flows Based on TCP Flags DiffServ Support • Honoring DSCP and 802.1p (CoS) • MAC Address Mapping to Priority Queue Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP Traffic management: • ACL-based inbound rate limiting and traffic policies • Broadcast, multicast, and unknown unicast rate limiting • Inbound rate limiting per port Outbound rate limiting per port and per queue SDN features: • OpenFlow1 v1.0 and v1.3 • OpenFlow with hybrid port mode Operates with an OpenDayLight Controller High availability: • Layer 3 VRRP/VRRP-E protocol redundancy • Real-time state synchronization across the stack • Hitless failover and switchover from master to standby stack controller • Hot insertion and removal of stacked units • Layer 2 VSRP switch redundancy In Service Software Update (ISSU) Layer 2 feature set: • 802.1s Multiple Spanning Tree • 802.1x Authentication • Auto MDI/MDIX • BPDU Guard, Root Guard • Dual-Mode VLANs • MAC-based VLANs, Dynamic MAC-based VLAN activation • Dynamic VLAN Assignment • Dynamic Voice VLAN Assignment • Fast Port Span • GVRP: GARP VLAN Registration Protocol • IGMP Snooping (v1/v2/v3) • IGMP Proxy for Static Groups • IGMP v2/v3 Fast Leave • Inter-Packet Gap (IPG) adjustment • Link Fault Signaling (LFS) • MAC Address Filtering MAC Learning Disable • MLD Snooping (v1/v2) • Multi-device Authentication • Per-VLAN Spanning Tree (PVST/PVST+/PRST) Mirroring: Port-based, ACL-based, MAC Filter-based, and • VLAN-based • PIM-SM v2 Snooping • Port Loop Detection • Private VLAN • Remote Fault Notification (RFN) • Single-instance Spanning Tree • Trunk Groups (static, LACP) • Uni-Directional Link Detection (UDLD) • Metro-Ring Protocol (MRP) (v1, v2) • Virtual Switch Redundancy Protocol (VSRP) • Q-in-Q and selective Q-in-Q • VLAN Mapping Topology Groups Base Layer 3 IP routing feature set: • IPv4 and IPv6 static routes • – RIP v1/v2, RIPng • ECMP • Port-based Access Control Lists Layer 3/Layer 4 ACLs • Host routes • Virtual Interfaces • Routed Interfaces • Route-only Support Routing Between Directly Connected Subnets Premium Layer 3 IP routing feature set with software license: • IPv4 and IPv6 dynamic routes • OSPF v2, v3 • PIM-SM, PIM-SSM, PIM-DM, PIM passive (IPv4, IPv6) PBR • Virtual Route Redundancy Protocol VRRP (IPv4) • VRRP v3 (IPv6) VRRP-E(IPv4/IPv6) MTBF (25°C): 529,625 hours | — |
| Dimensions | — | 440 (W) × 370 (D) × 43.65 (H) mm | 304 (W) × 305 (D) × 44 (H) mm | — |
| Weight | — | 6.17 kg | 3.57 kg | — |
| Ordering Information | — | RUCKUS ICX 7150 Switch, 48×10/100/1000 Mbps PoE+ ports, 2×1 GbE RJ45 uplink-ports, 4×1 GbE SFP uplink ports upgradable to up to 4×10 GbE SFP+ with license, 370 W PoE budget, basic Layer 3 (static routing and RIP). | RUCKUS ICX 7150 Compact Switch, 2x 100/1000/2.5/5/10G PoH ports, 2x 100/1000/2.5G PoH ports, 6x 100/1000/2.5G PoE+ ports, 2x 10G SFP+ stacking/uplink-ports, 240W PoE budget, L3 features (OSPF, VRRP, PIM, PBR). | — |
| Power | — | Power supply rated maximum (AC): 525 W Switch power consumption (25°C): • Idle (no PoE load): 47 W • 10% traffic (full PoE load): 476 W • 100% traffic (full PoE load): 491 W Switch heat dissipation (25°C): • Idle (no PoE load): 160 BTU/hr • 10% traffic (full PoE load): 196 BTU/hr • 100% traffic (full PoE load): 252 BTU/hr | Power supply rated maximum (AC): 300W Switch power consumption (25°C): • Idle (no PoE load): 27 W • 10% traffic (full PoE load): 242 W • 100% traffic (full PoE load): 245 W Switch heat dissipation (25°C): • Idle (no PoE load): 93 BTU/hr • 10% traffic (full PoE load): 128 BTU/hr • 100% traffic (full PoE load): 129 BTU/hr | — |
