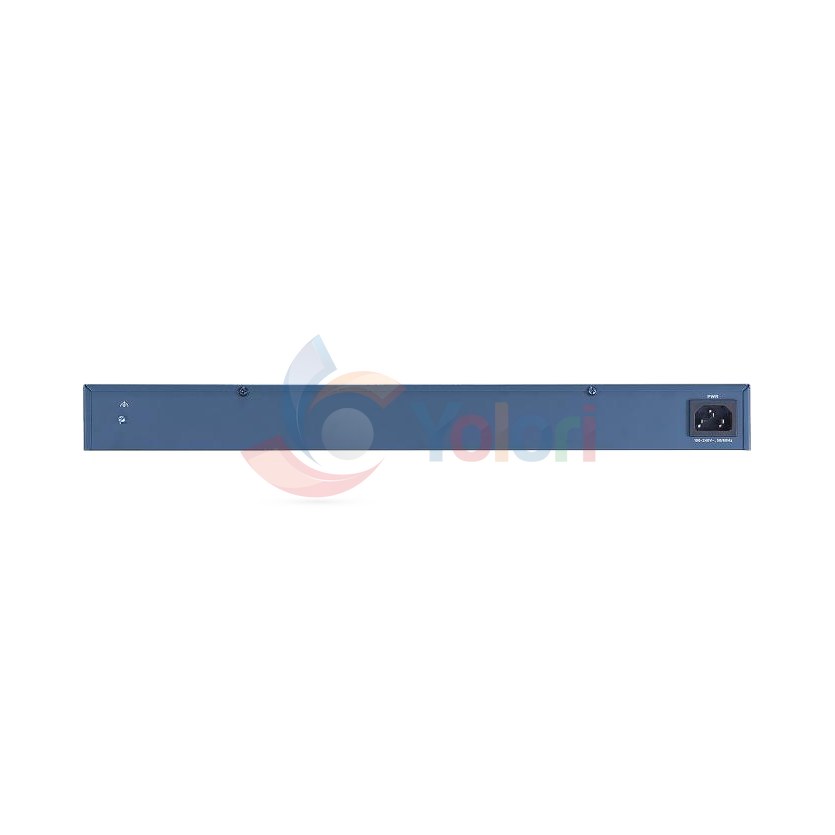

Hikvision Switch Unmanaged PoE DS-3E0526P-E - 24 Port Gigabit

Name: Hikvision Switch Unmanaged PoE DS-3E0526P-E - 24 Port Gigabit
Brand: Hikvision
SKU: DS-3E0526P-E
Price: 8739000 IDR
Availability: InStock

Rp 8.739.000

Hikvision Switch Unmanaged PoE DS-3E0526P-E adalah Switch dengan Ports: 24 × Gigabit PoE port;1 × Gigabit RJ45 port;1 × Gigabit fiber optical port, PoE Standard: IEEE 802.3af,IEEE 802.3at, PoE Power Pin: End-span: 1/2(+), 3/6(-), PoE Port: PoE: Ports 1 to 24, Max. Port Power: 30 W, PoE Power Budget: 370 W.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Hikvision Switch Unmanaged PoE DS-3E0526P-E adalah Switch dengan Ports: 24 × Gigabit PoE port;1 × Gigabit RJ45 port;1 × Gigabit fiber optical port. Untuk PoE, tercatat PoE Standard: IEEE 802.3af,IEEE 802.3at; PoE Power Pin: End-span: 1/2(+), 3/6(-); PoE Port: PoE: Ports 1 to 24; Max. Port Power: 30 W; PoE Power Budget: 370 W. Dari sisi kinerja, tercatat Switching Capacity: 52 Gbps; Packet Forwarding Rate: 38.69 Mpps. Switch dari Hikvision ini juga dibekali Model: DS-3E0526P-E; Shell: Metal material; Gross Weight: 3.74 kg (8.25 lb); Installation Mode: Desk-Mounted,Rack (equipped with mounting ears);; Surge Protection: 6 kV; MAC Address Table: 8 K; Internal Cache: 4.1 Mbits. Switch dari Hikvision ini juga dibekali Power Supply: 100~240 V AC, 50/60 Hz, Max. 6.5 A; Max. Power Consumption: 400 W; Power Consumption in Idle: 30 W. Dimensinya 440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7''). Beratnya 2.88 kg (6.35 lb). Untuk lingkungan operasi, tercatat Operating Temperature: –10 °C to 55 °C (14 °F to 131 °F); Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F); Operating Humidity: 5% to 95% (no condensation); Relative Humidity: 5% to 95% (no condensation). Sertifikasi dan kepatuhan standarnya meliputi EMC mencakup FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020) dan RCM (AS/NZS CISPR 32: 2015); Safety mencakup UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition) dan CE-LVD (EN 62368-1: 2014+A11: 2017). Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Tampilkan hanya yang berbeda

	Sedang dilihatHikvisionHikvision Switch Unmanaged PoE DS-3E0526P-E - 24 Port Gigabit	HikvisionHikvision Switch Smart PoE DS-3E1326P-SI - 24 Port Fast Ethernet	HikvisionHikvision Switch Smart PoE DS-3E1518P-SI - 16 Port Gigabit	HikvisionHikvision Switch Unmanaged PoE DS-3E0520HP-E - 16 Port Gigabit
Harga	Rp 8.739.000	Rp 9.199.000	Rp 8.169.000	Rp 7.709.000
Garansi
Warranty Months	12	12	12	12
Warranty Type	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty
Jaminan
Stock Status	Tersedia	Tersedia	Tersedia	Tersedia
Spesifikasi Teknis
Security	—	Port Isolation: • Ports 1 to 24: port isolation mode to improve network security. • Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.	Port Isolation: • Ports 1 to 16: port isolation mode to improve network security. • Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.	Port Isolation: • Ports 1 to 16: port isolation mode to improve network security. • Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
Port Count	Ports: 24 × Gigabit PoE port;1 × Gigabit RJ45 port;1 × Gigabit fiber optical port	Ports: 24 × 10/100 Mbps PoE port,2 × Gigabit combo	Ports: 16 × Gigabit PoE port,2 × Gigabit fiber optical port	Ports: 16 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
Management	—	HPP: • Support one-click activation and remote management via Hik-Partner Pro. Functions supported: • 1. Display the port rate. • 2. Display the port bandwidth utilization rate. • 3. Display topology information. • 4. Display the alarm status. • 5. Restart ports and devices. • 6. Remotely upgrade the device. • System Maintenance: Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync	HPP: • Support one-click activation and remote management via Hik-Partner Pro. Functions supported: • 1. Display the port rate. • 2. Display the port bandwidth utilization rate. • 3. Display topology information. • 4. Display the alarm status. • 5. Restart ports and devices. • 6. Remotely upgrade the device. • System Maintenance: Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync	—
PoE	• PoE Standard: IEEE 802.3af,IEEE 802.3at • PoE Power Pin: End-span: 1/2(+), 3/6(-) • PoE Port: PoE: Ports 1 to 24 • Max. Port Power: 30 W • PoE Power Budget: 370 W	• PoE Standard: IEEE 802.3af,IEEE 802.3at • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-); • PoE Port: PoE: Ports 1 to 24 • Max. Port Power: 30 W • PoE Power Budget: 370 W	• PoE Standard: IEEE 802.3af,IEEE 802.3at • PoE Power Pin: End-span: 1/2(+), 3/6(-); • PoE Port: PoE: Ports 1 to 16 • Max. Port Power: 30 W • PoE Power Budget: 225 W	• PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port: • Hi-PoE: Ports 1 to 4 • PoE: Ports 5 to 16; • Max. Port Power: 90 W • PoE Power Budget: 225 W
Bandwidth	• Switching Capacity: 52 Gbps • Packet Forwarding Rate: 38.69 Mpps	• Switching Capacity: 14.8 Gbps • Packet Forwarding Rate: 11.01 Mpps	• Switching Capacity: 56 Gbps • Packet Forwarding Rate: 41.66 Mpps	• Switching Capacity: 40 Gbps • Packet Forwarding Rate: 29.76 Mpps
Environment	• Operating Temperature: –10 °C to 55 °C (14 °F to 131 °F) • Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation)	• Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation)	• Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation)	• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation)
Certification	EMC: • FCC (47 CFR Part 15, • Subpart B), • CE-EMC (EN 55032: 2015+A11: 2020, • EN IEC 61000-3-2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011+A1: 2014, • EN 55035: 2017+A11: 2020), • IC (ICES-003: Issue 7:2020), • RCM (AS/NZS CISPR 32: 2015) Safety: • UL (UL 60950-1), • CB (AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition), • CE-LVD (EN 62368-1: 2014+A11: 2017)	EMC: • FCC (47 CFR Part 15, • Subpart B); • CE-EMC (EN 55032: 2015, • EN IEC 61000-3-2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011 +A1: 2014, • EN 55035: 2017); • IC (ICES-003: Issue 6); • RCM (ASNZS CISPR 32: 2015) Safety: • UL (UL 60950-1); • CB (IEC 60950-1:2005, • AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, • EN 62368-1: 2014+A11: 2017) Chemistry: • CE-RoHS (201165EU); • WEEE (201219EU); • Reach (Regulation (EC) No.19072006)	EMC: • FCC (47 CFR Part 15, • Subpart B); • CE-EMC (EN 55032: 2015, • EN IEC 61000-3-2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011 +A1: 2014, • EN 55035: 2017); • IC (ICES-003: Issue 6); • RCM (ASNZS CISPR 32: 2015) Safety: • UL (UL 60950-1); • CB (IEC 60950-1:2005, • AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, • EN 62368-1: 2014+A11: 2017) Chemistry: • CE-RoHS (201165EU); • WEEE (201219EU); • Reach (Regulation (EC) No.19072006)	EMC: • FCC (47 CFR Part 15, • Subpart B), • CE-EMC (EN 55032: 2015+A11: 2020, • EN IEC 61000-3-2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011+A1: 2014, • EN 55035: 2017+A11: 2020), • IC (ICES-003: Issue 7:2020), • RCM (AS/NZS CISPR 32: 2015) Safety: • UL (UL 60950-1), • CB (AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition), • CE-LVD (EN 62368-1: 2014+A11: 2017)
Features	• Model: DS-3E0526P-E • Shell: Metal material • Gross Weight: 3.74 kg (8.25 lb) • Installation Mode: Desk-Mounted,Rack (equipped with mounting ears); • Surge Protection: 6 kV • MAC Address Table: 8 K • Internal Cache: 4.1 Mbits	• Shell: Metal material • Gross Weight: 3.33 kg (7.34 lb) • Installation Mode: Rack (equipped with mounting ears) • Surge Protection: 6 kV • MAC Address Table: 16 K • Internal Cache: 4 Mbits Long Range: • Ports 1 to 24: up to 300 m. • Long range performance may vary depend on camera model or cable condition. • PoE Watchdog: Ports 1 to 24: auto detect and restart the cameras that do not respond. QoS: • QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. • Support port-based priority configuration. • Support SP, WRR priority schedule mode. Loop Prevention: • Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. • Support 802.1D STP. • Suppport 802.1w RSTP. VLAN: • VLAN is used for network scale planning and network health improvement. • Support 802.1Q. • Configurable VLAN ID from 1-4094. • Support Trunk, Access port mode. • Support Max. 4094 VLAN. • Port Rate-Limiting: Port rate-limiting is used for port bandwidth adjustment to prevent network congestion. Storm Control: • Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. • Support port rate limiting based on broadcast, multicast, and unknown unicast packets.	• Shell: Metal material • Gross Weight: 3.31 kg (7.30 lb) • Installation Mode: Rack (equipped with mounting ears) • Surge Protection: 6 kV surge protection for PoE ports. • MAC Address Table: 8 K • Internal Cache: 4.1 Mbits Long Range: • Ports 1 to 16: up to 300 m. • Long range performance may vary depend on camera model or cable condition. • PoE Watchdog: Ports 1 to 16: auto detect and restart the cameras that do not respond. Link Aggregation: • Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. • Support static link aggregation. • Support 8 aggregation groups. QoS: • QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. • Support port-based priority configuration. • Support SP, WRR priority schedule mode. Loop Prevention: • Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. • Support 802.1D STP. VLAN: • VLAN is used for network scale planning and network health improvement. • Support 802.1Q. • Configurable VLAN ID from 1-4094. • Support Trunk, Access port mode. • Support Max. 4094 VLAN. • Port Rate-Limiting: Port rate-limiting is used for port bandwidth adjustment to prevent network congestion. Storm Control: • Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. • Support port rate limiting based on broadcast, multicast, and unknown unicast packets.	• Model: DS-3E0520HP-E • Shell: Metal material • Gross Weight: 3.60 kg (7.94 lb) • Installation Mode: Rack (equipped with mounting ears) • Surge Protection: 6 kV • MAC Address Table: 8 K • Internal Cache: 4.10 Mbits Long Range: • Ports 13 to 16: up to 300 m • Long range performance may vary depend on camera model or cable condition. • PoE Watchdog: Ports 1 to 16: auto detect and restart the cameras that do not respond.
Dimensions	440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')	440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')	440 mm × 44 mm × 220.8 mm (17.32” × 1.73” × 8.69”)	440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
Weight	2.88 kg (6.35 lb)	2.83 kg (6.24 lb)	2.735 kg (6.03 lb)	2.79 kg (6.15 lb)
Power	• Power Supply: 100~240 V AC, 50/60 Hz, Max. 6.5 A • Max. Power Consumption: 400 W • Power Consumption in Idle: 30 W	• Power Supply: 100~240 V AC, 50/60 Hz, Max. 6.5 A • Max. Power Consumption: 400 W • Power Consumption in Idle: 10 W	• Power Supply: 100 to 240 V AC, 50/60 Hz, Max. 4 A • Max. Power Consumption: 250 W • Power Consumption in Idle: 25 W	• Power Supply: 100~240 V AC, 50/60 Hz, Max. 4 A • Max. Power Consumption: 250 W • Power Consumption in Idle: 25 W
