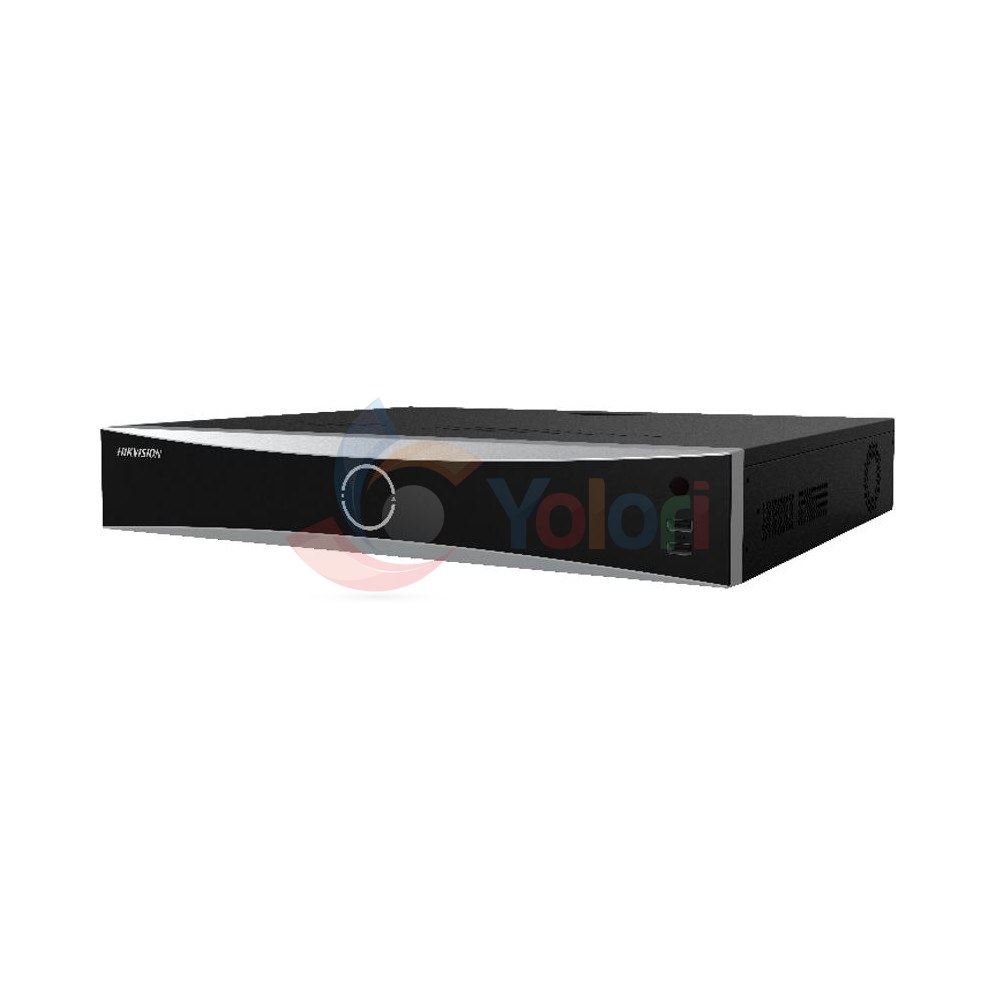

Hikvision NVR 1.5U DS-7916NI-I4/16P - 16-ch, 16 PoE, 4K

Rp 14.139.000

Hikvision NVR 1.5U DS-7916NI-I4/16P adalah Recorder dengan IP Video Input: 16-ch, Incoming Bandwidth: 320 Mbps/256 Mbps, Decoding Capability: 16-ch@1080p, SATA: 4 SATA interfaces for 4HDDs, Capacity: Up to 8TB capacity for each HDD, PoE Interface: 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual
Chat WhatsApp Kunjungi Toko
DokumenFaktur pajak diterbitkan untuk pembelian ini

Hikvision NVR 1.5U DS-7916NI-I4/16P adalah Recorder dengan Power Supply: 100 to 240 VAC ≤300 W; Consumption: ≤20 W (without enabling PoE). Dimensinya 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8"). Beratnya ≤ 5 kg (11 lb). Recorder dari Hikvision ini juga dibekali Audio Output: 1-ch, RCA (Linear, 1 KΩ); Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω). Untuk Interface, tercatat Serial Interface: 1 RS-485 (half-duplex), 1 RS-232; USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0; Alarm In/Out: 16/8. Untuk Network, tercatat Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS; Remote Connection: 128; Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface; PoE Interface: 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces; PoE Power: ≤200W; PoE Standard: IEEE 802.3 af/at. Untuk Operating Environment, tercatat Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 10 to 90 %. Untuk Playback, tercatat Synchronous playback: 16-ch. Untuk Recording, tercatat Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4; Decoding Capability: 16-ch@1080p; Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF /DCIF/ 2CIF/CIF/QCIF. Untuk Storage, tercatat SATA: 4 SATA interfaces for 4HDDs; Capacity: Up to 8TB capacity for each HDD. Perangkat ini tidak mendukung RAID Type. Untuk Video Input, tercatat IP Video Input: 16-ch; Incoming Bandwidth: 320 Mbps/256 Mbps. Untuk Video Output, tercatat HDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; VGA Output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480. Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Sedang dilihatHikvisionHikvision NVR 1.5U DS-7916NI-I4/16P - 16-ch, 16 PoE, 4KHikvisionHikvision NVR 2U DS-8632NI-K8 - 32-ch, 4KHikvisionHikvision NVR AcuSense 1U DS-7932NXI-I4/S - 32-ch, 4KHikvisionHikvision NVR AcuSense 1.5U DS-7916NXI-I4/16P/S - 16-ch, 16 PoE, 4K
HargaRp 14.139.000Rp 14.119.000Rp 13.459.000Rp 14.879.000
Garansi
Warranty Months12121212
Warranty TypeHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official Warranty
Jaminan
Stock StatusTersediaTersediaTersediaTersedia
Spesifikasi Teknis
Recorder Type——19-inch rack-mounted 1.5U chassis19-inch rack-mounted 1.5U chassis
Video Input• IP Video Input: 16-ch • Incoming Bandwidth: 320 Mbps/256 MbpsIP Video Input: • 32-ch • Up to 8 MP resolution • 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF • Incoming Bandwidth: 256 Mbps • Outgoing Bandwidth: 160 MbpsIP Video Input: • 32-ch • Up to 12 MP resolution • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 MbpsIP Video Input: • 16-ch • Up to 12 MP resolution • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps
Video Output• HDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • VGA Output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480• HDMI 1 Output: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz • HDMI 2 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz • VGA 1 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz • VGA 2 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz Video Output Mode: • HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; • HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output• HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output • HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output VGA Output: • 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, • HDMI1/VGA simultaneous output • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480• HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output • HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output VGA Output: • 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, • HDMI1/VGA simultaneous output • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Recording• Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4 • Decoding Capability: 16-ch@1080p • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF /DCIF/ 2CIF/CIF/QCIF• Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF • Decoding Capability: 2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)• Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 Recording Resolution: • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. • Decoding Capability: 16-ch @ 1080p (30 fps)• Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 • Recording Resolution: 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF • Decoding Capability: 16-ch @ 1080p (30 fps)
PlaybackSynchronous playback: 16-chSynchronous playback: 16-ch• Playback Mode: Normal/Smart, Event, Tag, Eternal File • Synchronous Playback: 16-ch • Live View Window Division: 1/2/4/6/8/9/16/25/32/36 • Aux Port Window Division: 1/2/4/6/8/9/16/25/32/36• Synchronous Playback: 16-ch • Live View Window Division: 1/2/4/6/8/9/16 • Aux Port Window Division: 1/2/4/6/8/9/16 • Playback Mode: Normal/Smart, Event, Tag, Eternal File
Storage• RAID Type: No • SATA: 4 SATA interfaces for 4HDDs • Capacity: Up to 8TB capacity for each HDD• SATA: 8 SATA interfaces • eSATA: 1 eSATA interface • Capacity: Up to 8 TB capacity for each disk• SATA: 4 SATA interfaces supporting hot-plug • Capacity: Up to 10 TB capacity for each disk • eSATA: 1 eSATA interface• SATA: 4 SATA interfaces supporting hot-plug • eSATA: 1 eSATA interface • Capacity: Up to 10 TB capacity for each disk
Network• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS • Remote Connection: 128 • Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface • PoE Interface: 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces • PoE Power: ≤200W • PoE Standard: IEEE 802.3 af/at• Remote Connection: 128 • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface• Remote Connection: 128 • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface• Remote Connection: 128 • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface • PoE Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface • PoE Power: ≤ 200 W • PoE Standard: IEEE 802.3 af/at
Smart Function——Human/Vehicle Analysis: • Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; • Up to 12 rules in total • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search • Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) • Face Picture Comparison: 4-ch face picture comparison alarm • Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265) • Human/Vehicle Analysis: 32-chHuman/Vehicle Analysis: • Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; • Up to 12 rules in total • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search • Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) • Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265) • Face Picture Comparison: 4-ch face picture comparison alarm • Human/Vehicle Analysis: 16-ch
Audio• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)• Audio Output: 2-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2
Interface• Serial Interface: 1 RS-485 (half-duplex), 1 RS-232 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 • Alarm In/Out: 16/8• Serial Interface: RS-232, RS-485, keyboard • Alarm In/Out: 16/4 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0• Serial Interface: RS-485 (half-duplex), RS-232, Keyboard • Alarm In/Out: 16/8 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0• Serial Interface: RS-485 (half-duplex), RS-232, Keyboard • Alarm In/Out: 16/8 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power• Power Supply: 100 to 240 VAC ≤300 W • Consumption: ≤20 W (without enabling PoE)• Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤ 30 W (without HDD)• Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤ 30 W (without HDD)Power Supply: • 100 to 240 VAC, 50 to 60 Hz • Total power: ≤ 360 W • Consumption: ≤ 30 W (without HDD)
Operating Environment• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10% to 90%• Working Temperature: -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) • Working Humidity: 10% to 90%
Dimensions445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")445 × 470 × 94 mm (17.5"× 18.5" × 3.7")445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")
Weight≤ 5 kg (11 lb)≤ 8 kg (17.6 lb)≤ 5.6 kg (12.3 lb)≤ 7 kg (15.4 lb) (without HDD)
