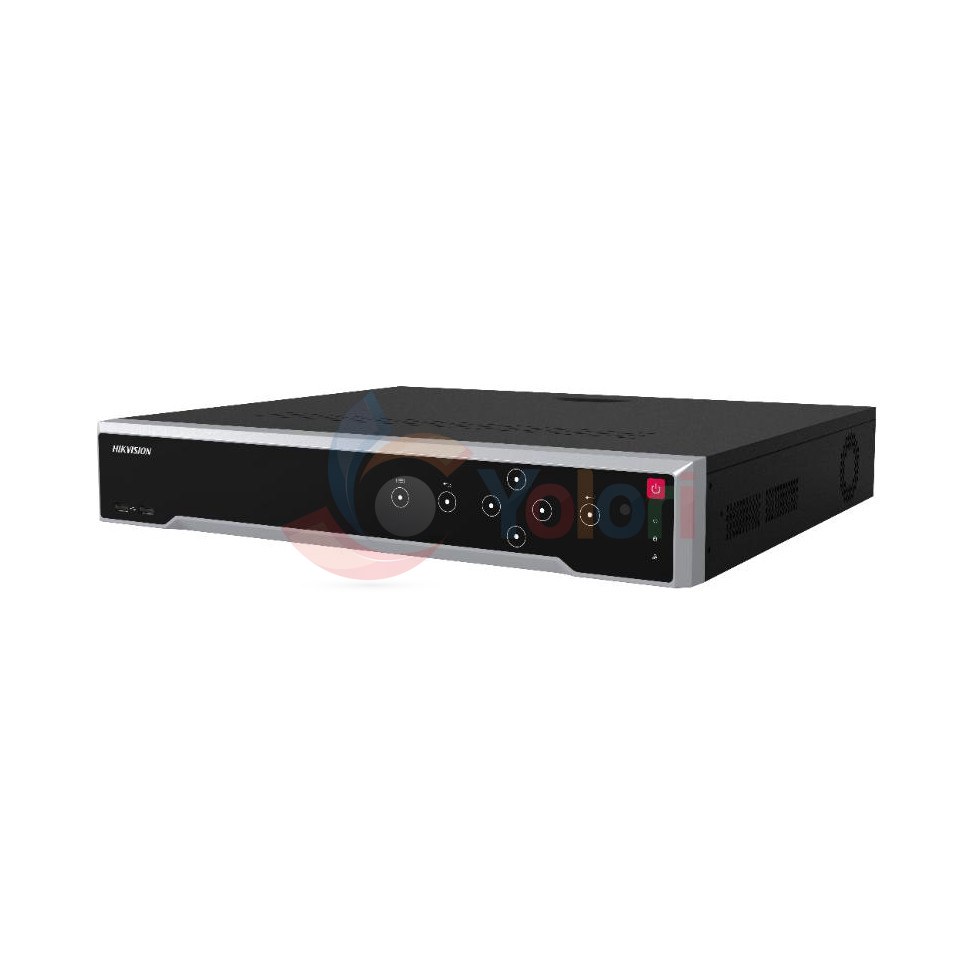

Hikvision NVR 2U DS-8632NI-K8 - 32-ch, 4K

Name: Hikvision NVR 2U DS-8632NI-K8 - 32-ch, 4K
Brand: Hikvision
SKU: DS-8632NI-K8
Price: 14119000 IDR
Availability: InStock

Rp 14.119.000

Hikvision NVR 2U DS-8632NI-K8 adalah Recorder dengan IP Video Input mencakup 32-ch, Up to 8 MP resolution dan 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF, Incoming Bandwidth: 256 Mbps, Decoding Capability: 2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps), SATA: 8 SATA interfaces, Capacity: Up to 8 TB capacity for each disk.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Hikvision NVR 2U DS-8632NI-K8 adalah Recorder dengan Power Supply: 100 to 240 VAC, 50 to 60 Hz; Consumption: ≤ 30 W (without HDD). Dimensinya 445 × 470 × 94 mm (17.5"× 18.5" × 3.7"). Beratnya ≤ 8 kg (17.6 lb). Recorder dari Hikvision ini juga dibekali Audio Output: 2-ch, RCA (Linear, 1 KΩ); Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input); Audio Compression: G.711ulaw/G.711alaw/G.722/G.726. Untuk Interface, tercatat Serial Interface: RS-232, RS-485, keyboard; Alarm In/Out: 16/4; USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0. Untuk Network, tercatat Remote Connection: 128; Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS; Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface. Untuk Operating Environment, tercatat Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 10 to 90 %. Untuk Playback, tercatat Synchronous playback: 16-ch. Untuk Recording, tercatat Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4; Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF; Decoding Capability: 2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps). Untuk Storage, tercatat SATA: 8 SATA interfaces; eSATA: 1 eSATA interface; Capacity: Up to 8 TB capacity for each disk. Untuk Video Input, tercatat IP Video Input mencakup 32-ch, Up to 8 MP resolution dan 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF; Incoming Bandwidth: 256 Mbps; Outgoing Bandwidth: 160 Mbps. Untuk Video Output, tercatat HDMI 1 Output: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI 2 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; VGA 1 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; VGA 2 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; Video Output Mode mencakup HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output. Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.

Garansi

Warranty Months: 12
Warranty Type: Hikvision Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

Video Input: IP Video Input: • 32-ch • Up to 8 MP resolution • 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF • Incoming Bandwidth: 256 Mbps • Outgoing Bandwidth: 160 Mbps
Video Output: • HDMI 1 Output: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz • HDMI 2 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz • VGA 1 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz • VGA 2 Output: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz Video Output Mode: • HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; • HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
Recording: • Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF • Decoding Capability: 2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Playback: Synchronous playback: 16-ch
Storage: • SATA: 8 SATA interfaces • eSATA: 1 eSATA interface • Capacity: Up to 8 TB capacity for each disk
Network: • Remote Connection: 128 • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Audio: • Audio Output: 2-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
Interface: • Serial Interface: RS-232, RS-485, keyboard • Alarm In/Out: 16/4 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power: • Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤ 30 W (without HDD)
Operating Environment: • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %
Dimensions: 445 × 470 × 94 mm (17.5"× 18.5" × 3.7")
Weight: ≤ 8 kg (17.6 lb)
