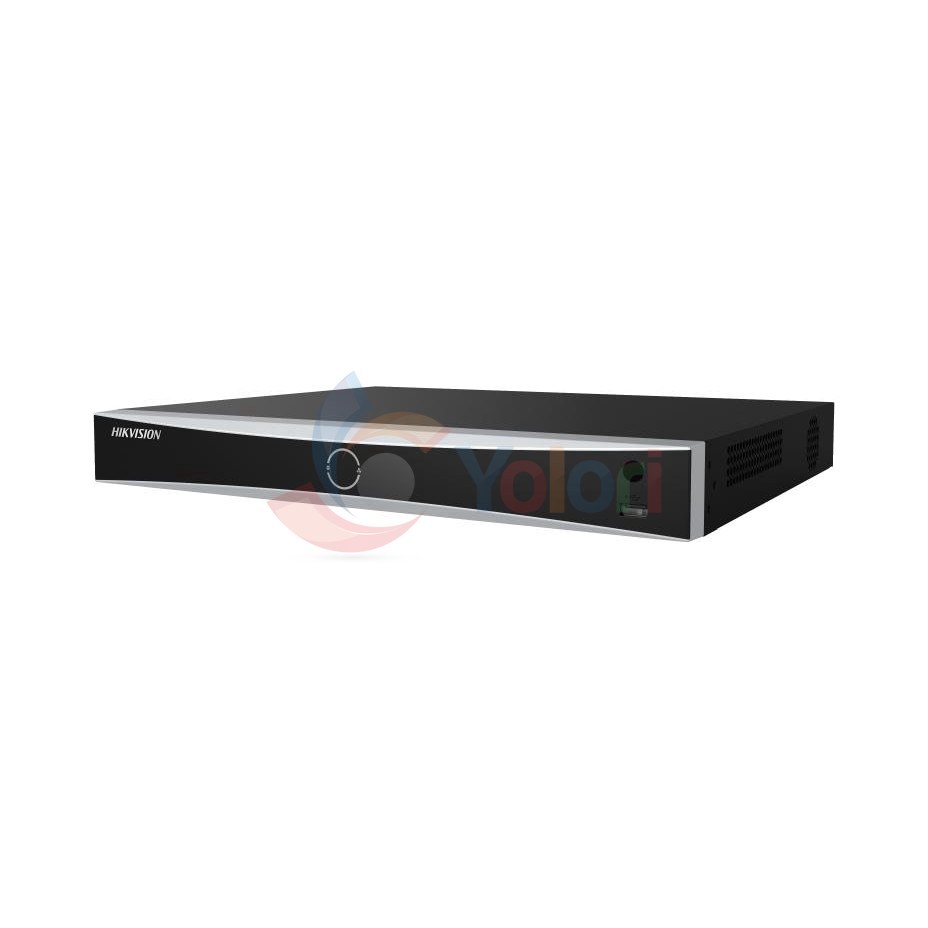

Hikvision NVR AcuSense 1U DS-7816NXI-I2/S - 16-ch, 4K

Name: Hikvision NVR AcuSense 1U DS-7816NXI-I2/S - 16-ch, 4K
Brand: Hikvision
SKU: DS-7816NXI-I2/S
Price: 7769000 IDR
Availability: InStock

Rp 7.769.000

Hikvision NVR AcuSense 1U DS-7816NXI-I2/S adalah Recorder dengan IP Video Input: 16, Incoming Bandwidth: 320 Mbps, Decoding Capability: 16-ch @ 1080p (30 fps), SATA: 2 SATA interfaces, Capacity: Up to 8 TB capacity for each disk.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Hikvision NVR AcuSense 1U DS-7816NXI-I2/S adalah Recorder dengan Power Supply: 12 VDC, 3.33 A; Consumption: ≤ 15W. Dimensinya 385 × 315 ×52 mm ( 11.6"× 9.5" × 1.6"). Beratnya ≤ 1.6 kg (3.5 lb). Recorder dari Hikvision ini juga dibekali Audio Output: 1-ch, RCA (Linear, 1 KΩ); Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ); Audio Compression mencakup G.711ulaw, G.711alaw, G.722, G.726 dan MP2L2. Untuk Interface, tercatat Serial Interface: RS-485 (half-duplex), RS-232, Keyboard; Alarm In/Out: 4/1; USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0. Untuk Network, tercatat Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface. Untuk Operating Environment, tercatat Working Temperature: -10℃～＋55℃; Working Humidity: 10％～90％. Untuk Playback, tercatat Playback Mode: Normal/Smart, Event, Tag, Eternal File; Synchronous Playback: 16-ch; Live View Window Division: 1/4/6/8/9/16; Aux Port Window Division: 1/4/6/8/9/16. Untuk Recorder Type, tercatat 1U. Untuk Recording, tercatat Decoding Format mencakup H.265, H.265+, H.264, H.264+ dan MPEG4; Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF; Decoding Capability: 16-ch @ 1080p (30 fps). Untuk Smart Function, tercatat Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB); Face Picture Comparison: 4-ch face picture comparison alarm; Facial Detection and Analytics: Face picture comparison, human face capture, face picture search; Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265); Human/Vehicle Analysis: 16-ch. Untuk Storage, tercatat SATA: 2 SATA interfaces; Capacity: Up to 8 TB capacity for each disk. Untuk Video Input, tercatat IP Video Input: 16; Incoming Bandwidth: 320 Mbps; Outgoing Bandwidth: 256 Mbps. Untuk Video Output, tercatat HDMI 1 Output: HDMI1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output HDMI2 output:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output; VGA 1 Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,; CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480. Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.

Garansi

Warranty Months: 12
Warranty Type: Hikvision Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

Recorder Type: 1U
Video Input: • IP Video Input: 16 • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps
Video Output: • HDMI 1 Output: HDMI1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output HDMI2 output:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output • VGA 1 Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Recording: Decoding Format: • H.265 • H.265+ • H.264 • H.264+ • MPEG4 • Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF • Decoding Capability: 16-ch @ 1080p (30 fps)
Playback: • Playback Mode: Normal/Smart, Event, Tag, Eternal File • Synchronous Playback: 16-ch • Live View Window Division: 1/4/6/8/9/16 • Aux Port Window Division: 1/4/6/8/9/16
Storage: • SATA: 2 SATA interfaces • Capacity: Up to 8 TB capacity for each disk
Network: Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Smart Function: • Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm • Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) • Face Picture Comparison: 4-ch face picture comparison alarm • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search • Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) • Human/Vehicle Analysis: 16-ch
Audio: • Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Compression: • G.711ulaw • G.711alaw • G.722 • G.726 • MP2L2
Interface: • Serial Interface: RS-485 (half-duplex), RS-232, Keyboard • Alarm In/Out: 4/1 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power: • Power Supply: 12 VDC, 3.33 A • Consumption: ≤ 15W
Operating Environment: • Working Temperature: -10℃～＋55℃ • Working Humidity: 10％～90％
Dimensions: 385 × 315 ×52 mm ( 11.6"× 9.5" × 1.6")
Weight: ≤ 1.6 kg (3.5 lb)

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Tampilkan hanya yang berbeda

	Sedang dilihatHikvisionHikvision NVR AcuSense 1U DS-7816NXI-I2/S - 16-ch, 4K	HikvisionHikvision NVR 1U DS-7808NI-I2/8P - 8-ch, 8 PoE, 4K	HikvisionHikvision NVR DS-7608NI-G2/4P(C) - 8-ch	HikvisionHikvision NVR 1U DS-7816NI-I2 - 16-ch
Harga	Rp 7.769.000	Rp 8.129.000	Rp 7.279.000	Rp 7.039.000
Garansi
Warranty Months	12	12	12	12
Warranty Type	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty
Jaminan
Stock Status	Tersedia	Tersedia	Tersedia	Tersedia
Spesifikasi Teknis
Recorder Type	1U	—	—	—
Video Input	• IP Video Input: 16 • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps	• IP Video Input: 8-ch • Incoming Bandwidth: 320 Mbps/256 Mbps	IP Video Input: 8-ch	• IP Video Input: 16-ch • Incoming Bandwidth: 320 Mbps/256 Mbps
Video Output	• HDMI 1 Output: HDMI1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output HDMI2 output:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output • VGA 1 Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480	• HDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output: • HDMI • VGA • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480	VGA Output: • HDMI • VGA	• HDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output: • HDMI • VGA • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Recording	Decoding Format: • H.265 • H.265+ • H.264 • H.264+ • MPEG4 • Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF • Decoding Capability: 16-ch @ 1080p (30 fps)	Decoding Format: • H.265+ • H.265 • H.264+ • H.264 • Decoding Capability: 16-ch@1080p • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF	Decoding Format: • H.264+ • H.264 • Decoding Capability: 6-ch@1080p	Decoding Format: • H.265+ • H.265 • H.264+ • H.264 • Decoding Capability: 16-ch@1080p • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF
Playback	• Playback Mode: Normal/Smart, Event, Tag, Eternal File • Synchronous Playback: 16-ch • Live View Window Division: 1/4/6/8/9/16 • Aux Port Window Division: 1/4/6/8/9/16	Synchronous playback: 8-ch	—	Synchronous playback: 16-ch
Storage	• SATA: 2 SATA interfaces • Capacity: Up to 8 TB capacity for each disk	• RAID Type: No • SATA: 2 • Capacity: Up to 8TB capacity for each HDD	• RAID Type: No • SATA: 2	• RAID Type: No • SATA: 2 • Capacity: Up to 8TB capacity for each HDD
Network	Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface	• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS • Remote Connection: 32 • Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface • PoE Interface: 8-ch • PoE Power: ≤ 120 W ≤ 180 W • PoE Standard: IEEE 802.3 af/at	PoE Interface: 4-ch	• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS • Remote Connection: 128 • Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface • PoE Interface: 16-ch • PoE Power: ≤ 200 W ≤ 180 W • PoE Standard: IEEE 802.3 af/at
Smart Function	• Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm • Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) • Face Picture Comparison: 4-ch face picture comparison alarm • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search • Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) • Human/Vehicle Analysis: 16-ch	—	—	—
Audio	• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Compression: • G.711ulaw • G.711alaw • G.722 • G.726 • MP2L2	• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)	—	• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Interface	• Serial Interface: RS-485 (half-duplex), RS-232, Keyboard • Alarm In/Out: 4/1 • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0	• USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 • Alarm In/Out: 4/1	—	• USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 • Alarm In/Out: 4/1
Power	• Power Supply: 12 VDC, 3.33 A • Consumption: ≤ 15W	• Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤15 W (without enabling PoE)	—	• Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤15 W (without enabling PoE)
Operating Environment	• Working Temperature: -10℃～＋55℃ • Working Humidity: 10％～90％	• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %	—	• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %
Dimensions	385 × 315 ×52 mm ( 11.6"× 9.5" × 1.6")	385 × 315× 52 mm (15.2" × 12.4" × 2.0")	—	385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight	≤ 1.6 kg (3.5 lb)	≤ 3 kg (6.6 lb)	—	≤ 3 kg (6.6 lb)
