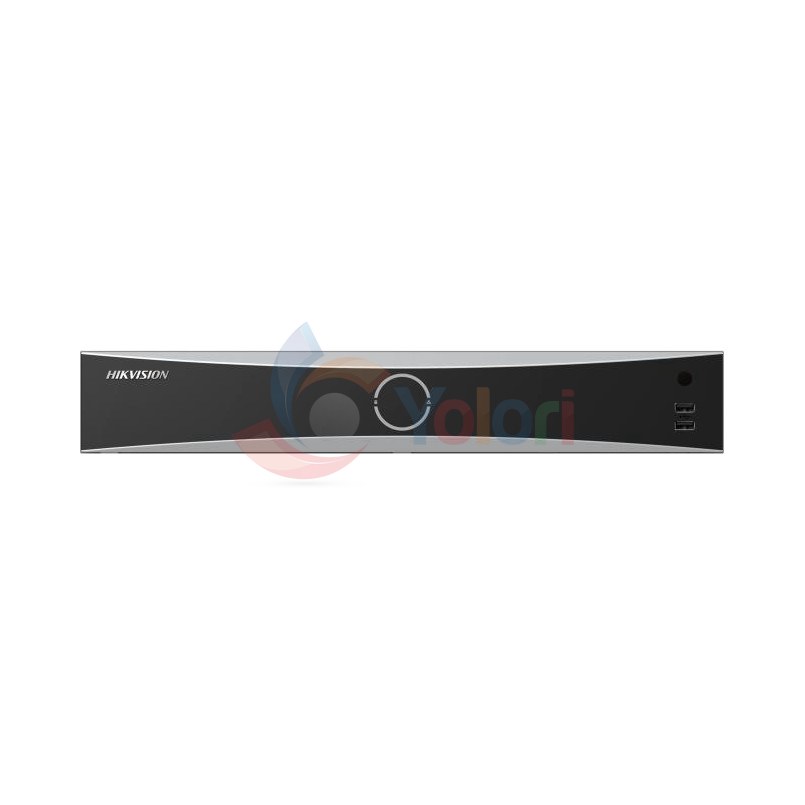

Hikvision NVR DeepinMind iDS-7716NXI-I4/S(C)

Name: Hikvision NVR DeepinMind iDS-7716NXI-I4/S(C)
Brand: Hikvision
SKU: iDS-7716NXI-I4/S(C)
Price: 24859000 IDR
Availability: InStock

Rp 24.859.000

Hikvision NVR DeepinMind iDS-7716NXI-I4/S(C) adalah Recorder dengan IP Video Input mencakup 16-ch, Up to 12 MP resolution dan *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled, Incoming Bandwidth: 320 Mbps, Decoding Capability: 1-ch@32 MP (30 fps)/16-ch@1080p (30 fps), SATA: 4 SATA interfaces, Capacity: Up to 10 TB capacity for each disk.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Hikvision NVR DeepinMind iDS-7716NXI-I4/S(C) adalah Recorder dengan Power Supply: 100 to 240 VAC, 50 to 60 Hz; Consumption: ≤ 30 W. Dimensinya 445 × 400 × 75 mm (17.5"× 15.7" × 3.0"). Beratnya ≤ 5 kg (11 lb). Recorder dari Hikvision ini juga dibekali Audio Output: 1-ch, RCA (Linear, 1 KΩ); Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω); Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2. Untuk Interface, tercatat Serial Interface: RS-485 (half-duplex), RS-232, Keyboard; USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0; Alarm In/Out: 16/4. Untuk Network, tercatat Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS; Remote Connection: 128; Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces. Untuk Operating Environment, tercatat Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 10 to 90 %. Untuk Playback, tercatat Synchronous playback: 16-ch. Untuk Recorder Type, tercatat 19-inch rack-mounted 1.5U chassis. Untuk Recording, tercatat Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4; Decoding Capability: 1-ch@32 MP (30 fps)/16-ch@1080p (30 fps); Recording Resolution mencakup 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF dan *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. Untuk Smart Function, tercatat Human/Vehicle Analysis: Up to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm. Untuk Storage, tercatat SATA: 4 SATA interfaces; eSATA: 1 eSATA interface; Capacity: Up to 10 TB capacity for each disk. Untuk Video Input, tercatat IP Video Input mencakup 16-ch, Up to 12 MP resolution dan *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled; Incoming Bandwidth: 320 Mbps; Outgoing Bandwidth: 256 Mbps. Untuk Video Output, tercatat HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K（2560×1440）/60Hz，1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI 2 Output: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz，1024×768/60Hz; VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output; CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480. Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.

Garansi

Warranty Months: 12
Warranty Type: Hikvision Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

Recorder Type: 19-inch rack-mounted 1.5U chassis
Video Input: IP Video Input: • 16-ch • Up to 12 MP resolution • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps
Video Output: • HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K（2560×1440）/60Hz，1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • HDMI 2 Output: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz，1024×768/60Hz • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Recording: • Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4 • Decoding Capability: 1-ch@32 MP (30 fps)/16-ch@1080p (30 fps) Recording Resolution: • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Playback: Synchronous playback: 16-ch
Storage: • SATA: 4 SATA interfaces • eSATA: 1 eSATA interface • Capacity: Up to 10 TB capacity for each disk
Network: • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Remote Connection: 128 • Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Smart Function: Human/Vehicle Analysis: Up to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
Audio: • Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2
Interface: • Serial Interface: RS-485 (half-duplex), RS-232, Keyboard • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 • Alarm In/Out: 16/4
Power: • Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤ 30 W
Operating Environment: • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %
Dimensions: 445 × 400 × 75 mm (17.5"× 15.7" × 3.0")
Weight: ≤ 5 kg (11 lb)

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Tampilkan hanya yang berbeda

Ulasan Pembeli

Memuat ulasan...

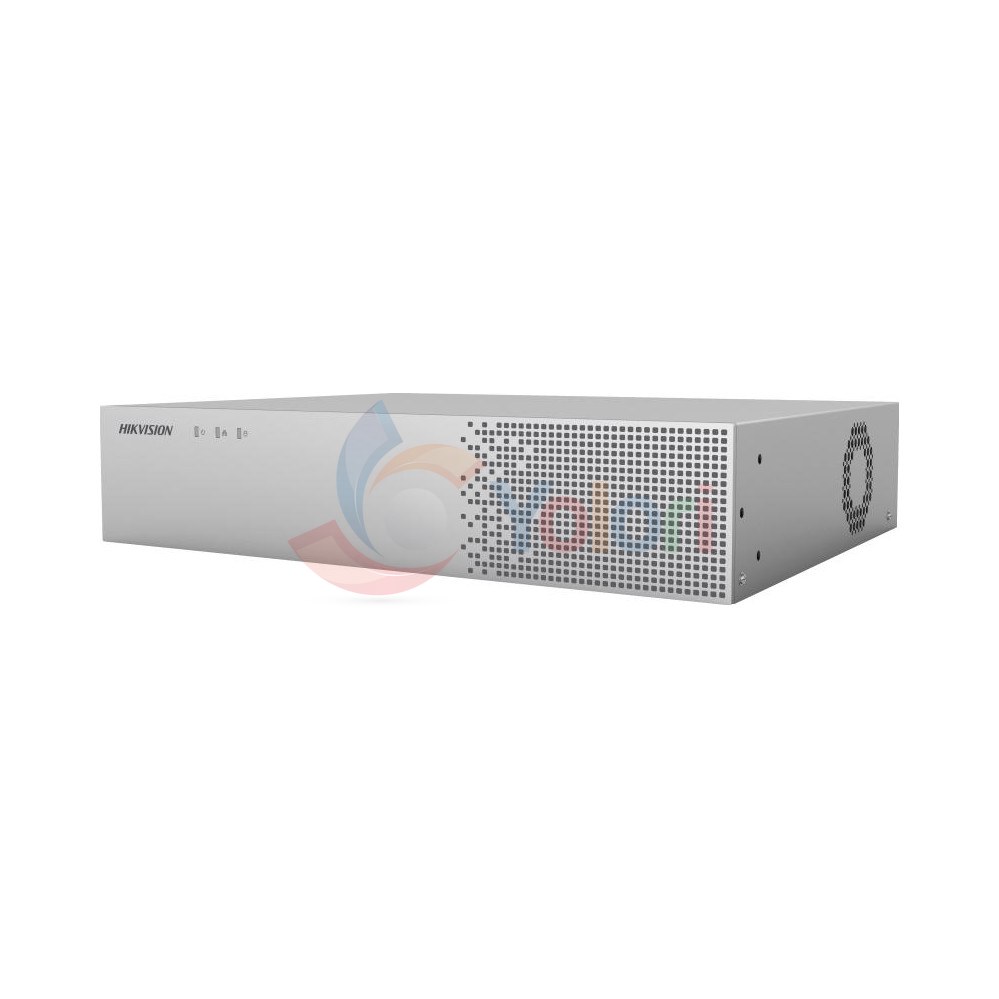

	Sedang dilihatHikvisionHikvision NVR DeepinMind iDS-7716NXI-I4/S(C)	HikvisionHikvision NVR DeepinMind iDS-6708NXI-I/FA(C)	HikvisionHikvision NVR DeepinMind iDS-7732NXI-I4/S(C)	HikvisionHikvision NVR DeepinMind iDS-7732NXI-I4/X(C)
Harga	Rp 24.859.000	Rp 24.369.000	Rp 26.819.000	Rp 26.819.000
Garansi
Warranty Months	12	12	12	12
Warranty Type	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty
Jaminan
Stock Status	Tersedia	Tersedia	Tersedia	Tersedia
Spesifikasi Teknis
Recorder Type	19-inch rack-mounted 1.5U chassis	—	19-inch rack-mounted 1.5U chassis	19-inch rack-mounted 1.5U chassis
Video Input	IP Video Input: • 16-ch • Up to 12 MP resolution • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps	IP Video Input: • 8-ch • Up to 12 MP resolution • Incoming Bandwidth: 128 Mbps • Outgoing Bandwidth: 128 Mbps	IP Video Input: • 32-ch • Up to 12 MP resolution • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps	IP Video Input: • 32-ch；Up to 12 MP resolution • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. • Incoming Bandwidth: 320 Mbps • Outgoing Bandwidth: 256 Mbps
Video Output	• HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K（2560×1440）/60Hz，1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • HDMI 2 Output: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz，1024×768/60Hz • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480	• HDMI Output: 1-ch, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • Video Output Mode: HDMI/VGA independent output	• HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K（2560×1440）/60Hz，1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • HDMI 2 Output: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz，1024×768/60Hz • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480	• HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz • VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA Simultaneous Output • Video Output Mode: HDMI/VGA independent output • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Recording	• Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4 • Decoding Capability: 1-ch@32 MP (30 fps)/16-ch@1080p (30 fps) Recording Resolution: • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.	• Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4 • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF • Decoding Capability: 8-ch@1080p (30fps)	• Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4 • Decoding Capability: 1-ch@32 MP (30 fps)/16-ch@1080p (30 fps) Recording Resolution: • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.	• Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4 • Decoding Capability: 1-ch@32 MP (30 fps)/16-ch@1080p (30 fps) Recording Resolution: • 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF • *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Playback	Synchronous playback: 16-ch	Synchronous playback: 8-ch	Synchronous playback: 16-ch	Synchronous playback: 16-ch
Storage	• SATA: 4 SATA interfaces • eSATA: 1 eSATA interface • Capacity: Up to 10 TB capacity for each disk	• SATA: 1 SATA interface • Capacity: 1 built-in 3.5-inch 2 TB SATA hard disk	• SATA: 4 SATA interfaces • eSATA: 1 eSATA interface • Capacity: Up to 10 TB capacity for each disk	• SATA: 4 SATA interfaces • eSATA: 1 eSATA interface • Capacity: Up to 10 TB capacity for each HDD
Network	• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Remote Connection: 128 • Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces	• Remote Connection: 128 • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface	• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Remote Connection: 128 • Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces	• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS • Remote Connection: 128 • Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Smart Function	Human/Vehicle Analysis: Up to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm	• Facial Detection and Analytics: Face picture comparison, human face capture, face picture search • Face Picture Library: Up to 16 face picture libraries, with up to 100,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 20 GB) • Face Picture Comparison: 8-ch face picture comparison alarm • Facial Detection and Analytics Performance: 8-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)	Human/Vehicle Analysis: Up to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm	• Human/Vehicle Analysis: Up to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm • Structured Analysis: Up to 8-ch 2 MP (HD network camera, up to 8 MP, H.264/H.265) live video structuralization analysis • Face Picture Library: Up to 16 face picture libraries, with up to 100,000 face pictures in total • Face Picture Comparison: 8-ch face picture comparison alarm • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search Face Picture Library: • Up to 16 face picture libraries, with up to 100,000 face pictures in total • (each picture ≤ 4 MB, total capacity ≤ 20 GB) • Facial Detection and Analytics Performance: 8-ch 8 MP human face capture (HD network camera, up to 8 MP, H.264/H.265) • Face Picture Comparison: 16-ch face picture comparison alarm
Audio	• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2	• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2	• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω) • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2	• Audio Output: 1-ch, RCA (Linear, 1 KΩ) • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Interface	• Serial Interface: RS-485 (half-duplex), RS-232, Keyboard • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 • Alarm In/Out: 16/4	• Serial Interface: 1 RS-232 • Alarm In/Out: 4/1 • USB Interface: Rear panel: 1 × USB 3.0, 1 × USB 2.0	• Serial Interface: RS-485 (half-duplex), RS-232, Keyboard • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 • Alarm In/Out: 16/4	• Serial Interface: RS-485 (half-duplex), RS-232, Keyboard • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 • Alarm In/Out: 16/8
Power	• Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤ 30 W	• Power Supply: 12 VDC, 3.33 A • Consumption: ≤ 30 W	• Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤ 30 W	• Power Supply: 100 to 240 VAC, 50 to 60 Hz • Consumption: ≤ 30 W
Operating Environment	• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %	• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %	• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %	• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) • Working Humidity: 10 to 90 %
Dimensions	445 × 400 × 75 mm (17.5"× 15.7" × 3.0")	319 × 247 × 70 mm (12.6"× 9.7" × 2.8")	445 × 400 × 75 mm (17.5"× 15.7" × 3.0")	445 × 400 × 75 mm (17.5"× 15.7" × 3.0")
Weight	≤ 5 kg (11 lb)	≤ 3.9 kg (8.6 lb)	≤ 5 kg (11 lb)	≤ 5 kg (11 lb)
