BerandaCCTVHikvision PTZ Camera Speed Dome DarkFighterX DS-2DF9C435IHS-DLW(T2) - 9-inch, 4 MP, 35X, IR

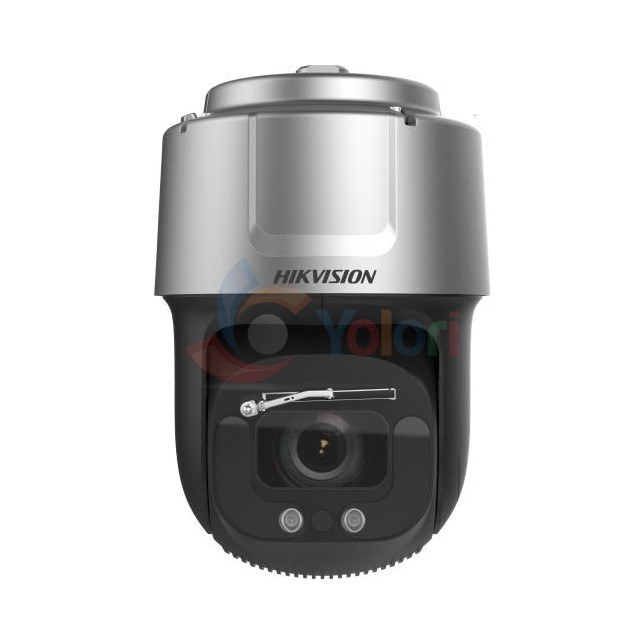

Hikvision PTZ Camera Speed Dome DarkFighterX DS-2DF9C435IHS-DLW(T2) - 9-inch, 4 MP, 35X, IR — gambar 1
HikvisionTentang merek· PTZ Camera Speed Dome DarkFighterX
CCTVBaruSKU: DS-2DF9C435IHS-DLW(T2)

Hikvision PTZ Camera Speed Dome DarkFighterX DS-2DF9C435IHS-DLW(T2) - 9-inch, 4 MP, 35X, IR

Rp 43.909.000

Hikvision PTZ Camera Speed Dome DarkFighterX DS-2DF9C435IHS-DLW(T2) adalah CCTV dengan Image Sensor: 1/1.8" progressive scan CMOS, dual-sensor structure, Max. Resolution: 2688 × 1512, Zoom: 35x optical, 16x digital, Focal Length: 5.9 mm to 206.5 mm, Supplement Light Range: IR Distance: up to 500 m, Movement Range (Pan): 360°, Presets: 300.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual
Chat WhatsApp Kunjungi Toko
DokumenFaktur pajak diterbitkan untuk pembelian ini

Hikvision PTZ Camera Speed Dome DarkFighterX DS-2DF9C435IHS-DLW(T2) adalah CCTV dengan Power: 36 VDC, max. 90 W, including max. 18 W for IR. Dimensinya Φ 293 mm × 422 mm (Φ 11.5" × 16.6"). Beratnya Approx. 13 kg (28.7 lb). CCTV dari Hikvision ini juga dibekali Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM; Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2); Audio mencakup 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω. Untuk Connectivity, tercatat Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port; Alarm: 7 inputs, 2 output; Video Output: 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector; RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive); Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour; API: ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK; Simultaneous Live View: Up to 20 channels; User/Host: Up to 32 users, 3 user levels: administrator, operator, and user; Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter; Web Browser: IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+. Untuk Image Sensor, tercatat Image Sensor: 1/1.8" progressive scan CMOS, dual-sensor structure; Min. Illumination: Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with IR; Shutter Speed: 1/1 to 1/30,000s; Image Enhancement: BLC, HLC, 3D DNR; Wide Dynamic Range (WDR): 140 dB WDR; Defog: Optical defog; Image Stabilization: EIS (Built-in gyroscope to improve EIS performance); SNR: ≥ 55 dB. Perangkat ini mendukung Slow Shutter. Untuk Lens, tercatat Zoom: 35x optical, 16x digital; Focus: Auto, semi-auto, manual, rapid focus; Focal Length: 5.9 mm to 206.5 mm; Zoom Speed: Approx. 4.4 s; FOV mencakup Horizontal field of view: 58.9° to 2.2°(wide-tele), Vertical field of view: 35.3° to 1.2°(wide-tele) dan Diagonal field of view: 65.9° to 2.5° (wide-tele); Aperture: Max. F1.6. Untuk Night Vision, tercatat Supplement Light Range: IR Distance: up to 500 m; Day & Night: Controlled by dual-sensor; Day/Night Switch: Day, night, auto, scheduled-switch. Perangkat ini mendukung Smart Supplement Light. Untuk Protection, tercatat Protection: IP67; Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%; Material: ADC12. Untuk Ptz, tercatat Movement Range (Pan): 360°; Movement Range (Tilt): -25° to 90° (auto flip); Pan Speed: configurable from 0.1° to 210°/s; preset speed: 280°/s; Tilt Speed: configurable from 0.1° to 150°/s, preset speed 250°/s; Presets: 300; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan; Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan; Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output. Perangkat ini mendukung Proportional Pan, Power-off Memory, 3D Positioning, PTZ Status Display dan Preset Freezing. Untuk Resolution, tercatat Max. Resolution: 2688 × 1512; Main Stream mencakup 50Hz: 25fps (2688 × 1512，2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2688 × 1512，2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream mencakup 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240); Third Stream mencakup 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240). Untuk Smart Detection, tercatat Basic Event: Motion detection, video tampering alarm, alarm input and output, exception; Smart Event: Object removal detection, unattended baggage detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection; Smart Tracking: Manual tracking, auto-tracking; Alarm Linkage: Preset, patrol scan, pattern scan, memory card video recording, alarm output, send email, notify surveillance center, upload to FTP, smart tracking, NAS video recording; Face Capture: Detects up to 30 faces at the same time. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture; Road Traffic mencakup Supports vehicle detection (license plate number; vehicle model, and vehicle color recognition); Region of Interest (ROI): 8 fixed regions for each stream. Untuk Storage, tercatat On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB. Untuk Video Compression, tercatat Video Compression mencakup Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG dan Third stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 16384 Kbps; H.264 Type: Baseline profile, main profile, high profile; H.265 Type: Main profile; Scalable Video Coding (SVC): H.264 and H.265 encoding. Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Sedang dilihatHikvisionHikvision PTZ Camera Speed Dome DarkFighterX DS-2DF9C435IHS-DLW(T2) - 9-inch, 4 MP, 35X, IRHikvisionHikvision PTZ Camera Speed Dome DarkFighter iDS-2PT9A144MXS-D/T2 - 2*4 MP, 10XHikvisionHikvision PTZ Camera Positioning System DarkFighter DS-2DY7236W-A - 7-inch, 2 MP, 36X, non-IRHikvisionHikvision PTZ Camera Speed Dome DarkFighter DS-2DF8C442IXS-AELW(T2) - 8-inch, 4 MP, 42X, IR
HargaRp 43.909.000Rp 44.889.000Rp 46.399.000Rp 40.009.000
Garansi
Warranty Months12121212
Warranty TypeHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official Warranty
Jaminan
Stock StatusTersediaTersediaTersediaTersedia
Spesifikasi Teknis
Image Sensor• Image Sensor: 1/1.8" progressive scan CMOS, dual-sensor structure • Min. Illumination: Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with IR • Shutter Speed: 1/1 to 1/30,000s • Slow Shutter: Yes • Image Enhancement: BLC, HLC, 3D DNR • Wide Dynamic Range (WDR): 140 dB WDR • Defog: Optical defog • Image Stabilization: EIS (Built-in gyroscope to improve EIS performance) • SNR: ≥ 55 dB• Image Sensor: Two sensors, 1/1.8" progressive scan CMOS • Min. Illumination: [Panoramic channel] Color: 0.002 Lux @(F1.0, AGC ON), B/W: 0.0005 Lux @(F1.0, AGC ON); [PTZ channel] Color: 0.0035 Lux @ (F1.6, AGC ON), 0 Lux with supplement light • Slow Shutter: Yes • Image Enhancement: BLC, HLC, 3D DNR • Wide Dynamic Range (WDR): 120 dB WDR • Defog: Yes • Image Stabilization: EIS • SNR: ≥ 55 dB• AGC: Auto/Manual • Image Sensor: 1/1.8" progressive scan CMOS Min. Illumination: • Color: 0.002 Lux @(F1.5, AGC ON) • B/W: 0.0002 Lux @(F1.5, AGC ON) • White Balance: Auto/Manual/ATW (Auto-tracing White Balance)/ Indoor/Outdoor/Fluorescent lamp/Sodium lamp • Shutter Time: 1/1 s to 1/30,000 s • Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus • WDR: 120 dB WDR• Image Sensor: 1/1.8＂ progressive scan CMOS • Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR • Shutter Speed: 1/1s~ 1/30,000s • Slow Shutter: yes • White Balance: auto;MWB;ATW;indoor;outdoor;fluorescent lamp;sodium lamp
Resolution• Max. Resolution: 2688 × 1512 Main Stream: • 50Hz: 25fps (2688 × 1512，2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 30fps (2688 × 1512，2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)• Max. Resolution: 2560 × 1440 Main Stream: • [Both channels] 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) • [Both channels] 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • [Both channels] 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • [Both channels] 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • [Both channels] 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • [Both channels] 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)• Max. Resolution: 1920 × 1080 Sub-Stream: • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Main Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) • 50fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) • 60fps (1920 × 1080, 1280 × 960, 1280 × 720) Third Stream: • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)• Max. Resolution: 2560 × 1440 Main Stream: • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); • 50 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); • 60 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream: • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Lens• Zoom: 35x optical, 16x digital • Focus: Auto, semi-auto, manual, rapid focus • Focal Length: 5.9 mm to 206.5 mm • Zoom Speed: Approx. 4.4 s FOV: • Horizontal field of view: 58.9° to 2.2°(wide-tele) • Vertical field of view: 35.3° to 1.2°(wide-tele) • Diagonal field of view: 65.9° to 2.5° (wide-tele) • Aperture: Max. F1.6• Zoom: [PTZ channel] 4x optical, 16x digital • Focus: Auto, semi-auto, manual • Focal Length: [Panoramic channel] 6 mm, [PTZ channel] 13 to 52 mm • Zoom Speed: [PTZ channel] approx. 1.8 s (optical, wide-tele) FOV: • [Panoramic channel] horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63° • [PTZ channel] horizontal FOV 32° to 8°, vertical FOV 18° to 4.5°, diagonal FOV 37° to 9° • Aperture: [Panoramic channel] F1.0, [PTZ channel] F1.6• Digital Zoom: 16× • Focus Mode: Auto/Semi-automatic/Manual FOV: • Horizontal field of view: 59.8° to 2.0° (wide-tele) • Vertical field of view: 33.6° to 1.1° (wide-tele) • Diagonal field of view: 68.6° to 2.3° (wide-tele) • Zoom Speed: Approx. 4.4 s (optical lens, wide-tele) • Working Distance: 10 mm to 1500 mm (wide-tele) • Aperture Range: F1.5 to F4.5 • Focal Length: 5.7 mm to 205 mm, 36× Optical• Digital Zoom: 16x • Focal Length: 6.0 mm to 252 mm, 42 × Optical • Zoom Speed: approx. 4.9 s FOV: • Horizontal field of view: 56.6° to 1.7° (wide-tele), • Vertical field of view: 33.7° to 0.9° (wide-tele), • Diagonal field of view: 63.4° to 1.9° (wide-tele) • Aperture: F1.2
PTZ• Movement Range (Pan): 360° • Movement Range (Tilt): -25° to 90° (auto flip) • Pan Speed: configurable from 0.1° to 210°/s; preset speed: 280°/s • Tilt Speed: configurable from 0.1° to 150°/s, preset speed 250°/s • Proportional Pan: Yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Power-off Memory: Yes • Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan • 3D Positioning: Yes • PTZ Status Display: Yes • Preset Freezing: Yes • Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output• Movement Range (Pan): [PTZ channel] 0-210° • Movement Range (Tilt): [PTZ channel] -15° to 22° • Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 200°/s; preset speed: 300°/s • Tilt Speed: [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 120°/s • Proportional Pan: Yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: No • Power-off Memory: Yes • Park Action: Preset, patrol scan • 3D Positioning: Yes • PTZ Status Display: Yes • Preset Freezing: No • Scheduled Task: Preset, patrol scan, dome reboot, dome adjust, aux output• Movement Range (Pan): 360° endless • Pan Speed: Configurable, from 0.1°/s to 150°/s, Preset Speed: 150°/s • Movement Range (Tilt): From -10° to 90° (Auto Flip) • Tilt Speed: Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s • Proportional Zoom: Support • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Power-off Memory: Support • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • PTZ Status Display: ON/OFF • Preset Freezing: Support • Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output• Movement Range (Pan): 360° • Movement Range (Tilt): -20° to 90° (auto flip) • Pan Speed: configurable from 0.1° to 210°/s; preset speed: 280°/s • Tilt Speed: configurable from 0.1° to 150°/s, preset speed 250°/s • Proportional Zoom: yes • Presets: 300 • Patrol Scan: 8 patrols, up to 32 presets for each patrol • Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan • Power-off Memory: yes • Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan • 3D Positioning: yes • PTZ Status Display: yes • Preset Freezing: yes • Scheduled Task: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
Night Vision• Supplement Light Range: IR Distance: up to 500 m • Smart Supplement Light: Yes • Day & Night: Controlled by dual-sensor • Day/Night Switch: Day, night, auto, scheduled-switchSupplement Light Range: • [PTZ channel] up to 30 m for human face, and up to 40 m for human body. Adjusted automatically according to scenes to prevent overexposure • [Panoramic channel] warm white light, up to 15 m for vehicle • Smart Supplement Light: Yes • IR Wavelength: [PTZ channel] hybrid illumination, max. wavelength 750 nm • Day & Night: IR cut filter • Day/Night Switch: Day, night, auto, scheduled-switchDay & Night: IR Cut Filter• IR Distance: 500 m • Smart IR: yes • Day & Night: ICR • Day/Night Switch: day;night;auto;scheduled-switch
Video CompressionVideo Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264/MJPEG • Video Bit Rate: 32 Kbps to 16384 Kbps • H.264 Type: Baseline profile, main profile, high profile • H.265 Type: Main profile • Scalable Video Coding (SVC): H.264 and H.265 encodingVideo Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264/MJPEG • Video Bit Rate: 32 - 16384 Kbps • H.264 Type: Baseline profile, main profile, high profile • H.265 Type: Main profile • Scalable Video Coding (SVC): H.264 and H.265 encoding• H.264+: Support • H.265+: Support • H.264 Type: Baseline Profile/Main Profile/High Profile Video Compression: • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264/MJPEG • Third Stream: H.265/H.264/MJPEG • H.265 Type: Main Profile • Video Bitrate: 256 kbps to 16384 kbps • SVC: Support• Video Compression: H.265;H.264;MJPEG • Video Bit Rate: 32 kbps to 16384 kbps • H.264 Type: baseline profile;main profile;high profile • H.265 Type: main profile • H.264+: yes • H.265+: yes • SVC: yes
Audio• Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2) Audio: • 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; • 1 output (line out), line level, output impedance: 600 Ω• Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM • Environment Noise Filtering: Yes • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω• Audio Input: 1-ch audio input • Audio Output: 1-ch audio output • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM • Audio Bitrate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)• Audio Compression: G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM • Audio Bit rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2) • Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% • Audio Output: 1 audio output, line level, impedance: 600 Ω
Smart Detection• Basic Event: Motion detection, video tampering alarm, alarm input and output, exception • Smart Event: Object removal detection, unattended baggage detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection • Smart Tracking: Manual tracking, auto-tracking • Alarm Linkage: Preset, patrol scan, pattern scan, memory card video recording, alarm output, send email, notify surveillance center, upload to FTP, smart tracking, NAS video recording • Face Capture: Detects up to 30 faces at the same time. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture Road Traffic: • Supports vehicle detection (license plate number • vehicle model, and vehicle color recognition) • Region of Interest (ROI): 8 fixed regions for each stream• Basic Event: Motion detection, video tampering alarm, alarm input and output, exception • Smart Event: Scene change detection • Smart Tracking: No • Alarm Linkage: Memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP • Multi-Target-Type Detection: Both camera channels support detecting and capturing human face and body. The panoramic channel provides additional vehicle detection and capture • Face Capture: Detects up to 30 faces at the same time. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture • Face Comparison: Yes • Region of Interest (ROI): No• Smart Detection: Intrusion Detection, Line Crossing Detection, Audio Exception Detection • Smart Record: ANR (Automatic Network Replenishment), Dual-VCA • ROI: Main stream, sub-stream and third stream respectively support two fixed areas. • Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.• Face Capture: Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face. • Face Comparison: yes Road Traffic: • Support vehicle detection (license plate number • vehicle model, and vehicle color recognition) • Basic Event: motion detection;video tampering alarm;exception;alarm input and output • Smart Event: vandal-proof alarm;Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;unattended baggage detection;object removal detection • Smart Tracking: manual tracking;event tracking;support patrol tracking among multiple detection scenes;auto-tracking • Smart Record: ANR;Dual-VCA • Alarm Linkage: preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording • ROI: dynamic face tracking;fixed region;dynamic license plate tracking
StorageOn-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB• On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC (up to 256 GB) • Network Storage: NAS (NFS, SMB/ CIFS)Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR• Network Storage: NAS (NFS, SMB/ CIFS) • On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Connectivity• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port • Alarm: 7 inputs, 2 output • Video Output: 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • API: ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK • Simultaneous Live View: Up to 20 channels • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user • Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter • Web Browser: IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+• Ethernet Interface: RJ45, Self-adaptive 10M/100M/1000M Ethernet port • Alarm: 1 input, 1 output • RS-485: No • Protocols: ISUP, IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • API: ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Ehome, Hik-Connect • Simultaneous Live View: Up to 20 channels • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user • Security: Authenticated username and password, HTTPS encryption, 802.1X authenticated access, IP address filter • Client: iVMS-4200, HikCentral Pro, Hik-Connect • Web Browser: Firefox30+, Chrome31-44, IE8+, Safari11+• BNC: 1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC • Alarm Output: 1-ch alarm output • Alarm Input: 2-ch alarm input • Network Interface: 1 RJ45 10 M/100 M Ethernet Interface • RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour • API: Open-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party Management Platform • Simultaneous Live View: Up to 20 channels User/Host: • Up to 32 users. • 3 levels: Administrator, Operator and User • Client: iVMS-4200, iVMS-5200 • Web Browser: IE 8+, Firefox 30+, Safari 8.0+ web browser • Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering• Alarm Input: 7 alarm inputs • Alarm Output: 2 alarm outputs • Video Output: 1.0V[p-p]/75Ω;PAL;NTSC;BNC connector • RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour • API: Open-ended API, ONVIF (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP • Simultaneous Live View: Up to 20 channels • User/Host: Up to 32 users. 3 levels: Administrator, Operator and User • Security Measures: Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter • Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect • Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+
PowerPower: 36 VDC, max. 90 W, including max. 18 W for IRPower: 36 VDC ± 25%, max. 60 W (including max. 6 W for panorama channel illuminator, max. 7.8 W for PTZ channel illuminator, max. 10 W for heater)Power: 24 VAC (Max. 45 W)Power: 24 VAC (Max. 60 W, including max. 15 W for IR and max. 8 W for heater), PoE 802.3 bt (Max. 51 W, including max. 15 W for IR and max. 8 W for heater)
Protection• Protection: IP67 • Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% • Material: ADC12• Protection: IP66 • Operating Condition: Outdoor: -40°C to 70°C (-40°F to 158°F), humidity lower than 90%RH • Material: Aluminum alloy ADC12, PC, PC + ABS, PC + 10%gf• Material: Aluminum alloy ADC12 • Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection • Working Temperature: Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F) • Working Humidity: Humidity: ≤ 90%Protection: • Lightning Protection, Surge Protection and Voltage Transient Protection • ±6kV Line to Gnd, ±3kV Line to Line • IEC61000-4-5;IP67 Standard • Operating Conditions: Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95% • Material: ADC12
DimensionsΦ 293 mm × 422 mm (Φ 11.5" × 16.6")230 mm × 277 mm × 470 mm (9.06" × 10.91" × 18.5")Φ181 mm × 396 mm × 377.5 mm (Φ 7.13" × 15.59" × 14.86")Φ 267 mm × 430 mm (Φ 10.51" × 16.93")
WeightApprox. 13 kg (28.7 lb)Approx. 4.9 kg (10.8 lb.) for camera, 2.9 kg (6.39 lb.) for included wall mount, 7.8 kg (16.53 lb.) in totalApprox. 7.6 kg (16.76 lb)Approx. 9.6 kg (21.16 lb.)
