1 / 3
Tentang merek· Smart IP Bullet CameraCCTVBaruSKU: DS-2CD3086G2-IS

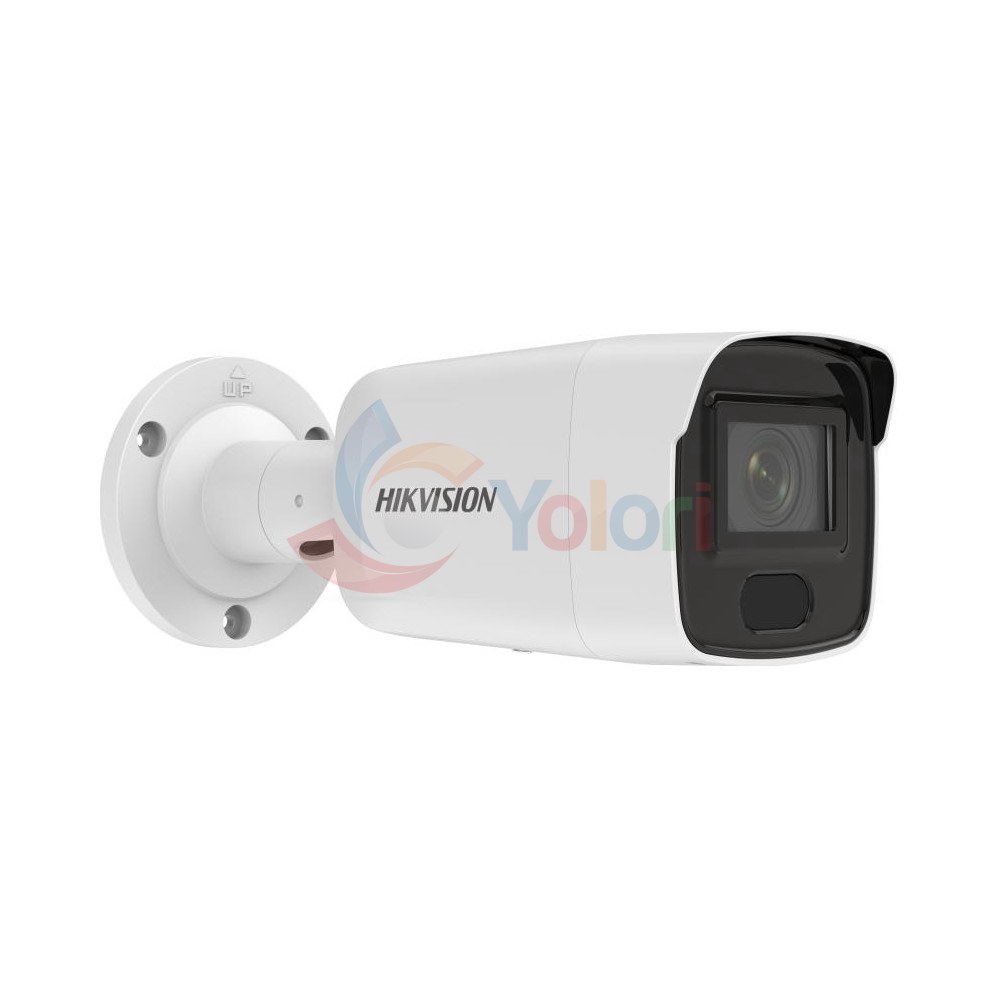

Hikvision Smart IP Bullet Camera DS-2CD3086G2-IS - 8 MP, 1/1.8" CMOS, IR 40 m
Rp 4.739.000
Delapan megapiksel 4K dengan sensor 1/1.8 inci — gabungan resolusi tertinggi dan sensor terbesar di daftar ini. AcuSense membedakan manusia dan kendaraan, dengan jalur audio masuk dan keluar, kartu sampai 512 GB, dan ONVIF lengkap sampai Profile T.
Dijual oleh
Yolori Mall
4.4 / 7 ulasan|10 produk terjual
DokumenFaktur pajak diterbitkan untuk pembelian ini
Pada DS-2CD3086G2-IS, resolusi 3840 × 2160 bertemu sensor 1/1.8 inci. Dua hal itu jarang berpasangan: kamera 4 K bersensor kecil memecah cahaya ke terlalu banyak piksel sehingga rekaman malam berderau, sedangkan sensor seluas ini memberi tiap piksel ruang cahaya yang memadai. Lensanya tetap pada pilihan 2,8, 4, atau 6 mm dengan bukaan F1.6 — pada 2,8 mm bidang pandangnya 108 derajat mendatar. Inframerahnya menjangkau 40 meter. Klasifikasi manusia dan kendaraan berbasis deep learning membatasi pemicu alarm pada dua jenis sasaran itu. Lima analitik cerdas tersedia, termasuk deteksi kehilangan fokus dan pengecualian audio. Jalur audio masuk dan keluar memakai terminal blok dua kawat. Kartu memori sampai 512 GB, ONVIF sampai Profile T, dan protokolnya mencakup SRTP yang tidak ada pada model lain di daftar ini. Bobotnya 830 gram. Tidak ada mikrofon bawaan: suara hanya terekam bila mikrofon luar dipasang ke line in. Peringkat IK tidak dicantumkan datasheet. Resolusi 4 K juga menuntut jaringan dan penyimpanan yang sepadan — laju bit tertingginya jauh di atas kamera 2 MP, dan NVR berkanal banyak akan cepat penuh bila beberapa kamera seperti ini dipasang sekaligus.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Camera Type
- Type: AcuSense Fixed Bullet Network Camera Signal: IP
- Image Sensor
- Image Sensor: 1/1.8" Progressive Scan CMOS
- Resolution
- Max. Resolution: 3840 × 2160
- Lens
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 53° Diagonal FOV: 133° • 4 mm Horizontal FOV: 87° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 60° Vertical FOV: 35° Diagonal FOV: 68° Aperture: F1.6
- Night Vision
- Supplement Light Type: IR Supplement Light Range: Up to 40 m
- Video Compression
- Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264
- Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Type: Mono sound Audio Input: 1 input (line in), two-core terminal block Audio Output: 1 output (line out), two-core terminal block
- Smart Detection
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; support alarm triggered by specified target types (human and vehicle) Deep Learning: Focus on human and vehicle targets classification based on deep learning Face Capture: Yes
- Storage
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Connectivity
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP API: ONVIF (Profile S, Profile G, Profile T)
- Power
- Power: • 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø 5.5 mm coaxial power plug • PoE: IEEE 802.3af, Class 3, max. 8.5 W
- Protection
- Protection: IP67: IEC 60529-2013 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Dimensions
- Dimension: 78.8 mm × 78.6 mm × 215.2 mm (3.1" × 3.1" × 8.5")
- Weight
- Weight: Approx. 830 g (1.8 lb.)
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatHikvisionHikvision Smart IP Bullet Camera DS-2CD3086G2-IS - 8 MP, 1/1.8" CMOS, IR 40 m |  HikvisionHikvision Smart IP Dome Camera DS-2CD3125G0-IMS - 2 MP, 1/2.8" CMOS, IR 40 m |  HikvisionHikvision Smart IP Bullet Camera DS-2CD3047G2-LS - 4 MP, 1/1.8" CMOS, Lampu Putih 40 m |  HikvisionHikvision Smart IP Dome Camera DS-2CD3126G2-IS(U) - 2 MP, 1/2.8" CMOS, IR 40 m | |
|---|---|---|---|---|
| Harga | Rp 4.739.000 | Rp 4.739.000 | Rp 4.859.000 | Rp 4.199.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Camera Type | Type: AcuSense Fixed Bullet Network Camera Signal: IP | Type: Fixed Dome Network Camera Signal: IP | Type: ColorVu Fixed Bullet Network Camera Signal: IP | Type: Fixed Dome Network Camera Signal: IP |
| Image Sensor | Image Sensor: 1/1.8" Progressive Scan CMOS | Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR Wide Dynamic Range: 120dB | Image Sensor: 1/1.8" Progressive Scan CMOS | Image Sensor: 1/2.8" Progressive Scan CMOS |
| Resolution | Max. Resolution: 3840 × 2160 | Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 50fps (1920 × 1080, 1280 × 720) • 60Hz: 60fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | Max. Resolution: 2688 × 1520 | Max. Resolution: 1920 × 1080 |
| Lens | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 53° Diagonal FOV: 133° • 4 mm Horizontal FOV: 87° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 60° Vertical FOV: 35° Diagonal FOV: 68° Aperture: F1.6 | Lens Type: 2.8/4/6 mm Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 58° Diagonal FOV: 128° • 4 mm Horizontal FOV: 86° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 52° Vertical FOV: 29° Diagonal FOV: 60° Aperture: F1.6 Lens Mount: M12 Auto-Iris: No | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 112° Vertical FOV: 61° Diagonal FOV: 134° • 4 mm Horizontal FOV: 95° Vertical FOV: 51° Diagonal FOV: 115° • 6 mm Horizontal FOV: 58° Vertical FOV: 31° Diagonal FOV: 69° Aperture: F1.0 Lens Mount: M16 | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 107° Vertical FOV: 57° Diagonal FOV: 129° • 4 mm Horizontal FOV: 86° Vertical FOV: 47° Diagonal FOV: 102° • 6 mm Horizontal FOV: 55° Vertical FOV: 29° Diagonal FOV: 65° Aperture: F1.4 |
| Night Vision | Supplement Light Type: IR Supplement Light Range: Up to 40 m | IR Range: Up to 40 m Wavelength: 850nm Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in | Supplement Light Type: White Light Supplement Light Range: Up to 40 m | Supplement Light Type: IR IR Range: Up to 40 m |
| Video Compression | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 | Video Compression: • Main stream: H.265/H.264 • Sub-stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile H.264+: No H.265+: No | Video Compression: • Main stream: H.265/H.264/H.265+/H.264+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 |
| Audio | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Type: Mono sound Audio Input: 1 input (line in), two-core terminal block Audio Output: 1 output (line out), two-core terminal block | Audio Compression: G722.1/G.711/G726/MP2L2/PCM/MP3 Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Audio Interface: 1 input (line in/mic in, terminal block), 1 output (two-core terminal block), mono sound | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Type: Mono sound Audio In: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, non-equilibrium Audio Out: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, non-equilibrium, mono sound | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Built-in Microphone: -U: Yes Audio Input: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium Audio Output: 1 output (line out), max. output amplitude: 2.5 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
| Smart Detection | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; support alarm triggered by specified target types (human and vehicle) Deep Learning: Focus on human and vehicle targets classification based on deep learning Face Capture: Yes | Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event: • Line crossing detection, up to 1 line configurable • Intrusion detection, up to 1 region configurable • Unattended baggage detection, up to 1 region configurable • Object removal detection, up to 1 region configurable • Face detection: detects faces • Scene change detection Alarm Interface: 1 input, 1 output (max. 12VDC, 30 mA) | Basic Event: Motion detection (supports alarm triggering by specified target types: human and vehicle), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Face Capture: Yes | Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Deep Learning: Focus on human and vehicle targets classification based on deep learning Face Capture: Yes |
| Storage | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB | On-board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Network Storage: microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR | On-Board Storage: Built-in memory card slot, supports microSD/microSDHC/microSDXC, up to 512 GB | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Connectivity | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP API: ONVIF (Profile S, Profile G, Profile T) | Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Video Output: 1 HDMI, type D, female plug (-M) Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets API: Open Network Video Interface (Profile S, Profile G, Profile T) | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| Power | Power: • 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø 5.5 mm coaxial power plug • PoE: IEEE 802.3af, Class 3, max. 8.5 W | Power Supply: • Socket style interface: 12 VDC ± 25%, Ø 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3) • Pigtail style interface: 12 VDC ± 25%, two-core terminal block; reverse polarity protection; PoE (802.3af, class 3) Power Consumption and Current: • 12 VDC, 0.6 A, max. 7 W • PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W | Power: • 12 VDC ± 25%, 0.6 A, max. 7 W, Ø 5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.5 W | Power: 12 VDC ± 25%; PoE: 802.3af, Type 1, Class 3 Consumption: • 12 VDC: 0.6 A, max. 7 W • PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 8.5 W |
| Protection | Protection: IP67: IEC 60529-2013 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection: Ingress protection: IP42 (IEC 60529-2013), IK10 (IEC 62262:2002) Startup and Operating Conditions: • IR on: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) • IR off: -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing) Storage Conditions: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) | Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Dimensions | Dimension: 78.8 mm × 78.6 mm × 215.2 mm (3.1" × 3.1" × 8.5") | Camera Dimension: Ø 119 mm × 90 mm (Ø 4.7" × 3.5") | Dimension: 78.8 mm × 78.6 mm × 235.9 mm (3.1" × 3.1" × 9.3") | Dimension: Ø 121.4 mm × 92.2 mm (Ø 4.8" × 3.6") |
| Weight | Weight: Approx. 830 g (1.8 lb.) | Camera Weight: Approx. 520 g (1.1 lb.) With package: Approx. 750 g (1.7 lb.) | Weight: Approx. 860 g (1.9 lb.) | Weight: Approx. 580 g (1.2 lb.) |
