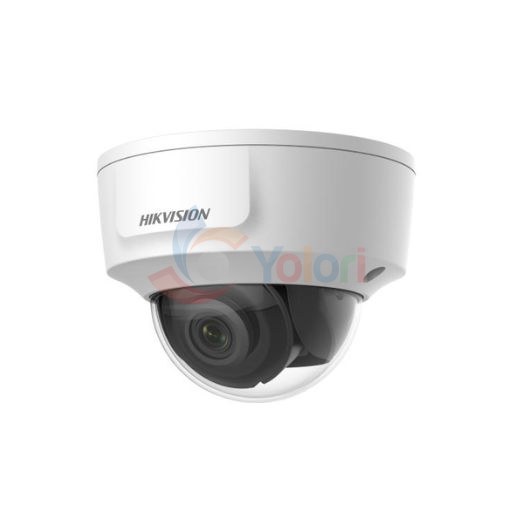

Beranda CCTVHikvision Smart IP Dome Camera DS-2CD3125G0-IMS - 2 MP, 1/2.8" CMOS, IR 40 m

Hikvision Smart IP Dome Camera DS-2CD3125G0-IMS - 2 MP, 1/2.8" CMOS, IR 40 m — gambar 1

Tentang merek· Smart IP Dome Camera

CCTVBaruSKU: DS-2CD3125G0-IMS

Hikvision Smart IP Dome Camera DS-2CD3125G0-IMS - 2 MP, 1/2.8" CMOS, IR 40 m

Name: Hikvision Smart IP Dome Camera DS-2CD3125G0-IMS - 2 MP, 1/2.8" CMOS, IR 40 m
Brand: Hikvision
SKU: DS-2CD3125G0-IMS
Price: 4739000 IDR
Availability: InStock

Rp 4.739.000

Hikvision Smart IP Dome Camera DS-2CD3125G0-IMS adalah kamera dome IP 2 MP dengan keluaran HDMI, sehingga monitor dapat dicolokkan langsung ke kamera tanpa NVR maupun jaringan. Sensornya CMOS 1/2.8 inci merekam 1920 × 1080 hingga 60 bingkai per detik dengan inframerah 40 meter, dilengkapi masukan audio line in atau mic in, keluaran audio, alarm masuk dan keluar, serta kartu memori sampai 128 GB. Kamera ini untuk dalam ruang dengan peringkat IP42, dan kompresi H.264+ serta H.265+ tidak didukung.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|12 produk terjual

Chat WhatsApp Kunjungi Toko

DokumenFaktur pajak diterbitkan untuk pembelian ini

Keluaran HDMI adalah pembeda DS-2CD3125G0-IMS. Monitor dapat dicolokkan langsung ke kamera, sehingga tampilan langsung berjalan tanpa NVR maupun jaringan — berguna untuk kasir, ruang jaga kecil, atau titik yang hanya perlu dipantau di tempat. Sensor CMOS 1/2.8 inci merekam 1920 × 1080 sampai 60 bingkai per detik dengan rentang dinamis 120 dB. Lensanya tetap pada pilihan 2,8, 4, atau 6 mm, bukaan F1.6. Inframerahnya menjangkau 40 meter pada 850 nm, dan peralihan siang malam dapat dipicu oleh masukan alarm. Jalur audio masuk menerima line in maupun mic in lewat terminal blok, dan ada satu keluaran audio. Alarm in/out tersedia dengan batas 12 VDC 30 mA. Slot kartu menampung sampai 128 GB dengan ANR, ONVIF lengkap sampai Profile T, dan bobotnya 520 gram. Peringkat kedapnya IP42. Kamera ini untuk dalam ruang: dipasang di teras, carport, atau tempat yang terkena tampias hujan, air akan masuk. Suhu kerjanya juga terbatas pada -10 sampai 40 derajat Celsius dengan inframerah menyala. Kompresi H.264+ dan H.265+ tidak didukung, jadi ukuran rekamannya lebih besar pada mutu yang sama.

Garansi

Warranty Months: 12
Warranty Type: Hikvision Indonesia Official Warranty

Jaminan

Stock Status: Tersedia

Spesifikasi Teknis

Camera Type: Type: Fixed Dome Network Camera Signal: IP
Image Sensor: Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR Wide Dynamic Range: 120dB
Resolution: Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 50fps (1920 × 1080, 1280 × 720) • 60Hz: 60fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Lens: Lens Type: 2.8/4/6 mm Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 58° Diagonal FOV: 128° • 4 mm Horizontal FOV: 86° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 52° Vertical FOV: 29° Diagonal FOV: 60° Aperture: F1.6 Lens Mount: M12 Auto-Iris: No
Night Vision: IR Range: Up to 40 m Wavelength: 850nm Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in
Video Compression: Video Compression: • Main stream: H.265/H.264 • Sub-stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile H.264+: No H.265+: No
Audio: Audio Compression: G722.1/G.711/G726/MP2L2/PCM/MP3 Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Audio Interface: 1 input (line in/mic in, terminal block), 1 output (two-core terminal block), mono sound
Smart Detection: Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event: • Line crossing detection, up to 1 line configurable • Intrusion detection, up to 1 region configurable • Unattended baggage detection, up to 1 region configurable • Object removal detection, up to 1 region configurable • Face detection: detects faces • Scene change detection Alarm Interface: 1 input, 1 output (max. 12VDC, 30 mA)
Storage: On-board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Network Storage: microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
Connectivity: Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Video Output: 1 HDMI, type D, female plug (-M) Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Power: Power Supply: • Socket style interface: 12 VDC ± 25%, Ø 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3) • Pigtail style interface: 12 VDC ± 25%, two-core terminal block; reverse polarity protection; PoE (802.3af, class 3) Power Consumption and Current: • 12 VDC, 0.6 A, max. 7 W • PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W
Protection: Protection: Ingress protection: IP42 (IEC 60529-2013), IK10 (IEC 62262:2002) Startup and Operating Conditions: • IR on: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) • IR off: -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing) Storage Conditions: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Dimensions: Camera Dimension: Ø 119 mm × 90 mm (Ø 4.7" × 3.5")
Weight: Camera Weight: Approx. 520 g (1.1 lb.) With package: Approx. 750 g (1.7 lb.)

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Tampilkan hanya yang berbeda

4 produk · geser untuk melihat lainnya

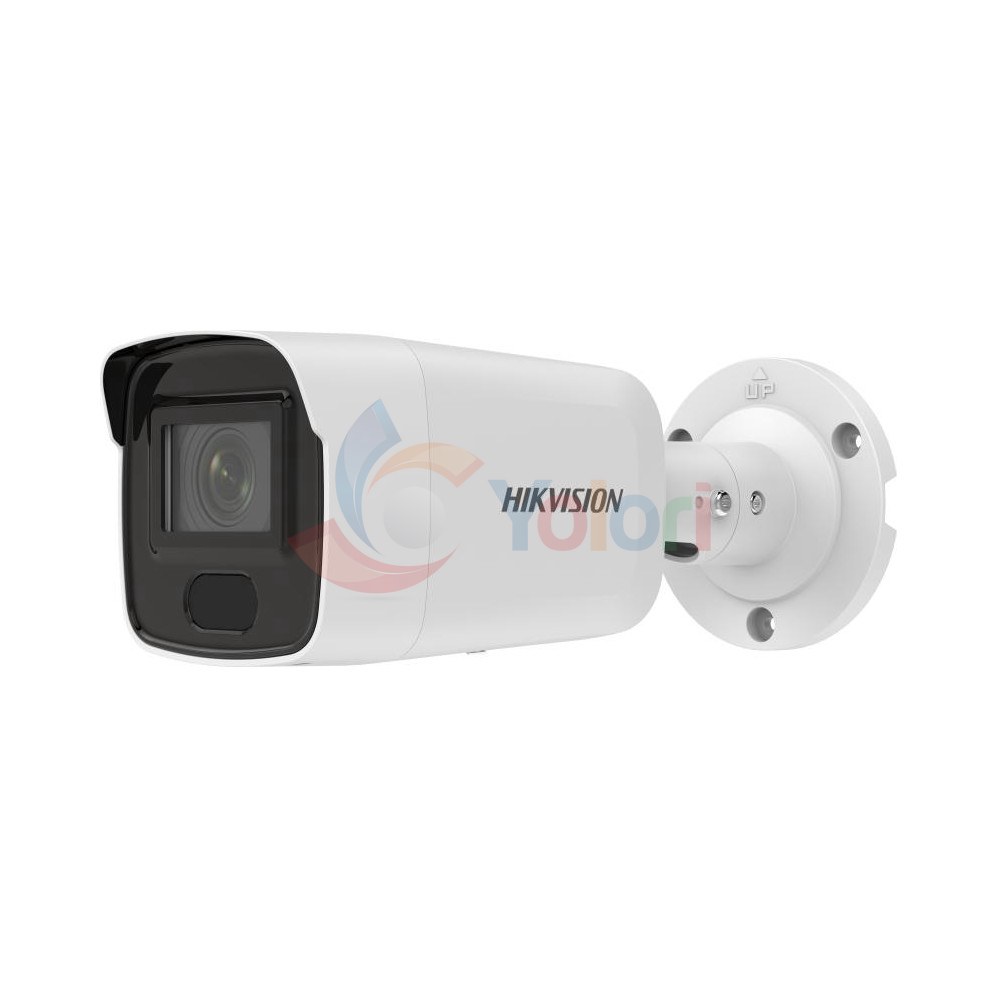

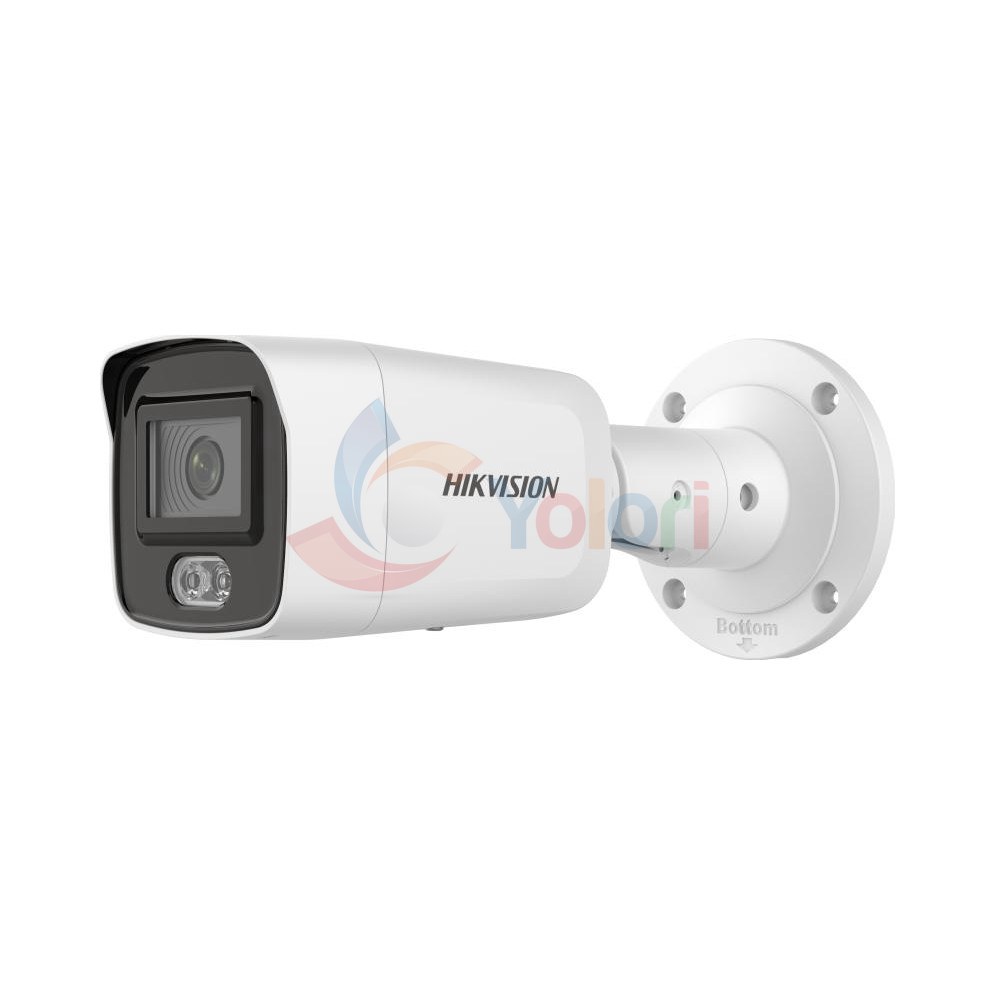

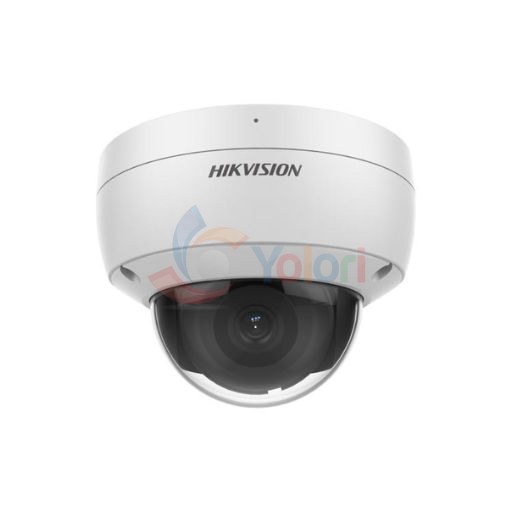

	Sedang dilihatHikvisionHikvision Smart IP Dome Camera DS-2CD3125G0-IMS - 2 MP, 1/2.8" CMOS, IR 40 m	Sedang dilihatHikvisionHikvision Smart IP Bullet Camera DS-2CD3086G2-IS - 8 MP, 1/1.8" CMOS, IR 40 m	Sedang dilihatHikvisionHikvision Smart IP Bullet Camera DS-2CD3T56G2-ISU/SL - 5 MP, 1/2.7" CMOS, IR 60 m	Sedang dilihatHikvisionHikvision Smart IP Dome Camera DS-2CD3556G2-IS - 5 MP, 1/2.7" CMOS, IR 30 m
Harga	Rp 4.739.000	Rp 4.739.000	Rp 4.709.000	Rp 4.699.000
Garansi
Warranty Months	12	12	12	12
Warranty Type	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty	Hikvision Indonesia Official Warranty
Jaminan
Stock Status	Tersedia	Tersedia	Tersedia	Tersedia
Spesifikasi Teknis
Camera Type	Type: Fixed Dome Network Camera Signal: IP	Type: AcuSense Fixed Bullet Network Camera Signal: IP	—	—
Image Sensor	Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR Wide Dynamic Range: 120dB	Image Sensor: 1/1.8" Progressive Scan CMOS	Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB	Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB
Resolution	Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 50fps (1920 × 1080, 1280 × 720) • 60Hz: 60fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)	Max. Resolution: 3840 × 2160	Max. Resolution: 2592 × 1944 Main Stream: • 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)	Max. Resolution: 2592 × 1944 Main Stream: • 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Lens	Lens Type: 2.8/4/6 mm Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 58° Diagonal FOV: 128° • 4 mm Horizontal FOV: 86° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 52° Vertical FOV: 29° Diagonal FOV: 60° Aperture: F1.6 Lens Mount: M12 Auto-Iris: No	Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 53° Diagonal FOV: 133° • 4 mm Horizontal FOV: 87° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 60° Vertical FOV: 35° Diagonal FOV: 68° Aperture: F1.6	Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 98° Vertical FOV: 72° Diagonal FOV: 131° • 4 mm Horizontal FOV: 80° Vertical FOV: 58° Diagonal FOV: 104° • 6 mm Horizontal FOV: 51° Vertical FOV: 37° Diagonal FOV: 66° Lens Mount: M12 Iris Type: Fixed Aperture: F1.4 DORI: • 2.8 mm D: 64 m O: 25 m R: 12 m I: 6 m • 4 mm D: 77 m O: 30 m R: 15 m I: 7 m • 6 mm D: 126 m O: 50 m R: 25 m I: 12 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°	Lens Type: Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 98.3° Vertical FOV: 71.5° Diagonal FOV: 131.2° • 4 mm Horizontal FOV: 79.5° Vertical FOV: 58.4° Diagonal FOV: 103.8° Lens Mount: M12 Iris Type: Fixed Aperture: F1.4 Depth of Field: • 2.8 mm 1.6 m to ∞ • 4 mm 1.5 m to ∞ DORI: • 2.8 mm D: 64 m O: 26 m R: 13 m I: 6 m • 4 mm D: 77 m O: 31 m R: 16 m I: 8 m Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Night Vision	IR Range: Up to 40 m Wavelength: 850nm Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in	Supplement Light Type: IR Supplement Light Range: Up to 40 m	Supplement Light Type: IR Supplement Light Range: Up to 60 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule	Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule
Video Compression	Video Compression: • Main stream: H.265/H.264 • Sub-stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile H.264+: No H.265+: No	Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264	Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): H.264 and H.265 encoding	Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): H.264 and H.265 encoding
Audio	Audio Compression: G722.1/G.711/G726/MP2L2/PCM/MP3 Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Audio Interface: 1 input (line in/mic in, terminal block), 1 output (two-core terminal block), mono sound	Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Type: Mono sound Audio Input: 1 input (line in), two-core terminal block Audio Output: 1 output (line out), two-core terminal block	Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes Built-in Speaker: Power: 2 W. Max. sound pressure level: 10 cm: 97 dB. Audio: • 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 2.2 KΩ, interface type: non-equilibrium • 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω	Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Smart Detection	Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event: • Line crossing detection, up to 1 line configurable • Intrusion detection, up to 1 region configurable • Unattended baggage detection, up to 1 region configurable • Object removal detection, up to 1 region configurable • Face detection: detects faces • Scene change detection Alarm Interface: 1 input, 1 output (max. 12VDC, 30 mA)	Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; support alarm triggered by specified target types (human and vehicle) Deep Learning: Focus on human and vehicle targets classification based on deep learning Face Capture: Yes	Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning	Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning
Storage	On-board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Network Storage: microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR	On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB	On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), auto network replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.	On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), auto network replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Connectivity	Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Video Output: 1 HDMI, type D, female plug (-M) Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome	Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP API: ONVIF (Profile S, Profile G, Profile T)	Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: • Visual alarm • 2 inputs, 2 outputs (max. 24 VDC, 1 A) Reset Key: Yes	Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: -IS: 1 input, 1 output (max. 12 VDC, 20 mA) Reset Key: Yes
Power	Power Supply: • Socket style interface: 12 VDC ± 25%, Ø 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3) • Pigtail style interface: 12 VDC ± 25%, two-core terminal block; reverse polarity protection; PoE (802.3af, class 3) Power Consumption and Current: • 12 VDC, 0.6 A, max. 7 W • PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W	Power: • 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø 5.5 mm coaxial power plug • PoE: IEEE 802.3af, Class 3, max. 8.5 W	Power: • 12 VDC ± 25%, 0.95 A, max. 12 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.31 A to 0.23 A, max. 13 W	Power: • 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W Power Output: 12 VDC, max. 100 mA
Protection	Protection: Ingress protection: IP42 (IEC 60529-2013), IK10 (IEC 62262:2002) Startup and Operating Conditions: • IR on: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) • IR off: -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing) Storage Conditions: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)	Protection: IP67: IEC 60529-2013 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)	Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)	Protection: • IP67 (IEC 60529-2013) • IK08 (IEC 62262: 2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Dimensions	Camera Dimension: Ø 119 mm × 90 mm (Ø 4.7" × 3.5")	Dimension: 78.8 mm × 78.6 mm × 215.2 mm (3.1" × 3.1" × 8.5")	Dimension: 325.5 × Ø105mm (12.8" × 4.13") Package Dimension: 386 × 156 × 155 mm (15.2" × 6.1" × 6.1")	Dimension: Ø110 mm × 57.4 mm (Ø 4.3" × 2.3") Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight	Camera Weight: Approx. 520 g (1.1 lb.) With package: Approx. 750 g (1.7 lb.)	Weight: Approx. 830 g (1.8 lb.)	Weight: Approx. 1150 g (2.4 lb.) With Package Weight: Approx. 1870 g (3.5 lb.)	Weight: Approx. 385 g (0.8 lb.) With Package Weight: Approx. 620 g (1.4 lb.)
