Tentang merek· Smart IP Dome CameraCCTVBaruSKU: DS-2CD3556G2-IS

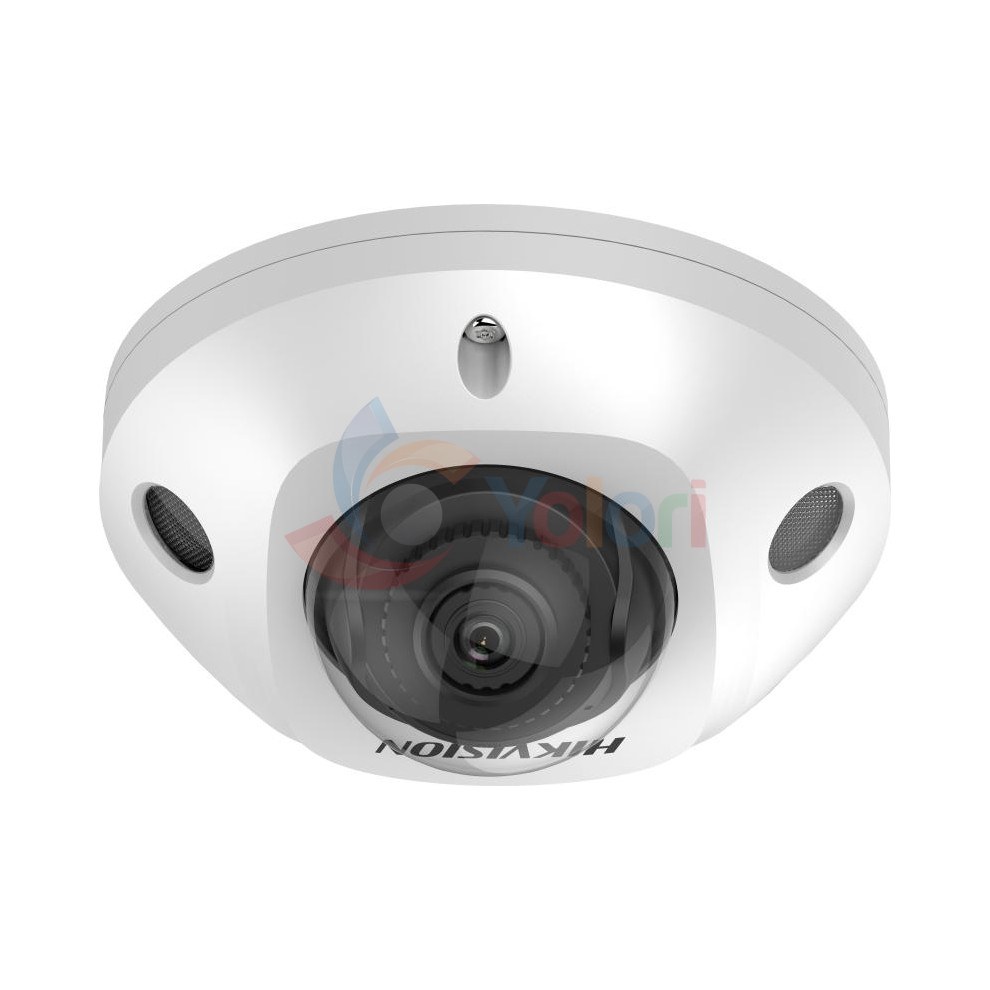

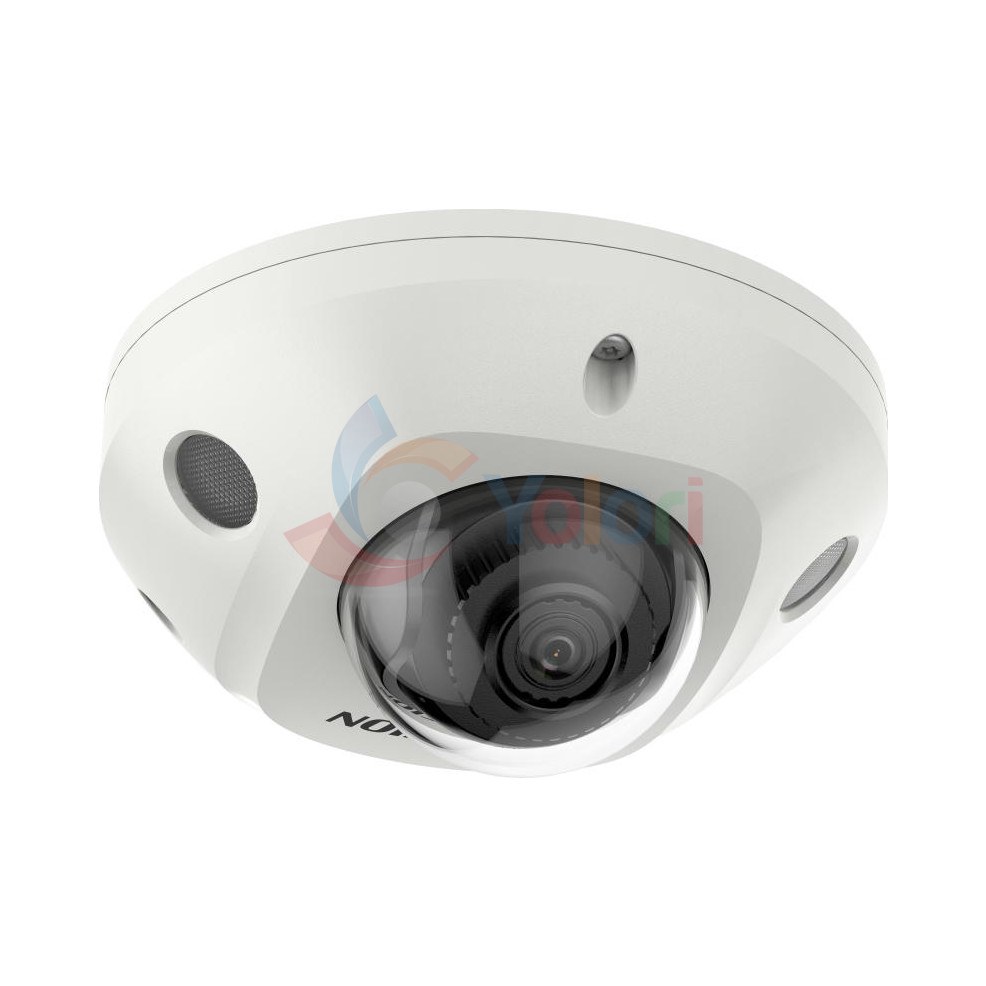

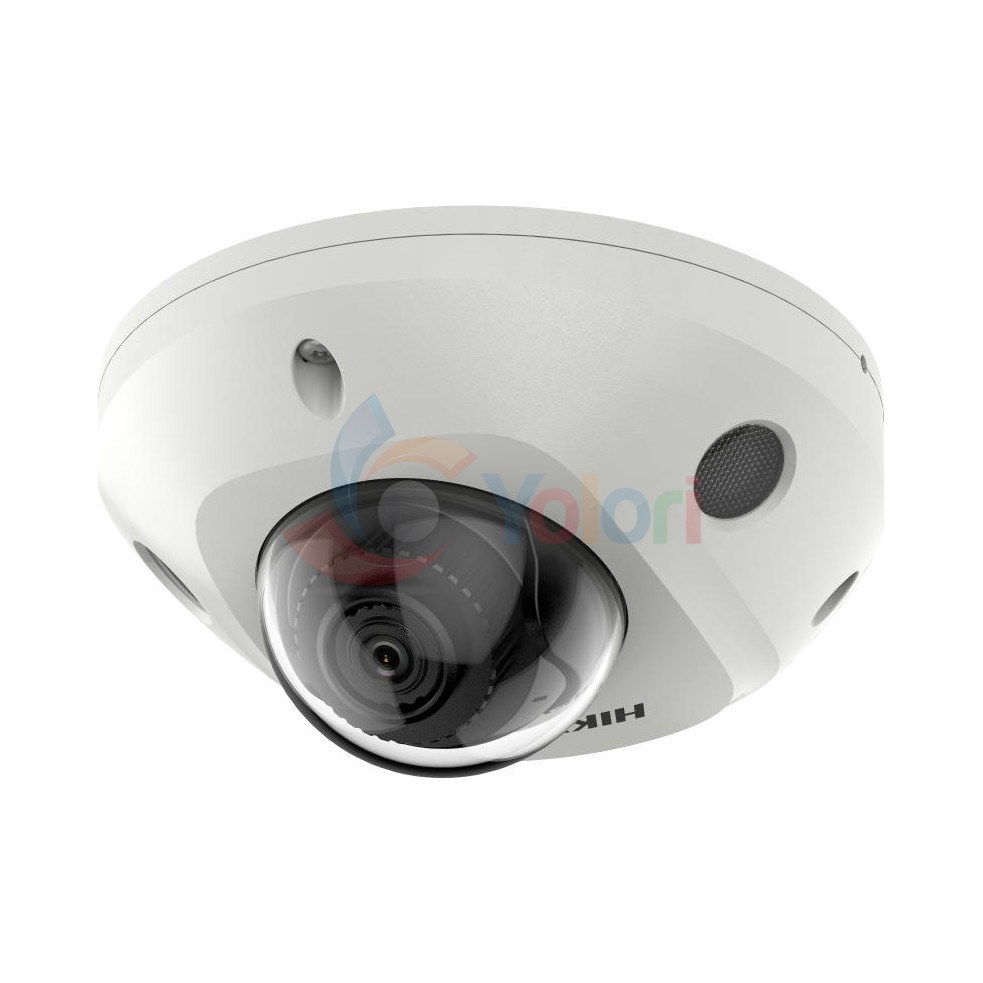

Hikvision Smart IP Dome Camera DS-2CD3556G2-IS - 5 MP, 1/2.7" CMOS, IR 30 m
Rp 4.699.000
Hikvision Smart IP Dome Camera DS-2CD3556G2-IS adalah kamera dome IP 5 MP berbodi mini setebal 57,4 mm dengan resolusi 2592 × 1944 berbentuk 4:3, sehingga bidang pandang tegaknya mencapai 71,5 derajat pada lensa 2,8 mm. Sensornya CMOS 1/2.7 inci bukaan F1,4, dengan klasifikasi manusia dan kendaraan, mikrofon bawaan, jalur line in dan line out, inframerah pintar 30 meter, dan kartu memori sampai 512 GB. Bodinya IP67 dan IK08.
Dijual oleh
Yolori Mall
4.4 / 7 ulasan|10 produk terjual
DokumenFaktur pajak diterbitkan untuk pembelian ini
Sensor CMOS 1/2.7 inci merekam 2592 × 1944, atau 5 megapiksel, dalam bingkai 4:3 dengan bidang pandang 98,3 derajat mendatar dan 71,5 derajat tegak pada lensa 2,8 mm. Bukaan F1,4 dan iluminasi minimum 0,003 lux membuat gambar masih berwarna saat cahaya tinggal sedikit. Rasio sinyal terhadap derau di atas 52 dB menjaga gambar malam tidak terlalu berbintik, dan rentang dinamis 120 dB mempertahankan wajah yang membelakangi cahaya terang. Lensa tetap dengan dudukan M12, dipesan pada 2,8 atau 4 mm. Pada 4 mm bidang pandangnya 79,5 derajat mendatar dan DORI-nya 77 meter untuk deteksi serta 8 meter untuk identifikasi. Inframerah pintar menjangkau 30 meter pada 850 nm. Kepala dome dapat digeser pan -30° sampai 30°, dimiringkan 0° sampai 75°, dan dirotasi 0° sampai 360°. Alarm gerak dapat dibatasi pada manusia dan kendaraan. Perlindungan perimeter mencakup lintas garis, penyusupan, serta masuk dan keluar area, ditambah deteksi barang tertinggal, barang hilang, perubahan pemandangan, dan pengecualian audio, serta penangkapan wajah. Pada 50 Hz aliran utama berjalan 25 bingkai per detik di resolusi penuh; pada 60 Hz resolusi penuh turun ke 24 bingkai. Pemicu tautannya mencakup peringatan suara. Mikrofon bawaan serta jalur line in dan line out melengkapi audio, kartu memori diterima sampai 512 GB, dan ONVIF mencakup Profile S, G, dan T. Daya 12 VDC dengan konsumsi maksimum 6 watt, atau PoE 802.3af kelas 3 dengan 7 watt. Bodi berdiameter 110 mm, tinggi 57,4 mm, bobot 385 gram, peringkat IP67 dan IK08, tahan suhu -30 °C sampai 60 °C. Alarm masuk dan keluar hanya tertulis untuk tipe -IS, dengan arus maksimum 20 mA. Datasheet tidak mencantumkan pengeras suara bawaan, dan port jaringannya 10/100 Mbps.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Image Sensor
- Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB
- Resolution
- Max. Resolution: 2592 × 1944 Main Stream: • 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 98.3° Vertical FOV: 71.5° Diagonal FOV: 131.2° • 4 mm Horizontal FOV: 79.5° Vertical FOV: 58.4° Diagonal FOV: 103.8° Lens Mount: M12 Iris Type: Fixed Aperture: F1.4 Depth of Field: • 2.8 mm 1.6 m to ∞ • 4 mm 1.5 m to ∞ DORI: • 2.8 mm D: 64 m O: 26 m R: 13 m I: 6 m • 4 mm D: 77 m O: 31 m R: 16 m I: 8 m Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
- Night Vision
- Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule
- Video Compression
- Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): H.264 and H.265 encoding
- Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Smart Detection
- Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning
- Storage
- On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), auto network replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Connectivity
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: -IS: 1 input, 1 output (max. 12 VDC, 20 mA) Reset Key: Yes
- Power
- Power: • 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W Power Output: 12 VDC, max. 100 mA
- Protection
- Protection: • IP67 (IEC 60529-2013) • IK08 (IEC 62262: 2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Dimensions
- Dimension: Ø110 mm × 57.4 mm (Ø 4.3" × 2.3") Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
- Weight
- Weight: Approx. 385 g (0.8 lb.) With Package Weight: Approx. 620 g (1.4 lb.)
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.

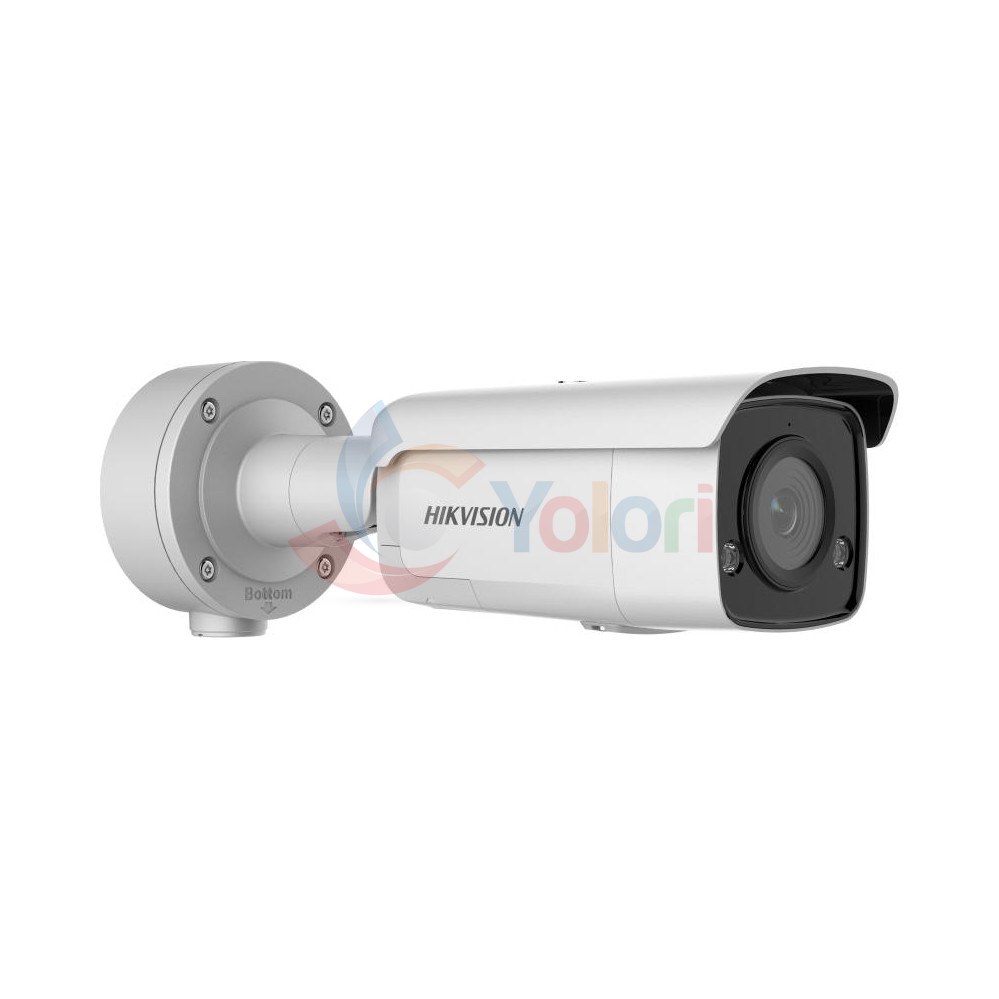

| Sedang dilihatHikvisionHikvision Smart IP Dome Camera DS-2CD3556G2-IS - 5 MP, 1/2.7" CMOS, IR 30 m |  HikvisionHikvision Smart IP Bullet Camera DS-2CD3T56G2-ISU/SL - 5 MP, 1/2.7" CMOS, IR 60 m |  HikvisionHikvision Smart IP Bullet Camera DS-2CD3086G2-IS - 8 MP, 1/1.8" CMOS, IR 40 m |  HikvisionHikvision Smart IP Dome Camera DS-2CD3125G0-IMS - 2 MP, 1/2.8" CMOS, IR 40 m | |
|---|---|---|---|---|
| Harga | Rp 4.699.000 | Rp 4.709.000 | Rp 4.739.000 | Rp 4.739.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Camera Type | — | — | Type: AcuSense Fixed Bullet Network Camera Signal: IP | Type: Fixed Dome Network Camera Signal: IP |
| Image Sensor | Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB | Image Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB | Image Sensor: 1/1.8" Progressive Scan CMOS | Image Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR Wide Dynamic Range: 120dB |
| Resolution | Max. Resolution: 2592 × 1944 Main Stream: • 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) | Max. Resolution: 2592 × 1944 Main Stream: • 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) • 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Fourth Stream: • 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) | Max. Resolution: 3840 × 2160 | Max. Resolution: 1920 × 1080 Main Stream: • 50Hz: 50fps (1920 × 1080, 1280 × 720) • 60Hz: 60fps (1920 × 1080, 1280 × 720) Sub-Stream: • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Lens | Lens Type: Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 98.3° Vertical FOV: 71.5° Diagonal FOV: 131.2° • 4 mm Horizontal FOV: 79.5° Vertical FOV: 58.4° Diagonal FOV: 103.8° Lens Mount: M12 Iris Type: Fixed Aperture: F1.4 Depth of Field: • 2.8 mm 1.6 m to ∞ • 4 mm 1.5 m to ∞ DORI: • 2.8 mm D: 64 m O: 26 m R: 13 m I: 6 m • 4 mm D: 77 m O: 31 m R: 16 m I: 8 m Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 98° Vertical FOV: 72° Diagonal FOV: 131° • 4 mm Horizontal FOV: 80° Vertical FOV: 58° Diagonal FOV: 104° • 6 mm Horizontal FOV: 51° Vertical FOV: 37° Diagonal FOV: 66° Lens Mount: M12 Iris Type: Fixed Aperture: F1.4 DORI: • 2.8 mm D: 64 m O: 25 m R: 12 m I: 6 m • 4 mm D: 77 m O: 30 m R: 15 m I: 7 m • 6 mm D: 126 m O: 50 m R: 25 m I: 12 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 53° Diagonal FOV: 133° • 4 mm Horizontal FOV: 87° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 60° Vertical FOV: 35° Diagonal FOV: 68° Aperture: F1.6 | Lens Type: 2.8/4/6 mm Focus: Fixed FOV: • 2.8 mm Horizontal FOV: 108° Vertical FOV: 58° Diagonal FOV: 128° • 4 mm Horizontal FOV: 86° Vertical FOV: 46° Diagonal FOV: 103° • 6 mm Horizontal FOV: 52° Vertical FOV: 29° Diagonal FOV: 60° Aperture: F1.6 Lens Mount: M12 Auto-Iris: No |
| Night Vision | Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Type: IR Supplement Light Range: Up to 60 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day & Night: IR cut filter Day/Night Switch: Day, Night, Auto, Schedule | Supplement Light Type: IR Supplement Light Range: Up to 40 m | IR Range: Up to 40 m Wavelength: 850nm Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in |
| Video Compression | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): H.264 and H.265 encoding | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 • Fourth stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): H.264 and H.265 encoding | Video Compression: • Main stream: H.265/H.264/H.264+/H.265+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 | Video Compression: • Main stream: H.265/H.264 • Sub-stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile H.264+: No H.265+: No |
| Audio | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes Audio: • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Built-in Microphone: Yes Built-in Speaker: Power: 2 W. Max. sound pressure level: 10 cm: 97 dB. Audio: • 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 2.2 KΩ, interface type: non-equilibrium • 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω | Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Type: Mono sound Audio Input: 1 input (line in), two-core terminal block Audio Output: 1 output (line out), two-core terminal block | Audio Compression: G722.1/G.711/G726/MP2L2/PCM/MP3 Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Audio Interface: 1 input (line in/mic in, terminal block), 1 output (two-core terminal block), mono sound |
| Smart Detection | Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: • Line crossing, intrusion, region entrance, region exiting • Support alarm triggering by specified target types (human and vehicle) Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning | Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Face Capture: Yes Region of Interest (ROI): 5 fixed regions for main stream and sub-stream Target Cropping: Yes Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; support alarm triggered by specified target types (human and vehicle) Deep Learning: Focus on human and vehicle targets classification based on deep learning Face Capture: Yes | Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event: • Line crossing detection, up to 1 line configurable • Intrusion detection, up to 1 region configurable • Unattended baggage detection, up to 1 region configurable • Object removal detection, up to 1 region configurable • Face detection: detects faces • Scene change detection Alarm Interface: 1 input, 1 output (max. 12VDC, 30 mA) |
| Storage | On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), auto network replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported. | On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 512 GB Network Storage: • NAS (NFS, SMB/CIFS), auto network replenishment (ANR) • Together with high-end Hikvision memory card, memory card encryption and health detection are supported. | On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB | On-board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Network Storage: microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| Connectivity | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: -IS: 1 input, 1 output (max. 12 VDC, 20 mA) Reset Key: Yes | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP Simultaneous Live View: Up to 6 channels Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Alarm: • Visual alarm • 2 inputs, 2 outputs (max. 24 VDC, 1 A) Reset Key: Yes | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP API: ONVIF (Profile S, Profile G, Profile T) | Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port Video Output: 1 HDMI, type D, female plug (-M) Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Power | Power: • 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W Power Output: 12 VDC, max. 100 mA | Power: • 12 VDC ± 25%, 0.95 A, max. 12 W, Ø5.5 mm coaxial power plug, reverse polarity protection • PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.31 A to 0.23 A, max. 13 W | Power: • 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø 5.5 mm coaxial power plug • PoE: IEEE 802.3af, Class 3, max. 8.5 W | Power Supply: • Socket style interface: 12 VDC ± 25%, Ø 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3) • Pigtail style interface: 12 VDC ± 25%, two-core terminal block; reverse polarity protection; PoE (802.3af, class 3) Power Consumption and Current: • 12 VDC, 0.6 A, max. 7 W • PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W |
| Protection | Protection: • IP67 (IEC 60529-2013) • IK08 (IEC 62262: 2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection: IP67: IEC 60529-2013 Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Protection: Ingress protection: IP42 (IEC 60529-2013), IK10 (IEC 62262:2002) Startup and Operating Conditions: • IR on: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) • IR off: -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing) Storage Conditions: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) |
| Dimensions | Dimension: Ø110 mm × 57.4 mm (Ø 4.3" × 2.3") Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") | Dimension: 325.5 × Ø105mm (12.8" × 4.13") Package Dimension: 386 × 156 × 155 mm (15.2" × 6.1" × 6.1") | Dimension: 78.8 mm × 78.6 mm × 215.2 mm (3.1" × 3.1" × 8.5") | Camera Dimension: Ø 119 mm × 90 mm (Ø 4.7" × 3.5") |
| Weight | Weight: Approx. 385 g (0.8 lb.) With Package Weight: Approx. 620 g (1.4 lb.) | Weight: Approx. 1150 g (2.4 lb.) With Package Weight: Approx. 1870 g (3.5 lb.) | Weight: Approx. 830 g (1.8 lb.) | Camera Weight: Approx. 520 g (1.1 lb.) With package: Approx. 750 g (1.7 lb.) |
