BerandaCCTVHikvision Smart IP Turret Camera DS-2CD3351G0-IU(F) - 5 MP, 1/2.7" CMOS, IR 40 m

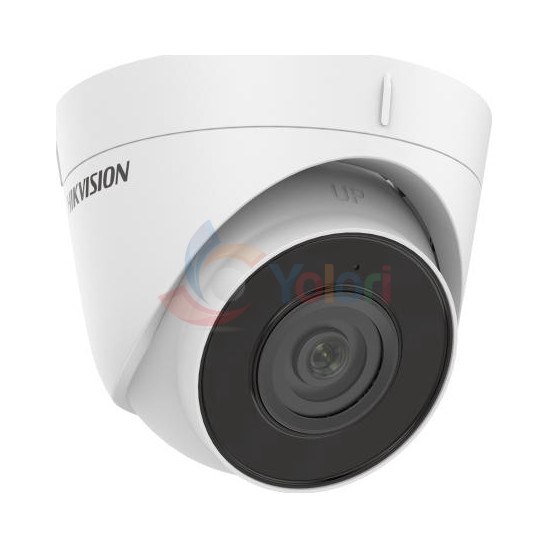

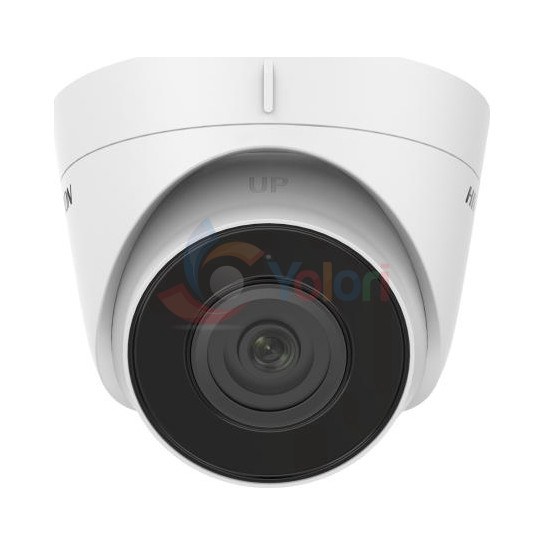

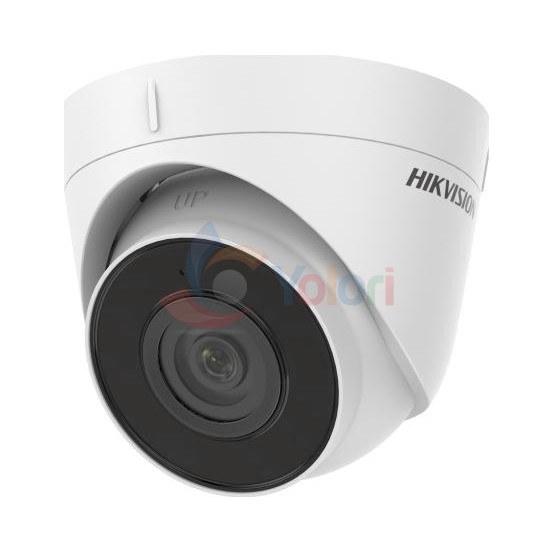

Hikvision Smart IP Turret Camera DS-2CD3351G0-IU(F) - 5 MP, 1/2.7" CMOS, IR 40 m — gambar 1
1 / 3
HikvisionTentang merek· Smart IP Turret Camera
CCTVBaruSKU: DS-2CD3351G0-IU(F)

Hikvision Smart IP Turret Camera DS-2CD3351G0-IU(F) - 5 MP, 1/2.7" CMOS, IR 40 m

Rp 2.639.000

Hikvision Smart IP Turret Camera DS-2CD3351G0-IU(F) adalah kamera turret IP 5 MP dengan resolusi 2560 × 1920 berbentuk 4:3, sehingga bidang pandang tegaknya mencapai 72 derajat pada lensa 2,8 mm. Sensornya CMOS 1/2.7 inci, inframerah pintar 40 meter, mikrofon bawaan, kartu memori sampai 256 GB, dan bodi IP67. Kamera tidak punya jalur line in dan line out maupun I/O alarm, dan analitiknya hanya lintas garis dan penyusupan.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual
Chat WhatsApp Kunjungi Toko
DokumenFaktur pajak diterbitkan untuk pembelian ini

Sensor CMOS 1/2.7 inci pada DS-2CD3351G0-IU(F) merekam hingga 2560 × 1920, atau sekitar lima megapiksel. Bingkainya berbentuk 4:3, sehingga bidang pandang tegaknya lebih tinggi daripada kamera 16:9: 72 derajat tegak dan 99 derajat mendatar pada lensa 2,8 mm. Iluminasi minimumnya 0,005 lux pada F1,6 untuk gambar berwarna, dan 0 lux dengan inframerah menyala. Rentang dinamis 120 dB menjaga wajah tetap terbaca saat kamera menghadap pintu kaca. Lensa tetap dengan dudukan M12, dipesan pada 2,8 atau 4 mm. Pada 4 mm bidang pandangnya 78 derajat mendatar dan DORI-nya 79 meter untuk deteksi serta 7 meter untuk identifikasi. Inframerah pintar menjangkau 40 meter pada 850 nm. Kepala turret dapat diputar 0° sampai 360°, dimiringkan 0° sampai 75°, dan dirotasi 0° sampai 360°, sehingga arah bidik bisa disetel setelah terpasang. Aliran utama berjalan 20 bingkai per detik di resolusi penuh dan 25 sampai 30 bingkai pada 2560 × 1440 atau lebih rendah. Kompresi H.265+ dan H.264+ menekan ukuran rekaman, dengan laju bit 32 Kbps sampai 16 Mbps dan satu area ROI tetap. Mikrofon bawaan merekam suara bersama gambar, dan kartu memori diterima sampai 256 GB. Analitiknya lintas garis dan penyusupan. Sampai enam kanal tampilan langsung dapat dibuka bersamaan lewat antarmuka Open Network Video Interface dan ISAPI. Daya masuk lewat 12 VDC atau PoE 802.3af kelas 3, dengan konsumsi maksimum 5 watt dan 6,5 watt. Bodi logam dan plastik berdiameter 110 mm, tinggi 92 mm, bobot 360 gram, peringkat IP67, tahan suhu -30 °C sampai 60 °C. Kamera ini tidak punya jalur audio masuk dan keluar maupun masukan dan keluaran alarm, sehingga mikrofon luar dan pengeras suara tidak bisa dipasang. Analitiknya terbatas pada lintas garis dan penyusupan tanpa klasifikasi manusia dan kendaraan, profil ONVIF tidak dirinci datasheet, dan peringkat IK tidak dicantumkan.

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Sedang dilihatHikvisionHikvision Smart IP Turret Camera DS-2CD3351G0-IU(F) - 5 MP, 1/2.7" CMOS, IR 40 mHikvisionHikvision Smart IP Bullet Camera DS-2CD3047G0E-LUF - 4 MP, 1/3" CMOS, Lampu Putih 30 mHikvisionHikvision Smart IP Bullet Camera DS-2CD3027G0E-LUF - 2 MP, 1/2.8" CMOS, Lampu Putih 30 mHikvisionHikvision Smart IP Dome Camera DS-2CD3151G0-I - 5 MP, 1/2.7" CMOS, IR 40 m
HargaRp 2.639.000Rp 2.639.000Rp 2.479.000Rp 2.449.000
Garansi
Warranty Months12121212
Warranty TypeHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official Warranty
Jaminan
Stock StatusTersediaTersediaTersediaTersedia
Spesifikasi Teknis
Camera Type—Type: ColorVu Fixed Bullet Network Camera Signal: IPType: ColorVu Fixed Bullet Network Camera Signal: IP—
Image SensorImage Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dBImage Sensor: 1/3" Progressive Scan CMOS Min. Illumination: 0 Lux with white lightImage Sensor: 1/2.8" Progressive Scan CMOS Min. Illumination: 0 Lux with white lightImage Sensor: 1/2.7" Progressive Scan CMOS Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Wide Dynamic Range (WDR): 120 dB
ResolutionMax. Resolution: 2560 × 1920 Main Stream: • 50 Hz: 20 fps (2560 × 1920), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) • 60 Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360)Max. Resolution: 2560 × 1440Max. Resolution: 1920 × 1080Max. Resolution: 2560 × 1920 Main Stream: • 50 Hz: 20 fps (2560 × 1920), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) • 60 Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub-Stream: • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: • 50 Hz: 1 fps (640 × 360) • 60 Hz: 1 fps (640 × 360)
LensLens Type: Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 99° Vertical FOV: 72° Diagonal FOV: 130° • 4 mm Horizontal FOV: 78° Vertical FOV: 57° Diagonal FOV: 100° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 DORI: • 2.8 mm D: 63 m O: 25 m R: 12 m I: 6 m • 4 mm D: 79 m O: 31 m R: 15 m I: 7 m Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°Focal Length & FOV: • 2.8 mm Horizontal FOV: 96.5° Vertical FOV: 50.8° Diagonal FOV: 113.9° • 4 mm Horizontal FOV: 75.8° Vertical FOV: 40.8° Diagonal FOV: 89.1° Aperture: F1.0 Lens Mount: M12Focal Length & FOV: • 2.8 mm Horizontal FOV: 105.2° Vertical FOV: 56.5° Diagonal FOV: 125.1° • 4 mm Horizontal FOV: 83.6° Vertical FOV: 46.2° Diagonal FOV: 97.5° Aperture: F1.0 Lens Mount: M12 Focus: FixedLens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: • 2.8 mm Horizontal FOV: 99° Vertical FOV: 72° Diagonal FOV: 130° • 4 mm Horizontal FOV: 78° Vertical FOV: 57° Diagonal FOV: 100° • 6 mm Horizontal FOV: 49° Vertical FOV: 36° Diagonal FOV: 63° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 DORI: • 2.8 mm D: 63 m O: 25 m R: 12 m I: 6 m • 4 mm D: 79 m O: 31 m R: 15 m I: 7 m • 6 mm D: 128 m O: 50 m R: 25 m I: 12 m Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Night VisionSupplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day/Night Switch: Day, Night, Auto, ScheduleSupplement Light Range: Up to 30 mSupplement Light Range: Up to 30 m Smart Supplement Light: YesSupplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Day/Night Switch: Day, Night, Auto, Schedule
Video CompressionVideo Compression: • Main stream: H.265/H.264/H.265+/H.264+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main ProfileVideo Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264Video Compression: • Main stream: H.265+/H.265/H.264+/H.264 • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264Video Compression: • Main stream: H.265/H.264/H.265+/H.264+ • Sub-stream: H.265/H.264/MJPEG • Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile
AudioAudio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Environment Noise Filtering: Yes Built-in Microphone: YesAudio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Built-in Microphone: YesAudio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Built-in Microphone: Yes—
Smart DetectionBasic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Region of Interest (ROI): 1 fixed region for main stream and sub stream Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger captureBasic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Region of Interest (ROI): 1 fixed region for main streamSmart Event: Line crossing detection, intrusion detection Region of Interest: 1 fixed region for main streamBasic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection Region of Interest (ROI): 1 fixed region for main stream and sub stream Linkage: -I: Upload to FTP, notify surveillance center, send email, trigger capture
StorageOn-Board Storage: Built-in memory card slot, support microSD card, up to 256 GBOn-Board Storage: Built-in memory card slot, support microSD card, up to 256 GBOn-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB—
ConnectivityEthernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels Reset Key: YesEthernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPIEthernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPIEthernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS API: Open Network Video Interface, ISAPI Simultaneous Live View: Up to 6 channels
PowerPower: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 WPower: • 12 VDC ± 25%, 0.4 A, max. 5 W • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 WPower: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug • PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 WPower: • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
ProtectionProtection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) Material: Metal & PlasticProtection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Protection: IP67 (IEC 60529-2013) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Protection: • IP67 (IEC 60529-2013) • IK10 (IEC 62262: 2002) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Material: Metal & Plastic
DimensionsDimension: Ø110 mm × 92 mm (4.3" × 3.6") Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")Dimension: Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5")Dimension: Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5")Dimension: Ø110.8 mm × 84.7 mm (4.4" × 3.3") Package Dimension: 135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3")
WeightWeight: Approx. 360 g (0.8 lb.) With Package Weight: Approx. 586 g (1.3 lb.)Weight: Approx. 430 g (0.95 lb.)Weight: Approx. 420 g (0.93 lb.) With Package Weight: Approx. 668 g (1.47 lb.)Weight: Approx. 497 g (1.1 lb.) With Package Weight: Approx. 597 g (1.3 lb.)
