Tentang merek· Switch Unmanaged PoESwitchBaruSKU: DS-3E0510P-E

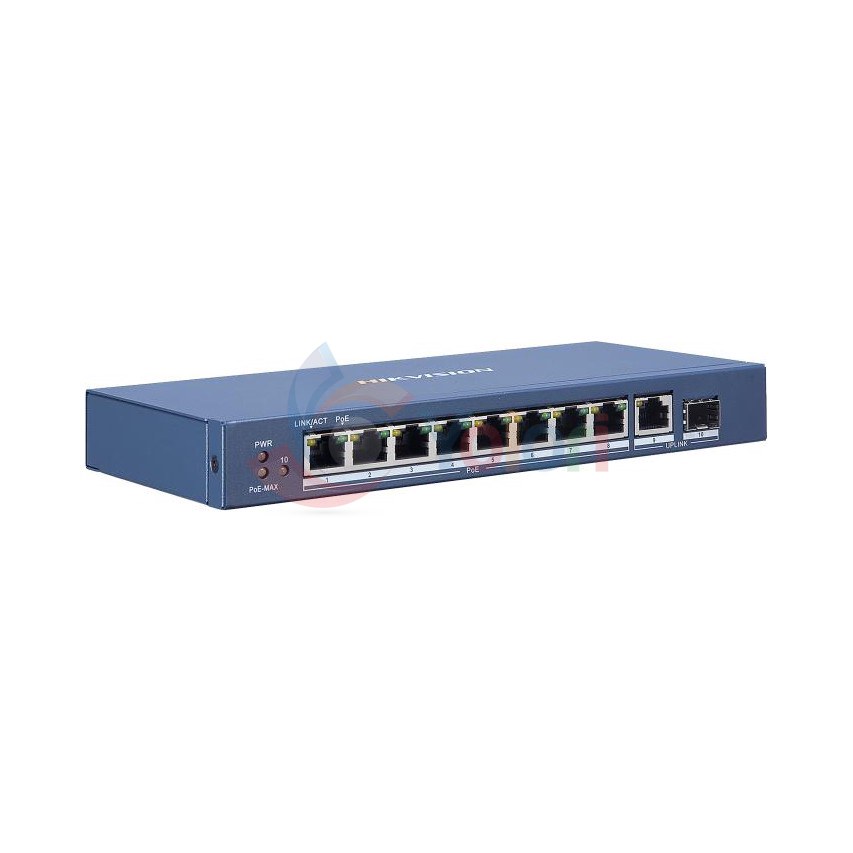

Hikvision Switch Unmanaged PoE DS-3E0510P-E - 8 Port Gigabit
Rp 2.829.000
Hikvision Switch Unmanaged PoE DS-3E0510P-E adalah Switch dengan Ports: 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port, PoE Standard: IEEE 802.3af,IEEE 802.3at, PoE Power Pin: End-span: 1/2(+), 3/6(-), PoE Port: PoE: Ports 1 to 8, Max. Port Power: 30 W, PoE Power Budget: 110 W.
Dijual oleh
Yolori Mall
4.4 / 7 ulasan|10 produk terjual
DokumenFaktur pajak diterbitkan untuk pembelian ini
Hikvision Switch Unmanaged PoE DS-3E0510P-E adalah Switch dengan Ports: 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port. Untuk PoE, tercatat PoE Standard: IEEE 802.3af,IEEE 802.3at; PoE Power Pin: End-span: 1/2(+), 3/6(-); PoE Port: PoE: Ports 1 to 8; Max. Port Power: 30 W; PoE Power Budget: 110 W. Dari sisi kinerja, tercatat Switching Capacity: 20 Gbps; Packet Forwarding Rate: 14.88 Mpps. Switch dari Hikvision ini juga dibekali Model: DS-3E0510P-E; Shell: Metal material, fan-free design; Gross Weight: 1.4 kg (3.09 lb); Installation Mode: Desk-Mounted,Wall-Mounted;; Surge Protection: 6 kV; MAC Address Table: 4 K; Internal Cache: 1.5 Mbits. Switch dari Hikvision ini juga dibekali Power Supply: 48 V DC, 2.5 A; Max. Power Consumption: 120 W; Power Consumption in Idle: 10 W. Dimensinya 217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3''). Beratnya 0.6 kg (1.32 lb). Untuk lingkungan operasi, tercatat Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F); Operating Humidity: 5% to 95% (no condensation); Relative Humidity: 5% to 95% (no condensation). Sertifikasi dan kepatuhan standarnya meliputi EMC mencakup FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020) dan RCM (AS/NZS CISPR 32: 2015); Safety mencakup UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition) dan CE-LVD (EN 62368-1: 2014+A11: 2017). Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.
Garansi
- Warranty Months
- 12
- Warranty Type
- Hikvision Indonesia Official Warranty
Jaminan
- Stock Status
- Tersedia
Spesifikasi Teknis
- Port Count
- Ports: 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
- PoE
- • PoE Standard: IEEE 802.3af,IEEE 802.3at • PoE Power Pin: End-span: 1/2(+), 3/6(-) • PoE Port: PoE: Ports 1 to 8 • Max. Port Power: 30 W • PoE Power Budget: 110 W
- Bandwidth
- • Switching Capacity: 20 Gbps • Packet Forwarding Rate: 14.88 Mpps
- Environment
- • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation)
- Certification
- EMC: • FCC (47 CFR Part 15, • Subpart B), • CE-EMC (EN 55032: 2015+A11: 2020, • EN IEC 61000-3-2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011+A1: 2014, • EN 55035: 2017+A11: 2020), • IC (ICES-003: Issue 7:2020), • RCM (AS/NZS CISPR 32: 2015) Safety: • UL (UL 60950-1), • CB (AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition), • CE-LVD (EN 62368-1: 2014+A11: 2017)
- Features
- • Model: DS-3E0510P-E • Shell: Metal material, fan-free design • Gross Weight: 1.4 kg (3.09 lb) • Installation Mode: Desk-Mounted,Wall-Mounted; • Surge Protection: 6 kV • MAC Address Table: 4 K • Internal Cache: 1.5 Mbits
- Dimensions
- 217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')
- Weight
- 0.6 kg (1.32 lb)
- Power
- • Power Supply: 48 V DC, 2.5 A • Max. Power Consumption: 120 W • Power Consumption in Idle: 10 W
Bandingkan dengan produk sejenis
Pilihan lain pada kategori yang sama dengan harga berdekatan.
| Sedang dilihatHikvisionHikvision Switch Unmanaged PoE DS-3E0510P-E - 8 Port Gigabit |  HikvisionHikvision Switch Unmanaged PoE DS-3T0310HP-E/HS - 8 Port Fast Ethernet |  HikvisionHikvision Switch Smart DS-3E1524-EI - 24 Port Gigabit |  HikvisionHikvision Switch Unmanaged PoE DS-3E0510HP-E - 8 Port Gigabit | |
|---|---|---|---|---|
| Harga | Rp 2.829.000 | Rp 3.029.000 | Rp 3.079.000 | Rp 3.339.000 |
| Garansi | ||||
| Warranty Months | 12 | 12 | 12 | 12 |
| Warranty Type | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty | Hikvision Indonesia Official Warranty |
| Jaminan | ||||
| Stock Status | Tersedia | Tersedia | Tersedia | Tersedia |
| Spesifikasi Teknis | ||||
| Security | — | Port Isolation: Ports 1 to 8: port isolation mode to improve network security. | Port Isolation: • Ports 1 to 24: port isolation mode to improve network security • Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. | Port Isolation: Ports 1 to 8: port isolation mode to improve network security. |
| Port Count | Ports: 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port | Ports: 6 × 10/100 Mbps PoE ports, 2 × Hi-PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit fiber optical port | Ports: 24 × Gigabit RJ45 port | Ports: 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port |
| Management | — | — | HPP: • Support one-click activation and remote management via Hik-Partner Pro. Functions supported: • 1. Display the port rate. • 2. Display the port bandwidth utilization rate. • 3. Display topology information. • 4. Display the alarm status. • 5. Restart ports and devices. • 6. Remotely upgrade the device. System Maintenance: • Support device management via web. • Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. • Support Super IP, which is a configurable IP address (default: 10.180.190.200) for direct access. • Support management via Hik-Central Pro. • Support remote management via Hik-Partner Pro. • Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. • Support 802.1ab LLDP for peer device discovery. • Support port mirroring for fault locating. | — |
| PoE | • PoE Standard: IEEE 802.3af,IEEE 802.3at • PoE Power Pin: End-span: 1/2(+), 3/6(-) • PoE Port: PoE: Ports 1 to 8 • Max. Port Power: 30 W • PoE Power Budget: 110 W | Transmission: • Ports 7 and 8 • Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt PoE Power Pin: • Ports 3 to 8: IEEE 802.3af, IEEE 802.3at • End-span: 1/2(-), 3/6(+) • Mid-span: 4/5(+), 7/8(-) • 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) • Ports 1 to 8 Max. Port Power: • Ports 1 and 2: 90 W • Ports 3 to 8: 30 W • PoE Power Budget: 110 W • Long Range: Ports 7 and 8: up to 300 m. | — | • PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port: • Hi-PoE: Ports 1 to 2 • PoE: Ports 3 to 8 Max. Port Power: • Ports 1 and 2: 90 W • Ports 3 to 8: 30 W • PoE Power Budget: 110 W |
| Bandwidth | • Switching Capacity: 20 Gbps • Packet Forwarding Rate: 14.88 Mpps | • Switching Capacity: 5.6 Gbps • Packet Forwarding Rate: 4.1664 Mpps | • Switching Capacity: 56 Gbps • Packet Forwarding Rate: 41.66 Mpps | • Switching Capacity: 20 Gbps • Packet Forwarding Rate: 14.88 Mpps |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation) | • Operating Temperature: -30 °C to 65 °C (-22 °F to 149°F) • Operating Humidity: 5% to 95% (no condensation) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Storage Humidity: 5% to 95% (no condensation) | • Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation) | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation) |
| Certification | EMC: • FCC (47 CFR Part 15, • Subpart B), • CE-EMC (EN 55032: 2015+A11: 2020, • EN IEC 61000-3-2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011+A1: 2014, • EN 55035: 2017+A11: 2020), • IC (ICES-003: Issue 7:2020), • RCM (AS/NZS CISPR 32: 2015) Safety: • UL (UL 60950-1), • CB (AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition), • CE-LVD (EN 62368-1: 2014+A11: 2017) | EMC: • FCC (47 CFR Part 15, • Subpart B); CE-EMC (EN 55032: 2015, • EN 61000-3- 2: 2014, • EN 61000-3-3: 2013, • EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, • 2016) Safety: • UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE- • LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) | EMC: • CE-EMC (EN 55032: 2015+A11: 2020, • EN IEC 61000-3-2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011+A1: 2014, • EN 55035: 2017+A11: 2020) Safety: • CB (AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition)), • CE-LVD (EN 62368- 1: 2014+A11: 2017) Chemistry: • CE-RoHS (201165EU); • WEEE (201219EU); • Reach (Regulation (EC) No.19072006) | EMC: • FCC (47 CFR Part 15, • Subpart B), • CE-EMC (EN 55032: 2015+A11: 2020, • EN IEC 61000-3-2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011+A1: 2014, • EN 55035: 2017+A11: 2020), • IC (ICES-003: Issue 7:2020), • RCM (AS/NZS CISPR 32: 2015) Safety: • UL (UL 60950-1), • CB (AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition), • CE-LVD (EN 62368-1: 2014+A11: 2017) • Chemistry: CE-RoHS (2011/65/EU) |
| Features | • Model: DS-3E0510P-E • Shell: Metal material, fan-free design • Gross Weight: 1.4 kg (3.09 lb) • Installation Mode: Desk-Mounted,Wall-Mounted; • Surge Protection: 6 kV • MAC Address Table: 4 K • Internal Cache: 1.5 Mbits | • Model: DS-3T0310HP-E/HS • Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive • Working Mode: Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab • Forwarding Mode: Store-and-forward switching • MAC Address Table: 4 K • Internal Cache: 1.5 Mbits • PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond. • Shell: Metal material, fan-free design • Gross Weight: 1.24 kg (2.73 lb) • Idle: < 10 W 120 W | • Shell: Metal material, IP40 • Gross Weight: 2.545 kg (5.61 lb) • Installation Mode: Rack (equipped with mounting ears) • Surge Protection: 6 kV • MAC Address Table: 8 K • Internal Cache: 4.1 Mbits Link Aggregation: • Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. • Support static link aggregation. • Support 8 aggregation groups. QoS: • QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. • Support port-based priority configuration. • Support SP and WRR priority scheduling modes. Loop Prevention: • Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. • Support 802.1D STP. • Support 802.1w RSTP. VLAN: • VLAN is used for network scale planning and network health improvement. • Support 802.1Q. • Configurable VLAN ID from 1-4094. • Support Trunk, Access port mode. • Support Max. 32 VLAN. DHCP Snooping: • DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow • DHCP packets from trusted ports to pass through. Disabled by default. | • Shell: Metal material, fan-free design • Gross Weight: 0.71 kg (1.57 lb) • Installation Mode: Desk-Mounted • Surge Protection: 6 kV • MAC Address Table: 4 K • Internal Cache: 1.5 Mbits Long Range: • Ports 7 to 8: up to 300 m • Long range performance may vary depend on camera model or cable condition. • PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| Dimensions | 217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'') | 197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”) | 335.00 mm × 44.50 mm × 175.80 mm (13.19'' × 1.75'' × 6.92'') | 217.6 mm × 108.55 mm × 27.8 mm (8.57'' × 4.27'' × 1.09'') |
| Weight | 0.6 kg (1.32 lb) | 0.565 kg (1.25 lb) | 1.62 kg (3.57 lb) | 0.59 kg (1.30 lb) |
| Power | • Power Supply: 48 V DC, 2.5 A • Max. Power Consumption: 120 W • Power Consumption in Idle: 10 W | Power Supply: 48 to 57 VDC, 2.5 A Max. | • Power Supply: 220 V AC, 50/60 Hz, Max. 0.7 A • Max. Power Consumption: 13 W • Power Consumption in Idle: 5 W | • Power Supply: 54 V DC, 2.22 A • Max. Power Consumption: 120 W • Power Consumption in Idle: 10 W |
