BerandaSwitchHikvision Switch Unmanaged PoE DS-3T0510HP-E/HS - 8 Port Gigabit

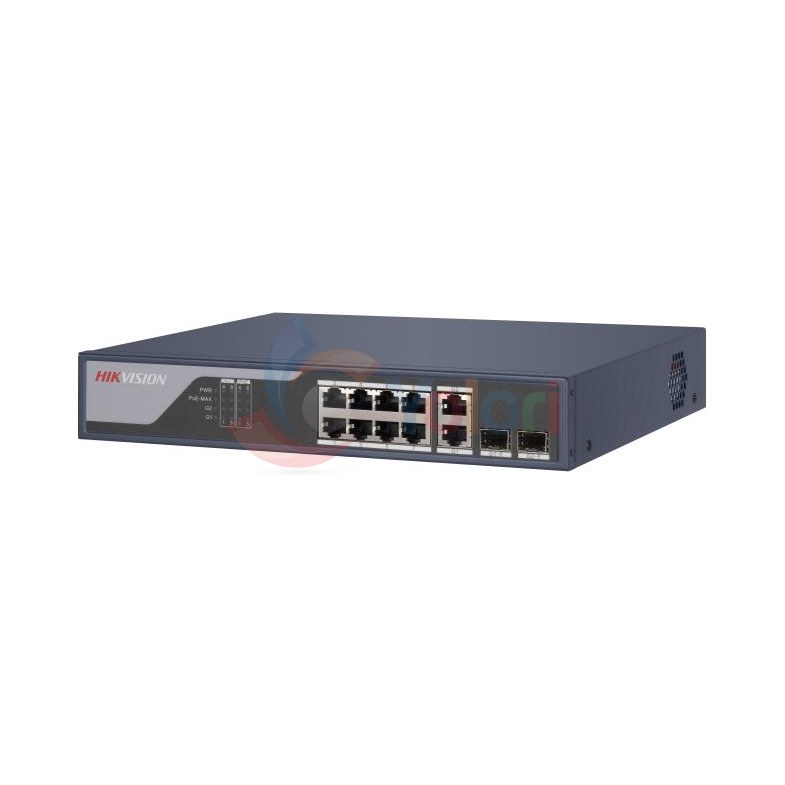

Hikvision Switch Unmanaged PoE DS-3T0510HP-E/HS - 8 Port Gigabit — gambar 1
HikvisionTentang merek· Switch Unmanaged PoE
SwitchBaruSKU: DS-3T0510HP-E/HS

Hikvision Switch Unmanaged PoE DS-3T0510HP-E/HS - 8 Port Gigabit

Rp 3.859.000

Hikvision Switch Unmanaged PoE DS-3T0510HP-E/HS adalah Switch dengan Ports: 8 × Gigabit PoE port,2 × Gigabit fiber optical port, PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt, PoE Power Pin mencakup Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), ,4/5(+), 7/8(-); Ports 3 to 6: End-span: 1/2(-), 3/6(+); Ports 7 to 8: 8-pin power: 1/2(-), 3/6(+) ,4/5(+), 7/8(-), PoE Port mencakup Hi-PoE: Ports 1 to 2 dan PoE: Ports 3 to 8, Max. Port Power mencakup Ports 1 and 2: 90 W dan Ports 3 to 8: 30 W.

Dijual oleh

Yolori Mall

4.4 / 7 ulasan|10 produk terjual
Chat WhatsApp Kunjungi Toko
DokumenFaktur pajak diterbitkan untuk pembelian ini

Hikvision Switch Unmanaged PoE DS-3T0510HP-E/HS adalah Switch dengan Ports: 8 × Gigabit PoE port,2 × Gigabit fiber optical port. Untuk PoE, tercatat PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt; PoE Power Pin mencakup Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), ,4/5(+), 7/8(-); Ports 3 to 6: End-span: 1/2(-), 3/6(+); Ports 7 to 8: 8-pin power: 1/2(-), 3/6(+) ,4/5(+), 7/8(-); PoE Port mencakup Hi-PoE: Ports 1 to 2 dan PoE: Ports 3 to 8; Max. Port Power mencakup Ports 1 and 2: 90 W dan Ports 3 to 8: 30 W; PoE Power Budget: 110 W. Dari sisi kinerja, tercatat Switching Capacity: 20 Gbps; Packet Forwarding Rate: 14.88 Mpps. Switch dari Hikvision ini juga dibekali Shell: Metal material, fan-free design; Gross Weight: 1.11 kg (2.45 lb); Installation Mode: Desk-Mounted,Rail; Surge Protection: 6 kV; MAC Address Table: 4 K; Internal Cache: 1.5 Mbits; Long Range mencakup Ports 7 to 8: up to 300 m dan Long range performance may vary depend on camera model or cable condition; PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond.; Order Sap Order Model Type: Parameter; Industrial 303703680 NDR-75-48 mencakup AC/DC Power Supply, Output 48V-55V, 0-1.6A, 75watts, Input 90-; Power 264VAC, 127-370VDC, DIN rail, -20~70℃; Industrial 303703681 NDR-240-48 mencakup AC/DC Power Supply, Output 48V-55V, 0-5A,240watts, Input 90-; Power 264VAC, 127-370VDC, DIN rail, -20~70℃. Untuk keamanan, tersedia Port Isolation: Ports 1 to 8: port isolation mode to improve network security. Switch dari Hikvision ini juga dibekali Power Supply: 54 V DC, 2.5 A; Max. Power Consumption: 120 W; Power Consumption in Idle: 10 W. Dimensinya 197.0 mm × 114.2 mm × 42.2 mm (7.76'' × 4.50'' × 1.66''). Beratnya 0.585 kg (1.29 lb). Untuk lingkungan operasi, tercatat Operating Temperature: -30 °C to 65 °C (-22 °F to 149°F); Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F); Operating Humidity: 5% to 95% (no condensation); Relative Humidity: 5% to 95% (no condensation). Sertifikasi dan kepatuhan standarnya meliputi EMC mencakup FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3- 2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020) dan RCM (AS/NZS CISPR 32: 2015); Safety mencakup UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition) dan CE- LVD (EN 62368-1: 2014+A11: 2017); Chemistry: CE-RoHS (2011/65/EU). Hikvision memberikan Hikvision Indonesia Official Warranty selama 12 bulan untuk produk ini.

Bandingkan dengan produk sejenis

Pilihan lain pada kategori yang sama dengan harga berdekatan.

Sedang dilihatHikvisionHikvision Switch Unmanaged PoE DS-3T0510HP-E/HS - 8 Port GigabitHikvisionHikvision Switch Smart PoE DS-3E1310P-SI - 8 Port Fast EthernetHikvisionHikvision Switch Unmanaged PoE DS-3E0510HP-E - 8 Port GigabitHikvisionHikvision Switch Smart DS-3E1524-EI - 24 Port Gigabit
HargaRp 3.859.000Rp 3.859.000Rp 3.339.000Rp 3.079.000
Garansi
Warranty Months12121212
Warranty TypeHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official WarrantyHikvision Indonesia Official Warranty
Jaminan
Stock StatusTersediaTersediaTersediaTersedia
Spesifikasi Teknis
SecurityPort Isolation: Ports 1 to 8: port isolation mode to improve network security.Port Isolation: • Ports 1 to 8: port isolation mode to improve network security. • Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.Port Isolation: Ports 1 to 8: port isolation mode to improve network security.Port Isolation: • Ports 1 to 24: port isolation mode to improve network security • Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
Port CountPorts: 8 × Gigabit PoE port,2 × Gigabit fiber optical portPorts: 8 × 10/100 Mbps PoE port,2 × Gigabit comboPorts: 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical portPorts: 24 × Gigabit RJ45 port
Management—HPP: • Support one-click activation and remote management via Hik-Partner Pro. Functions supported: • 1. Display the port rate. • 2. Display the port bandwidth utilization rate. • 3. Display the PoE power usage. • 4. Display topology information. • 5. Display the alarm status. • 6. Restart ports and devices. • 7. Enable port long-rage mode. • 8. Remotely upgrade the device. System Maintenance: • Support device management via web. • Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. • Support remote management via Hik-Partner Pro. • Support 802.1ab LLDP for peer device discovery. • Support SNMP v1/v2c for third-party management platform access. • Support port mirroring for fault locating.—HPP: • Support one-click activation and remote management via Hik-Partner Pro. Functions supported: • 1. Display the port rate. • 2. Display the port bandwidth utilization rate. • 3. Display topology information. • 4. Display the alarm status. • 5. Restart ports and devices. • 6. Remotely upgrade the device. System Maintenance: • Support device management via web. • Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. • Support Super IP, which is a configurable IP address (default: 10.180.190.200) for direct access. • Support management via Hik-Central Pro. • Support remote management via Hik-Partner Pro. • Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. • Support 802.1ab LLDP for peer device discovery. • Support port mirroring for fault locating.
PoE• PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt PoE Power Pin: • Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), ,4/5(+), 7/8(-) • Ports 3 to 6: End-span: 1/2(-), 3/6(+) • Ports 7 to 8: 8-pin power: 1/2(-), 3/6(+) ,4/5(+), 7/8(-) PoE Port: • Hi-PoE: Ports 1 to 2 • PoE: Ports 3 to 8 Max. Port Power: • Ports 1 and 2: 90 W • Ports 3 to 8: 30 W • PoE Power Budget: 110 W• PoE Standard: IEEE 802.3af,IEEE 802.3at • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) • PoE Port: PoE: Ports 1 to 8 • Max. Port Power: 30 W • PoE Power Budget: 125 W• PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port: • Hi-PoE: Ports 1 to 2 • PoE: Ports 3 to 8 Max. Port Power: • Ports 1 and 2: 90 W • Ports 3 to 8: 30 W • PoE Power Budget: 110 W—
Bandwidth• Switching Capacity: 20 Gbps • Packet Forwarding Rate: 14.88 Mpps• Switching Capacity: 9.2 Gbps • Packet Forwarding Rate: 6.84 Mpps• Switching Capacity: 20 Gbps • Packet Forwarding Rate: 14.88 Mpps• Switching Capacity: 56 Gbps • Packet Forwarding Rate: 41.66 Mpps
Environment• Operating Temperature: -30 °C to 65 °C (-22 °F to 149°F) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation)• Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation)• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation)• Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F) • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity: 5% to 95% (no condensation) • Relative Humidity: 5% to 95% (no condensation)
CertificationEMC: • FCC (47 CFR Part 15, • Subpart B), • CE-EMC (EN 55032: 2015+A11: 2020, • EN IEC 61000-3- 2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011+A1: 2014, • EN 55035: 2017+A11: 2020), • IC (ICES-003: Issue 7:2020), • RCM (AS/NZS CISPR 32: 2015) Safety: • UL (UL 60950-1), • CB (AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition), • CE- LVD (EN 62368-1: 2014+A11: 2017) • Chemistry: CE-RoHS (2011/65/EU)EMC: • FCC (47 CFR Part 15, • Subpart B); • CE-EMC (EN 55032: 2015, • EN IEC 61000-3-2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011 +A1: 2014, • EN 55035: 2017); • IC (ICES-003: Issue 6); • RCM (ASNZS CISPR 32: 2015) Safety: • UL (UL 60950-1); • CB (IEC 60950-1:2005, • AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, • EN 62368-1: 2014+A11: 2017) Chemistry: • CE-RoHS (201165EU); • WEEE (201219EU); • Reach (Regulation (EC) No.19072006)EMC: • FCC (47 CFR Part 15, • Subpart B), • CE-EMC (EN 55032: 2015+A11: 2020, • EN IEC 61000-3-2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011+A1: 2014, • EN 55035: 2017+A11: 2020), • IC (ICES-003: Issue 7:2020), • RCM (AS/NZS CISPR 32: 2015) Safety: • UL (UL 60950-1), • CB (AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition), • CE-LVD (EN 62368-1: 2014+A11: 2017) • Chemistry: CE-RoHS (2011/65/EU)EMC: • CE-EMC (EN 55032: 2015+A11: 2020, • EN IEC 61000-3-2: 2019, • EN 61000-3-3: 2013+A1: 2019, • EN 50130-4: 2011+A1: 2014, • EN 55035: 2017+A11: 2020) Safety: • CB (AMD1:2009, • AMD2:2013, • IEC 62368-1: 2014 (Second Edition)), • CE-LVD (EN 62368- 1: 2014+A11: 2017) Chemistry: • CE-RoHS (201165EU); • WEEE (201219EU); • Reach (Regulation (EC) No.19072006)
Features• Shell: Metal material, fan-free design • Gross Weight: 1.11 kg (2.45 lb) • Installation Mode: Desk-Mounted,Rail • Surge Protection: 6 kV • MAC Address Table: 4 K • Internal Cache: 1.5 Mbits Long Range: • Ports 7 to 8: up to 300 m • Long range performance may vary depend on camera model or cable condition. • PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond. • Order Sap Order Model Type: Parameter Industrial 303703680 NDR-75-48: • AC/DC Power Supply, Output 48V-55V, 0-1.6A, 75watts, Input 90- • Power 264VAC, 127-370VDC, DIN rail, -20~70℃ Industrial 303703681 NDR-240-48: • AC/DC Power Supply, Output 48V-55V, 0-5A,240watts, Input 90- • Power 264VAC, 127-370VDC, DIN rail, -20~70℃• Shell: Metal material • Gross Weight: 2.20 kg (4.85 lb) • Installation Mode: Rack (equipped with mounting ears) • Surge Protection: 6 kV • MAC Address Table: 16 K • Internal Cache: 4 Mbits Long Range: • Ports 1 to 8: up to 300 m. • Long range performance may vary depend on camera model or cable condition. • PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond. QoS: • QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. • Support port-based priority configuration. • Support SP, WRR priority schedule mode. Loop Prevention: • Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. • Support 802.1D STP. • Suppport 802.1w RSTP. VLAN: • VLAN is used for network scale planning and network health improvement. • Support 802.1Q. • Configurable VLAN ID from 1-4094. • Support Trunk, Access port mode. • Support Max. 4094 VLAN.• Shell: Metal material, fan-free design • Gross Weight: 0.71 kg (1.57 lb) • Installation Mode: Desk-Mounted • Surge Protection: 6 kV • MAC Address Table: 4 K • Internal Cache: 1.5 Mbits Long Range: • Ports 7 to 8: up to 300 m • Long range performance may vary depend on camera model or cable condition. • PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond.• Shell: Metal material, IP40 • Gross Weight: 2.545 kg (5.61 lb) • Installation Mode: Rack (equipped with mounting ears) • Surge Protection: 6 kV • MAC Address Table: 8 K • Internal Cache: 4.1 Mbits Link Aggregation: • Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. • Support static link aggregation. • Support 8 aggregation groups. QoS: • QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. • Support port-based priority configuration. • Support SP and WRR priority scheduling modes. Loop Prevention: • Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. • Support 802.1D STP. • Support 802.1w RSTP. VLAN: • VLAN is used for network scale planning and network health improvement. • Support 802.1Q. • Configurable VLAN ID from 1-4094. • Support Trunk, Access port mode. • Support Max. 32 VLAN. DHCP Snooping: • DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow • DHCP packets from trusted ports to pass through. Disabled by default.
Dimensions197.0 mm × 114.2 mm × 42.2 mm (7.76'' × 4.50'' × 1.66'')266.00 mm × 44.50 mm × 220.80 mm (10.47'' × 1.75'' × 8.69'')217.6 mm × 108.55 mm × 27.8 mm (8.57'' × 4.27'' × 1.09'')335.00 mm × 44.50 mm × 175.80 mm (13.19'' × 1.75'' × 6.92'')
Weight0.585 kg (1.29 lb)1.72 kg (3.79 lb)0.59 kg (1.30 lb)1.62 kg (3.57 lb)
Power• Power Supply: 54 V DC, 2.5 A • Max. Power Consumption: 120 W • Power Consumption in Idle: 10 W• Power Supply: 100~240 V AC, 50/60 Hz, Max. 1.5 A • Max. Power Consumption: 150 W • Power Consumption in Idle: 5 W• Power Supply: 54 V DC, 2.22 A • Max. Power Consumption: 120 W • Power Consumption in Idle: 10 W• Power Supply: 220 V AC, 50/60 Hz, Max. 0.7 A • Max. Power Consumption: 13 W • Power Consumption in Idle: 5 W
